JSON

Contains JSON parsing and output utilities. More...

Collaboration diagram for JSON:

Data Structures
struct	json_walker_cookie_t
	JSON walker function for GET2 support. More...

Enumerations
enum	json_wr_tag_t
	type parser used in 3 separate modes

Functions
status_t	json_parse_top_identifier (ses_cb_t *scb, xml_msg_hdr_t *msg, obj_template_t *obj, const xmlChar **modname, const xmlChar **name, xmlChar **tempbuff)
	Parse a top-level JSON object;. More...
status_t	json_parse_text (ses_cb_t *scb, xml_msg_hdr_t *msg, obj_template_t *obj, dlq_hdr_t *returnQ)
	Parse token chain representing JSON Text. More...
status_t	json_parse_buffer (xmlChar *buff, obj_template_t *obj, dlq_hdr_t *returnQ)
	Parse buffer of JSON into val_value_t structs. More...
void	json_wr_start_object (ses_cb_t *scb, xml_msg_hdr_t *msg, const xmlChar *modname, const xmlChar *name, int32 startindent)
	generate start of a JSON object More...
void	json_wr_start_object_ex (ses_cb_t *scb, xml_msg_hdr_t *msg, const xmlChar *modname, const xmlChar *name, int32 startindent, boolean startbrace, boolean endbrace)
	generate start of a JSON object (extended version) More...
void	json_wr_start_object_val (ses_cb_t *scb, xml_msg_hdr_t *msg, val_value_t *val, int32 startindent)
	generate start of a JSON object based on val value tree More...
void	json_wr_start_object_obj (ses_cb_t *scb, xml_msg_hdr_t *msg, const xmlChar *modname, const xmlChar *name, obj_template_t *obj, int32 startindent)
	generate start of a JSON object based on val value tree; use OBJ to check the modname More...
void	json_wr_end_object (ses_cb_t *scb, xml_msg_hdr_t *msg, int32 startindent)
	generate end of a JSON object More...
void	json_wr_start_array (ses_cb_t *scb, xml_msg_hdr_t *msg, int32 startindent)
	generate start of a JSON array More...
void	json_wr_start_array_obj (ses_cb_t *scb, xml_msg_hdr_t *msg, const xmlChar *modname, const xmlChar *name, obj_template_t *obj, int32 startindent, boolean startbrace, boolean startbracket)
	generate start of a JSON array; use OBJ to check the modname More...

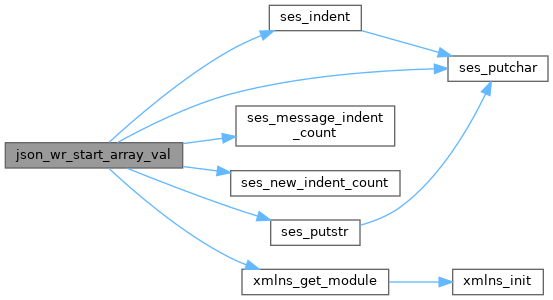

void	json_wr_start_array_val (ses_cb_t *scb, xml_msg_hdr_t *msg, val_value_t *val, int32 startindent, boolean startbrace, boolean startbracket)
	generate start of a JSON array; use value node More...
void	json_wr_end_array (ses_cb_t *scb, xml_msg_hdr_t *msg, int32 startindent)
	generate end of a JSON array More...
void	json_wr_simval_line (ses_cb_t *scb, xml_msg_hdr_t *msg, xmlns_id_t nsid, const xmlChar *namestr, const xmlChar *valstr, ncx_btype_t btyp, int32 startindent, boolean isfirst)
	generate 1 line for a simple value within a container or array More...
status_t	json_wr_max_check_val (ses_cb_t *scb, xml_msg_hdr_t *msg, xmlns_id_t parent_nsid, val_value_t *val, int32 startindent, val_nodetest_fn_t testfn, boolean isfirst, boolean islast, boolean isfirstchild, boolean isfirstsibling, boolean force_lastsibling, boolean force_lastsib_value, boolean force_array_obj)
	generate entire val_value_t *w/filter) More...
status_t	json_wr_max_check_val_force (ses_cb_t *scb, xml_msg_hdr_t *msg, xmlns_id_t parent_nsid, val_value_t *val, int32 startindent, val_nodetest_fn_t testfn, boolean isfirst, boolean islast, boolean isfirstchild, boolean isfirstsibling, boolean force_lastsibling, boolean force_lastsib_value, boolean force_array_obj, xmlns_id_t force_nsid, const xmlChar *force_name)
	generate entire val_value_t *w/filter) More...
status_t	json_wr_full_check_val (ses_cb_t *scb, xml_msg_hdr_t *msg, xmlns_id_t parent_nsid, val_value_t *val, int32 startindent, val_nodetest_fn_t testfn)
	generate entire val_value_t *w/filter) More...

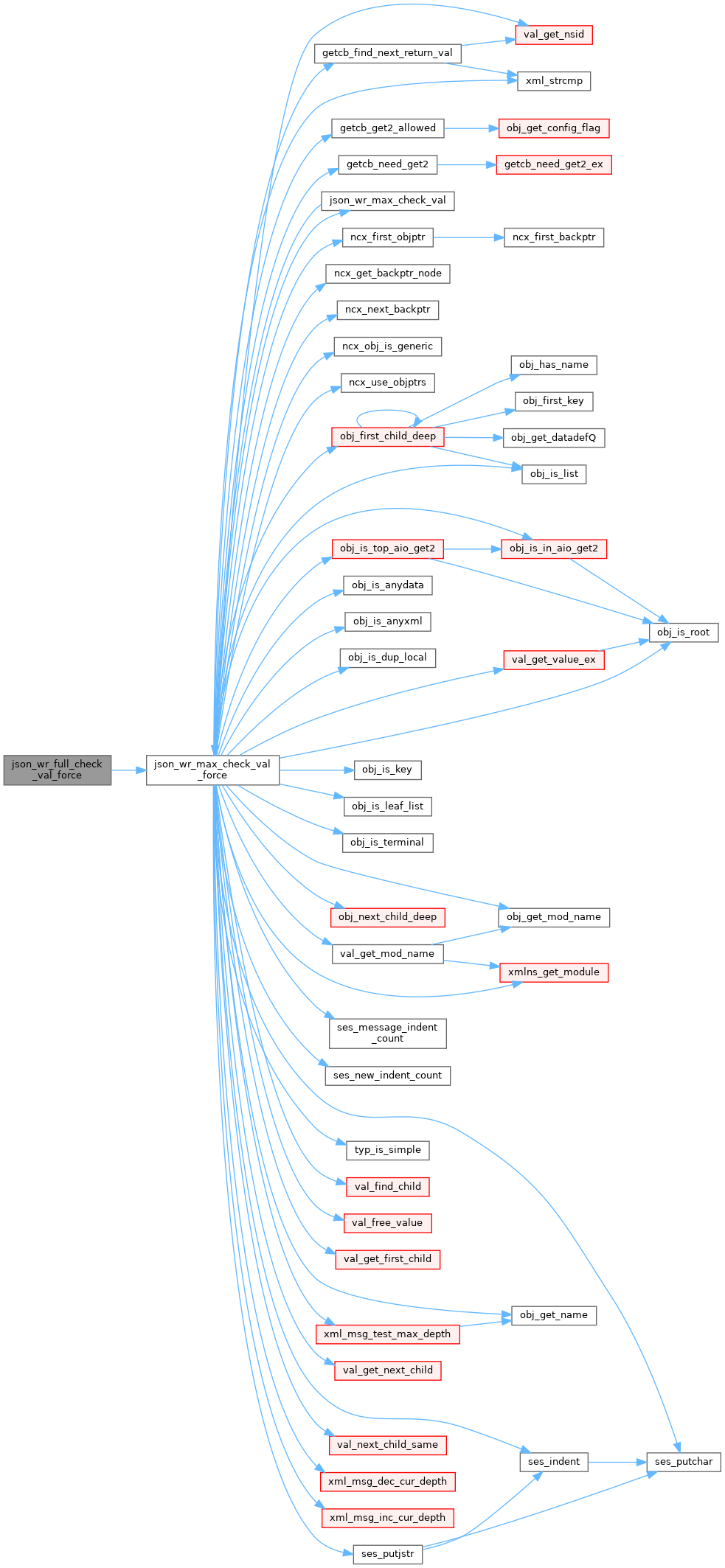

status_t	json_wr_full_check_val_force (ses_cb_t *scb, xml_msg_hdr_t *msg, xmlns_id_t parent_nsid, val_value_t *val, int32 startindent, val_nodetest_fn_t testfn, xmlns_id_t force_nsid, const xmlChar *force_name)
	generate entire val_value_t *w/filter) More...
status_t	json_wr_check_open_file (FILE *fp, val_value_t *val, int32 startindent, int32 indent, val_nodetest_fn_t testfn)
	Write the specified value to an open FILE in JSON format. More...
status_t	json_wr_check_open_file2 (FILE *fp, val_value_t *val, int32 startindent, int32 indent, val_nodetest_fn_t testfn, boolean modnames)
	Write the specified value to an open FILE in JSON format Allow JSON or JSON-IETF format. More...
status_t	json_wr_check_file (const xmlChar *filespec, val_value_t *val, int32 startindent, int32 indent, val_nodetest_fn_t testfn)
	Write the specified value to a FILE in JSON format. More...
status_t	json_wr_check_file2 (const xmlChar *filespec, val_value_t *val, int32 startindent, int32 indent, val_nodetest_fn_t testfn, boolean modnames)
	Write the specified value to a FILE in JSON format. More...
status_t	json_wr_file (const xmlChar *filespec, val_value_t *val, int32 startindent, int32 indent)
	Write the specified value to a FILE in JSON format. More...
status_t	json_wr_file2 (const xmlChar *filespec, val_value_t *val, int32 startindent, int32 indent, boolean modnames)
	Write the specified value to a FILE in JSON format. More...
void	json_wr_output_null (ses_cb_t *scb, int32 startindent)
	generate a null value; needed for printing empty <data> element which is done as a wrapper, not a real value node More...
void	json_wr_check_child_obj (ses_cb_t *scb, xml_msg_hdr_t *msg, val_value_t *val, obj_template_t *objnode, int32 indent, val_nodetest_fn_t testfn, boolean isfirst, boolean isfirstchild)
	generate entire val_value_t *w/filter) More...
void	json_wr_check_child_obj_ex (ses_cb_t *scb, xml_msg_hdr_t *msg, getcb_get2_t *parent_get2cb, obj_template_t *objnode, int32 indent, val_nodetest_fn_t testfn, boolean isfirst, boolean isfirstchild)
	generate entire val_value_t *w/filter) (extended version) More...

Detailed Description

Contains JSON parsing and output utilities.

JSON output functions.

Used by the client and server for RESTCONF protocol messages. Also used by yangcli-pro display-mode=json.

Generates plain or YANG JSON format.

Function Documentation

json_parse_buffer()

status_t json_parse_buffer	(	xmlChar *	buff,
		obj_template_t *	obj,
		dlq_hdr_t *	returnQ
	)

Parse buffer of JSON into val_value_t structs.

Defaults are not added to any objects Missing objects are not checked

A seperate parsing phase is used to fully validate the input contained in the returned val_value_t structs.

This parsing phase checks that simple types are complete and child members of complex types are valid (but maybe missing or incomplete child nodes).

Parameters

	buff	zero-terminated buffer to parse
	obj	obj_template_t for the object to parse
[out]	returnQ	address of Q to store parsed value results returnQ has 1 or more malloced val_value_t representing the parsed value(s); If top-level arry found then there may be more than 1 entry in the returnQ

Returns

return status

Here is the call graph for this function:

Here is the caller graph for this function:

json_parse_text()

status_t json_parse_text	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		obj_template_t *	obj,
		dlq_hdr_t *	returnQ
	)

Parse token chain representing JSON Text.

This function assumes that the msg->tkc token control block has been setup correctly in advance

     tkc = tk_new_chain();
     tk_setup_chain_json_buffs(tkc, ...);  (example!)
     tk_tokenize_input(tkc);

Makes sure that only allowed value strings or child nodes (and their values) are entered.

Defaults are not added to any objects Missing objects are not checked

A separate parsing phase is used to fully validate the input contained in the returned val_value_t structs.

This parsing phase checks that simple types are complete and child members of complex types are valid (but maybe missing or incomplete child nodes).

Parameters

	scb	session control block
[in,out]	msg	xml_msg header from the incoming RPC message msg->errQ may be appended with new errors
	obj	obj_template_t for the object to parse
[out]	returnQ	address of Q to store parsed value results returnQ has 1 or more malloced val_value_t representing the parsed value(s)

Returns

return status

Here is the call graph for this function:

Here is the caller graph for this function:

json_parse_top_identifier()

status_t json_parse_top_identifier	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		obj_template_t *	obj,
		const xmlChar **	modname,
		const xmlChar **	name,
		xmlChar **	tempbuff
	)

Parse a top-level JSON object;.

will be used only for the DATASTORE launchpoint in order to set request_target and obj

Parameters

	scb	session control block Input is read from scb->reader.
	msg	incoming RPC message Errors are appended to msg->errQ
	obj	object template to use for parsing
	modname	return module name pointer, may be NULL *modname modname of the identifier
[out]	name	return pointer to name of the node *name name of the node
[out]	tempbuff	buffer to write, must be freed by caller *tempbuff MALLOCED buffer to hold copy of current token This must be freed with m__free

Returns

return status

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_check_child_obj()

void json_wr_check_child_obj	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		val_value_t *	val,
		obj_template_t *	objnode,
		int32	indent,
		val_nodetest_fn_t	testfn,
		boolean	isfirst,
		boolean	isfirstchild
	)

generate entire val_value_t *w/filter)

Write an entire <get2> val_value_t out from the obj_template_t callback Using an optional testfn to filter output

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
val	parent of the object to write
objnode	child object node to write
indent	start indent amount if indent enabled
testfn	callback function to use, NULL if not used
isfirst	first node printed
isfirstchild	isfirstchild of whatever container

Here is the call graph for this function:

json_wr_check_child_obj_ex()

void json_wr_check_child_obj_ex	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		getcb_get2_t *	parent_get2cb,
		obj_template_t *	objnode,
		int32	indent,
		val_nodetest_fn_t	testfn,
		boolean	isfirst,
		boolean	isfirstchild
	)

generate entire val_value_t *w/filter) (extended version)

Write an entire <get2> val_value_t out from the obj_template_t callback Using an optional testfn to filter output.

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
parent_get2cb	parent get2 control block of the object to write
objnode	child object node to write
indent	start indent amount if indent enabled
testfn	callback function to use, NULL if not used
isfirst	first node printed
isfirstchild	isfirstchild of whatever container

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_check_file()

status_t json_wr_check_file	(	const xmlChar *	filespec,
		val_value_t *	val,
		int32	startindent,
		int32	indent,
		val_nodetest_fn_t	testfn
	)

Write the specified value to a FILE in JSON format.

Parameters

filespec	exact path of filename to open
val	value for output
startindent	starting indent point
indent	indent amount (0..9 spaces)
testfn	callback test function to use

Returns

status

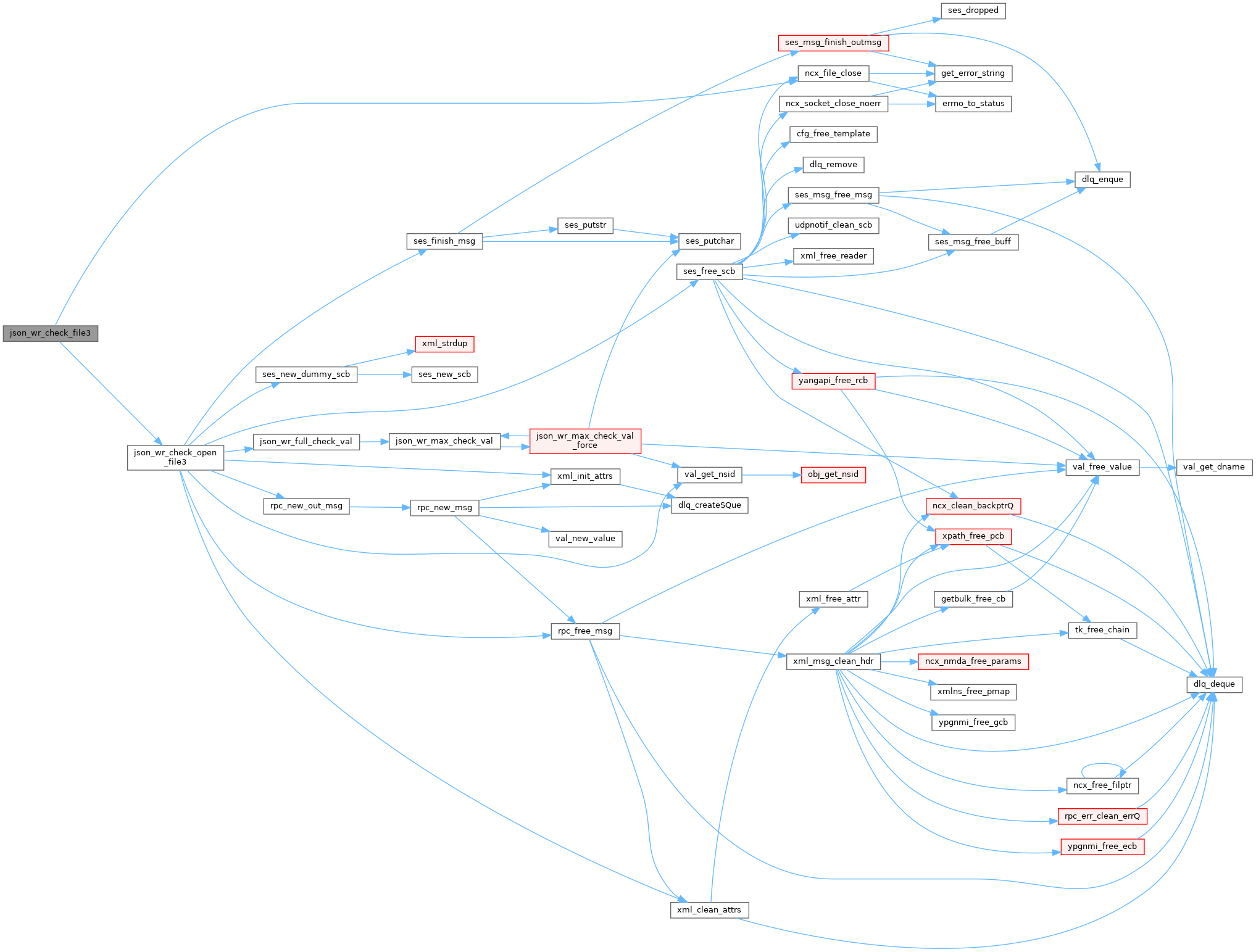

Here is the call graph for this function:

json_wr_check_file2()

status_t json_wr_check_file2	(	const xmlChar *	filespec,
		val_value_t *	val,
		int32	startindent,
		int32	indent,
		val_nodetest_fn_t	testfn,
		boolean	modnames
	)

Write the specified value to a FILE in JSON format.

Parameters

filespec	exact path of filename to open
val	value for output
startindent	starting indent point
indent	indent amount (0..9 spaces)
testfn	callback test function to use
modnames	TRUE for IETF-JSON; FALSE for plain JSON

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_check_open_file()

status_t json_wr_check_open_file	(	FILE *	fp,
		val_value_t *	val,
		int32	startindent,
		int32	indent,
		val_nodetest_fn_t	testfn
	)

Write the specified value to an open FILE in JSON format.

Parameters

fp	open FILE control block
val	value for output
startindent	starting indent point
indent	indent amount (0..9 spaces)
testfn	callback test function to use

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_check_open_file2()

status_t json_wr_check_open_file2	(	FILE *	fp,
		val_value_t *	val,
		int32	startindent,
		int32	indent,
		val_nodetest_fn_t	testfn,
		boolean	modnames
	)

Write the specified value to an open FILE in JSON format Allow JSON or JSON-IETF format.

Parameters

fp	open FILE control block
val	value for output
startindent	starting indent point
indent	indent amount (0..9 spaces)
testfn	callback test function to use
modnames	TRUE for IETF-JSON; FALSE for plain JSON

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_end_array()

void json_wr_end_array	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		int32	startindent
	)

generate end of a JSON array

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
startindent	start indent amount if indent enabled

Here is the call graph for this function:

json_wr_end_object()

void json_wr_end_object	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		int32	startindent
	)

generate end of a JSON object

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
startindent	start indent amount if indent enabled

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_file()

status_t json_wr_file	(	const xmlChar *	filespec,
		val_value_t *	val,
		int32	startindent,
		int32	indent
	)

Write the specified value to a FILE in JSON format.

Parameters

filespec	exact path of filename to open
val	value for output
startindent	starting indent point
indent	indent amount (0..9 spaces)

Returns

status

Here is the call graph for this function:

json_wr_file2()

status_t json_wr_file2	(	const xmlChar *	filespec,
		val_value_t *	val,
		int32	startindent,
		int32	indent,
		boolean	modnames
	)

Write the specified value to a FILE in JSON format.

Parameters

filespec	exact path of filename to open
val	value for output
startindent	starting indent point
indent	indent amount (0..9 spaces)
modnames	TRUE for IETF-JSON; FALSE for plain JSON

Returns

status

Here is the call graph for this function:

json_wr_full_check_val()

status_t json_wr_full_check_val	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		xmlns_id_t	parent_nsid,
		val_value_t *	val,
		int32	startindent,
		val_nodetest_fn_t	testfn
	)

generate entire val_value_t *w/filter)

Write an entire val_value_t out as XML, including the top level Using an optional testfn to filter output

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
parent_nsid	parent namespace ID; used if val->parent NULL
val	value to write
startindent	start indent amount if indent enabled
testfn	callback function to use, NULL if not used

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_full_check_val_force()

status_t json_wr_full_check_val_force	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		xmlns_id_t	parent_nsid,
		val_value_t *	val,
		int32	startindent,
		val_nodetest_fn_t	testfn,
		xmlns_id_t	force_nsid,
		const xmlChar *	force_name
	)

generate entire val_value_t *w/filter)

Write an entire val_value_t out as JSON, including the top level Using an optional testfn to filter output Force top-node nsid/name if set

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
parent_nsid	parent namespace ID; used if val->parent NULL
val	value to write
startindent	start indent amount if indent enabled
testfn	callback function to use, NULL if not used
force_nsid	top-level NSID to use instead of val (if set)
force_name	top-level name to use instead of val (if set)

Returns

status

Here is the call graph for this function:

json_wr_max_check_val()

status_t json_wr_max_check_val	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		xmlns_id_t	parent_nsid,
		val_value_t *	val,
		int32	startindent,
		val_nodetest_fn_t	testfn,
		boolean	isfirst,
		boolean	islast,
		boolean	isfirstchild,
		boolean	isfirstsibling,
		boolean	force_lastsibling,
		boolean	force_lastsib_value,
		boolean	force_array_obj
	)

generate entire val_value_t *w/filter)

Write an entire val_value_t out as XML, including the top level Using an optional testfn to filter output Maximum parameters exposed

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
parent_nsid	parent namespace ID; used if val->parent NULL
val	value to write
startindent	start indent amount if indent enabled
testfn	callback function to use, NULL if not used
isfirst	TRUE if this is the first (top) val printed
islast	TRUE if this is the last (top) val printed
isfirstchild	TRUE if this is the first child of a parent node FALSE if this is the 2nd - Nth value of an array
isfirstsibling	TRUE if this is the first value of an array FALSE if this is the 2nd - Nth value of an array
force_lastsibling	TRUE to force this as the last sibling; TRUE or FALSE to check the sibling of 'val'
force_lastsib_value	TRUE to force this as the last sibling FALSE to force this as not the last sibling; ignore if force_lastsibling is FALSE
force_array_obj	TRUE to treat select leafs and containers as leaf-lists and lists which normally have only 1 instance in their actual context, but select removes the context

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_max_check_val_force()

status_t json_wr_max_check_val_force	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		xmlns_id_t	parent_nsid,
		val_value_t *	val,
		int32	startindent,
		val_nodetest_fn_t	testfn,
		boolean	isfirst,
		boolean	islast,
		boolean	isfirstchild,
		boolean	isfirstsibling,
		boolean	force_lastsibling,
		boolean	force_lastsib_value,
		boolean	force_array_obj,
		xmlns_id_t	force_nsid,
		const xmlChar *	force_name
	)

generate entire val_value_t *w/filter)

Write an entire val_value_t out as JSON, including the top level Using an optional testfn to filter output Maximum parameters exposed Force top-node nsid/name if set

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
parent_nsid	parent namespace ID; used if val->parent NULL
val	value to write
startindent	start indent amount if indent enabled
testfn	callback function to use, NULL if not used
isfirst	TRUE if this is the first (top) val printed
islast	TRUE if this is the last (top) val printed
isfirstchild	TRUE if this is the first child of a parent node FALSE if this is the 2nd - Nth value of an array
isfirstsibling	TRUE if this is the first value of an array FALSE if this is the 2nd - Nth value of an array
force_lastsibling	TRUE to force this as the last sibling; TRUE or FALSE to check the sibling of 'val'
force_lastsib_value	TRUE to force this as the last sibling FALSE to force this as not the last sibling; ignore if force_lastsibling is FALSE
force_array_obj	TRUE to treat select leafs and containers as leaf-lists and lists which normally have only 1 instance in their actual context, but select removes the context
force_nsid	top-level NSID to use instead of val (if set)
force_name	top-level name to use instead of val (if set)

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_output_null()

void json_wr_output_null	(	ses_cb_t *	scb,
		int32	startindent
	)

generate a null value; needed for printing empty <data> element which is done as a wrapper, not a real value node

Parameters

scb	session control block
startindent	start indent amount if indent enabled

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_simval_line()

void json_wr_simval_line	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		xmlns_id_t	nsid,
		const xmlChar *	namestr,
		const xmlChar *	valstr,
		ncx_btype_t	btyp,
		int32	startindent,
		boolean	isfirst
	)

generate 1 line for a simple value within a container or array

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
nsid	active namespace ID
namestr	complete name string has module name already if needed NULL to skip (inside an array)
valstr	value string to write (NULL for empty types)
btyp	basetype of the value before translated to string
startindent	start indent amount if indent enabled
isfirst	== TRUE if this is the first line; FALSE if not

Here is the call graph for this function:

json_wr_start_array()

void json_wr_start_array	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		int32	startindent
	)

generate start of a JSON array

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
startindent	start indent amount if indent enabled

Here is the call graph for this function:

json_wr_start_array_obj()

void json_wr_start_array_obj	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		const xmlChar *	modname,
		const xmlChar *	name,
		obj_template_t *	obj,
		int32	startindent,
		boolean	startbrace,
		boolean	startbracket
	)

generate start of a JSON array; use OBJ to check the modname

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
modname	module name of JSON object (NULL to omit)
name	name of JSON object
obj	object to use
startindent	start indent amount if indent enabled
startbrace	TRUE to print start brace
startbracket	TRUE to print start bracket

Here is the call graph for this function:

json_wr_start_array_val()

void json_wr_start_array_val	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		val_value_t *	val,
		int32	startindent,
		boolean	startbrace,
		boolean	startbracket
	)

generate start of a JSON array; use value node

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
val	value node to output
startindent	start indent amount if indent enabled
startbrace	TRUE to print start brace
startbracket	TRUE to print start bracket

Here is the call graph for this function:

json_wr_start_object()

void json_wr_start_object	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		const xmlChar *	modname,
		const xmlChar *	name,
		int32	startindent
	)

generate start of a JSON object

Parameters

scb	session control block to use for writing
msg	xml_msg_hdr_t in progress
modname	module name of JSON object (NULL to omit)
name	name of JSON object
startindent	start indent amount if indent enabled

Here is the call graph for this function:

Here is the caller graph for this function:

json_wr_start_object_ex()

void json_wr_start_object_ex	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		const xmlChar *	modname,
		const xmlChar *	name,
		int32	startindent,
		boolean	startbrace,
		boolean	endbrace
	)

generate start of a JSON object (extended version)

Parameters

scb	session control block to use for writing
msg	xml_msg_hdr_t in progress
modname	module name of JSON object (NULL to omit)
name	name of JSON object
startindent	start indent amount if indent enabled
startbrace	TRUE to print start brace
endbrace	TRUE to print start brace

Here is the call graph for this function:

json_wr_start_object_obj()

void json_wr_start_object_obj	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		const xmlChar *	modname,
		const xmlChar *	name,
		obj_template_t *	obj,
		int32	startindent
	)

generate start of a JSON object based on val value tree; use OBJ to check the modname

Parameters

scb	session control block to use for writing
msg	xml_msg_hdr_t in progress
modname	module name of JSON object (NULL to omit)
name	name of JSON object
obj	object template to use for JSON start
startindent	start indent amount if indent enabled

Here is the call graph for this function:

json_wr_start_object_val()

void json_wr_start_object_val	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		val_value_t *	val,
		int32	startindent
	)

generate start of a JSON object based on val value tree

Generate start JSON for a val_value_t struct

Parameters

scb	session control block
msg	xml_msg_hdr_t in progress
val	value node to output
startindent	start indent amount if indent enabled

Here is the call graph for this function:
