High level value node utility functions. More...

Collaboration diagram for Value Node Utility Functions:

Data Structures
struct	val_getbulk_return_t
	return value for a getbulk callback function More...

Typedefs
typedef boolean(*	val_nodetest_fn_t) (xml_msg_hdr_t mhdr, ncx_withdefaults_t withdef, boolean realtest, val_value_t node)
	user function callback template to test output of a specified node. More...

typedef status_t(*	val_getbulk_cbfn_t) (obj_template_t obj, uint32 start_idx, uint32 max_count, uint32 max_depth, val_nodetest_fn_t node_test_fn, val_getbulk_return_t getbulk_return)
	user function callback template to bulk get operational values of a specified node. More...

Functions
void	val_set_canonical_order (val_value_t *val)
	Set canonical order No longer used. More...

status_t	val_gen_index_comp (const obj_key_t in, val_value_t val)
	Create an index component. More...

status_t	val_gen_key_entry (val_value_t *keyval)
	Create a key record within an index comp. More...

status_t	val_gen_index_chain (const obj_template_t obj, val_value_t val)
	Create an index chain for the just-parsed table or container struct. More...

status_t	val_add_defaults (val_value_t *val, boolean scriptmode)
	Add defaults to an initialized complex value. More...

status_t	val_add_defaults_ex (val_value_t val, boolean scriptmode, runstack_context_t rcxt, time_t last_modified, ncx_etag_t etag)
	add defaults to an initialized complex value (extended) More...

status_t	val_add_node_defaults (obj_template_t chobj, val_value_t val, boolean scriptmode, time_t last_modified, ncx_etag_t etag)
	Check/Add defaults for the specified node and descendant nodes. More...

status_t	val_add_npcons (val_value_t *val)
	Check/Add empty NP containers. More...

status_t	val_instance_check (val_value_t root, val_value_t val, obj_template_t *obj)
	Check for the proper number of object instances for the specified value struct. More...

status_t	val_instance_check_ex (val_value_t root, val_value_t val, obj_template_t *obj, boolean check_when)
	Check for the proper number of object instances for the specified value struct. More...

status_t	val_instance_check_max (val_value_t root, val_value_t val, obj_template_t obj, boolean check_when, boolean check_deep, ses_cb_t scb, xml_msg_hdr_t *msg)
	Check for the proper number of object instances for the specified value struct. More...

val_value_t *	val_get_choice_first_set (val_value_t val, const obj_template_t obj)
	Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set. More...

val_value_t *	val_get_choice_first_set_full (val_value_t val, const obj_template_t obj)
	Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set Get the value struct for the first value set for the specified choice. More...

val_value_t *	val_get_choice_first_set_ex (val_value_t val, const obj_template_t obj, boolean nondef)
	Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set Get the value struct for the first value set for the specified choice. More...

val_value_t *	val_get_choice_next_set (const obj_template_t obj, val_value_t curchild)
	Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set Get the value struct for the next value set from the specified choice, afvter 'curval'. More...

boolean	val_choice_is_set (val_value_t val, obj_template_t obj)
	Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set. More...

void	val_purge_errors_from_root (val_value_t *val)
	Remove any error nodes under a root container that were saved for error recording purposes. More...

val_value_t *	val_new_child_val (xmlns_id_t nsid, const xmlChar name, boolean copyname, val_value_t parent, op_editop_t editop, obj_template_t *obj)
	Internal function used by server to create a new child value. More...

status_t	val_gen_instance_id (xml_msg_hdr_t mhdr, const val_value_t val, ncx_instfmt_t format, xmlChar **buff)
	Malloc and Generate the instance ID string for this value node,. More...

status_t	val_gen_instance_id_ex (xml_msg_hdr_t mhdr, const val_value_t val, ncx_instfmt_t format, boolean stop_at_root, xmlChar **buff)
	Malloc and Generate the instance ID string for this value node,. More...

status_t	val_gen_instance_id_ex2 (xml_msg_hdr_t mhdr, const val_value_t val, const val_value_t stopval, ncx_instfmt_t format, boolean stop_at_root, xmlChar *buff)
	Malloc and Generate the instance ID string for this value node,. More...

status_t	val_gen_split_instance_id (xml_msg_hdr_t mhdr, const val_value_t val, ncx_instfmt_t format, xmlns_id_t leaf_nsid, const xmlChar leaf_name, boolean stop_at_root, xmlChar *buff)
	Malloc and Generate the instance ID string for this value node, Add the last node from the parameters, not the value node. More...

status_t	val_get_index_string (xml_msg_hdr_t mhdr, ncx_instfmt_t format, boolean force_quotes, const val_value_t val, xmlChar buff, uint32 len)
	Get the index string for the specified table or container entry. More...

status_t	val_check_obj_when (val_value_t val, val_value_t valroot, val_value_t objval, obj_template_t obj, boolean condresult, uint32 whencount)
	checks when-stmt only More...

status_t	val_check_obj_when_ex (val_value_t val, val_value_t valroot, val_value_t objval, obj_template_t obj, xml_msg_hdr_t mhdr, boolean configonly, boolean get_when, ses_cb_t pcb_session, struct xpath_get2_cb_t_ parent_cb, boolean condresult, uint32 *whencount)
	checks when-stmt only (extended) More...

status_t	val_remove_false_when (val_value_t val, boolean deleteme)
	Remove false when-stmt nodes. More...

status_t	val_remove_false_when_error (const xmlChar name, val_value_t val, obj_template_t obj, boolean is_error, boolean real_delete, boolean deleteme)
	Remove false when-stmt nodes with error. More...

xpath_pcb_t *	val_get_xpathpcb (val_value_t *val)
	Get the XPath parser control block in the specified value struct. More...

const xpath_pcb_t *	val_get_const_xpathpcb (const val_value_t *val)
	Get the XPath parser control block in the specified value struct. More...

status_t	val_copy_xpathpcb (val_value_t val, const xpath_pcb_t xpathpcb)
	Set the xpathpcb field with a clone of the parameter. More...

status_t	val_set_xpathpcb (val_value_t val, xpath_pcb_t xpathpcb)
	Set the xpathpcb field with passed field;. More...

val_value_t *	val_make_simval_obj (obj_template_t obj, const xmlChar valstr, status_t *res)
	Create and set a val_value_t as a simple type from an object template instead of individual fields Calls val_make_simval with the object settings. More...

status_t	val_set_simval_obj (val_value_t val, obj_template_t obj, const xmlChar *valstr)
	Set an initialized val_value_t as a simple type. More...

val_value_t *	val_make_binary_obj (obj_template_t obj, const xmlChar binstr, uint32 binstrlen, status_t *res)
	Malloc and set a val_value_t as a NCX_BT_BINARY type. More...

val_value_t *	val_make_idref_obj (obj_template_t obj, const val_idref_t leafval, status_t *res)
	make a val_value_t for a specified leaf or leaf-list identityref More...

val_value_t *	val_make_identity_obj (obj_template_t obj, typ_def_t typdef, ncx_identity_t ident, status_t res)
	make a val_value_t for a specified leaf or leaf-list from an identity More...

status_t	val_set_warning_parms (val_value_t *parentval)
	Check the parent value struct (expected to be a container or list) for the common warning control parameters. More...

status_t	val_set_logging_parms (val_value_t *parentval)
	Check the parent value struct (expected to be a container or list) for the common logging control parameters. More...

status_t	val_set_logging_parms_ex (val_value_t parentval, const xmlChar fhs_logfile)
	Check the parent value struct (expected to be a container or list) for the full set of logging control parameters. More...

status_t	val_set_path_parms (val_value_t *parentval)
	Set the main search paths for files. More...

status_t	val_set_subdirs_parm (val_value_t *parentval)
	set the subdirs parameter More...

status_t	val_set_feature_parms (val_value_t *parentval)
	Handle the YANG feature parameter set. More...

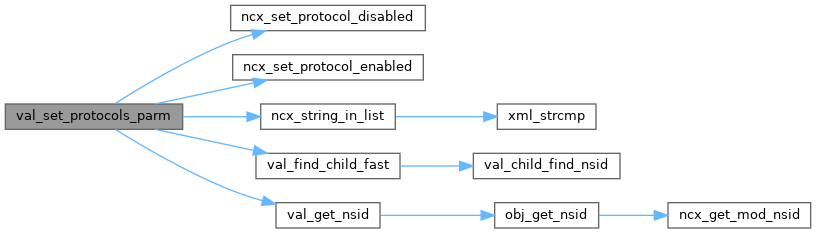

status_t	val_set_protocols_parm (val_value_t *parentval)
	Handle the –protocols parameter. More...

status_t	val_set_ses_protocols_parm (ses_cb_t scb, val_value_t parentval)
	Handle the -protocols parameter for a session. More...

status_t	val_set_message_indent_parm (val_value_t *parentval)
	Handle the message-indent parameter. More...

status_t	val_set_home_parms (val_value_t *parentval)
	Handle the home and yumapro-home parameters. More...

status_t	val_set_with_ocpattern_parm (val_value_t *parentval)
	Handle the –with-ocpattern parameter. More...

status_t	val_set_errmsg_parm (val_value_t *parentval)
	Check the parent value struct (expected to be a container or list) for the errmsg parameter. More...

status_t	val_ok_to_partial_lock (val_value_t val, ses_id_t sesid, ses_id_t lockowner)
	Check if the specified root val could be locked right now by the specified session. More...

status_t	val_set_partial_lock (val_value_t val, plock_cb_t plcb)
	Set the partial lock throughout the value tree. More...

void	val_clear_partial_lock (val_value_t val, plock_cb_t plcb)
	Clear the partial lock throughout the value tree. More...

status_t	val_write_ok (val_value_t val, op_editop_t editop, ses_id_t sesid, boolean checkup, uint32 lockid)
	Check if there are any partial-locks owned by another session in the node that is going to be written. More...

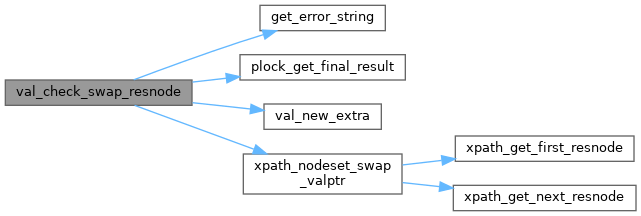

void	val_check_swap_resnode (val_value_t curval, val_value_t newval)
	Maintain partial locks; Used by server only. More...

void	val_check_delete_resnode (val_value_t *curval)
	Check if the curnode has any partial locks and if so, remove them from the final result. More...

void	val_write_extern (ses_cb_t scb, const val_value_t val)
	Write an external file to the session. More...

void	val_write_intern (ses_cb_t scb, const val_value_t val)
	Write an internal buffer to the session. More...

val_value_t *	val_get_value (ses_cb_t scb, xml_msg_hdr_t msg, val_value_t val, val_nodetest_fn_t testfn, boolean acmcheck, boolean malloced, status_t *res)
	Get the value for a node after lots of internal processing. More...

val_value_t *	val_get_value_ex (ses_cb_t scb, xml_msg_hdr_t msg, val_value_t val, val_nodetest_fn_t testfn, boolean acmcheck, boolean malloced, status_t res, void get2cb)
	Get the value for a node after lots of internal processing (extended) More...

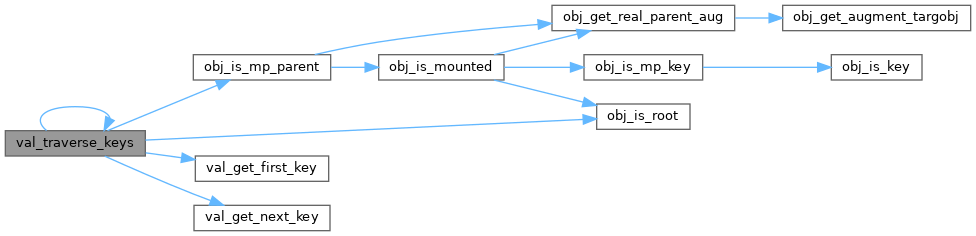

void	val_traverse_keys (val_value_t val, void cookie1, void *cookie2, val_walker_fn_t walkerfn)
	Check ancestor-or-self nodes until root reached. More...

status_t	val_build_index_chains (val_value_t *val)
	Build index chains for a value if needed. More...

status_t	val_cache_datarule (val_value_t val, void rule)
	Set the data-rule back-ptr for this node. More...

void	val_clear_datarule (val_value_t val, const void rule)
	Clear the datarule back-ptr for this node. More...

boolean	val_match_datarule (const val_value_t val, void rule)
	Check if the data-rule back-ptr applies to this node. More...

val_value_t *	val_find_list_from_keyvalQ (val_value_t parentval, val_value_t firstmatch, dlq_hdr_t keyvalQ, status_t res)
	Find the list entry identified by the Q of yangapi_keyval_t strings. More...

status_t	val_move_config_false (val_value_t newval, val_value_t curval)
	Move the config false data nodes. More...

status_t	val_add_one_operation_attr (val_value_t *val, op_editop_t op)
	Add the nc:operation attribute to a value node. More...

val_value_t *	val_make_config_root (void)
	Make a <config> element. More...

status_t	val_expand_var_expr (val_value_t val, xmlChar *retstr)
	Expand the variable expression if found. More...

void	val_fixup_config_subtree (val_value_t *val, xmlns_id_t fixup_id)
	Look for a config subtree (obj_is_root) and make sure all the value nodes in the subtree have proper NSID set. More...

status_t	val_gen_keyptrs (val_value_t val, dlq_hdr_t keyptrQ)
	Get all the keys for the specified data node object. More...

status_t	val_gen_keyclones (val_value_t val, dlq_hdr_t keyQ)
	Get all the keys for the specified data node object. More...

status_t	val_add_datapath_attr (val_value_t val, obj_template_t obj)
	Add the ye:datapath attribute to a node that is tagged as an ywx:datapath node. More...

status_t	val_add_fixed_value_attr (val_value_t *val)
	Add the ywx:fixed-value attribute to a key value node Set it to true since false is the default. More...

boolean	val_is_fixed_value (val_value_t *val)
	Check if the specified value has a fixed-value=true attribute set in it. More...

status_t	val_add_btype_attr (val_value_t *val, ncx_btype_t btype)
	Add the ye:btype attribute to a <key> node for a SIL-SA edit. More...

status_t	val_convert_anyxml_to_real (val_value_t anyxml_val, val_value_t real_val, val_value_t **error_val)
	Convert anydata nodes to match a real template. More...

val_value_t *	val_make_internal_value (const xmlChar name, const xmlChar value)
	Create an NCX_BT_INTERNAL value that contains the raw XML for the value node. More...

val_value_t *	val_make_external_value (obj_template_t obj, xmlChar fname)
	Make an external value node. More...

boolean	val_simple_anyxml (const val_value_t *val)
	Check if val_value node is a proper simple type ANYXML. More...

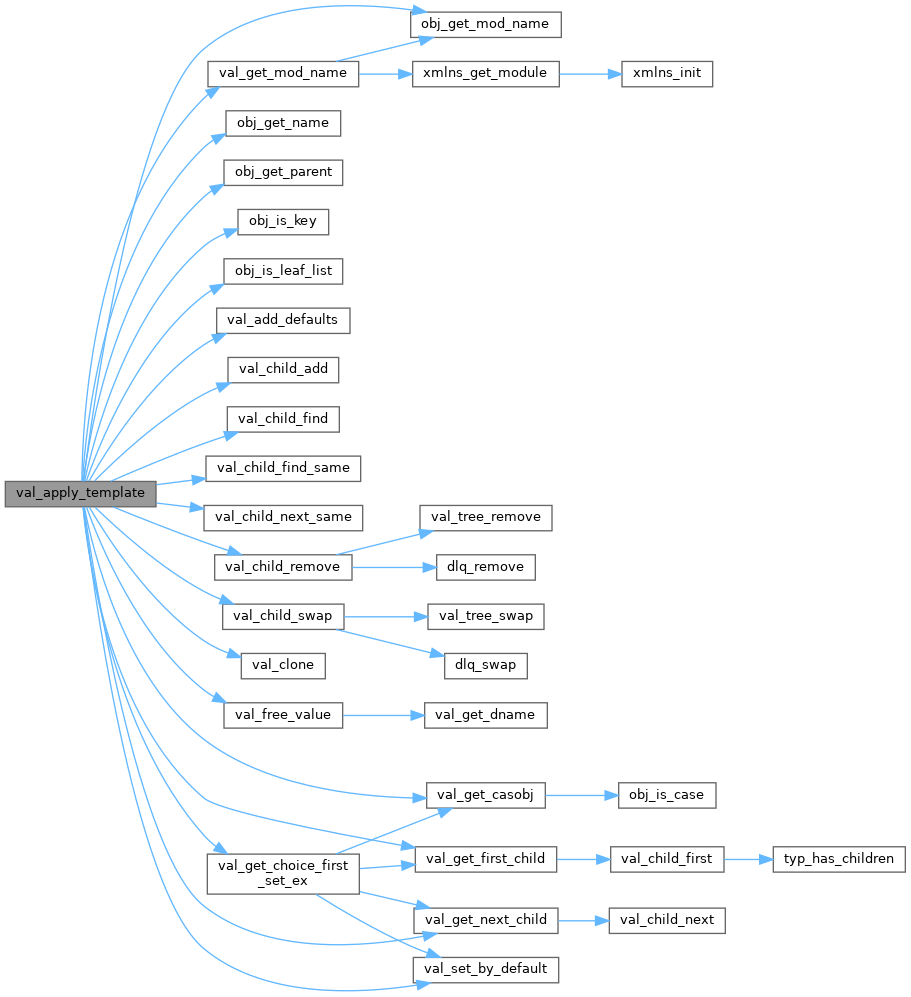

status_t	val_apply_template (val_value_t template_val, val_value_t target_val)
	Apply the specified template to the val_value_t node. More...

status_t	val_convert_children (val_value_t srcval, val_value_t destval)
	Convert children nodes to the template node. More...

void	val_set_children_load (val_value_t *val)
	Flag the CLI parameters coming from the command line. More...

void	val_merge_return_vals (dlq_hdr_t srcQ, dlq_hdr_t dstQ)
	Merge return values into a dest Q Remove duplicates. More...

status_t	val_set_binary_display_maxlen_parm (val_value_t *parentval)
	Handle the –binary-display-maxlen parameter. More...

status_t	val_validate_value (val_value_t *useval)
	Verify that the value is valid and can be safely used later Used in the SIL code to ensure that the created value is correct. More...

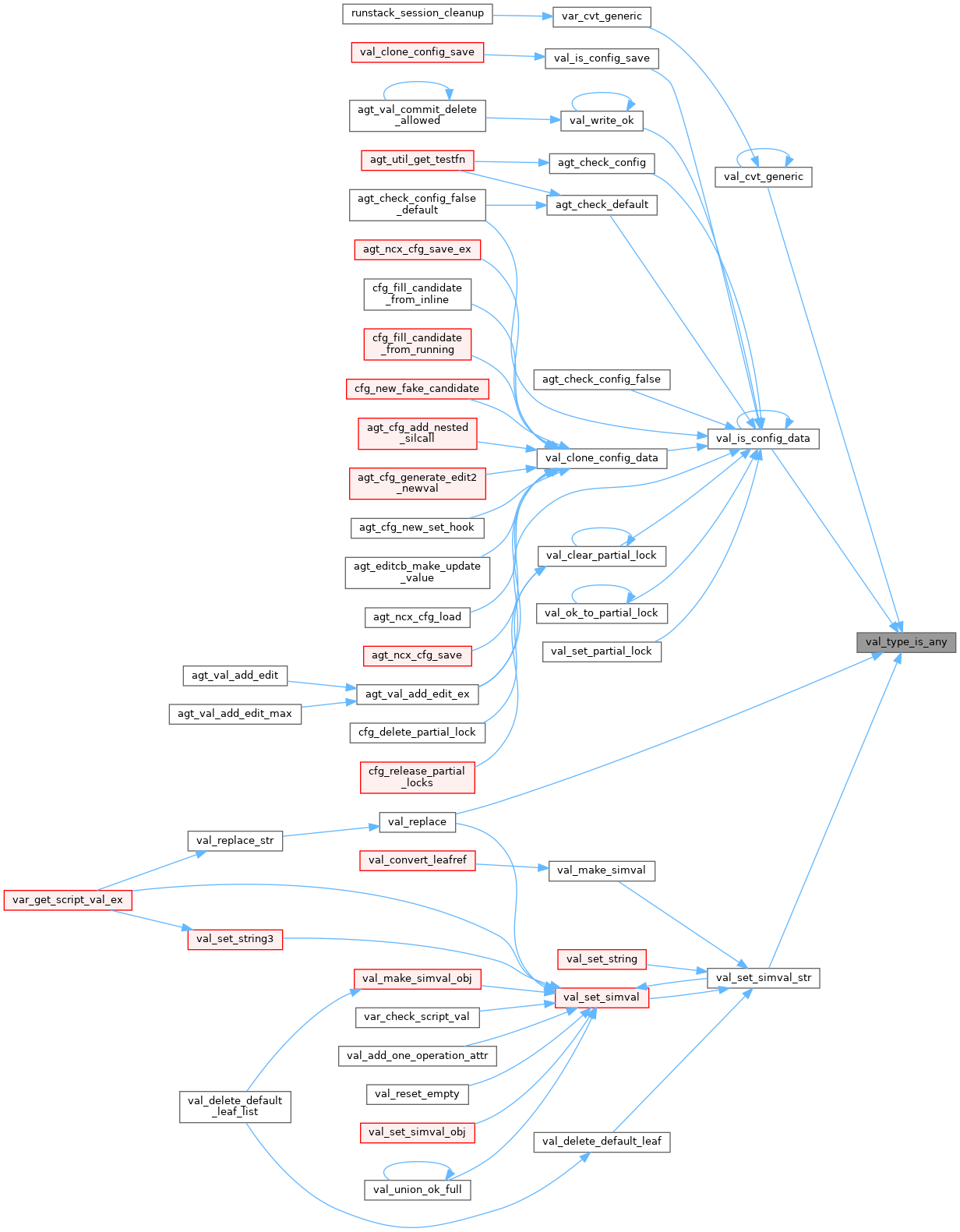

boolean	val_type_is_any (const val_value_t *val)
	Check if val_value node is a proper simple type ANYXML. More...

ncx_nmda_origin_t	val_get_origin (const val_value_t *val)
	Get the NMDA origin value for this node. More...

void	val_set_origin (val_value_t *val, ncx_nmda_origin_t origin)
	Set the NMDA value origin. More...

obj_template_t *	val_get_casobj (val_value_t *val)
	Get the case object for the value node. More...

void	val_set_anyxml_tracking (val_value_t val, obj_template_t obj)
	Set the anyxml tracking data for this node. More...

void	val_get_anyxml_tracking (const val_value_t val, boolean iskey, boolean isconfig, boolean isunknown)
	Set the anyxml tracking data for this node. More...

xmlns_id_t	val_get_idref_nsid (const val_value_t *val)
	get the true namespace ID for the identityref value More...

void	val_dump_cli_valset (const char progname, val_value_t valset)
	dump the parameter set with and without defaults More...

status_t	val_make_subtree (obj_template_t obj, dlq_hdr_t keyQ, val_value_t topval, val_value_t targetval)
	Create a hierarchy from root to the target object. More...

val_value_t *	val_find_descendant (val_value_t val, const xmlChar modname, const xmlChar *name)
	Find the fist available descendant matching the name also check seld. More...

val_value_t *	val_make_from_enumval (obj_template_t obj, int32 enumval, status_t res)
	Create an enumeration leaf from its enum value. More...

val_value_t *	val_make_from_num (obj_template_t obj, typ_def_t typdef, ncx_btype_t btyp, const ncx_num_t num, status_t res)
	Create a numeric leaf from a ncx_num_t struct. More...

val_value_t *	val_make_from_bitstring (obj_template_t obj, typ_def_t typdef, const xmlChar buff, uint32 bufflen, status_t res)
	Make a val_value_t with the bits set in the octet string. More...

status_t	val_set_tcp_connect_parms (val_value_t *parentval)
	Set TCP Connect parameters. More...

val_value_t *	val_find_notif (val_value_t *topval)
	Check the 'topval' node for a nested notification node. More...

void	val_force_dataclass_config (val_value_t *val)
	Set the dataclass field to NCX_DC_CONFIG in the 'val' data tree More...

status_t	val_check_deprecated_warning (val_value_t *val)
	Check if any values in the val_value_t are deprecated YANG nodes. More...

Detailed Description

High level value node utility functions.

This module contains APIs that use obj_template_t which are simpler to use than the core functions that rely on typ_def_t and other individual data fields.

Some important APIs like val_gen_index_chain and val_make_simval_obj are used by SIL and SIL-SA code.

Typedef Documentation

◆ val_getbulk_cbfn_t

typedef status_t(* val_getbulk_cbfn_t) (obj_template_t *obj, uint32 start_idx, uint32 max_count, uint32 max_depth, val_nodetest_fn_t node_test_fn, val_getbulk_return_t *getbulk_return)

user function callback template to bulk get operational values of a specified node.

val_getbulk_cbfn_t

Run a user-defined get callback function

Parameters

	obj	object template for the retrieval (list or leaf-list)
	start_idx	integer offset of the list or leaf-list instance to start the return. First entry is zero.
	max_count	integer count of max number of entries that can fit in the return array. This number is 1..N
	max_depth	integer sount to descendant levels to retrieve in each entry. Value zero means no limit
	node_test_fn	callback to test the node to keep or not
[out]	getbulk_return	address of return getbulk data struct *getbulk_return is filled in, according to val_getbulk_return_t struct instructions

Returns: status of the operation

◆ val_nodetest_fn_t

typedef boolean(* val_nodetest_fn_t) (xml_msg_hdr_t *mhdr, ncx_withdefaults_t withdef, boolean realtest, val_value_t *node)

user function callback template to test output of a specified node.

This callback supports the XPath node-test rule: val_nodetest_fn_t

Run a user-defined test on the supplied node, and determine if it should be output or not.

Parameters

mhdr	message header
withdef	with-defaults value in affect
realtest	FALSE to just check object properties in the val->obj template TRUE if OK to check the other fields
node	pointer to the value struct to check

Returns: TRUE if the node should be output
FALSE if the node should be skipped

Function Documentation

◆ val_add_btype_attr()

status_t val_add_btype_attr	(	val_value_t *	val,
		ncx_btype_t	btype
	)

Add the ye:btype attribute to a <key> node for a SIL-SA edit.

Parameters

val	value node to add attribute into
btype	basetype to use in attribute value

Returns: status

Here is the call graph for this function:

◆ val_add_datapath_attr()

status_t val_add_datapath_attr	(	val_value_t *	val,
		obj_template_t *	obj
	)

Add the ye:datapath attribute to a node that is tagged as an ywx:datapath node.

Parameters

val	value node to add attribute into
obj	object template to use for object identifier

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_add_defaults()

status_t val_add_defaults	(	val_value_t *	val,
		boolean	scriptmode
	)

Add defaults to an initialized complex value.

Go through the specified value struct and add in any defaults for missing leaf and choice nodes, that have defaults.

  !!! Only the child nodes will be checked for missing defaults
  !!! The top-level value passed to this function is assumed to
  !!! be already set

This function does not handle top-level choice object subtrees. This special case must be handled with the datadefQ for the module. If a top-level leaf value is passed in, which is from a top-level choice case-arm, then the rest of the case-arm objects will not get added by this function.

It is assumed that even top-level data-def-stmts will be handled within a <config> container, so the top-level object should always a container.

Parameters

[in,out]	val	the value struct to modify *val and any sub-nodes are set to the default value as requested
	scriptmode	TRUE if the value is a script object access FALSE for normal val_get_simval access instead

Returns: status

Here is the caller graph for this function:

◆ val_add_defaults_ex()

status_t val_add_defaults_ex	(	val_value_t *	val,
		boolean	scriptmode,
		runstack_context_t *	rcxt,
		time_t	last_modified,
		ncx_etag_t	etag
	)

add defaults to an initialized complex value (extended)

Go through the specified value struct and add in any defaults for missing leaf and choice nodes, that have defaults. Use a runstack_contect for adding defaults!!

  !!! Only the child nodes will be checked for missing defaults
  !!! The top-level value passed to this function is assumed to
  !!! be already set

This function does not handle top-level choice object subtrees. This special case must be handled with the datadefQ for the module. If a top-level leaf value is passed in, which is from a top-level choice case-arm, then the rest of the case-arm objects will not get added by this function.

It is assumed that even top-level data-def-stmts will be handled within a <config> container, so the top-level object should always a container.

Parameters

[in,out]	val	the node to add defaults into; expecting container or list to check the descendant nodes *val->indexQ has entries added for each index component, if NO_ERR
	scriptmode	TRUE if the value is a script object access FALSE for normal val_get_simval access instead
	rcxt	runstack contect to use (may be NULL)
	last_modified	timestamp to set in new value
	etag	entity tag to set in new value

Returns: status

Here is the caller graph for this function:

◆ val_add_fixed_value_attr()

status_t val_add_fixed_value_attr ( val_value_t * val )

Add the ywx:fixed-value attribute to a key value node Set it to true since false is the default.

Parameters

val	value node to add attribute into

Returns: status

Here is the call graph for this function:

◆ val_add_node_defaults()

status_t val_add_node_defaults	(	obj_template_t *	chobj,
		val_value_t *	val,
		boolean	scriptmode,
		time_t	last_modified,
		ncx_etag_t	etag
	)

Check/Add defaults for the specified node and descendant nodes.

This function is called from the server only

Parameters

chobj	top-lvel object to add defaults to
val	the node to add defaults into; expecting container or list to check the descendant nodes *val->indexQ has entries added for each index component, if NO_ERR
scriptmode	TRUE if the value is a script object access FALSE for normal val_get_simval access instead
last_modified	timestamp to set in new value
etag	entity tag to set in new value

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_add_npcons()

status_t val_add_npcons ( val_value_t * val )

Check/Add empty NP containers.

Used while validating the msg->action_parent

This function just adds NP containers. The default case will be checked for NP containers If a choice object is found

Parameters

[in,out] val the value struct to modify by adding missing NP containers

Returns: status

◆ val_add_one_operation_attr()

status_t val_add_one_operation_attr	(	val_value_t *	val,
		op_editop_t	op
	)

Add the nc:operation attribute to a value node.

Parameters

val	value node to set
op	edit operation to use

Returns: status

Here is the call graph for this function:

◆ val_apply_template()

status_t val_apply_template	(	val_value_t *	template_val,
		val_value_t *	target_val
	)

Apply the specified template to the val_value_t node.

Only supported if templates are enabled in the server

Parameters

template_val	template to apply
target_val	value from edit to expand with template

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_build_index_chains()

status_t val_build_index_chains ( val_value_t * val )

Build index chains for a value if needed.

Check descendant-or-self nodes for lists Check if they have index chains built already If not, then try to add one for each of the key objects in order

Parameters

val	value node to start check from

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_cache_datarule()

status_t val_cache_datarule	(	val_value_t *	val,
		void *	rule
	)

Set the data-rule back-ptr for this node.

Used by the server NACM implementation

Parameters

val	value struct to use
rule	backptr to NACM rule

Returns: status: ERR_NCX_RESOURCE_DENIED if max data rules reached

Here is the call graph for this function:

◆ val_check_delete_resnode()

void val_check_delete_resnode ( val_value_t * curval )

Check if the curnode has any partial locks and if so, remove them from the final result.

Parameters

curval current node to check

Here is the call graph for this function:

◆ val_check_deprecated_warning()

status_t val_check_deprecated_warning ( val_value_t * val )

Check if any values in the val_value_t are deprecated YANG nodes.

Checks warning ERR_NCX_USING_DEPRECATED (1027)
Ignores obsolete status since those nodes are moved from the schema tree before use

Expecting CLI valset so only checks direct child nodes

Parameters

val	value node to check (not written)

Returns: status

Return values

NO_ERR	if no deprecated parameters used or warning
ERR_NCX_USING_DEPRECATED	if warning elevated to error
ERR_NCX_MISSING_PARM	if 'val' is NULL

Here is the call graph for this function:

◆ val_check_obj_when()

status_t val_check_obj_when	(	val_value_t *	val,
		val_value_t *	valroot,
		val_value_t *	objval,
		obj_template_t *	obj,
		boolean *	condresult,
		uint32 *	whencount
	)

checks when-stmt only

Check if the specified object node is conditionally TRUE or FALSE, based on any when statements attached to the child node

Parameters

	val	parent value node of the object node to check
	valroot	database root for XPath purposes
	objval	database value node to check (may be NULL)
	obj	object template of data node object to check
[out]	condresult	address of conditional test result condresult TRUE if conditional is true or there are none condresult FALSE if conditional test failed
[out]	whencount	address of number of when-stmts tested (may be NULL if caller does not care) whencount number of when-stmts tested this can be 0 if condresult == TRUE

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_check_obj_when_ex()

status_t val_check_obj_when_ex	(	val_value_t *	val,
		val_value_t *	valroot,
		val_value_t *	objval,
		obj_template_t *	obj,
		xml_msg_hdr_t *	mhdr,
		boolean	configonly,
		boolean	get_when,
		ses_cb_t *	pcb_session,
		struct xpath_get2_cb_t_ *	parent_cb,
		boolean *	condresult,
		uint32 *	whencount
	)

checks when-stmt only (extended)

Check if the specified object node is conditionally TRUE or FALSE, based on any when statements attached to the child node

From RFC 6020, sec. 7.19.5


 The XPath expression is conceptually evaluated in the following
   context, in addition to the definition in Section 6.4.1:

   o  If the "when" statement is a child of an "augment" statement, then
      the context node is the augment's target node in the data tree, if
      the target node is a data node.  Otherwise, the context node is
      the closest ancestor node to the target node that is also a data
      node.

   o  If the "when" statement is a child of a "uses", "choice", or
      "case" statement, then the context node is the closest ancestor
      node to the "uses", "choice", or "case" node that is also a data
      node.

   o  If the "when" statement is a child of any other data definition
      statement, the context node is the data definition's node in the
      data tree.

   o  The accessible tree is made up of all nodes in the data tree, and
      all leafs with default values in use (see Section 7.6.1).

Parameters

	val	parent value node of the object node to check
	valroot	database root for XPath purposes
	objval	database value node to check (may be NULL)
	obj	object template of data node object to check
	mhdr	dummy or real message header to use if GET2 needed
	configonly	TRUE for config datastore test; FALSE otherwise
	get_when	TRUE if this is an eval of a when-stmt during a GET
	pcb_session	session to use in the pcb->scb field that will be passed to GET2 callbacks and tested for NULL (e.g. get2-test)
	parent_cb	parent node if val is not used as parent, NULL to use val
[out]	condresult	address of conditional test result condresult TRUE if conditional is true or there are none condresult FALSE if conditional test failed
[out]	whencount	address of number of when-stmts tested (may be NULL if caller does not care) whencount number of when-stmts tested this can be 0 if condresult == TRUE

Returns: status

◆ val_check_swap_resnode()

void val_check_swap_resnode	(	val_value_t *	curval,
		val_value_t *	newval
	)

Maintain partial locks; Used by server only.

Check if the curnode has any partial locks and if so, transfer them to the new node and change any resnodes as well

Parameters

curval	current node to check
newval	new value taking its place

Here is the call graph for this function:

◆ val_choice_is_set()

boolean val_choice_is_set	(	val_value_t *	val,
		obj_template_t *	obj
	)

Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set.

Check that all the mandatory config fields in the selected case are set

Parameters

val	parent of the choice object to check
obj	choice object to check

Returns: pointer to first value struct or NULL if choice not set

Here is the call graph for this function:

◆ val_clear_datarule()

void val_clear_datarule	(	val_value_t *	val,
		const void *	rule
	)

Clear the datarule back-ptr for this node.

Used by the server NACM implementation

Parameters

val	value struct to use
rule	backptr to NACM rule to clear

Here is the call graph for this function:

◆ val_clear_partial_lock()

void val_clear_partial_lock	(	val_value_t *	val,
		plock_cb_t *	plcb
	)

Clear the partial lock throughout the value tree.

Parameters

val	start value struct to use
plcb	partial lock to clear

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_convert_anyxml_to_real()

status_t val_convert_anyxml_to_real	(	val_value_t *	anyxml_val,
		val_value_t *	real_val,
		val_value_t **	error_val
	)

Convert anydata nodes to match a real template.

Need to convert the anyxml val_value_t tree so the correct YANG object templates are used instead of the generic anyxml nodes.

Lists need to be identified and the index chains setup.
XPath and QName content needs to be converted to real values.
Union, leafref and identityref values also need to be setup correctly
defaults need to be added after conversion

The entire tree will be processed top-down. The tree can be a leaf, container, or list. If any value errors occur or extra unknown nodes are found, then the *error_val will be set to that node, and an error will be returned.

Parameters

	anyxml_val	value node that is supposed to represent the real_val
	real_val	value node that represents the real template to use
[out]	error_val	address of return error node pointer *error_val return error node pointer (if res != NO_ERR) NULL if NO_ERR is returned

Returns: status

Here is the caller graph for this function:

◆ val_convert_children()

status_t val_convert_children	(	val_value_t *	srcval,
		val_value_t *	destval
	)

Convert children nodes to the template node.

Internal API for template support Check the src val for all child nodes and add a corresponding node in the dest val, using the correct object template This is a simple 1:1 value and name mapping

Parameters

srcval	source value node to check for child nodes to copy
destval	empty destination container or list to fill

Returns: status

Here is the call graph for this function:

◆ val_copy_xpathpcb()

status_t val_copy_xpathpcb	(	val_value_t *	val,
		const xpath_pcb_t *	xpathpcb
	)

Set the xpathpcb field with a clone of the parameter.

Parameters

val	value to use
xpathpcb	struct xpath_pcb_t_ to copy from

Returns: status

Here is the call graph for this function:

◆ val_dump_cli_valset()

void val_dump_cli_valset	(	const char *	progname,
		val_value_t *	valset
	)

dump the parameter set with and without defaults

Parameters

progname	program name to display
valset	value to dump

Here is the call graph for this function:

◆ val_expand_var_expr()

status_t val_expand_var_expr	(	val_value_t *	val,
		xmlChar **	retstr
	)

Expand the variable expression if found.

Check if the string node is a data template variable The val_value_t must have already been properly parsed so the VAL_FL_IS_VAREXPR flag set if this is a complex var expression

Parameters

	val	address of val_value_t being set
[out]	retstr	address of return expanded string *retstr malloced string to use for expanded simple variable expr expansion

Returns: status; ERR_NCX_SKIPPED if this is not a variable NO_ERR if there is a simple variable expression that was processed correctly; == some error if any error occurred

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_find_descendant()

val_value_t * val_find_descendant	(	val_value_t *	val,
		const xmlChar *	modname,
		const xmlChar *	name
	)

Find the fist available descendant matching the name also check seld.

Parameters

val	value to search
modname	module name to find or NULL for any module
name	object name to find

Returns: first found descendant-or-self node matching or NULL if no match

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_find_list_from_keyvalQ()

val_value_t * val_find_list_from_keyvalQ	(	val_value_t *	parentval,
		val_value_t *	firstmatch,
		dlq_hdr_t *	keyvalQ,
		status_t *	res
	)

Find the list entry identified by the Q of yangapi_keyval_t strings.

Parameters

	parentval	value node to start check from; parent of the list entries
	firstmatch	first instance of the list entry to find
	keyvalQ	Q of yangapi_keyval_t structs representing the string value of each key
[out]	res	address of return status *res return status (NO_ERR + NULL return == no entry found)

Returns: pointer to found entry (if *res == NO_ERR)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_find_notif()

val_value_t * val_find_notif ( val_value_t * topval )

Check the 'topval' node for a nested notification node.

Return the first found notification node. If 'topval' is a notification node then tat node will be returned

Parameters

topval node to check for a nested notification

Returns: pointer to found notification or NULL if not found

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_fixup_config_subtree()

void val_fixup_config_subtree	(	val_value_t *	val,
		xmlns_id_t	fixup_id
	)

Look for a config subtree (obj_is_root) and make sure all the value nodes in the subtree have proper NSID set.

  >>> IT IS ASSUMED THAT ONLY VALID NODES ARE PRESENT
  >>> AND ALL ERROR NODES HAVE BEEN PURGED ALREADY

Parameters

[in,out]	val	value node to fixup val and descendant nodes may be altered
	fixup_id	NSID of the node to find and change (also find 0)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_force_dataclass_config()

void val_force_dataclass_config ( val_value_t * val )

Set the dataclass field to NCX_DC_CONFIG in the 'val' data tree

This is needed in agt_util:agt_apply_patch_edit to fixup the data stree returned from xml_parse_buffer

Parameters

val	value node to convert

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_gen_index_chain()

status_t val_gen_index_chain	(	const obj_template_t *	obj,
		val_value_t *	val
	)

Create an index chain for the just-parsed table or container struct.

This is the correct API for SIL code to use when constructing a val_value_t tree for a list. This function must be called after all the key leafs have been added to the 'val' entry

Parameters

	obj	list object containing the keyQ
[in,out]	val	the just parsed table row with the childQ containing nodes to check as index nodes *val->indexQ has entries added for each index component, if NO_ERR

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_gen_index_comp()

status_t val_gen_index_comp	(	const obj_key_t *	in,
		val_value_t *	val
	)

Create an index component.

Parameters

	in	obj_key_t in the chain to process
[in,out]	val	the just parsed table row with the childQ containing nodes to check as index nodes val->indexQ will get a val_index_t record added if return NO_ERR

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_gen_instance_id()

status_t val_gen_instance_id	(	xml_msg_hdr_t *	mhdr,
		const val_value_t *	val,
		ncx_instfmt_t	format,
		xmlChar **	buff
	)

Malloc and Generate the instance ID string for this value node,.

Parameters

[in,out]	mhdr	message hdr w/ prefix map or NULL to just use the internal prefix mappings mhdr.pmap may have entries added if prefixes used in the instance identifier which are not already in the pmap
	val	node to generate the instance ID for
	format	desired output format (NCX or Xpath)
[out]	buff	pointer to address of buffer to use *buff malloced buffer with the instance ID

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_gen_instance_id_ex()

status_t val_gen_instance_id_ex	(	xml_msg_hdr_t *	mhdr,
		const val_value_t *	val,
		ncx_instfmt_t	format,
		boolean	stop_at_root,
		xmlChar **	buff
	)

Malloc and Generate the instance ID string for this value node,.

Parameters

[in,out]	mhdr	message hdr w/ prefix map or NULL to just use the internal prefix mappings mhdr.pmap may have entries added if prefixes used in the instance identifier which are not already in the pmap
	val	node to generate the instance ID for
	format	desired output format (NCX or Xpath)
	stop_at_root	TRUE to stop if a 'root' node is encountered FALSE to keep recursing all the way to
[out]	buff	pointer to address of buffer to use *buff malloced buffer with the instance ID

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_gen_instance_id_ex2()

status_t val_gen_instance_id_ex2	(	xml_msg_hdr_t *	mhdr,
		const val_value_t *	val,
		const val_value_t *	stopval,
		ncx_instfmt_t	format,
		boolean	stop_at_root,
		xmlChar **	buff
	)

Malloc and Generate the instance ID string for this value node,.

Used internally - do not use Allows partial identifier to be created using a node in the path as the rooy

Parameters

	mhdr	message hdr w/ prefix map or NULL to just use the internal prefix mappings mhdr.pmap may have entries added if prefixes used in the instance identifier which are not already in the pmap
	val	node to generate the instance ID for
	stopval	fake root to stop at as if the root; ancestor of val
	format	desired output format (NCX or Xpath)
	stop_at_root	TRUE to stop if a 'root' node is encountered FALSE to keep recursing all the way to
[out]	buff	pointer to address of buffer to use *buff malloced buffer with the instance ID

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_gen_key_entry()

status_t val_gen_key_entry ( val_value_t * keyval )

Create a key record within an index comp.

Parameters

[in,out]

keyval

the just parsed table row with the childQ containing nodes to check as index nodes

keyval->parent->indexQ will get a val_index_t record added if return NO_ERR

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_gen_keyclones()

status_t val_gen_keyclones	(	val_value_t *	val,
		dlq_hdr_t *	keyQ
	)

Get all the keys for the specified data node object.

Create a copy of each key Keys are gathered in reverse order!!!

Parameters

	val	value node to use
[out]	keyQ	Q of val_value_t to use keyQ will have 1 entry added for each ancestor key

Returns: status

Here is the call graph for this function:

◆ val_gen_keyptrs()

status_t val_gen_keyptrs	(	val_value_t *	val,
		dlq_hdr_t *	keyptrQ
	)

Get all the keys for the specified data node object.

Generate a backptr to the key leaf val_value_t Keys are gathered in reverse order!!!

Parameters

	val	value node to use
[out]	keyptrQ	Q of ncx_backptr_t to val_value_t to use keyptrQ will have 1 entry added for each ancestor key

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_gen_split_instance_id()

status_t val_gen_split_instance_id	(	xml_msg_hdr_t *	mhdr,
		const val_value_t *	val,
		ncx_instfmt_t	format,
		xmlns_id_t	leaf_nsid,
		const xmlChar *	leaf_name,
		boolean	stop_at_root,
		xmlChar **	buff
	)

Malloc and Generate the instance ID string for this value node, Add the last node from the parameters, not the value node.

Do not use – needed for special case parsing

Parameters

	mhdr	message hdr w/ prefix map or NULL to just use the internal prefix mappings mhdr.pmap may have entries added if prefixes used in the instance identifier which are not already in the pmap
	val	node to generate the instance ID for
	format	desired output format (NCX or Xpath)
	leaf_nsid	namespace ID of the leaf to add
	leaf_name	name string of the leaf to add
	stop_at_root	TRUE to stop if a 'root' node is encountered FALSE to keep recursing all the way to
[out]	buff	pointer to address of buffer to use *buff malloced buffer with the instance ID

Returns: status

Here is the call graph for this function:

◆ val_get_anyxml_tracking()

void val_get_anyxml_tracking	(	const val_value_t *	val,
		boolean *	iskey,
		boolean *	isconfig,
		boolean *	isunknown
	)

Set the anyxml tracking data for this node.

Parameters

	val	value to check
[out]	iskey	address of return iskey flag *iskey return iskey flag
[out]	isconfig	address of return isconfig flag *isconfig return isconfig flag
[out]	isunknown	address of return isunknown flag *isunknown return isunknown flag

◆ val_get_casobj()

obj_template_t * val_get_casobj ( val_value_t * val )

Get the case object for the value node.

Parameters

val	value to use

Returns: struct obj_template_t if case object set ; NULL if not

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_get_choice_first_set()

val_value_t * val_get_choice_first_set	(	val_value_t *	val,
		const obj_template_t *	obj
	)

Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set.

Get the value struct for the first value set for the specified choice

The val_find_child function can also be used to test directly for a case member. Choice and case nodes do not exist in the value tree.

Parameters

val	val_value_t to check
obj	choice object to check

Returns: pointer to first value struct or NULL if choice not set

Here is the call graph for this function:

◆ val_get_choice_first_set_ex()

val_value_t * val_get_choice_first_set_ex	(	val_value_t *	val,
		const obj_template_t *	obj,
		boolean	nondef
	)

Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set Get the value struct for the first value set for the specified choice.

Parameters

val	val_value_t to check
obj	choice object to check
nondef	TRUE for non-default only; FALSE for any set from this case

Returns: pointer to first value struct or NULL if choice not set

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_get_choice_first_set_full()

val_value_t * val_get_choice_first_set_full	(	val_value_t *	val,
		const obj_template_t *	obj
	)

Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set Get the value struct for the first value set for the specified choice.

Checks all children deep, including complex children

Parameters

val	val_value_t to check
obj	choice object to check

Returns: pointer to first value struct or NULL if choice not set

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_get_choice_next_set()

val_value_t * val_get_choice_next_set	(	const obj_template_t *	obj,
		val_value_t *	curchild
	)

Check a val_value_t struct against its expected OBJ to determine if a specific choice has already been set Get the value struct for the next value set from the specified choice, afvter 'curval'.

Parameters

obj	choice object to check
curchild	current child selected from this choice (obj)

Returns: pointer to first value struct or NULL if choice not set

Here is the call graph for this function:

◆ val_get_const_xpathpcb()

const xpath_pcb_t * val_get_const_xpathpcb ( const val_value_t * val )

Get the XPath parser control block in the specified value struct.

Parameters

val	value struct to check

Returns: pointer to xpath control block or NULL if none

◆ val_get_idref_nsid()

xmlns_id_t val_get_idref_nsid ( const val_value_t * val )

get the true namespace ID for the identityref value

Parameters

val	value to check

Returns: namespace ID or 0 if some error

Here is the caller graph for this function:

◆ val_get_index_string()

status_t val_get_index_string	(	xml_msg_hdr_t *	mhdr,
		ncx_instfmt_t	format,
		boolean	force_quotes,
		const val_value_t *	val,
		xmlChar *	buff,
		uint32 *	len
	)

Get the index string for the specified table or container entry.

Parameters

	mhdr	message hdr w/ prefix map or NULL to just use the internal prefix mappings *mhdr mhdr.pmap may have entries added if prefixes used in the instance identifier which are not already in the pmap
	format	desired output format
	force_quotes	TRUE to force quotes for config file mode
	val	val_value_t for table or container
	buff	buffer to hold result; NULL means get length only *buff filled in if set
[out]	len	address of index string length *len number of bytes that were (or would have been) written to buff

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_get_origin()

ncx_nmda_origin_t val_get_origin ( const val_value_t * val )

Get the NMDA origin value for this node.

Parameters

val	datastore val to get the origin from

Returns: the ncx_nmda_origin_t enum or NCX_NMDA_DS_NONE if not set

Here is the caller graph for this function:

◆ val_get_value()

val_value_t * val_get_value	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		val_value_t *	val,
		val_nodetest_fn_t	testfn,
		boolean	acmcheck,
		boolean *	malloced,
		status_t *	res
	)

Get the value for a node after lots of internal processing.

THIS IS NOT A SIL OR SIL-SA API

Get the value node for output to a session Checks access control if enabled Checks filtering via testfn if non-NULL

Parameters

	scb	session control block
	msg	xml_msg_hdr_t in progress
	val	value to write (node from system)
	testfn	callback function to use, NULL if not used
	acmcheck	TRUE if NACM should be checked; FALSE to skip
[out]	malloced	address of return malloced flag *malloced TRUE if thereturn value was malloced FALSE if it is just a pointer to 'val'
[out]	res	address of return status *res return status

Returns: value node to use; this is malloced if *malloced is TRUE
NULL if some error; check *res
!!!! check for ERR_NCX_SKIPPED !!!

Here is the call graph for this function:

◆ val_get_value_ex()

val_value_t * val_get_value_ex	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	msg,
		val_value_t *	val,
		val_nodetest_fn_t	testfn,
		boolean	acmcheck,
		boolean *	malloced,
		status_t *	res,
		void *	get2cb
	)

Get the value for a node after lots of internal processing (extended)

THIS IS NOT A SIL OR SIL-SA API FUNCTION val_get_value_ex

Get the value node for output to a session Checks access control if enabled Checks filtering via testfn if non-NULL Version 2: GET2 support

Parameters

	scb	session control block
	msg	xml_msg_hdr_t in progress
	val	value to write (node from system)
	testfn	callback function to use, NULL if not used
	acmcheck	TRUE if NACM should be checked; FALSE to skip
[out]	malloced	address of return malloced flag *malloced TRUE if thereturn value was malloced; FALSE if it is just a pointer to 'val'
[out]	res	address of return status *res return status
	get2cb	GET2 control block or NULL if not used

Returns: value node to use; this is malloced if *malloced is TRUE NULL if some error; check *res; !!!! check for ERR_NCX_SKIPPED !!!

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_get_xpathpcb()

xpath_pcb_t * val_get_xpathpcb ( val_value_t * val )

Get the XPath parser control block in the specified value struct.

Parameters

val	value struct to check

Returns: pointer to xpath control block or NULL if none

Here is the caller graph for this function:

◆ val_instance_check()

status_t val_instance_check	(	val_value_t *	root,
		val_value_t *	val,
		obj_template_t *	obj
	)

Check for the proper number of object instances for the specified value struct.

Checks the direct accessible children of 'val' only!!! Log errors as needed and mark val->res as needed

Parameters

root	the docroot for XPath processing
val	context node value to use (val->obj usually == obj)
obj	usually the val->obj field except for choice/case processing.

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_instance_check_ex()

status_t val_instance_check_ex	(	val_value_t *	root,
		val_value_t *	val,
		obj_template_t *	obj,
		boolean	check_when
	)

Check for the proper number of object instances for the specified value struct.

Extended.

Checks the direct accessible children of 'val' only!!! Log errors as needed and mark val->res as needed &

Parameters

root	the docroot for XPath processing
val	context node value to use (val->obj usually == obj)
obj	usually the val->obj field except for choice/case processing.
check_when	TRUE to check false when; FALSE if already done

Returns: status

Here is the call graph for this function:

◆ val_instance_check_max()

status_t val_instance_check_max	(	val_value_t *	root,
		val_value_t *	val,
		obj_template_t *	obj,
		boolean	check_when,
		boolean	check_deep,
		ses_cb_t *	scb,
		xml_msg_hdr_t *	msg
	)

Check for the proper number of object instances for the specified value struct.

Checks the direct accessible children of 'val' only!!!

Parameters

root	the docroot for XPath processing
val	context node value to use (val->obj usually == obj)
obj	usually the val->obj field except for choice/case processing.
check_when	TRUE to check false when; FALSE if already done
check_deep	TRUE to recurse for descendant nodes; FALSE for just the just nodes; will not attempt to process a node that is tagged as ncx:root!!!!
scb	session control block to use (may be NULL)
msg	msg to record errors (may be NULL)

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_is_fixed_value()

boolean val_is_fixed_value ( val_value_t * val )

Check if the specified value has a fixed-value=true attribute set in it.

Parameters

val	value node to check

Returns: TRUE if this is tagged as fixed-value=true; FALSE if not

Here is the call graph for this function:

◆ val_make_binary_obj()

val_value_t * val_make_binary_obj	(	obj_template_t *	obj,
		const xmlChar *	binstr,
		uint32	binstrlen,
		status_t *	res
	)

Malloc and set a val_value_t as a NCX_BT_BINARY type.

Parameters

	obj	object template to use set binary object
	binstr	simple value encoded as a binary buffer
	binstrlen	length of binstr (not zero-terminated)
[out]	res	address of return status *res return status

Returns: malloced val struct filled in; NULL if malloc failed

Here is the call graph for this function:

◆ val_make_config_root()

val_value_t * val_make_config_root ( void )

Make a <config> element.

Returns: malloced config root or NULL if memory error

Here is the call graph for this function:

◆ val_make_external_value()

val_value_t * val_make_external_value	(	obj_template_t *	obj,
		xmlChar *	fname
	)

Make an external value node.

Parameters

obj	object template to use
fname	filespec string to set as the value (PASS OFF MEMORY)

Returns: malloced val_value_t containing the requested filename

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_make_from_bitstring()

val_value_t * val_make_from_bitstring	(	obj_template_t *	obj,
		typ_def_t *	typdef,
		const xmlChar *	buff,
		uint32	bufflen,
		status_t *	res
	)

Make a val_value_t with the bits set in the octet string.

Support CBOR bits byte string format

Assumes start bit is zero
buffer will not be read unless bufflen > 0
API for CBOR array format for bits TBD!

Parameters

	obj	target object to use and create
	typdef	override obj typdef with this one (union TBD!)
	buff	buffer represeting the bitstring
	bufflen	length of buffer represeting the bitstring (can be 0)
[out]	res	== address of return status *res == return status

Returns: NO_ERR: value created and must be freed with val_free_value

Here is the call graph for this function:

◆ val_make_from_enumval()

val_value_t * val_make_from_enumval	(	obj_template_t *	obj,
		int32	enumval,
		status_t *	res
	)

Create an enumeration leaf from its enum value.

Parameters

	obj	target object to use and create
	enumval	numeric value of the enum to set
[out]	res	== address of return status *res == return status

Returns: NO_ERR: value created and must be freed with val_free_value

Here is the call graph for this function:

◆ val_make_from_num()

val_value_t * val_make_from_num	(	obj_template_t *	obj,
		typ_def_t *	typdef,
		ncx_btype_t	btyp,
		const ncx_num_t *	num,
		status_t *	res
	)

Create a numeric leaf from a ncx_num_t struct.

Parameters

	obj	target object to use and create
	typdef	target typdef to use if object is a union
	btyp	numeric base type
	num	number struct already set to copy into new value
[out]	res	== address of return status *res == return status

Returns: NO_ERR: value created and must be freed with val_free_value

Here is the call graph for this function:

◆ val_make_identity_obj()

val_value_t * val_make_identity_obj	(	obj_template_t *	obj,
		typ_def_t *	typdef,
		ncx_identity_t *	ident,
		status_t *	res
	)

make a val_value_t for a specified leaf or leaf-list from an identity

The identity is used as a const pointer but the val_idref_t does not use a const keyword

Parameters

	obj	name of module defining leaf (may be NULL to pick parent)
	typdef	typdef to use if object is a union (NULL otherwise)
	ident	identity struct value for leaf
[out]	res	address of return status *res return status

Returns: malloced value struct or NULL if some error

Here is the call graph for this function:

◆ val_make_idref_obj()

val_value_t * val_make_idref_obj	(	obj_template_t *	obj,
		const val_idref_t *	leafval,
		status_t *	res
	)

make a val_value_t for a specified leaf or leaf-list identityref

Parameters

	obj	name of module defining leaf (may be NULL to pick parent)
	leafval	identityref value for leaf
[out]	res	address of return status *res return status

Returns: malloced value struct or NULL if some error

Here is the call graph for this function:

◆ val_make_internal_value()

val_value_t * val_make_internal_value	(	const xmlChar *	name,
		const xmlChar *	value
	)

Create an NCX_BT_INTERNAL value that contains the raw XML for the value node.

namespaces may be added if they are correct. They may also be left out of the 'value' buffer

Parameters

name	name of wrapper element
value	Z-terminated buffer with XML value within it

Returns: malloced val_value_t containing the requested internal content

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_make_simval_obj()

val_value_t * val_make_simval_obj	(	obj_template_t *	obj,
		const xmlChar *	valstr,
		status_t *	res
	)

Create and set a val_value_t as a simple type from an object template instead of individual fields Calls val_make_simval with the object settings.

This API is the preferred method to create a leaf in SIL or SIL-SA code. This will use correct settings from the object template

Parameters

	obj	object template to use
	valstr	simple value encoded as a string
[out]	res	address of return status *res return status

Returns: pointer to malloced and filled in val_value_t struct NULL if some error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_make_subtree()

status_t val_make_subtree	(	obj_template_t *	obj,
		dlq_hdr_t *	keyQ,
		val_value_t **	topval,
		val_value_t **	targetval
	)

Create a hierarchy from root to the target object.

Create and initialize the target object but it is not set
Fill in the ancestor keys to this node with the keyQ

Parameters

	obj	target object to use and create within the hierarchy
	keyQ	Q of val_value_t; expecting generic strings Only the value will be used The correct ancestor key count and position is critical
[out]	topval	address of return top instance of tree *topval address of return top instance of tree
[out]	targetval	address of return instance created of 'obj' *targetval return instance created of 'obj'

Returns: status

Here is the call graph for this function:

◆ val_match_datarule()

boolean val_match_datarule	(	const val_value_t *	val,
		void *	rule
	)

Check if the data-rule back-ptr applies to this node.

Parameters

val	value struct to use
rule	backptr to NACM rule to check

Returns: TRUE if rule applies to 'val'; FALSE if not

Here is the call graph for this function:

◆ val_merge_return_vals()

void val_merge_return_vals	(	dlq_hdr_t *	srcQ,
		dlq_hdr_t *	dstQ
	)

Merge return values into a dest Q Remove duplicates.

Parameters

srcQ	Q of val_value_t to drain
dstQ	Q of val_value_t to fill

Here is the call graph for this function:

◆ val_move_config_false()

status_t val_move_config_false	(	val_value_t *	newval,
		val_value_t *	curval
	)

Move the config false data nodes.

Used by server only

Look for all the child nodes of the newval and any config-false child nodes will moved

  *** does not traverse into nested config=true
  *** nodes looking for config=false nodes to mode
  *** just moves direct child nodes that are config=false

Move from curval to newval because newval is replacing curval

Parameters

newval	new value struct to use
curval	currenrt value struct to use

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_new_child_val()

val_value_t * val_new_child_val	(	xmlns_id_t	nsid,
		const xmlChar *	name,
		boolean	copyname,
		val_value_t *	parent,
		op_editop_t	editop,
		obj_template_t *	obj
	)

Internal function used by server to create a new child value.

Used in XPath processing using dusing node parsing

Parameters

nsid	namespace ID of name
name	name string (direct or strdup, based on copyname)
copyname	TRUE is dname strdup should be used
parent	parent node
editop	requested edit operation
obj	object template to use

Returns: status

Here is the call graph for this function:

◆ val_ok_to_partial_lock()

status_t val_ok_to_partial_lock	(	val_value_t *	val,
		ses_id_t	sesid,
		ses_id_t *	lockowner
	)

Check if the specified root val could be locked right now by the specified session.

Parameters

	val	data node that will be locked
	sesid	session ID requesting the partial lock
[out]	lockowner	address of first lock owner violation *lockowner pointer to first lock owner violation

Returns: status: if any error, then val_clear_partial_lock MUST be called with the start root, to back out any partial operations. This can happen if the max number of

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_purge_errors_from_root()

void val_purge_errors_from_root ( val_value_t * val )

Remove any error nodes under a root container that were saved for error recording purposes.

Parameters

val	root container to purge

◆ val_remove_false_when()

status_t val_remove_false_when	(	val_value_t *	val,
		boolean *	deleteme
	)

Remove false when-stmt nodes.

Called by CLI to remove false when-stmt CLI parameters Called by agt_val voia val_delete_default_npcon

checks when-stmt only Check if the specified value node and all its descendants conditionally TRUE or FALSE, based on any when statements attached to the child node If false, and not set by default, the node will be removed

Parameters

	val	parent value node of the object node to check
[out]	deleteme	address of delete flag for val itself *deleteme TRUE if this node is itself hasfalse when-stmts descendants of false whe

Returns: status

Here is the caller graph for this function:

◆ val_remove_false_when_error()

status_t val_remove_false_when_error	(	const xmlChar *	name,
		val_value_t *	val,
		obj_template_t *	obj,
		boolean	is_error,
		boolean	real_delete,
		boolean *	deleteme
	)

Remove false when-stmt nodes with error.

Called by yangcli to check an <rpc> that is about the be output to the server. False when-stnt nodes are errors in rpc-input

Parameters

	name	name of element, internal use, default is 'data'
	val	parent value node of the object node to check
	obj	obj_template to parse 'val' against
	is_error	TRUE for error; FALSE for warning
	real_delete	TRUE to do real deletes; FALSE to just print msgs
[out]	deleteme	address of delete flag for val itself *deleteme TRUE if this node is itself hasfalse when-stmts descendants of false whe

Returns: status

◆ val_set_anyxml_tracking()

void val_set_anyxml_tracking	(	val_value_t *	val,
		obj_template_t *	obj
	)

Set the anyxml tracking data for this node.

Parameters

val	value to set
obj	object to use to set anyxml tracking bits

Here is the call graph for this function:

◆ val_set_binary_display_maxlen_parm()

status_t val_set_binary_display_maxlen_parm ( val_value_t * parentval )

Handle the –binary-display-maxlen parameter.

–binary-display-maxlen=<uint32>

Parameters

parentval CLI container to check for the parm

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_canonical_order()

void val_set_canonical_order ( val_value_t * val )

Set canonical order No longer used.

THIS FUNCTION IS REMOVED!!!! IT DOES NOT DO ANYTHING!!!!

Change the child XML nodes throughout an entire subtree to the canonical order defined in the object template

‍IT IS ASSUMED THAT ONLY VALID NODES ARE PRESENT AND ALL ERROR NODES HAVE BEEN PURGED ALREADY

There is no canonical order defined for the contents of the following nodes:

anyxml leaf
ordered-by user leaf-list

These nodes are not ordered, but their child nodes are ordered

ncx:root container
ordered-by user list

Leaf objects will not be processed, if val is OBJ_TYP_LEAF Leaf-list objects will not be processed, if val is OBJ_TYP_LEAF_LIST. These object types must be processed within the context of the parent object.

List child key nodes are ordered first among all of the list's child nodes.

List nodes with system keys are not kept in sorted order This is not required by YANG. Instead the user-given order servers as the canonical order. It is up to the application setting the config to pick an order for the list nodes.

Also, leaf-list order is not changed, regardless of the order. The default insert order is 'last'.

Parameters

[in,out]

val

value node to change to canonical order

val->v.childQ may be reordered, for all complex types in the subtree

Here is the caller graph for this function:

◆ val_set_children_load()

void val_set_children_load ( val_value_t * val )

Flag the CLI parameters coming from the command line.

hack: flag this val_value_t as editop=load so it can be identified by the server as coming from the CLI parameters instead of from the conf files

This API is only used by agt_cli.c for yumaworks-server. Non-default objects are marked as editop=OP_EDITOP_LOAD

Parameters

val	CLI valset to convert

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_errmsg_parm()

status_t val_set_errmsg_parm ( val_value_t * parentval )

Check the parent value struct (expected to be a container or list) for the errmsg parameter.

prints an error message if an ncx_errmsg_t record cannot be added

Parameters

parentval CLI container to check for these parameters

Returns: status

Here is the call graph for this function:

◆ val_set_feature_parms()

status_t val_set_feature_parms ( val_value_t * parentval )

Handle the YANG feature parameter set.

    --feature-code-default
    --feature-enable-default
    --feature-static
    --feature-dynamic
    --feature-enable
    --feature-disable

Handle the feature-related CLI parms for the specified value set

Not all of these parameters are supported in all programs The object tree is not checked, just the value tree

Parameters

parentval CLI container to check for the feature parms

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_home_parms()

status_t val_set_home_parms ( val_value_t * parentval )

Handle the home and yumapro-home parameters.

    --home=/some/dir
    --yumapro-home=/some/dir

Parameters

parentval CLI container to check for these parameters

Returns: status

Here is the call graph for this function:

◆ val_set_logging_parms()

status_t val_set_logging_parms ( val_value_t * parentval )

Check the parent value struct (expected to be a container or list) for the common logging control parameters.

invoke the logging parms that are present

Called by CLI and .conf file handlers after the CLI 'valset' has been parsed. The logging parameters are checked and set in the NCX layer if found

prints an error message if any errors occur

    --log=filename
    --log-level=<debug-enum>
    --log-append=<boolean>

Parameters

parentval parent value struct to check

Returns: status

Here is the call graph for this function:

◆ val_set_logging_parms_ex()

status_t val_set_logging_parms_ex	(	val_value_t *	parentval,
		const xmlChar *	fhs_logfile
	)

Check the parent value struct (expected to be a container or list) for the full set of logging control parameters.

invoke the logging parms that are present

Called by CLI and .conf file handlers after the CLI 'valset' has been parsed. The logging parameters are checked and set in the NCX layer if found

prints an error message if any errors occur

    --log-level
    --log-syslog
    --log-vendor
    --log-syslog-level
    --log-pthread-level
    --log-mirroring
    --log-console
    --log-append
    --log-stderr
    --log
    --log-backtrace
    --log-backtrace-detail
    --log-backtrace-level
    --log-backtrace-stream
    --log-header
    --log-suppress-ctrl

Parameters

parentval	parent value struct to check
fhs_logfile	log filespec for server FHS mode NULL if not used

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_message_indent_parm()

status_t val_set_message_indent_parm ( val_value_t * parentval )

Handle the message-indent parameter.

–message-indent=<number> (-1 .. 9)

Parameters

parentval CLI container to check for the message-indent parm

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_origin()

void val_set_origin	(	val_value_t *	val,
		ncx_nmda_origin_t	origin
	)

Set the NMDA value origin.

Parameters

val	datastore val to set the origin for
origin	origin enum to set

◆ val_set_partial_lock()

status_t val_set_partial_lock	(	val_value_t *	val,
		plock_cb_t *	plcb
	)

Set the partial lock throughout the value tree.

Parameters

val	start value struct to use
plcb	partial lock to set on entire subtree

Returns: status: if any error, then val_clear_partial_lock MUST be called with the start root, to back out any partial operations. This can happen if the max number of locks reached or lock already help by another session

Here is the call graph for this function:

◆ val_set_path_parms()

status_t val_set_path_parms ( val_value_t * parentval )

Set the main search paths for files.

    --datapath
    --modpath
    --runpath

Check the specified value set for the 3 path CLI parms and override the environment variable setting, if any.

Not all of these parameters are supported in all programs The object tree is not checked, just the value tree

Parameters

parentval CLI container to check for the runpath, modpath, and datapath variables

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_protocols_parm()

status_t val_set_protocols_parm ( val_value_t * parentval )

Handle the –protocols parameter.

–protocols=bits [netconf1.0, netconf1.1]

Parameters

parentval CLI container to check for the protocols parm

Returns: status: at least 1 protocol must be selected

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_ses_protocols_parm()

status_t val_set_ses_protocols_parm	(	ses_cb_t *	scb,
		val_value_t *	parentval
	)

Handle the -protocols parameter for a session.

–protocols=bits [netconf1.0, netconf1.1]

Parameters

scb	session control block to use
parentval	CLI container to check for the protocols parm

Returns: status: at least 1 protocol must be selected

Here is the call graph for this function:

◆ val_set_simval_obj()

status_t val_set_simval_obj	(	val_value_t *	val,
		obj_template_t *	obj,
		const xmlChar *	valstr
	)

Set an initialized val_value_t as a simple type.

Set a pre-initialized val_value_t as a simple type from an object template instead of individual fields Calls val_set_simval with the object settings

This API should be used by GET1 callbacks where 'retval' has been allocated but not initialized yet

Parameters

val	value struct to set
obj	object template to use
valstr	simple value encoded as a string to set

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_subdirs_parm()

status_t val_set_subdirs_parm ( val_value_t * parentval )

set the subdirs parameter

–subdirs=<boolean>

Handle the –subdirs parameter

Parameters

parentval CLI container to check for the subdirs parm

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_tcp_connect_parms()

status_t val_set_tcp_connect_parms ( val_value_t * parentval )

Set TCP Connect parameters.

Check the parent value struct (expected to be a container or list) for the common TCP connect parameters from grouping TcpConnectParms

–tcp-connect-timeout

Parameters

parentval

parent value struct to check if tcp-connect-timeout foundL

0 means use blocking mode
1 or greater: use non-blocking mode with this timeout

Returns: status

Here is the call graph for this function:

◆ val_set_warning_parms()

status_t val_set_warning_parms ( val_value_t * parentval )

Check the parent value struct (expected to be a container or list) for the common warning control parameters.

Called by CLI and .conf file handlers after the CLI 'valset' has been parsed. The warning parameters are checked and set in the NCX layer if found

prints an error message if a warn-off record cannot be added

    --warn-idlen
    --warn-linelen
    --warn-off

Parameters

parentval parent value struct to check

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_set_with_ocpattern_parm()

status_t val_set_with_ocpattern_parm ( val_value_t * parentval )

Handle the –with-ocpattern parameter.

–with-ocpattern=<boolean>

Parameters

parentval CLI container to check for these parameters

Returns: status

Here is the call graph for this function:

◆ val_set_xpathpcb()

status_t val_set_xpathpcb	(	val_value_t *	val,
		xpath_pcb_t *	xpathpcb
	)

Set the xpathpcb field with passed field;.

Parameters

val	value to use
xpathpcb	struct xpath_pcb_t_ PASS OFF MEMORY HERE

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_simple_anyxml()

boolean val_simple_anyxml ( const val_value_t * val )

Check if val_value node is a proper simple type ANYXML.

Parameters

val	value node to test

Returns: TRUE if val is simple ANYXML/ANYDATA node; FALSE otherwise

Here is the call graph for this function:

◆ val_traverse_keys()

void val_traverse_keys	(	val_value_t *	val,
		void *	cookie1,
		void *	cookie2,
		val_walker_fn_t	walkerfn
	)

Check ancestor-or-self nodes until root reached.

Find all lists; For each list, starting with the closest to root, invoke the callback function for each of the key objects in order

Parameters

val	value node to start check from
cookie1	cookie1 to pass to the callback function
cookie2	cookie2 to pass to the callback function
walkerfn	walker callback function; This callback returns FALSE to terminate traversal

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_type_is_any()

boolean val_type_is_any ( const val_value_t * val )

Check if val_value node is a proper simple type ANYXML.

Parameters

val	value node to test

Returns: TRUE if val's type is ANYXML/ANYDATA node; FALSE otherwise

Here is the caller graph for this function:

◆ val_validate_value()

status_t val_validate_value ( val_value_t * useval )

Verify that the value is valid and can be safely used later Used in the SIL code to ensure that the created value is correct.

Validates that:

value and its OBJ is not NULL
value is list or container

Parameters

useval val value to check

Returns: status

Here is the call graph for this function:

◆ val_write_extern()

void val_write_extern	(	ses_cb_t *	scb,
		const val_value_t *	val
	)

Write an external file to the session.

Parameters

scb	session control block to write to
val	value to write (NCX_BT_EXTERN)

Here is the call graph for this function:

◆ val_write_intern()

void val_write_intern	(	ses_cb_t *	scb,
		const val_value_t *	val
	)

Write an internal buffer to the session.

Parameters

scb	session control block to write to
val	value to write (NCX_BT_INTERN)

Here is the call graph for this function:

◆ val_write_ok()

status_t val_write_ok	(	val_value_t *	val,
		op_editop_t	editop,
		ses_id_t	sesid,
		boolean	checkup,
		uint32 *	lockid
	)

Check if there are any partial-locks owned by another session in the node that is going to be written.

If the operation is replace or delete, then the entire target subtree will be checked

Parameters

	val	start value struct to use
	editop	requested write operation
	sesid	session requesting this write operation
	checkup	TRUE to check up the tree as well
[out]	lockid	address of return partial lock ID *lockid return lock ID if any portion is locked Only the first lock violation detected will be reported

Returns: status, NO_ERR indicates no partial lock conflicts error code will be NCX_ERR_IN_USE if *lockid is set

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Typedefs

Functions

Detailed Description

Typedef Documentation

◆ val_getbulk_cbfn_t

◆ val_nodetest_fn_t

Function Documentation

◆ val_add_btype_attr()

◆ val_add_datapath_attr()

◆ val_add_defaults()

◆ val_add_defaults_ex()

◆ val_add_fixed_value_attr()

◆ val_add_node_defaults()

◆ val_add_npcons()

◆ val_add_one_operation_attr()

◆ val_apply_template()

◆ val_build_index_chains()

◆ val_cache_datarule()

◆ val_check_delete_resnode()

◆ val_check_deprecated_warning()

◆ val_check_obj_when()

◆ val_check_obj_when_ex()

◆ val_check_swap_resnode()

◆ val_choice_is_set()

◆ val_clear_datarule()

◆ val_clear_partial_lock()

◆ val_convert_anyxml_to_real()

◆ val_convert_children()

◆ val_copy_xpathpcb()

◆ val_dump_cli_valset()

◆ val_expand_var_expr()

◆ val_find_descendant()

◆ val_find_list_from_keyvalQ()

◆ val_find_notif()

◆ val_fixup_config_subtree()

◆ val_force_dataclass_config()

◆ val_gen_index_chain()

◆ val_gen_index_comp()

◆ val_gen_instance_id()

◆ val_gen_instance_id_ex()

◆ val_gen_instance_id_ex2()

◆ val_gen_key_entry()

◆ val_gen_keyclones()

◆ val_gen_keyptrs()

◆ val_gen_split_instance_id()

◆ val_get_anyxml_tracking()

◆ val_get_casobj()

◆ val_get_choice_first_set()

◆ val_get_choice_first_set_ex()

◆ val_get_choice_first_set_full()

◆ val_get_choice_next_set()

◆ val_get_const_xpathpcb()

◆ val_get_idref_nsid()

◆ val_get_index_string()

◆ val_get_origin()

◆ val_get_value()

◆ val_get_value_ex()

◆ val_get_xpathpcb()

◆ val_instance_check()

◆ val_instance_check_ex()

◆ val_instance_check_max()

◆ val_is_fixed_value()

◆ val_make_binary_obj()

◆ val_make_config_root()

◆ val_make_external_value()

◆ val_make_from_bitstring()

◆ val_make_from_enumval()

◆ val_make_from_num()

◆ val_make_identity_obj()

◆ val_make_idref_obj()

◆ val_make_internal_value()

◆ val_make_simval_obj()

◆ val_make_subtree()

◆ val_match_datarule()

◆ val_merge_return_vals()

◆ val_move_config_false()

◆ val_new_child_val()

◆ val_ok_to_partial_lock()

◆ val_purge_errors_from_root()
