Manages the storage and access of child nodes within a YANG container or list instance. More...

Collaboration diagram for Value Node Child Access Support:

Data Structures
struct	val_tree_t
	wrapper for the height-balanced tree struct More...

Enumerations
enum	val_child_op_t { VAL_CHILD_OP_NONE , VAL_CHILD_OP_PREV , VAL_CHILD_OP_SAME , VAL_CHILD_OP_NEXT }
	modify the procedure call to get the previous, same or next entry More...

Functions
status_t	val_child_add (val_value_t child, val_value_t parent)
	Add a child value node to a parent value node. More...

status_t	val_child_add_last (val_value_t child, val_value_t parent)
	Add a child value node as last node to a parent value node. More...

status_t	val_child_add_force (val_value_t child, val_value_t parent)
	Add a child value node to a parent value node Force add even if Tree Insersion fails. More...

status_t	val_child_add_force_last (val_value_t child, val_value_t parent)
	Add a child value node as last node to a parent value node Force if tree insertion fails. More...

val_value_t *	val_child_find (const val_value_t parent, const xmlChar child_modname, const xmlChar *child_name)
	Find the child node for the specified child name and modname. More...

val_value_t *	val_child_find_next (const val_value_t parent, const xmlChar child_modname, const xmlChar child_name, const val_value_t lastmatch)
	Find the next child header for the specified child. More...

val_value_t *	val_child_find_nsid (const val_value_t parent, xmlns_id_t child_nsid, const xmlChar child_name)
	Find the child node for the specified child name and namespace ID. More...

val_value_t *	val_child_find_same_nsid (const val_value_t parent, xmlns_id_t child_nsid, const xmlChar child_name, val_value_t *curchild, val_child_op_t child_op)
	Find the child node for the specified child name and modname. More...

val_value_t *	val_child_find_obj (const val_value_t parent, const obj_template_t child_obj)
	Find the child node for the specified child object header. More...

val_value_t *	val_child_find_same (const val_value_t child, const val_value_t parent, val_child_op_t child_op)
	Find the child header for the specified child, which is a different root; e.g., trying to match candidate value in running. More...

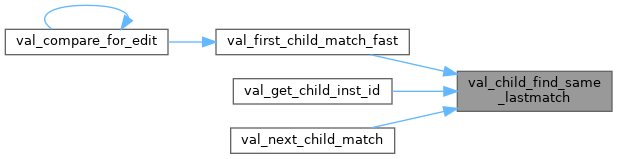

val_value_t *	val_child_find_same_lastmatch (const val_value_t child, const val_value_t parent, val_value_t *lastmatch, val_child_op_t child_op)
	Find the child header for the specified child. More...

val_value_t *	val_child_find_count (const val_value_t parent, const xmlChar child_modname, const xmlChar child_name, uint32 matchcount)
	Find the child node for the specified child name and modname Get the first instance and also return the count. More...

val_child_hdr_t *	val_child_find_hdr (val_value_t child, val_value_t parent)
	Find the child header for the specified child. More...

val_child_hdr_t *	val_child_find_hdr_lastmatch (val_value_t child, val_value_t parent, val_value_t *lastmatch)
	Find the child header for the specified child based on the last match. More...

status_t	val_child_insert (val_value_t child, val_value_t current, val_value_t *parent, op_insertop_t insert_op)
	Insert a child value node into a parent value node before or after the specified node. More...

void	val_child_remove (val_value_t *child)
	Remove a child value node from its parent value node. More...

void	val_child_mark_deleted (val_value_t *child)
	Remove a deleted child value node (mark deleted only) More...

void	val_child_mark_undeleted (val_value_t *child)
	Re-Add a previously deleted child value node (unmark deleted) More...

status_t	val_child_swap (val_value_t newchild, val_value_t curchild)
	Swap a child value node with a current value node. More...

val_value_t *	val_child_first (const val_value_t *parent)
	Get the first child present for this parent. More...

val_value_t *	val_child_next (const val_value_t *curchild)
	Get the next child present for the current node Parent must be set. More...

val_value_t *	val_child_next_same (val_value_t *curnode)
	Get the next node of the same type. More...

val_value_t *	val_child_prev_same (val_value_t *curnode)
	Get the previous node of the same type. More...

val_value_t *	val_child_first_terminal (const val_value_t *parent)
	Get the first terminal node child present for this parent. More...

val_value_t *	val_child_next_terminal (const val_value_t *curchild)
	Get the next terminal node child present for the current node Parent must be set. More...

uint32	val_child_count (val_value_t *parent)
	Get the number of non-deleted children in this parent. More...

uint32	val_child_count_nsid (val_value_t parent, xmlns_id_t nsid, const xmlChar name, val_value_t **firstval)
	Get the number of non-deleted children matching the NSID and namestring in this parent. More...

void	val_child_clean_hdrQ (dlq_hdr_t *child_hdrQ)
	Empty and clean a Q of child headers. More...

boolean	val_child_find_all_children (val_walker2_fn_t walkerfn, void cookie1, void cookie2, val_value_t startnode, xmlns_id_t mod_nsid, const xmlChar name, boolean configonly, boolean textmode)
	Find all children instances of the specified node(s) The walker fn will be called for each match. More...

boolean	val_child_find_all_ancestors (val_walker2_fn_t walkerfn, void cookie1, void cookie2, val_value_t startnode, xmlns_id_t mod_nsid, const xmlChar name, boolean configonly, boolean textmode, boolean orself)
	Find all the ancestor instances of the specified node within the path to root from the current node; use the filter criteria provided. More...

boolean	val_child_find_all_descendants (val_walker2_fn_t walkerfn, void cookie1, void cookie2, val_value_t startnode, xmlns_id_t mod_nsid, const xmlChar name, boolean configonly, boolean textmode, boolean orself, boolean forceall)
	Find all occurances of the specified node within the current subtree. More...

boolean	val_child_find_all_descendants_old (val_walker_fn_t walkerfn, void cookie1, void cookie2, val_value_t startnode, xmlns_id_t mod_nsid, const xmlChar name, boolean configonly, boolean textmode, boolean orself, boolean forceall)
	Find all occurances of the specified node within the current subtree. More...

boolean	val_child_find_all_pfaxis (val_walker2_fn_t walkerfn, void cookie1, void cookie2, val_value_t startnode, xmlns_id_t mod_nsid, const xmlChar name, boolean configonly, boolean dblslash, boolean textmode, ncx_xpath_axis_t axis)
	Find all occurances of the specified node for the specified preceding or following axis. More...

boolean	val_child_find_all_pfsibling_axis (val_walker2_fn_t walkerfn, void cookie1, void cookie2, val_value_t startnode, xmlns_id_t mod_nsid, const xmlChar name, boolean configonly, boolean dblslash, boolean textmode, ncx_xpath_axis_t axis)
	Find all occurances of the specified node for the specified axis. More...

void	val_child_move_children (val_value_t srcval, val_value_t destval)
	Move all the child nodes from src to dest Source and dest must both be containers! More...

status_t	val_child_add_clean (val_editvars_t editvars, val_value_t child, val_value_t parent, dlq_hdr_t cleanQ)
	Add a child value node to a parent value node This is only called by the agent when adding nodes to a target database. More...

status_t	val_child_add_clean2 (val_editvars_t editvars, val_value_t child, val_value_t parent, dlq_hdr_t cleanQ, boolean check_exists)
	Add a child value node to a parent value node. More...

status_t	val_child_add_clean_test (val_value_t child, val_value_t parent, dlq_hdr_t *cleanQ)
	Test the add_child_clean. More...

status_t	val_child_add_clean3 (val_editvars_t editvars, val_value_t child, val_value_t *parent, boolean check_exists)
	Add a child value node to a parent value node. More...

void	val_child_mark_default_deleted (val_value_t *val)
	Mark all the leaf-list nodes that are defaults as deleted. More...

void	val_child_finish_default_deleted (val_value_t *val)
	Delete all the marked default leaf-list nodes. More...

void	val_child_mark_default_undeleted (val_value_t *val)
	Mark all the leaf-list nodes that are defaults as deleted. More...

val_value_t *	val_child_first_test (val_value_t parent, val_hdr_test_fn_t hdr_test_fn, val_test2_fn_t test_fn, void cookie)
	Get the first child present for this parent that passes the callback tests. More...

val_value_t *	val_child_next_test (val_value_t curchild, val_hdr_test_fn_t hdr_test_fn, val_test2_fn_t test_fn, void cookie)
	Get the next child present for this parent that passes the callback tests. More...

val_value_t *	val_child_hdr_first (const val_child_hdr_t *hdr)
	Get the first entry in the child header. More...

val_value_t *	val_child_hdr_last (const val_child_hdr_t *hdr)
	Get the last entry in the child header. More...

val_value_t *	val_child_hdr_next (const val_child_hdr_t hdr, const val_value_t curval)
	Get the next entry in the child header. More...

val_value_t *	val_child_hdr_previous (const val_child_hdr_t hdr, const val_value_t curval)
	Get the previous entry in the child header. More...

val_value_t *	val_child_hdr_find_match (val_child_hdr_t hdr, const val_value_t findval)
	Find the matching entry in the hdr. More...

boolean	val_child_find_deleted (const val_value_t startnode, const val_value_t delnode)
	Find the deleted node within the startnode. More...

val_tree_t *	val_tree_new (void)
	Create a new empty val_tree. More...

void	val_tree_free (val_tree_t *val_tree)
	Clean and free the specified val_tree. More...

status_t	val_tree_insert (val_value_t childval, val_tree_t val_tree, boolean ignore_err, boolean *inserted)
	Add a list entry to the val_tree. More...

boolean	val_tree_remove (val_value_t childval, val_tree_t val_tree)
	Remove a value node from the specified val_tree. More...

status_t	val_tree_swap (val_value_t newval, val_value_t childval, val_tree_t *val_tree)
	Change the node in the specified tree. More...

void	val_tree_remove_deleted (val_value_t childval, val_tree_t val_tree)
	A node is being removed from the tree but not the que because it is marked as VAL_FL_DELETED. More...

status_t	val_tree_add_undeleted (val_value_t childval, val_tree_t val_tree)
	A node is being added back to the the tree but not the que because it was marked as VAL_FL_DELETED. More...

val_value_t *	val_tree_find (const val_value_t childval, val_tree_t val_tree)
	Find a value node from the specified val_tree. More...

Detailed Description

Manages the storage and access of child nodes within a YANG container or list instance.

Child nodes or a list are stored in a queue to preserve order and usually in an AVL tree for fast lookup by key leaf values.

Enumeration Type Documentation

◆ val_child_op_t

enum val_child_op_t

modify the procedure call to get the previous, same or next entry

Enumerator
VAL_CHILD_OP_NONE	not set
VAL_CHILD_OP_PREV	get-previous
VAL_CHILD_OP_SAME	get-exact
VAL_CHILD_OP_NEXT	get-next

Function Documentation

◆ val_child_add()

status_t val_child_add	(	val_value_t *	child,
		val_value_t *	parent
	)

Add a child value node to a parent value node.

Replaces val_add_child

Parameters

child	node to store in the parent
parent	complex value node with a child header Q

Returns: status; node is only added if status is NO_ERR

◆ val_child_add_clean()

status_t val_child_add_clean	(	val_editvars_t *	editvars,
		val_value_t *	child,
		val_value_t *	parent,
		dlq_hdr_t *	cleanQ
	)

Add a child value node to a parent value node This is only called by the agent when adding nodes to a target database.

Pass in the editvar to use

If the child node being added is part of a choice/case, then all sibling nodes in other cases within the same choice will be deleted

The insert operation will also be check to see if the child is a list oo a leaf-list, which is ordered-by user

The default insert mode is always 'last'

Parameters

	editvars	val_editvars_t struct to use (may be NULL)
	child	node to store in the parent
	parent	complex value node with a childQ
[out]	cleanQ	address of Q to receive any ncx_backptr_t to val_value_t structs for nodes marked as deleted cleanQ may have nodes added if the child being added is part of a case. All other cases will be marked as deleted from the parent Q and nodeptrs added to the cleanQ

Returns: status

◆ val_child_add_clean2()

status_t val_child_add_clean2	(	val_editvars_t *	editvars,
		val_value_t *	child,
		val_value_t *	parent,
		dlq_hdr_t *	cleanQ,
		boolean	check_exists
	)

Add a child value node to a parent value node.

This is only called by the agent when adding nodes to a target database.

Pass in the editvar to use

If the child node being added is part of a choice/case, then all sibling nodes in other cases within the same choice will be deleted

The insert operation will also be check to see if the child is a list oo a leaf-list, which is ordered-by user

The default insert mode is always 'last'

Parameters

	editvars	val_editvars_t struct to use (may be NULL)
	child	node to store in the parent
	parent	complex value node with a childQ
[out]	cleanQ	address of Q to receive any ncx_backptr_t to val_value_t structs for nodes marked as deleted cleanQ may have nodes added if the child being added is part of a case. All other cases will be marked as deleted from the parent Q and nodeptrs added to the cleanQ
	check_exists	TRUE to check if child is a leaf or container or anyxml that exists and delete before adding new one

Returns: status

◆ val_child_add_clean3()

status_t val_child_add_clean3	(	val_editvars_t *	editvars,
		val_value_t *	child,
		val_value_t *	parent,
		boolean	check_exists
	)

Add a child value node to a parent value node.

MUST USE THIS VERSION STARTING 22.10-17, 23.10-5, 23.10T-5

This is only called by the agent when adding nodes to a target database.

Pass in the editvar to use

If the child node being added is part of a choice/case, then all sibling nodes in other cases within the same choice will be deleted

The insert operation will also be check to see if the child is a list oo a leaf-list, which is ordered-by user

The default insert mode is always 'last'

Parameters

editvars	val_editvars_t struct to use (may be NULL)
child	node to store in the parent
parent	complex value node with a childQ
check_exists	TRUE to check if child is a leaf or container or anyxml that exists and delete before adding new one

Returns: status

◆ val_child_add_clean_test()

status_t val_child_add_clean_test	(	val_value_t *	child,
		val_value_t *	parent,
		dlq_hdr_t *	cleanQ
	)

Test the add_child_clean.

Gather backpointers to any deleted siblings due to the parent choice changing. If this node causes the current case to be deleted then the cleanQ will have backpointers to these nodes.

Parameters

child	node to store in the parent
parent	complex value node with a childQ
cleanQ	address of Q to receive any ncx_backptr_t to val_value_t structs for nodes marked as deleted cleanQ may have nodes added if the child being added is part of a case. All other cases will be marked as deleted from the parent Q and nodeptrs added to the cleanQ

Returns: status

◆ val_child_add_force()

status_t val_child_add_force	(	val_value_t *	child,
		val_value_t *	parent
	)

Add a child value node to a parent value node Force add even if Tree Insersion fails.

Parameters

child	node to store in the parent
parent	complex value node with a child header Q

Returns: status; node is only added if status is NO_ERR

Here is the caller graph for this function:

◆ val_child_add_force_last()

status_t val_child_add_force_last	(	val_value_t *	child,
		val_value_t *	parent
	)

Add a child value node as last node to a parent value node Force if tree insertion fails.

Parameters

child	node to store in the parent
parent	complex value node with a child header Q

Returns: status; node is only added if status is NO_ERR

◆ val_child_add_last()

status_t val_child_add_last	(	val_value_t *	child,
		val_value_t *	parent
	)

Add a child value node as last node to a parent value node.

Simply makes a new last child!!! Force new last child entry

Parameters

child	node to store in the parent
parent	complex value node with a child header Q

Returns: status; node is only added if status is NO_ERR

Here is the caller graph for this function:

◆ val_child_clean_hdrQ()

void val_child_clean_hdrQ ( dlq_hdr_t * child_hdrQ )

Empty and clean a Q of child headers.

Parameters

child_hdrQ Q of agt_val_child_hdr_t to clean

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_count()

uint32 val_child_count ( val_value_t * parent )

Get the number of non-deleted children in this parent.

Parameters

parent parent val to check

Returns: number of non-deleted children found

Here is the caller graph for this function:

◆ val_child_count_nsid()

uint32 val_child_count_nsid	(	val_value_t *	parent,
		xmlns_id_t	nsid,
		const xmlChar *	name,
		val_value_t **	firstval
	)

Get the number of non-deleted children matching the NSID and namestring in this parent.

Parameters

	parent	parent val to search
	nsid	namespace ID of child
	name	child name
[out]	firstval	address of return first found pointer *firstval first found pointer

Returns: number of matching non-deleted children found

Here is the caller graph for this function:

◆ val_child_find()

val_value_t * val_child_find	(	const val_value_t *	parent,
		const xmlChar *	child_modname,
		const xmlChar *	child_name
	)

Find the child node for the specified child name and modname.

Parameters

parent	parent val to search
child_modname	modname of child node (NULL to match any module)
child_name	local-name of child node

Returns: pointer to found child or NULL

Here is the caller graph for this function:

◆ val_child_find_all_ancestors()

boolean val_child_find_all_ancestors	(	val_walker2_fn_t	walkerfn,
		void *	cookie1,
		void *	cookie2,
		val_value_t *	startnode,
		xmlns_id_t	mod_nsid,
		const xmlChar *	name,
		boolean	configonly,
		boolean	textmode,
		boolean	orself
	)

Find all the ancestor instances of the specified node within the path to root from the current node; use the filter criteria provided.

If the walker function returns TRUE, then the walk will continue; If FALSE it will terminate right away This is an XPath support function for searching the ancestor axis during path evaluation

Parameters

walkerfn	callback function to use
cookie1	cookie1 value to pass to walker fn
cookie2	cookie2 value to pass to walker fn
startnode	node to check
mod_nsid	module namespace ID; the module with this NSID will be used == 0: the first match in any namespace will be returned;
name	name of ancestor node to find NULL to match any ancestor name
configonly	TRUE to skip over non-config nodes FALSE to check all nodes Only used if name == NULL
textmode	TRUE if just testing for text() nodes name and modname will be ignored in this mode FALSE if using name and modname to filter
orself	TRUE if axis is really ancestor-or-self FALSE if axis is ancestor

Returns: TRUE if normal termination occurred
FALSE if walker fn requested early termination

Here is the call graph for this function:

◆ val_child_find_all_children()

boolean val_child_find_all_children	(	val_walker2_fn_t	walkerfn,
		void *	cookie1,
		void *	cookie2,
		val_value_t *	startnode,
		xmlns_id_t	mod_nsid,
		const xmlChar *	name,
		boolean	configonly,
		boolean	textmode
	)

Find all children instances of the specified node(s) The walker fn will be called for each match.

If the walker function returns TRUE, then the walk will continue; If FALSE it will terminate right away This is an XPath support function for searching the child axis during path evaluation

Parameters

walkerfn	callback function to use
cookie1	cookie1 value to pass to walker fn
cookie2	cookie2 value to pass to walker fn
startnode	node to check
mod_nsid	module namespace ID; the module with this NSID will be used == 0: the first match in any namespace will be returned;
name	name of child node to find NULL to match any child name
configonly	TRUE to skip over non-config nodes FALSE to check all nodes Only used if name == NULL
textmode	TRUE if just testing for text() nodes name and modname will be ignored in this mode FALSE if using name and modname to filter

Returns: TRUE if normal termination occurred
FALSE if walker fn requested early termination

Here is the call graph for this function:

◆ val_child_find_all_descendants()

boolean val_child_find_all_descendants	(	val_walker2_fn_t	walkerfn,
		void *	cookie1,
		void *	cookie2,
		val_value_t *	startnode,
		xmlns_id_t	mod_nsid,
		const xmlChar *	name,
		boolean	configonly,
		boolean	textmode,
		boolean	orself,
		boolean	forceall
	)

Find all occurances of the specified node within the current subtree.

The walker fn will be called for each match.

If the walker function returns TRUE, then the walk will continue; If FALSE it will terminate right away This is an XPath support function for searching the descendant axis during path evaluation

Parameters

walkerfn	callback function to use
cookie1	cookie1 value to pass to walker fn
cookie2	cookie2 value to pass to walker fn
startnode	node to check
mod_nsid	module namespace ID; the module with this NSID will be used == 0: the first match in any namespace will be returned;
name	name of descendant node to find NULL to match any descendant name
configonly	TRUE to skip over non-config nodes FALSE to check all nodes Only used if name == NULL
textmode	TRUE if just testing for text() nodes name and modname will be ignored in this mode FALSE if using name and modname to filter
orself	TRUE if axis is really descendant-or-self FALSE if axis is descendant
forceall	TRUE to invoke the descendant callbacks even if fncalled was true from the current (parent) node; FALSE to skip descendants if fncalled was TRUE

Returns: TRUE if normal termination occurred
FALSE if walker fn requested early termination

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_find_all_descendants_old()

boolean val_child_find_all_descendants_old	(	val_walker_fn_t	walkerfn,
		void *	cookie1,
		void *	cookie2,
		val_value_t *	startnode,
		xmlns_id_t	mod_nsid,
		const xmlChar *	name,
		boolean	configonly,
		boolean	textmode,
		boolean	orself,
		boolean	forceall
	)

Find all occurances of the specified node within the current subtree.

The walker fn will be called for each match.

Called for GET2 val node that has no hdr

If the walker function returns TRUE, then the walk will continue; If FALSE it will terminate right away

Parameters

walkerfn	callback function to use
cookie1	cookie1 value to pass to walker fn
cookie2	cookie2 value to pass to walker fn
startnode	node to check
mod_nsid	module namespace ID; the module with this NSID will be used == 0: the first match in any namespace will be returned;
name	name of descendant node to find NULL to match any descendant name
configonly	TRUE to skip over non-config nodes FALSE to check all nodes Only used if name == NULL
textmode	TRUE if just testing for text() nodes name and modname will be ignored in this mode FALSE if using name and modname to filter
orself	TRUE if axis is really descendant-or-self FALSE if axis is descendant
forceall	TRUE to invoke the descendant callbacks even if fncalled was true from the current (parent) node; FALSE to skip descendants if fncalled was TRUE

Returns: TRUE if normal termination occurred
FALSE if walker fn requested early termination

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_find_all_pfaxis()

boolean val_child_find_all_pfaxis	(	val_walker2_fn_t	walkerfn,
		void *	cookie1,
		void *	cookie2,
		val_value_t *	startnode,
		xmlns_id_t	mod_nsid,
		const xmlChar *	name,
		boolean	configonly,
		boolean	dblslash,
		boolean	textmode,
		ncx_xpath_axis_t	axis
	)

Find all occurances of the specified node for the specified preceding or following axis.

    preceding::*
    following::*

within the current subtree. The walker fn will be called for each match. Because the callbacks will be done in sequential order, starting from the

If the walker function returns TRUE, then the walk will continue; If FALSE it will terminate right away

Parameters

walkerfn	callback function to use
cookie1	cookie1 value to pass to walker fn
cookie2	cookie2 value to pass to walker fn
startnode	node to check
mod_nsid	module namespace ID; the module with this NSID will be used == 0: the first match in any namespace will be returned;
name	name of preceding or following node to find NULL to match any node name
configonly	TRUE to skip over non-config nodes FALSE to check all nodes Only used if name == NULL
dblslash	TRUE if all decendents of the preceding or following nodes should be checked FALSE only 1 level is checked, not their descendants
textmode	TRUE if just testing for text() nodes name and modname will be ignored in this mode FALSE if using name and modname to filter
axis	XPath axis enum to use

Returns: TRUE if normal termination occurred

◆ val_child_find_all_pfsibling_axis()

boolean val_child_find_all_pfsibling_axis	(	val_walker2_fn_t	walkerfn,
		void *	cookie1,
		void *	cookie2,
		val_value_t *	startnode,
		xmlns_id_t	mod_nsid,
		const xmlChar *	name,
		boolean	configonly,
		boolean	dblslash,
		boolean	textmode,
		ncx_xpath_axis_t	axis
	)

Find all occurances of the specified node for the specified axis.

    preceding-sibling::*
    following-sibling::*

within the current subtree. The walker fn will be called for each match. Because the callbacks will be done in sequential order, starting from the

If the walker function returns TRUE, then the walk will continue; If FALSE it will terminate right away

Parameters

walkerfn	callback function to use
cookie1	cookie1 value to pass to walker fn
cookie2	cookie2 value to pass to walker fn
startnode	node to check
mod_nsid	module namespace ID; the module with this NSID will be used == 0: the first match in any namespace will be returned;
name	name of preceding or following node to find NULL to match any node name
configonly	TRUE to skip over non-config nodes FALSE to check all nodes Only used if name == NULL
dblslash	TRUE if all decendents of the preceding or following nodes should be checked FALSE only 1 level is checked, not their descendants
textmode	TRUE if just testing for text() nodes name and modname will be ignored in this mode FALSE if using name and modname to filter
axis	XPath axis enum to use

Returns: TRUE if normal termination occurred

◆ val_child_find_count()

val_value_t * val_child_find_count	(	const val_value_t *	parent,
		const xmlChar *	child_modname,
		const xmlChar *	child_name,
		uint32 *	matchcount
	)

Find the child node for the specified child name and modname Get the first instance and also return the count.

Parameters

	parent	parent val to search
	child_modname	modname of child node (NULL to match any module)
	child_name	local-name of child node
[out]	matchcount	address of return match count *matchcount return match count

Returns: pointer to found child or NULL

Here is the caller graph for this function:

◆ val_child_find_deleted()

boolean val_child_find_deleted	(	const val_value_t *	startnode,
		const val_value_t *	delnode
	)

Find the deleted node within the startnode.

Check all nodes and does not skip deleted nodes
Check descendant or self nodes

Parameters

startnode	top-level node to check all descendants-or-self
delnode	deleted node to find

Returns: TRUE if found; FALSE if not

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_find_hdr()

val_child_hdr_t * val_child_find_hdr	(	val_value_t *	child,
		val_value_t *	parent
	)

Find the child header for the specified child.

Parameters

child	similar or exact child val to find
parent	parent val to search

Returns: child header for this child node or NULL if some error

◆ val_child_find_hdr_lastmatch()

val_child_hdr_t * val_child_find_hdr_lastmatch	(	val_value_t *	child,
		val_value_t *	parent,
		val_value_t *	lastmatch
	)

Find the child header for the specified child based on the last match.

Does not return the child itself Include a pointer to the last header found

Parameters

child	similar or exact child val to find
parent	parent val to search
lastmatch	lastmatch child

Returns: child header for the child node or NULL if some error

◆ val_child_find_next()

val_value_t * val_child_find_next	(	const val_value_t *	parent,
		const xmlChar *	child_modname,
		const xmlChar *	child_name,
		const val_value_t *	lastmatch
	)

Find the next child header for the specified child.

This function is deprecated! Use val_child_next_same instead!

Parameters

parent	parent val to search
child_modname	modname of child node (NULL to match any module)
child_name	local-name of child node
lastmatch	optional lastmatch found in correct parent

Returns: pointer to found matching child node or NULL

Here is the caller graph for this function:

◆ val_child_find_nsid()

val_value_t * val_child_find_nsid	(	const val_value_t *	parent,
		xmlns_id_t	child_nsid,
		const xmlChar *	child_name
	)

Find the child node for the specified child name and namespace ID.

Parameters

parent	parent val
child_nsid	module namespace ID of child node
child_name	local-name of child node to find

Returns: pointer to found child or NULL

Here is the caller graph for this function:

◆ val_child_find_obj()

val_value_t * val_child_find_obj	(	const val_value_t *	parent,
		const obj_template_t *	child_obj
	)

Find the child node for the specified child object header.

Parameters

parent	parent val
child_obj	child object template to find a value for

Returns: pointer to found child or NULL

Here is the caller graph for this function:

◆ val_child_find_same()

val_value_t * val_child_find_same	(	const val_value_t *	child,
		const val_value_t *	parent,
		val_child_op_t	child_op
	)

Find the child header for the specified child, which is a different root; e.g., trying to match candidate value in running.

Parameters

child	similar child val to find
parent	parent val to search
child_op	== operation (prev, cur, next)

Returns: pointer to found matching child node or NULL

Here is the caller graph for this function:

◆ val_child_find_same_lastmatch()

val_value_t * val_child_find_same_lastmatch	(	const val_value_t *	child,
		const val_value_t *	parent,
		val_value_t *	lastmatch,
		val_child_op_t	child_op
	)

Find the child header for the specified child.

Parameters

child	similar child val to find
parent	parent val to search
lastmatch	optional lastmatch found in correct parent
child_op	operation (prev, cur, next)

Returns: pointer to found matching child node or NULL

Here is the caller graph for this function:

◆ val_child_find_same_nsid()

val_value_t * val_child_find_same_nsid	(	const val_value_t *	parent,
		xmlns_id_t	child_nsid,
		const xmlChar *	child_name,
		val_value_t *	curchild,
		val_child_op_t	child_op
	)

Find the child node for the specified child name and modname.

Parameters

parent	parent val
child_nsid	module namespace ID of child node
child_name	local-name of child node
curchild	current child to find an entry after this one
child_op	operation (prev, cur, next)

Returns: pointer to found child or NULL

Here is the caller graph for this function:

◆ val_child_finish_default_deleted()

void val_child_finish_default_deleted ( val_value_t * val )

Delete all the marked default leaf-list nodes.

Parameters

val	val_value_t struct of first leaf-list to check

Here is the call graph for this function:

◆ val_child_first()

val_value_t * val_child_first ( const val_value_t * parent )

Get the first child present for this parent.

Parameters

parent parent node

Returns: first child

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_first_terminal()

val_value_t * val_child_first_terminal ( const val_value_t * parent )

Get the first terminal node child present for this parent.

Parameters

parent parent nodeto search

Returns: first terminal child or NULL if none found

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_first_test()

val_value_t * val_child_first_test	(	val_value_t *	parent,
		val_hdr_test_fn_t	hdr_test_fn,
		val_test2_fn_t	test_fn,
		void *	cookie
	)

Get the first child present for this parent that passes the callback tests.

Each header will be checked first. If true returned then val_test_fn is checked If both return true then the node is returned as 'first'

Parameters

parent	parent node
hdr_test_fn	header test function
test_fn	value test function
cookie	opaque user parameter

Returns: first child that passes test; NULL if no first

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_hdr_find_match()

val_value_t * val_child_hdr_find_match	(	val_child_hdr_t *	hdr,
		const val_value_t *	findval
	)

Find the matching entry in the hdr.

Parameters

hdr	header to check
findval	value to find

Returns: value if found; NULL if not found

◆ val_child_hdr_first()

val_value_t * val_child_hdr_first ( const val_child_hdr_t * hdr )

Get the first entry in the child header.

Parameters

hdr	header to check

Returns: first non-deleted entry or NULL if none

Here is the caller graph for this function:

◆ val_child_hdr_last()

val_value_t * val_child_hdr_last ( const val_child_hdr_t * hdr )

Get the last entry in the child header.

Parameters

hdr	header to check

Returns: last non-deleted entry or NULL if none

Here is the caller graph for this function:

◆ val_child_hdr_next()

val_value_t * val_child_hdr_next	(	const val_child_hdr_t *	hdr,
		const val_value_t *	curval
	)

Get the next entry in the child header.

Parameters

hdr	header to check
curval	current value

Returns: next non-deleted entry or NULL if none

Here is the caller graph for this function:

◆ val_child_hdr_previous()

val_value_t * val_child_hdr_previous	(	const val_child_hdr_t *	hdr,
		const val_value_t *	curval
	)

Get the previous entry in the child header.

Parameters

hdr	header to check
curval	current value

Returns: previous non-deleted entry or NULL if none

◆ val_child_insert()

status_t val_child_insert	(	val_value_t *	child,
		val_value_t *	current,
		val_value_t *	parent,
		op_insertop_t	insert_op
	)

Insert a child value node into a parent value node before or after the specified node.

Parameters

child	node to store in the parent
current	last node that was stored in the parent (may be NULL)
parent	complex value node with a childQ
insert_op	insert operation enum (first, last, before, after)

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_mark_default_deleted()

void val_child_mark_default_deleted ( val_value_t * val )

Mark all the leaf-list nodes that are defaults as deleted.

Parameters

val	val_value_t struct of first leaf-list to check

Here is the call graph for this function:

◆ val_child_mark_default_undeleted()

void val_child_mark_default_undeleted ( val_value_t * val )

Mark all the leaf-list nodes that are defaults as deleted.

Parameters

val	val_value_t struct of first leaf-list to check

Here is the call graph for this function:

◆ val_child_mark_deleted()

void val_child_mark_deleted ( val_value_t * child )

Remove a deleted child value node (mark deleted only)

NEEDS SPECIAL HANDLING FOR agt_val.c

Parameters

child node to mark deleted

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_mark_undeleted()

void val_child_mark_undeleted ( val_value_t * child )

Re-Add a previously deleted child value node (unmark deleted)

NEEDS SPECIAL HANDLING FOR agt_val.c

Parameters

child node to add back

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_move_children()

void val_child_move_children	(	val_value_t *	srcval,
		val_value_t *	destval
	)

Move all the child nodes from src to dest Source and dest must both be containers!

Parameters

srcval	source val_value_t struct to move
destval	destination value struct ot use

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_next()

val_value_t * val_child_next ( const val_value_t * curchild )

Get the next child present for the current node Parent must be set.

Parameters

curchild current child to get next for

Returns: next child or NULL if no non-deleted next child

Here is the caller graph for this function:

◆ val_child_next_same()

val_value_t * val_child_next_same ( val_value_t * curnode )

Get the next node of the same type.

Parameters

curnode current list entry

Returns: pointer to next list entry or NULL if none

Here is the caller graph for this function:

◆ val_child_next_terminal()

val_value_t * val_child_next_terminal ( const val_value_t * curchild )

Get the next terminal node child present for the current node Parent must be set.

Parameters

curchild current child to get next terminal for

Returns: next terminal child or NULL if no non-deleted next child

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_next_test()

val_value_t * val_child_next_test	(	val_value_t *	curchild,
		val_hdr_test_fn_t	hdr_test_fn,
		val_test2_fn_t	test_fn,
		void *	cookie
	)

Get the next child present for this parent that passes the callback tests.

Each header will be checked first. If true returned then val_test_fn is checked If both return true then the node is returned as 'first'

Parameters

curchild	current node to start next at
hdr_test_fn	header test function
test_fn	value test function
cookie	opaque user parameter

Returns: first child that passes test; NULL if none found

Here is the caller graph for this function:

◆ val_child_prev_same()

val_value_t * val_child_prev_same ( val_value_t * curnode )

Get the previous node of the same type.

Parameters

curnode current list entry

Returns: pointer to previous list entry

◆ val_child_remove()

void val_child_remove ( val_value_t * child )

Remove a child value node from its parent value node.

Parameters

child node to store in the parent

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_child_swap()

status_t val_child_swap	(	val_value_t *	newchild,
		val_value_t *	curchild
	)

Swap a child value node with a current value node.

Parameters

newchild	node to store in the place of the curchild
curchild	node to remove from the parent

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ val_tree_add_undeleted()

status_t val_tree_add_undeleted	(	val_value_t *	childval,
		val_tree_t *	val_tree
	)

A node is being added back to the the tree but not the que because it was marked as VAL_FL_DELETED.

but there was a rollback so now it is needs to be put back in the tree

Parameters

childval	child value to add back
val_tree	val_tree to use for removal

Returns: status

Here is the caller graph for this function:

◆ val_tree_find()

val_value_t * val_tree_find	(	const val_value_t *	childval,
		val_tree_t *	val_tree
	)

Find a value node from the specified val_tree.

Parameters

childval	similar child value to find
val_tree	val_tree to use for search

Returns: pointer to value node found

◆ val_tree_free()

void val_tree_free ( val_tree_t * val_tree )

Clean and free the specified val_tree.

Parameters

val_tree tree to clean and free

◆ val_tree_insert()

status_t val_tree_insert	(	val_value_t *	childval,
		val_tree_t *	val_tree,
		boolean	ignore_err,
		boolean *	inserted
	)

Add a list entry to the val_tree.

Before or after the specified node Check for duplicates

Parameters

	childval	child value to add
	val_tree	val_tree to use for insertion
	ignore_err	TRUE to return TRUE if skipped because sanity failed
[out]	inserted	address of return inserted flag *inserted TRUE if the childval was inserted successfully. FALSE otherwise. Usefull when inserting with ignore_err == TRUE

Returns: status

Here is the call graph for this function:

◆ val_tree_new()

val_tree_t * val_tree_new ( void )

Create a new empty val_tree.

Returns: malloced AVL tree or NULL if error

◆ val_tree_remove()

boolean val_tree_remove	(	val_value_t *	childval,
		val_tree_t *	val_tree
	)

Remove a value node from the specified val_tree.

Parameters

childval	child value to remove
val_tree	val_tree to use for removal

Returns: TRUE if removed; FALSE if not

Here is the caller graph for this function:

◆ val_tree_remove_deleted()

void val_tree_remove_deleted	(	val_value_t *	childval,
		val_tree_t *	val_tree
	)

A node is being removed from the tree but not the que because it is marked as VAL_FL_DELETED.

Parameters

childval	child value to remove
val_tree	val_tree to use for removal

Here is the caller graph for this function:

◆ val_tree_swap()

status_t val_tree_swap	(	val_value_t *	newval,
		val_value_t *	childval,
		val_tree_t *	val_tree
	)

Change the node in the specified tree.

Parameters

newval	child value to take its place
childval	child value to remove
val_tree	val_tree to use for removal

Returns: status

Here is the caller graph for this function:

Data Structures

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ val_child_op_t

Function Documentation

◆ val_child_add()

◆ val_child_add_clean()

◆ val_child_add_clean2()

◆ val_child_add_clean3()

◆ val_child_add_clean_test()

◆ val_child_add_force()

◆ val_child_add_force_last()

◆ val_child_add_last()

◆ val_child_clean_hdrQ()

◆ val_child_count()

◆ val_child_count_nsid()

◆ val_child_find()

◆ val_child_find_all_ancestors()

◆ val_child_find_all_children()

◆ val_child_find_all_descendants()

◆ val_child_find_all_descendants_old()

◆ val_child_find_all_pfaxis()

◆ val_child_find_all_pfsibling_axis()

◆ val_child_find_count()

◆ val_child_find_deleted()

◆ val_child_find_hdr()

◆ val_child_find_hdr_lastmatch()

◆ val_child_find_next()

◆ val_child_find_nsid()

◆ val_child_find_obj()

◆ val_child_find_same()

◆ val_child_find_same_lastmatch()

◆ val_child_find_same_nsid()

◆ val_child_finish_default_deleted()

◆ val_child_first()

◆ val_child_first_terminal()

◆ val_child_first_test()

◆ val_child_hdr_find_match()

◆ val_child_hdr_first()

◆ val_child_hdr_last()

◆ val_child_hdr_next()

◆ val_child_hdr_previous()

◆ val_child_insert()

◆ val_child_mark_default_deleted()

◆ val_child_mark_default_undeleted()

◆ val_child_mark_deleted()

◆ val_child_mark_undeleted()

◆ val_child_move_children()

◆ val_child_next()

◆ val_child_next_same()

◆ val_child_next_terminal()

◆ val_child_next_test()

◆ val_child_prev_same()

◆ val_child_remove()

◆ val_child_swap()

◆ val_tree_add_undeleted()

◆ val_tree_find()

◆ val_tree_free()

◆ val_tree_insert()

◆ val_tree_new()

◆ val_tree_remove()

◆ val_tree_remove_deleted()

◆ val_tree_swap()
