User Defined Data Types

User defined types allow SIL code (not SIL-SA code) to provide type handlers. More...

Collaboration diagram for User Defined Data Types:

Data Structures
struct	typ_userdef_t
	one userdef control block The CB will exist if one or more callbacks are registered More...

Typedefs
typedef status_t(*	typ_validate_fn_t) (typ_def_t *typdef, val_value_t *val, void *cookie)
	userdef validate callback function user validation callback for a userdef type More...
typedef status_t(*	typ_canonical_fn_t) (typ_def_t *typdef, val_value_t *val, void *cookie)
	userdef canonical callback function convert the inval to the canonical format for the type More...
typedef status_t(*	typ_compare_fn_t) (const typ_def_t *typdef, const val_value_t *val1, const val_value_t *val2, void *cookie, int *retval)
	userdef compare callback function compare 2 val_value_t nodes of the same user defined type More...

Functions
status_t	typ_userdef_register (const xmlChar *modname, const xmlChar *typname, typ_validate_fn_t validate_fn, typ_canonical_fn_t canonical_fn, typ_compare_fn_t compare_fn, void *cookie)
	Register the callback functions for a user defined type. More...
void	typ_userdef_clean_typdef (typ_def_t *typdef)
	Clean the user typedef fields. More...
status_t	typ_userdef_validate (val_value_t *val)
	Invoke the validate callback function for a user defined type if it exists. More...
status_t	typ_userdef_canonical (val_value_t *val)
	Invoke the canonical callback function for a user defined type if it exists. More...
status_t	typ_userdef_compare (const val_value_t *val1, const val_value_t *val2, int32 *ret)
	Invoke the compare callback function for a user defined type if it exists. More...

Detailed Description

User defined types allow SIL code (not SIL-SA code) to provide type handlers.

There are validate, compare, and canonicalize callbacks.

• validate callback
• convert to canonical format callback
• compare callback If a callback is not provided then the system behavior is used instead.

Typedef Documentation

typ_canonical_fn_t

typedef status_t(* typ_canonical_fn_t) (typ_def_t *typdef, val_value_t *val, void *cookie)

userdef canonical callback function convert the inval to the canonical format for the type

Parameters

	typdef	type definition for the user defined type
[in,out]	val	input value to convert val can be converted to canonical format
	cookie	cookie value passed to register function

Returns

status

typ_compare_fn_t

typedef status_t(* typ_compare_fn_t) (const typ_def_t *typdef, const val_value_t *val1, const val_value_t *val2, void *cookie, int *retval)

userdef compare callback function compare 2 val_value_t nodes of the same user defined type

Parameters

	typdef	type definition for the user defined type
	val1	input value 1 to comapre
	val2	input value 2 to comapre
	cookie	cookie value passed to register function
[out]	retval	address of return compare value *retval return compare value

Returns

status (ERR_NCX_SKIPPED if no compare done)

typ_validate_fn_t

typedef status_t(* typ_validate_fn_t) (typ_def_t *typdef, val_value_t *val, void *cookie)

userdef validate callback function user validation callback for a userdef type

Parameters

typdef	type definition for the user defined type
val	input value to convert
cookie	cookie value passed to register function

Returns

the validation status

Function Documentation

typ_userdef_canonical()

status_t typ_userdef_canonical

(

val_value_t *

val

)

Invoke the canonical callback function for a user defined type if it exists.

Parameters

[out]

val

value to check (VAL_TYPDEF) is checked for a userdef val may be modified if converted to canonical form

Returns

status or NO_ERR if no callback to invoke

Here is the call graph for this function:

Here is the caller graph for this function:

typ_userdef_clean_typdef()

void typ_userdef_clean_typdef

(

typ_def_t *

typdef

)

Clean the user typedef fields.

Parameters

typdef

type definition struct to clean

Here is the caller graph for this function:

typ_userdef_compare()

status_t typ_userdef_compare	(	const val_value_t *	val1,
		const val_value_t *	val2,
		int32 *	ret
	)

Invoke the compare callback function for a user defined type if it exists.

Parameters

	val1	value to check (VAL_TYPDEF) is checked for a userdef
	val2	value to check must be same type as val1
[out]	ret	address of compare result *ret 1, 0, or 1 for compare result

Returns

status or ERR_NCX_SKIPPED if no callback to invoke

Here is the call graph for this function:

Here is the caller graph for this function:

typ_userdef_register()

status_t typ_userdef_register	(	const xmlChar *	modname,
		const xmlChar *	typname,
		typ_validate_fn_t	validate_fn,
		typ_canonical_fn_t	canonical_fn,
		typ_compare_fn_t	compare_fn,
		void *	cookie
	)

Register the callback functions for a user defined type.

At least one callback needs to be set in order for this userdef type to have any affect

Parameters

modname	module name defining the type
typname	name of the type
validate_fn	validate callback (may be NULL)
canonical_fn	canonical callback (may be NULL)
compare_fn	compare callback (may be NULL)
cookie	cookie to pass to callback function

Returns

status

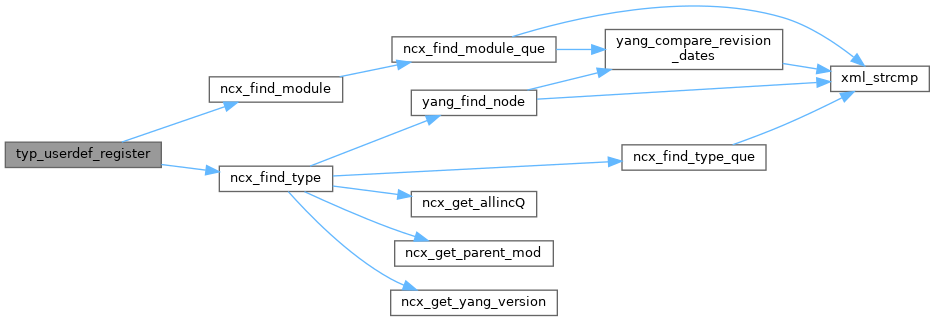

Here is the call graph for this function:

Here is the caller graph for this function:

typ_userdef_validate()

status_t typ_userdef_validate

(

val_value_t *

val

)

Invoke the validate callback function for a user defined type if it exists.

Parameters

val	value to check (VAL_TYPDEF) is checked for a userdef

Returns

validation status or NO_ERR if no callback to invoke

Here is the call graph for this function:

Here is the caller graph for this function:
