YANG Number (ncx_num_t)

Make sure to include "ncxtypes.h" and "ncx_num.h" to use the ncx_num APIs. More...

Collaboration diagram for YANG Number (ncx_num_t):

Functions
void	ncx_init_num (ncx_num_t *num)
	Init a ncx_num_t struct. More...
void	ncx_clean_num (ncx_btype_t btyp, ncx_num_t *num)
	Scrub the memory in a ncx_num_t by freeing all the sub-fields. More...
int32	ncx_compare_nums (const ncx_num_t *num1, const ncx_num_t *num2, ncx_btype_t btyp)
	Compare 2 ncx_num_t union contents. More...
void	ncx_set_num_min (ncx_num_t *num, ncx_btype_t btyp)
	Set a number to the minimum value for its type. More...
void	ncx_set_num_max (ncx_num_t *num, ncx_btype_t btyp)
	Set a number to the maximum value for its type. More...
void	ncx_set_num_one (ncx_num_t *num, ncx_btype_t btyp)
	Set a number to one. More...
void	ncx_set_num_zero (ncx_num_t *num, ncx_btype_t btyp)
	Set a number to zero. More...
void	ncx_set_num_nan (ncx_num_t *num, ncx_btype_t btyp)
	Set a FP number to the Not a Number value. More...
boolean	ncx_num_is_nan (ncx_num_t *num, ncx_btype_t btyp)
	Check if a FP number is set to the Not a Number value. More...
boolean	ncx_num_zero (const ncx_num_t *num, ncx_btype_t btyp)
	Compare a ncx_num_t to zero. More...
status_t	ncx_convert_num (const xmlChar *numstr, ncx_numfmt_t numfmt, ncx_btype_t btyp, ncx_num_t *val)
	Convert a number string to a numeric type. More...
status_t	ncx_convert_dec64 (const xmlChar *numstr, ncx_numfmt_t numfmt, uint8 digits, ncx_num_t *val)
	Convert a number string to a decimal64 number. More...
status_t	ncx_convert_cbor_dec64 (int64 mantissa, int64 basenum, uint8 digits, ncx_num_t *val)
	Convert a CBOR decimal bignum to a decimal64 number. More...
status_t	ncx_decode_num (const xmlChar *numstr, ncx_btype_t btyp, ncx_num_t *retnum)
	Handle some sort of number string. More...
status_t	ncx_decode_num_ex (const xmlChar *numstr, ncx_btype_t btyp, ncx_num_t *retnum, typ_def_t *typdef)
	Handle some sort of number string EXTENDED. More...
status_t	ncx_decode_dec64 (const xmlChar *numstr, uint8 digits, ncx_num_t *retnum)
	Handle some sort of decimal64 number string (NCX_BT_DECIMAL64) More...
status_t	ncx_copy_num (const ncx_num_t *num1, ncx_num_t *num2, ncx_btype_t btyp)
	Copy the contents of num1 to num2. More...
status_t	ncx_cast_num (const ncx_num_t *num1, ncx_btype_t btyp1, ncx_num_t *num2, ncx_btype_t btyp2)
	Cast a number as another number type. More...
status_t	ncx_num_floor (const ncx_num_t *num1, ncx_num_t *num2, ncx_btype_t btyp)
	Get the floor value of a number. More...
status_t	ncx_num_ceiling (const ncx_num_t *num1, ncx_num_t *num2, ncx_btype_t btyp)
	Get the ceiling value of a number. More...
status_t	ncx_round_num (const ncx_num_t *num1, ncx_num_t *num2, ncx_btype_t btyp)
	Get the rounded value of a number. More...
boolean	ncx_num_is_integral (const ncx_num_t *num, ncx_btype_t btyp)
	Check if the number is integral or if it has a fractional part. More...
int64	ncx_cvt_to_int64 (const ncx_num_t *num, ncx_btype_t btyp)
	Convert a number to an integer64; Use rounding for float64. More...
ncx_numfmt_t	ncx_get_numfmt (const xmlChar *numstr)
	Get the number format of the specified string. More...
void	ncx_printf_num (const ncx_num_t *num, ncx_btype_t btyp, log_debug_t level)
	Printf a ncx_num_t contents using logging functions. More...
void	ncx_printf_num_ex (const ncx_num_t *num, ncx_btype_t btyp, log_debug_t level, FILE *overrideOut)
	Printf a ncx_num_t contents (write to a file) More...
void	ncx_alt_printf_num (const ncx_num_t *num, ncx_btype_t btyp)
	Printf a ncx_num_t contents to the alternate log file. More...
void	ncx_audit_printf_num (const ncx_num_t *num, ncx_btype_t btyp)
	Printf a ncx_num_t contents to the audit log file. More...
status_t	ncx_sprintf_num (xmlChar *buff, const ncx_num_t *num, ncx_btype_t btyp, uint32 *len)
	Sprintf a ncx_num_t contents. More...
boolean	ncx_is_min (const ncx_num_t *num, ncx_btype_t btyp)
	Return TRUE if the specified number is the min value for its type. More...
boolean	ncx_is_max (const ncx_num_t *num, ncx_btype_t btyp)
	Return TRUE if the specified number is the max value for its type. More...
status_t	ncx_convert_tkcnum (tk_chain_t *tkc, ncx_btype_t btyp, ncx_num_t *val)
	Convert the current token in a token chain to a ncx_num_t struct. More...
status_t	ncx_convert_tkc_dec64 (tk_chain_t *tkc, uint8 digits, ncx_num_t *val)
	Convert the current token in a token chain to a ncx_num_t struct, expecting NCX_BT_DECIMAL64. More...
int64	ncx_get_dec64_base (const ncx_num_t *num)
	Get the base part of a decimal64 number. More...
int64	ncx_get_dec64_fraction (const ncx_num_t *num)
	Get the fraction part of a decimal64 number. More...
status_t	ncx_set_num_from_uint64 (ncx_num_t *retval, uint64 val, ncx_btype_t btyp, boolean is_neg)
	Set the number from a uint64 plus sign flag. More...

Detailed Description

Make sure to include "ncxtypes.h" and "ncx_num.h" to use the ncx_num APIs.

Function Documentation

ncx_alt_printf_num()

void ncx_alt_printf_num	(	const ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Printf a ncx_num_t contents to the alternate log file.

Parameters

num	number to printf
btyp	number base type

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_audit_printf_num()

void ncx_audit_printf_num	(	const ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Printf a ncx_num_t contents to the audit log file.

Parameters

num	number to printf
btyp	number base type

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_cast_num()

status_t ncx_cast_num	(	const ncx_num_t *	num1,
		ncx_btype_t	btyp1,
		ncx_num_t *	num2,
		ncx_btype_t	btyp2
	)

Cast a number as another number type.

  Supports all NCX numeric types:
     NCX_BT_INT*
     NCX_BT_UINT*
     NCX_BT_FLOAT64

Parameters

	num1	source number
	btyp1	expected data type of num1
	num2	target number
[out]	btyp2	desired data type of num2 *num2 set to cast value of num1

Returns

status

Here is the caller graph for this function:

ncx_clean_num()

void ncx_clean_num	(	ncx_btype_t	btyp,
		ncx_num_t *	num
	)

Scrub the memory in a ncx_num_t by freeing all the sub-fields.

DOES NOT free the entire struct itself The struct must be removed from any queue it is in before this function is called.

Parameters

btyp	base type of number
num	ncx_num_t data structure to clean

Here is the caller graph for this function:

ncx_compare_nums()

int32 ncx_compare_nums	(	const ncx_num_t *	num1,
		const ncx_num_t *	num2,
		ncx_btype_t	btyp
	)

Compare 2 ncx_num_t union contents.

Parameters

num1	first number to compare
num2	second number to compare
btyp	expected data type (NCX_BT_INT, UINT, REAL)

Returns

compare value

      -1 if num1 is < num2
       0 if num1 == num2
       1 if num1 is > num2

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_convert_cbor_dec64()

status_t ncx_convert_cbor_dec64	(	int64	mantissa,
		int64	basenum,
		uint8	digits,
		ncx_num_t *	val
	)

Convert a CBOR decimal bignum to a decimal64 number.

Special handling for decimal64 data type Convert a CBOR decimal fraction to a decimal64 number Received: Tag(4) [int64, int64] representing mantissa and base number

The CBOR representation must be converted to the internal dec64 representation. The saved shifted numer must have the same number of digits as the typedef

Checks for data type overflow, based on RFC 7950, sec. 9.3

Parameters

	mantissa	mantissa from CBOR array first number
	basenum	base number from CBOR array second number
	digits	number of fixed-point digits expected
[out]	val	pointer to ncx_num_t to hold result *val converted number value

Returns

status

Here is the call graph for this function:

ncx_convert_dec64()

status_t ncx_convert_dec64	(	const xmlChar *	numstr,
		ncx_numfmt_t	numfmt,
		uint8	digits,
		ncx_num_t *	val
	)

Convert a number string to a decimal64 number.

Special handling for decimal64 data type

Parameters

	numstr	number string
	numfmt	number format used
	digits	number of fixed-point digits expected
[out]	val	pointer to ncx_num_t to hold result *val converted number value

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_convert_num()

status_t ncx_convert_num	(	const xmlChar *	numstr,
		ncx_numfmt_t	numfmt,
		ncx_btype_t	btyp,
		ncx_num_t *	val
	)

Convert a number string to a numeric type.

Used by the XML and CLI parsers to convert numbers

Parameters

	numstr	number string to convert
	numfmt	NCX_NF_OCTAL, NCX_NF_DEC, NCX_NF_HEX, or NCX_NF_REAL
	btyp	desired number type (e.g., NCX_BT_INT32, NCX_BT_UINT32, NCX_BT_FLOAT64)
[out]	val	pointer to ncx_num_t to hold result *val converted number value

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_convert_tkc_dec64()

status_t ncx_convert_tkc_dec64	(	tk_chain_t *	tkc,
		uint8	digits,
		ncx_num_t *	val
	)

Convert the current token in a token chain to a ncx_num_t struct, expecting NCX_BT_DECIMAL64.

Parameters

	tkc	token chain; current token will be converted tkc->typ == TK_TT_DNUM, TK_TT_HNUM, TK_TT_RNUM
	digits	number of expected decimal digits
[out]	val	address of return value *val converted number value, if NO_ERR

Returns

status

Here is the call graph for this function:

ncx_convert_tkcnum()

status_t ncx_convert_tkcnum	(	tk_chain_t *	tkc,
		ncx_btype_t	btyp,
		ncx_num_t *	val
	)

Convert the current token in a token chain to a ncx_num_t struct.

Parameters

	tkc	token chain; current token will be converted tkc->typ == TK_TT_DNUM, TK_TT_HNUM, TK_TT_RNUM
	btyp	desired number type (e.g., NCX_BT_INT32, NCX_BT_UINT64, NCX_BT_FLOAT64)
[out]	val	address of return value *val converted number value (0..2G-1), if NO_ERR

Returns

status

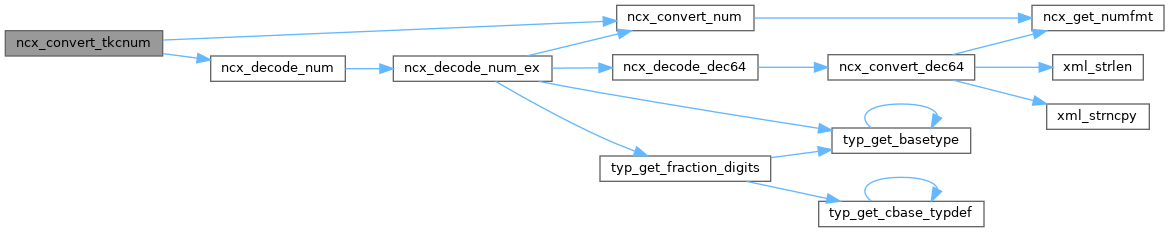

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_copy_num()

status_t ncx_copy_num	(	const ncx_num_t *	num1,
		ncx_num_t *	num2,
		ncx_btype_t	btyp
	)

Copy the contents of num1 to num2.

  Supports all NCX numeric types:
     NCX_BT_INT*
     NCX_BT_UINT*
     NCX_BT_DECIMAL64
     NCX_BT_FLOAT64

Parameters

num1	source number
num2	destination number
btyp	expected data type (NCX_BT_INT, UINT, REAL)

Returns

status

Here is the caller graph for this function:

ncx_cvt_to_int64()

int64 ncx_cvt_to_int64	(	const ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Convert a number to an integer64; Use rounding for float64.

Parameters

num	number to convert
btyp	data type of num

Returns

int64 representation

ncx_decode_dec64()

status_t ncx_decode_dec64	(	const xmlChar *	numstr,
		uint8	digits,
		ncx_num_t *	retnum
	)

Handle some sort of decimal64 number string (NCX_BT_DECIMAL64)

Parameters

	numstr	number string
	digits	number of expected digits for this decimal64
[out]	retnum	pointer to initialized ncx_num_t to hold result *retnum converted number

Returns

status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_decode_num()

status_t ncx_decode_num	(	const xmlChar *	numstr,
		ncx_btype_t	btyp,
		ncx_num_t *	retnum
	)

Handle some sort of number string.

Parameters

	numstr	number string
	btyp	desired number type
[out]	retnum	pointer to initialized ncx_num_t to hold result *retnum converted number

Returns

status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_decode_num_ex()

status_t ncx_decode_num_ex	(	const xmlChar *	numstr,
		ncx_btype_t	btyp,
		ncx_num_t *	retnum,
		typ_def_t *	typdef
	)

Handle some sort of number string EXTENDED.

Parameters

	numstr	number string
	btyp	desired number type
	retnum	pointer to initialized ncx_num_t to hold result
[out]	typdef	number typedef *retnum converted number

Returns

status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_get_dec64_base()

int64 ncx_get_dec64_base

(

const ncx_num_t *

num

)

Get the base part of a decimal64 number.

Parameters

num	number to check (expected to be NCX_BT_DECIMAL64)

Returns

base part of the number

Here is the caller graph for this function:

ncx_get_dec64_fraction()

int64 ncx_get_dec64_fraction

(

const ncx_num_t *

num

)

Get the fraction part of a decimal64 number.

Parameters

num	number to check (expected to be NCX_BT_DECIMAL64)

Returns

fraction part of the number

Here is the caller graph for this function:

ncx_get_numfmt()

ncx_numfmt_t ncx_get_numfmt

(

const xmlChar *

numstr

)

Get the number format of the specified string.

Does not check for valid format Just figures out which type it must be if it were valid

Parameters

numstr

number string

Returns

NCX_NF_NONE, NCX_NF_DEC, NCX_NF_HEX, or NCX_NF_REAL

Here is the caller graph for this function:

ncx_init_num()

void ncx_init_num

(

ncx_num_t *

num

)

Init a ncx_num_t struct.

Parameters

num	number to initialize

Here is the caller graph for this function:

ncx_is_max()

boolean ncx_is_max	(	const ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Return TRUE if the specified number is the max value for its type.

Parameters

num	number to check
btyp	data type of num

Returns

TRUE if this is the maximum value; FALSE otherwise

ncx_is_min()

boolean ncx_is_min	(	const ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Return TRUE if the specified number is the min value for its type.

Parameters

num	number to check
btyp	data type of num

Returns

TRUE if this is the minimum value; FALSE otherwise

ncx_num_ceiling()

status_t ncx_num_ceiling	(	const ncx_num_t *	num1,
		ncx_num_t *	num2,
		ncx_btype_t	btyp
	)

Get the ceiling value of a number.

  Supports all NCX numeric types:
     NCX_BT_INT*
     NCX_BT_UINT*
     NCX_BT_DECIMAL64
     NCX_BT_FLOAT64

Parameters

	num1	source number
	num2	address of target number
[out]	btyp	expected data type of numbers *num2 set to ceiling of num1

Returns

status

ncx_num_floor()

status_t ncx_num_floor	(	const ncx_num_t *	num1,
		ncx_num_t *	num2,
		ncx_btype_t	btyp
	)

Get the floor value of a number.

  Supports all NCX numeric types:
     NCX_BT_INT*
     NCX_BT_UINT*
     NCX_BT_DECIMAL64
     NCX_BT_FLOAT64

Parameters

	num1	source number
	num2	address of target number
[out]	btyp	expected data type of numbers *num2 set to floor of num1

Returns

status

ncx_num_is_integral()

boolean ncx_num_is_integral	(	const ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Check if the number is integral or if it has a fractional part.

  Supports all NCX numeric types:
     NCX_BT_INT*
     NCX_BT_UINT*
     NCX_BT_DECIMAL64
     NCX_BT_FLOAT64

Parameters

num	number to check
btyp	expected data type

Returns

TRUE if integral, FALSE if not

ncx_num_is_nan()

boolean ncx_num_is_nan	(	ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Check if a FP number is set to the Not a Number value.

Parameters

num	number to set
btyp	expected data type

Returns

TRUE if number is not-a-number (NaN); FALSE otherwise

ncx_num_zero()

boolean ncx_num_zero	(	const ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Compare a ncx_num_t to zero.

Parameters

num	number to compare to zero
btyp	expected data type (e.g., NCX_BT_INT32, NCX_BT_UINT64)

Returns

TRUE if value is equal to zero; FALSE if value is not equal to zero

Here is the caller graph for this function:

ncx_printf_num()

void ncx_printf_num	(	const ncx_num_t *	num,
		ncx_btype_t	btyp,
		log_debug_t	level
	)

Printf a ncx_num_t contents using logging functions.

Parameters

num	number to printf
btyp	number base type
level	debug level for output

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_printf_num_ex()

void ncx_printf_num_ex	(	const ncx_num_t *	num,
		ncx_btype_t	btyp,
		log_debug_t	level,
		FILE *	overrideOut
	)

Printf a ncx_num_t contents (write to a file)

Parameters

num	number to printf
btyp	number base type
level	debug level for output
overrideOut	output file, or NULL for normal usage

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_round_num()

status_t ncx_round_num	(	const ncx_num_t *	num1,
		ncx_num_t *	num2,
		ncx_btype_t	btyp
	)

Get the rounded value of a number.

  Supports all NCX numeric types:
     NCX_BT_INT*
     NCX_BT_UINT*
     NCX_BT_DECIMAL64
     NCX_BT_FLOAT64

Parameters

	num1	source number
	num2	address of target number
[out]	btyp	expected data type of numbers *num2 set to round of num1

Returns

status

ncx_set_num_from_uint64()

status_t ncx_set_num_from_uint64	(	ncx_num_t *	retval,
		uint64	val,
		ncx_btype_t	btyp,
		boolean	is_neg
	)

Set the number from a uint64 plus sign flag.

Check the min and max values for the numeric base type

Parameters

[in,out]	retval	address of number to fill in *retval number is filled in
	val	value expressed as uint64
	btyp	base type of the number to set in the ncx_num_t struct
	is_neg	if TRUE then number checked and saved is -1 * 'val'

Returns

status

ncx_set_num_max()

void ncx_set_num_max	(	ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Set a number to the maximum value for its type.

Parameters

num	number to set
btyp	expected data type

ncx_set_num_min()

void ncx_set_num_min	(	ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Set a number to the minimum value for its type.

Parameters

num	number to set
btyp	expected data type

ncx_set_num_nan()

void ncx_set_num_nan	(	ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Set a FP number to the Not a Number value.

Parameters

num	number to set
btyp	expected data type

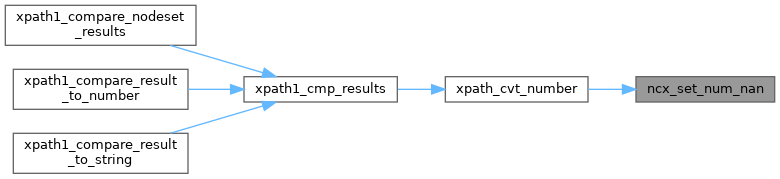

Here is the caller graph for this function:

ncx_set_num_one()

void ncx_set_num_one	(	ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Set a number to one.

Parameters

num	number to set
btyp	expected data type

Here is the caller graph for this function:

ncx_set_num_zero()

void ncx_set_num_zero	(	ncx_num_t *	num,
		ncx_btype_t	btyp
	)

Set a number to zero.

Parameters

num	number to set
btyp	expected data type

Here is the caller graph for this function:

ncx_sprintf_num()

status_t ncx_sprintf_num	(	xmlChar *	buff,
		const ncx_num_t *	num,
		ncx_btype_t	btyp,
		uint32 *	len
	)

Sprintf a ncx_num_t contents.

Parameters

	buff	buffer to write; NULL means just get length
	num	number to printf
	btyp	number base type
[out]	len	address of return length *len number of bytes written (or would have been) to buff

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:
