YANG Simple List (ncx_list_t)

NCX Lists are simple string based lists. More...

Collaboration diagram for YANG Simple List (ncx_list_t):

Functions
ncx_list_t *	ncx_new_list (ncx_btype_t btyp)
	Malloc Initialize an allocated ncx_list_t. More...
void	ncx_init_list (ncx_list_t *list, ncx_btype_t btyp)
	Initialize an allocated ncx_list_t. More...
void	ncx_clean_list (ncx_list_t *list)
	Scrub the memory of a ncx_list_t but do not delete it. More...
void	ncx_free_list (ncx_list_t *list)
	Clean and free an allocated ncx_list_t. More...
uint32	ncx_list_cnt (const ncx_list_t *list)
	Get the number of entries in the list. More...
uint32	ncx_list_linelen (const ncx_list_t *list)
	Get the length of the string if the list was printed in 1 line with spaces between the entries. More...
boolean	ncx_list_empty (const ncx_list_t *list)
	Check if the list is empty or not. More...
boolean	ncx_string_in_list (const xmlChar *str, const ncx_list_t *list)
	Check if the string value is in the list List type must be string based, or an enum. More...
int32	ncx_compare_lists (const ncx_list_t *list1, const ncx_list_t *list2)
	Compare 2 ncx_list_t struct contents. More...
status_t	ncx_copy_list (const ncx_list_t *list1, ncx_list_t *list2)
	Copy the contents of list1 to list2 Supports base type NCX_BT_SLIST. More...
void	ncx_merge_list (ncx_list_t *src, ncx_list_t *dest, ncx_merge_t mergetyp, boolean allow_dups)
	The merge function is handled specially for lists. More...
status_t	ncx_replace_list (const ncx_list_t *src, ncx_list_t *dest)
	The replace function is handled specially for lists. More...
status_t	ncx_set_strlist (const xmlChar *liststr, ncx_list_t *list)
	Consume a generic string list with no type checking. More...
status_t	ncx_set_list (ncx_btype_t btyp, const xmlChar *strval, ncx_list_t *list)
	consume a generic string list with base type checking Parse the XML input as an NCX_BT_SLIST More...
status_t	ncx_finish_list (typ_def_t *typdef, ncx_list_t *list)
	2nd pass of parsing a ncx_list_t Finish converting the list members to the proper format More...
ncx_lmem_t *	ncx_new_lmem (void)
	Malloc and fill in a new ncx_lmem_t struct. More...
void	ncx_clean_lmem (ncx_lmem_t *lmem, ncx_btype_t btyp)
	Scrub the memory of a ncx_lmem_t but do not delete it. More...
void	ncx_free_lmem (ncx_lmem_t *lmem, ncx_btype_t btyp)
	Free all the memory in a ncx_lmem_t struct. More...
ncx_lmem_t *	ncx_find_lmem (ncx_list_t *list, const ncx_lmem_t *memval)
	Find a the first matching list member with the specified value. More...
void	ncx_insert_lmem (ncx_list_t *list, ncx_lmem_t *memval, ncx_merge_t mergetyp)
	Insert a list entry into the specified list. More...
uint32	ncx_lmem_count (ncx_list_t *list)
	Return the number of list members. More...
ncx_lmem_t *	ncx_first_lmem (ncx_list_t *list)
	Return the first list member. More...
ncx_lmem_t *	ncx_next_lmem (ncx_lmem_t *cur)
	Return the next list member. More...
status_t	ncx_add_strlist (const xmlChar *liststr, uint32 liststrlen, ncx_list_t *list)
	add a string as a complete list member to an initialized list must be type NCX_BT_STRING More...
const xmlChar *	ncx_get_lmem_strval (const ncx_lmem_t *lmem)
	Get the string value from an lmem must be type NCX_BT_STRING. More...
xmlChar *	ncx_list_to_string (const ncx_list_t *list)
	Convert a list into a string with spaces between the entries. More...
status_t	ncx_add_bit_to_list (ncx_list_t *list, uint32 bitpos, const xmlChar *bitname)
	Add a lmem struct for a bits list. More...

Detailed Description

NCX Lists are simple string based lists.

Originally used to support xsd:list data types. Now YANG bits data type uses the ncx_list_t structure.

Function Documentation

ncx_add_bit_to_list()

status_t ncx_add_bit_to_list	(	ncx_list_t *	list,
		uint32	bitpos,
		const xmlChar *	bitname
	)

Add a lmem struct for a bits list.

Make a finished lmem struct for a bit and add to end MUST INSERT BITS IN ORDER FOR INTERNAL PROCESSING TO WORK Does not check for duplicates!

Parameters

list	list struct to add new ncx_lmem_t struct
bitpos	bit position to add
bitname	bit name to add

Returns

status

Here is the call graph for this function:

ncx_add_strlist()

status_t ncx_add_strlist	(	const xmlChar *	liststr,
		uint32	liststrlen,
		ncx_list_t *	list
	)

add a string as a complete list member to an initialized list must be type NCX_BT_STRING

Parameters

liststr	list string to add
liststrlen	length od liststr
list	ncx_list_t that should be initialized and filled with the values from the string

Returns

status

Here is the call graph for this function:

ncx_clean_list()

void ncx_clean_list

(

ncx_list_t *

list

)

Scrub the memory of a ncx_list_t but do not delete it.

Parameters

list	ncx_list_t struct to clean

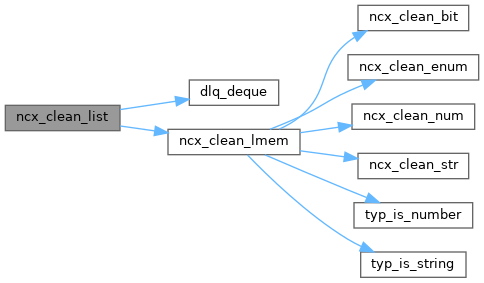

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_clean_lmem()

void ncx_clean_lmem	(	ncx_lmem_t *	lmem,
		ncx_btype_t	btyp
	)

Scrub the memory of a ncx_lmem_t but do not delete it.

Parameters

lmem	ncx_lmem_t struct to clean
btyp	base type of list member (lmem)

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_compare_lists()

int32 ncx_compare_lists	(	const ncx_list_t *	list1,
		const ncx_list_t *	list2
	)

Compare 2 ncx_list_t struct contents.

Expected data type (NCX_BT_SLIST)

Parameters

list1	first list to compare
list2	second list to compare

Returns

compare value

      -1 if list1 is < list2
       0 if list1 == list2   (also for error, after SET_ERROR called)
       1 if list1 is > list2

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_copy_list()

status_t ncx_copy_list	(	const ncx_list_t *	list1,
		ncx_list_t *	list2
	)

Copy the contents of list1 to list2 Supports base type NCX_BT_SLIST.

A partial copy may occur, and list2 should be properly cleaned and freed, even if an error is returned

Parameters

list1	copy from list
list2	copy to list

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_find_lmem()

ncx_lmem_t * ncx_find_lmem	(	ncx_list_t *	list,
		const ncx_lmem_t *	memval
	)

Find a the first matching list member with the specified value.

Parameters

list	list to check
memval	value to find, based on list->btyp

Returns

pointer to the first instance of this value, or NULL if none

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_finish_list()

status_t ncx_finish_list	(	typ_def_t *	typdef,
		ncx_list_t *	list
	)

2nd pass of parsing a ncx_list_t Finish converting the list members to the proper format

Used by YANG compiler only

Parameters

	typdef	typ_def_t for the designated list member type
[in,out]	list	== list struct with ncx_lmem_t structs to check list->lmem

*   If return other than NO_ERR:
*     each list->lmem.flags field may contain bits set
*     for errors:
*        NCX_FL_RANGE_ERR: size out of range
*        NCX_FL_VALUE_ERR  value not permitted by value set,
*                          or pattern

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_first_lmem()

ncx_lmem_t * ncx_first_lmem

(

ncx_list_t *

list

)

Return the first list member.

Parameters

list	list to check

Returns

pointer to the first list member or NULL if none

See also

ncx_next_lmem

Here is the caller graph for this function:

ncx_free_list()

void ncx_free_list

(

ncx_list_t *

list

)

Clean and free an allocated ncx_list_t.

Parameters

list	pointer to ncx_list_t memory

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_free_lmem()

void ncx_free_lmem	(	ncx_lmem_t *	lmem,
		ncx_btype_t	btyp
	)

Free all the memory in a ncx_lmem_t struct.

Parameters

lmem	struct to clean and free
btyp	base type of the list member

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_get_lmem_strval()

const xmlChar * ncx_get_lmem_strval

(

const ncx_lmem_t *

lmem

)

Get the string value from an lmem must be type NCX_BT_STRING.

Parameters

lmem	list member to check

Returns

pointer to string value in the lmem

ncx_init_list()

void ncx_init_list	(	ncx_list_t *	list,
		ncx_btype_t	btyp
	)

Initialize an allocated ncx_list_t.

Called when ncx_list_t is static inside another struct

Parameters

list	pointer to ncx_list_t memory
btyp	base type of each list member desired

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_insert_lmem()

void ncx_insert_lmem	(	ncx_list_t *	list,
		ncx_lmem_t *	memval,
		ncx_merge_t	mergetyp
	)

Insert a list entry into the specified list.

Parameters

list	list to insert into
memval	value to insert, based on list->btyp
mergetyp	requested merge type for the insertion

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_list_cnt()

uint32 ncx_list_cnt

(

const ncx_list_t *

list

)

Get the number of entries in the list.

Parameters

list	pointer to ncx_list_t memory

Returns

number of entries counted

Here is the caller graph for this function:

ncx_list_empty()

boolean ncx_list_empty

(

const ncx_list_t *

list

)

Check if the list is empty or not.

Parameters

list	pointer to ncx_list_t memory to check

Returns

TRUE if list is empty; FALSE otherwise

Here is the caller graph for this function:

ncx_list_linelen()

uint32 ncx_list_linelen

(

const ncx_list_t *

list

)

Get the length of the string if the list was printed in 1 line with spaces between the entries.

Parameters

list	pointer to ncx_list_t memory to check

Returns

length of string that would occur if printed in 1 line

Here is the call graph for this function:

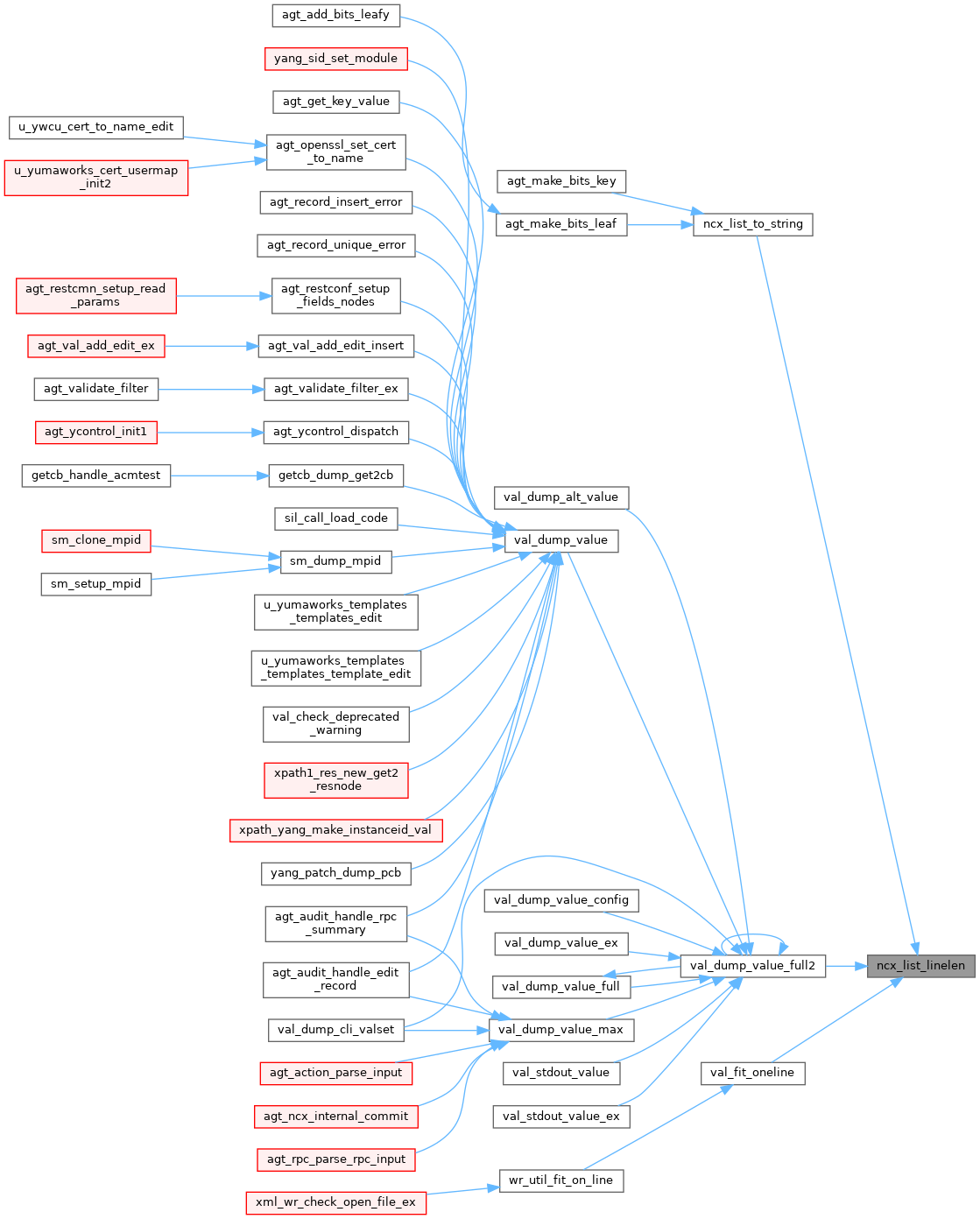

Here is the caller graph for this function:

ncx_list_to_string()

xmlChar * ncx_list_to_string

(

const ncx_list_t *

list

)

Convert a list into a string with spaces between the entries.

Parameters

list	pointer to ncx_list_t memory to convert

Returns

malloced string for the list

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_lmem_count()

uint32 ncx_lmem_count

(

ncx_list_t *

list

)

Return the number of list members.

Parameters

list	list to check

Returns

number of list members found

Here is the call graph for this function:

ncx_merge_list()

void ncx_merge_list	(	ncx_list_t *	src,
		ncx_list_t *	dest,
		ncx_merge_t	mergetyp,
		boolean	allow_dups
	)

The merge function is handled specially for lists.

The contents are not completely replaced like a string. Instead, only new entries from src are added to the dest list.

NCX merge algorithm for lists:

If list types not the same, then error exit;

If allow_dups == FALSE: check if entry exists; if so, exit; Merge src list member into dest, based on mergetyp enum

Parameters

	src	ncx_list_t struct to merge from
[in,out]	dest	ncx_list_t struct to merge into dest ncx_lmem_t structs will be moved from the src to dest as needed
	mergetyp	type of merge used for this list
	allow_dups	TRUE if this list allows duplicate values

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_new_list()

ncx_list_t * ncx_new_list

(

ncx_btype_t

btyp

)

Malloc Initialize an allocated ncx_list_t.

Parameters

btyp	base type of each list member desired

Returns

pointer to new entry, or NULL if memory error

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_new_lmem()

ncx_lmem_t * ncx_new_lmem

(

void

)

Malloc and fill in a new ncx_lmem_t struct.

This is a list member used within an ncx_list_t

Returns

pointer to malloced and initialized ncx_lmem_t struct NULL if malloc error

Here is the caller graph for this function:

ncx_next_lmem()

ncx_lmem_t * ncx_next_lmem

(

ncx_lmem_t *

cur

)

Return the next list member.

Parameters

cur	current lmem to check

Returns

pointer to the next list member or NULL if none

See also

ncx_first_lmem

Here is the caller graph for this function:

ncx_replace_list()

status_t ncx_replace_list	(	const ncx_list_t *	src,
		ncx_list_t *	dest
	)

The replace function is handled specially for lists.

The destination list is cleaned and then the src list is copied into the dest list. Only the dest list is altered.

Parameters

	src	ncx_list_t struct to replace from
[in,out]	dest	ncx_list_t struct to replace into dest ncx_lmem_t structs will be copied from the src to dest as needed

Returns

status

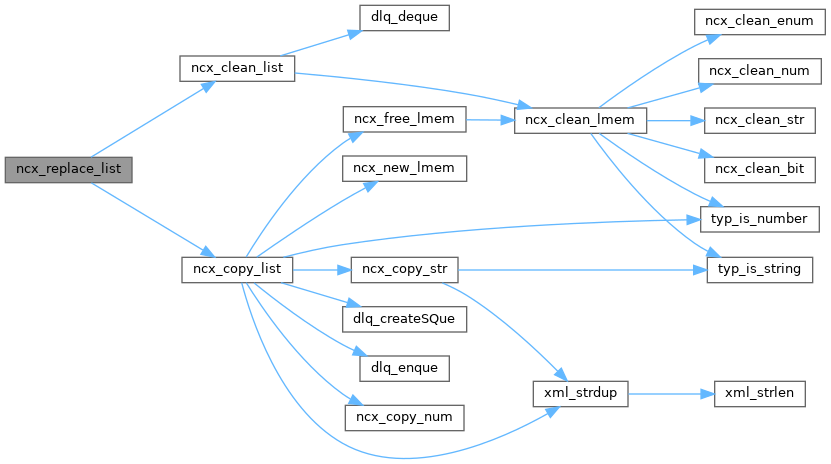

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_set_list()

status_t ncx_set_list	(	ncx_btype_t	btyp,
		const xmlChar *	strval,
		ncx_list_t *	list
	)

consume a generic string list with base type checking Parse the XML input as an NCX_BT_SLIST

Do not check the individual strings against any restrictions Just check that the strings parse as the expected type. Mark list members with errors as needed

Must call ncx_init_list first!!!

Parameters

	btyp	expected basetype for the list member type
	strval	cleaned XML string to parse into ncx_str_t or ncx_num_t values
[in,out]	list	ncx_list_t in progress that will get the ncx_lmem_t structs added to it, as they are parsed list->memQ has 1 or more ncx_lmem_t structs appended to it

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_set_strlist()

status_t ncx_set_strlist	(	const xmlChar *	liststr,
		ncx_list_t *	list
	)

Consume a generic string list with no type checking.

Convert a text line into an ncx_list_t using NCX_BT_STRING as the list type.

Parameters

	liststr	list value in string form
[out]	list	ncx_list_t that should be initialized and filled with the values from the string list filled in from liststr values

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_string_in_list()

boolean ncx_string_in_list	(	const xmlChar *	str,
		const ncx_list_t *	list
	)

Check if the string value is in the list List type must be string based, or an enum.

Parameters

str	string to find in the list
list	list to check

Returns

TRUE if string is found; FALSE otherwise

Here is the call graph for this function:

Here is the caller graph for this function:
