A stack of CLI contexts. More...

Collaboration diagram for CLI Run Stack Support:

Data Structures
struct	runstack_ifcb_t
	control the conditional state for 1 if...end sequence More...

struct	runstack_line_t
	save 1 line for looping purposes More...

struct	runstack_loopcb_t
	control the looping for 1 while - end sequence More...

struct	runstack_condcb_t
	control the looping for 1 while - end sequence More...

struct	runstack_entry_t
	one script run level context entry each time a 'run script' command is encountered, a new stack context is created, unless max_script_level is reached More...

struct	runstack_context_t
	Main runstact context control block used by yangcli to process script input loops and conditional statements in scripts. More...

Macros
#define	RUNSTACK_MAX_PARMS 9
	this is an arbitrary limit, but it must match the yangcli:run rpc P1 - Pn variables, currently set to 9 $1 to $9 parameters passed by yangcli to next script

#define	RUNSTACK_MAX_NEST 512
	this is an arbitrary max to limit resources and run-away scripts that are called recursively

#define	RUNSTACK_MAX_LOOP 65535
	this is an arbitrary max to limit run-away scripts that have bugs

Enumerations
enum	runstack_src_t { RUNSTACK_SRC_NONE , RUNSTACK_SRC_USER , RUNSTACK_SRC_SCRIPT , RUNSTACK_SRC_LOOP }
	identify the runstack input source More...

enum	runstack_condtype_t { RUNSTACK_COND_NONE , RUNSTACK_COND_IF , RUNSTACK_COND_LOOP }
	identify the runstack conditional control block type More...

enum	runstack_ifstate_t { RUNSTACK_IF_NONE , RUNSTACK_IF_IF , RUNSTACK_IF_ELIF , RUNSTACK_IF_ELSE }
	keep track of the if,elif,else,end sequence More...

enum	runstack_loopstate_t { RUNSTACK_LOOP_NONE , RUNSTACK_LOOP_COLLECTING , RUNSTACK_LOOP_LOOPING }
	keep track of the while,end sequence More...

enum	runstack_queue_type_t { RUNSTACK_QUE_NONE , RUNSTACK_QUE_LOCAL , RUNSTACK_QUE_SESSION , RUNSTACK_QUE_GROUP , RUNSTACK_QUE_GLOBAL }
	different queues of variables for que selection More...

Functions
uint32	runstack_level (runstack_context_t *rcxt)
	Get the current stack level. More...

status_t	runstack_push (runstack_context_t rcxt, const xmlChar source, FILE *fp)
	Add a script nest level context to the stack. More...

void	runstack_pop (runstack_context_t *rcxt)
	Remove a script nest level context from the stack Call just after script is completed. More...

xmlChar *	runstack_get_cmd (runstack_context_t rcxt, status_t res)
	Read the current runstack context and construct a command string for processing by do_run_script. More...

void	runstack_cancel (runstack_context_t *rcxt)
	Cancel all running scripts. More...

void	runstack_clear_cancel (runstack_context_t *rcxt)
	Clear the cancel flags. More...

dlq_hdr_t *	runstack_get_que (runstack_context_t *rcxt, runstack_queue_type_t quetype)
	Read the current runstack context and figure out which queue to get. More...

dlq_hdr_t *	runstack_get_parm_que (runstack_context_t *rcxt)
	Get the parameter queue for the current stack level. More...

void	runstack_init (void)
	Initialize this module. More...

void	runstack_cleanup (void)
	Cleanup this module. More...

void	runstack_clean_context (runstack_context_t *rcxt)
	Clean the runstack context. More...

void	runstack_free_context (runstack_context_t *rcxt)
	Clean and free the runstack context. More...

void	runstack_init_context (runstack_context_t *rcxt)
	Initialize a pre-malloced runstack context. More...

runstack_context_t *	runstack_new_context (void)
	Malloc and init a new runstack context. More...

void	runstack_session_cleanup (runstack_context_t *rcxt)
	Cleanup after a yangcli session has ended. More...

runstack_src_t	runstack_get_source (runstack_context_t *rcxt)
	Get the current input source for the runstack context. More...

status_t	runstack_save_line (runstack_context_t rcxt, const xmlChar line)
	Save the current line if needed if a loop is active. More...

xmlChar *	runstack_get_loop_cmd (runstack_context_t rcxt, status_t res)
	Get the next command during loop processing. More...

boolean	runstack_get_cond_state (runstack_context_t *rcxt)
	Get the current conditional code state for the context. More...

status_t	runstack_handle_while (runstack_context_t rcxt, uint32 maxloops, struct xpath_pcb_t_ xpathpcb, val_value_t *docroot)
	Process the current command, which is a 'while' command. More...

status_t	runstack_handle_if (runstack_context_t *rcxt, boolean startcond)
	Handle the if command for the specific runstack context. More...

status_t	runstack_handle_elif (runstack_context_t *rcxt, boolean startcond)
	Handle the elif command for the specific runstack context. More...

status_t	runstack_handle_else (runstack_context_t *rcxt)
	Handle the elsecommand for the specific runstack context. More...

status_t	runstack_handle_end (runstack_context_t *rcxt)
	Handle the end command for the specific runstack context. More...

boolean	runstack_get_if_used (runstack_context_t *rcxt)
	Check if the run context, which should be inside an if-stmt now, has used the 'true' block already. More...

void	runstack_set_sessionQ (runstack_context_t rcxt, dlq_hdr_t sessionQ)
	Set the current session-specific variable Q. More...

void	runstack_set_groupQ (runstack_context_t rcxt, dlq_hdr_t groupQ)
	Set the current group-specific variable Q. More...

Detailed Description

A stack of CLI contexts.

Each 'run' command causes a new context to be created on the stack.

Enumeration Type Documentation

◆ runstack_condtype_t

enum runstack_condtype_t

identify the runstack conditional control block type

Enumerator
RUNSTACK_COND_NONE	not set
RUNSTACK_COND_IF	if-stmt condition
RUNSTACK_COND_LOOP	while loop condition

◆ runstack_ifstate_t

enum runstack_ifstate_t

keep track of the if,elif,else,end sequence

Enumerator
RUNSTACK_IF_NONE	not set
RUNSTACK_IF_IF	if state
RUNSTACK_IF_ELIF	elif state
RUNSTACK_IF_ELSE	else state

◆ runstack_loopstate_t

enum runstack_loopstate_t

keep track of the while,end sequence

Enumerator
RUNSTACK_LOOP_NONE	not set
RUNSTACK_LOOP_COLLECTING	collecting loop commands
RUNSTACK_LOOP_LOOPING	playing loop commands

◆ runstack_queue_type_t

enum runstack_queue_type_t

different queues of variables for que selection

Enumerator
RUNSTACK_QUE_NONE	not set
RUNSTACK_QUE_LOCAL	local variables
RUNSTACK_QUE_SESSION	session variables
RUNSTACK_QUE_GROUP	group variables
RUNSTACK_QUE_GLOBAL	global variables

◆ runstack_src_t

enum runstack_src_t

identify the runstack input source

Enumerator
RUNSTACK_SRC_NONE	not set
RUNSTACK_SRC_USER	source is interactive input
RUNSTACK_SRC_SCRIPT	source is a yangcli script
RUNSTACK_SRC_LOOP	source is captured from a loop

Function Documentation

◆ runstack_cancel()

void runstack_cancel ( runstack_context_t * rcxt )

Cancel all running scripts.

Parameters

rcxt	runstack context to use

◆ runstack_clean_context()

void runstack_clean_context ( runstack_context_t * rcxt )

Clean the runstack context.

Parameters

rcxt	runstack context to clean, but not free

Here is the call graph for this function:

Here is the caller graph for this function:

◆ runstack_cleanup()

void runstack_cleanup ( void )

Cleanup this module.

Must cleanup this module after using it!!!

Here is the call graph for this function:

Here is the caller graph for this function:

◆ runstack_clear_cancel()

void runstack_clear_cancel ( runstack_context_t * rcxt )

Clear the cancel flags.

Parameters

rcxt	runstack context to use

Here is the caller graph for this function:

◆ runstack_free_context()

void runstack_free_context ( runstack_context_t * rcxt )

Clean and free the runstack context.

Parameters

rcxt	runstack context to free

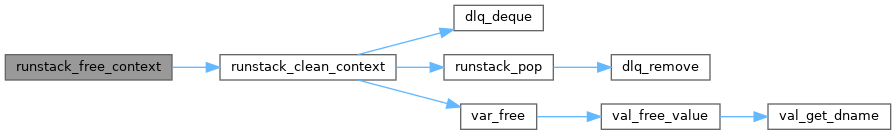

Here is the call graph for this function:

◆ runstack_get_cmd()

xmlChar * runstack_get_cmd	(	runstack_context_t *	rcxt,
		status_t *	res
	)

Read the current runstack context and construct a command string for processing by do_run_script.

Comment lines will be skipped.
Extended lines will be concatenated in the buffer. If a buffer overflow occurs due to this concatenation, an error will be returned

Parameters

	rcxt	runstack context to use
[out]	res	address of status result *res function result status

Returns: pointer to the command line to process (should treat as CONST !!!) NULL if some error

Here is the call graph for this function:

◆ runstack_get_cond_state()

boolean runstack_get_cond_state ( runstack_context_t * rcxt )

Get the current conditional code state for the context.

Parameters

rcxt	runstack context to use

Returns: TRUE if in a TRUE conditional or no conditional
FALSE if in a FALSE conditional statement right now

Here is the caller graph for this function:

◆ runstack_get_if_used()

boolean runstack_get_if_used ( runstack_context_t * rcxt )

Check if the run context, which should be inside an if-stmt now, has used the 'true' block already.

Parameters

rcxt	runstack context to use

Returns: TRUE if TRUE block already used
FALSE if FALSE not already used or not in an if-block

◆ runstack_get_loop_cmd()

xmlChar * runstack_get_loop_cmd	(	runstack_context_t *	rcxt,
		status_t *	res
	)

Get the next command during loop processing.

This function is called after the while loop end has been reached, and buffered commands are used

Parameters

	rcxt	runstack context to use
[out]	res	address of status result *res function result status ERR_NCX_LOOP_ENDED if the loop expr was just evaluated to FALSE; In this case the caller must use the runstack_get_source function to determine the source of the next line. If this occurs, the loopcb (and while context) will be removed from the curent runstack frame

Returns: pointer to the command line to process (should treat as CONST !!!) NULL if some error

Here is the call graph for this function:

◆ runstack_get_parm_que()

dlq_hdr_t * runstack_get_parm_que ( runstack_context_t * rcxt )

Get the parameter queue for the current stack level.

Parameters

rcxt	runstack context to use

Returns: que for current stack level, NULL if an error

◆ runstack_get_que()

dlq_hdr_t * runstack_get_que	(	runstack_context_t *	rcxt,
		runstack_queue_type_t	quetype
	)

Read the current runstack context and figure out which queue to get.

Parameters

rcxt	runstack context to use
quetype	runstack_queue_type_t enumeration

Returns: pointer to the requested que

Here is the caller graph for this function:

◆ runstack_get_source()

runstack_src_t runstack_get_source ( runstack_context_t * rcxt )

Get the current input source for the runstack context.

Parameters

rcxt	runstack context to use

◆ runstack_handle_elif()

status_t runstack_handle_elif	(	runstack_context_t *	rcxt,
		boolean	startcond
	)

Handle the elif command for the specific runstack context.

Parameters

rcxt	runstack context to use
startcond	start condition state for this if block may be FALSE because the current conditional state is already FALSE

Returns: status

◆ runstack_handle_else()

status_t runstack_handle_else ( runstack_context_t * rcxt )

Handle the elsecommand for the specific runstack context.

Parameters

rcxt	runstack context to use

Returns: status

◆ runstack_handle_end()

status_t runstack_handle_end ( runstack_context_t * rcxt )

Handle the end command for the specific runstack context.

Parameters

rcxt	runstack context to use

Returns: status

Here is the call graph for this function:

◆ runstack_handle_if()

status_t runstack_handle_if	(	runstack_context_t *	rcxt,
		boolean	startcond
	)

Handle the if command for the specific runstack context.

Parameters

rcxt	runstack context to use
startcond	start condition state for this if block may be FALSE because the current conditional state is already FALSE

Returns: status

Here is the call graph for this function:

◆ runstack_handle_while()

status_t runstack_handle_while	(	runstack_context_t *	rcxt,
		uint32	maxloops,
		struct xpath_pcb_t_ *	xpathpcb,
		val_value_t *	docroot
	)

Process the current command, which is a 'while' command.

This must be called before the next command is retrieved during runstack context processing

Parameters

rcxt	runstack context to use
maxloops	max number of loop iterations
xpathpcb	XPath control block to save which contains the expression to be processed. !!! this memory is handed off here; it will !!! be freed as part of the loopcb context
docroot	docroot var struct that represents the XML document to run the XPath expr against !!! this memory is handed off here; it will !!! be freed as part of the loopcb context

Returns: status; if status != NO_ERR then the xpathpcb and docroot parameters need to be freed by the caller

◆ runstack_init()

void runstack_init ( void )

Initialize this module.

Must Init this module before using it!!!

Here is the call graph for this function:

Here is the caller graph for this function:

◆ runstack_init_context()

void runstack_init_context ( runstack_context_t * rcxt )

Initialize a pre-malloced runstack context.

Parameters

rcxt	runstack context to free

Here is the call graph for this function:

Here is the caller graph for this function:

◆ runstack_level()

uint32 runstack_level ( runstack_context_t * rcxt )

Get the current stack level.

Parameters

rcxt	runstack context to use

Returns: current stack level; 0 --> not in any script

◆ runstack_new_context()

runstack_context_t * runstack_new_context ( void )

Malloc and init a new runstack context.

Returns: malloced and initialized runstack context

Here is the call graph for this function:

◆ runstack_pop()

void runstack_pop ( runstack_context_t * rcxt )

Remove a script nest level context from the stack Call just after script is completed.

Parameters

rcxt	runstack context to use

Here is the call graph for this function:

Here is the caller graph for this function:

◆ runstack_push()

status_t runstack_push	(	runstack_context_t *	rcxt,
		const xmlChar *	source,
		FILE *	fp
	)

Add a script nest level context to the stack.

Call just after the file is opened and before the first line has been read

Still need to add the script parameters (if any) with the runstack_setparm

Parameters

rcxt	runstack context to use
source	file source
fp	file pointer

Returns: status

Here is the call graph for this function:

◆ runstack_save_line()

status_t runstack_save_line	(	runstack_context_t *	rcxt,
		const xmlChar *	line
	)

Save the current line if needed if a loop is active.

Parameters

rcxt	runstack context to use
line	line to save, a copy will be made

Returns: status

Here is the call graph for this function:

◆ runstack_session_cleanup()

void runstack_session_cleanup ( runstack_context_t * rcxt )

Cleanup after a yangcli session has ended.

Parameters

rcxt	runstack context to use

Here is the call graph for this function:

◆ runstack_set_groupQ()

void runstack_set_groupQ	(	runstack_context_t *	rcxt,
		dlq_hdr_t *	groupQ
	)

Set the current group-specific variable Q.

Parameters

rcxt	runstack context to use
groupQ	pointer to Q of ncx_var_t to use as current group vars NULL to clear the current sessionQ

◆ runstack_set_sessionQ()

void runstack_set_sessionQ	(	runstack_context_t *	rcxt,
		dlq_hdr_t *	sessionQ
	)

Set the current session-specific variable Q.

Parameters

rcxt	runstack context to use
sessionQ	pointer to Q of ncx_var_t to use as current session vars NULL to clear the current sessionQ

Data Structures

Macros

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ runstack_condtype_t

◆ runstack_ifstate_t

◆ runstack_loopstate_t

◆ runstack_queue_type_t

◆ runstack_src_t

Function Documentation

◆ runstack_cancel()

◆ runstack_clean_context()

◆ runstack_cleanup()

◆ runstack_clear_cancel()

◆ runstack_free_context()

◆ runstack_get_cmd()

◆ runstack_get_cond_state()

◆ runstack_get_if_used()

◆ runstack_get_loop_cmd()

◆ runstack_get_parm_que()

◆ runstack_get_que()

◆ runstack_get_source()

◆ runstack_handle_elif()

◆ runstack_handle_else()

◆ runstack_handle_end()

◆ runstack_handle_if()

◆ runstack_handle_while()

◆ runstack_init()

◆ runstack_init_context()

◆ runstack_level()

◆ runstack_new_context()

◆ runstack_pop()

◆ runstack_push()

◆ runstack_save_line()

◆ runstack_session_cleanup()

◆ runstack_set_groupQ()

◆ runstack_set_sessionQ()
