SID Management

Support Experimental YANG to CBOR SID File. More...

Collaboration diagram for SID Management:

Typedefs
typedef yang_sid_status_t(*	yang_sid_test_fn_t) (ncx_module_t *mod)
	function callback to test if module is external, internal, or should be skipped for SID assignment More...

Enumerations
enum	yang_sid_status_t {   YANG_SID_STAT_NONE ,   YANG_SID_STAT_EXTERNAL ,   YANG_SID_STAT_INTERNAL ,   YANG_SID_STAT_SKIP }
	enum for the keep-module status returned by the test function Only used for LSID assignment at this time More...

Functions
status_t	yang_sid_set_module (ncx_module_t *mod, ncx_yang_sid_mode_t yang_sid_mode)
	Attempt to assign SIDs for the module. More...
status_t	yang_sid_set_all_modules (ncx_yang_sid_mode_t yang_sid_mode, boolean strict_mode, yang_sid_test_fn_t test_fn)
	Attempt to assign the YANG SIDs for all the loaded modules. More...
void	yang_sid_init (void)
	Initialize the YANG SID module. More...
void	yang_sid_cleanup (void)
	Cleanup the YANG SID module. More...
uint8	yang_sid_num_bits (void)
	Number of bits in the SID implementation. More...
const xmlChar *	yang_sid_mode_str (ncx_yang_sid_mode_t sidmode)
	string for the yang_sid_mode enumeration More...

Detailed Description

Support Experimental YANG to CBOR SID File.

Manage SID assignment modes

Typedef Documentation

yang_sid_test_fn_t

typedef yang_sid_status_t(* yang_sid_test_fn_t) (ncx_module_t *mod)

function callback to test if module is external, internal, or should be skipped for SID assignment

Parameters

mod	module to check

Returns

enum for the processing for this module

Enumeration Type Documentation

yang_sid_status_t

enum yang_sid_status_t

enum for the keep-module status returned by the test function Only used for LSID assignment at this time

Enumerator
YANG_SID_STAT_NONE	not set
YANG_SID_STAT_EXTERNAL	keep module as externally visible
YANG_SID_STAT_INTERNAL	keep module as internally visible
YANG_SID_STAT_SKIP	do not assign SIDs to this module

Function Documentation

yang_sid_cleanup()

void yang_sid_cleanup

(

void

)

Cleanup the YANG SID module.

Here is the caller graph for this function:

yang_sid_init()

void yang_sid_init

(

void

)

Initialize the YANG SID module.

Here is the caller graph for this function:

yang_sid_mode_str()

const xmlChar * yang_sid_mode_str

(

ncx_yang_sid_mode_t

sidmode

)

string for the yang_sid_mode enumeration

Parameters

sidmode

SID mode enumeration to convert to string

Returns

string value for the enum or NULL if none

yang_sid_num_bits()

uint8 yang_sid_num_bits

(

void

)

Number of bits in the SID implementation.

Expect 16, 32, or 64

DEFAULT IS 32, NOT 64!!!!

Returns

number

yang_sid_set_all_modules()

status_t yang_sid_set_all_modules	(	ncx_yang_sid_mode_t	yang_sid_mode,
		boolean	strict_mode,
		yang_sid_test_fn_t	test_fn
	)

Attempt to assign the YANG SIDs for all the loaded modules.

USED BY THE SERVER ONLY!! CLIENT USAGE DOES NOT SET ALL MODULES!!! The <get-yang-sid-data> operation is used to set YANG SID assignments on a client!!!

the function will attempt to set all modules even if an error occurred in 1 SID file. The return status is the overall status, set to the last error that occurred.
If true, Any missing or incomplete SID files will cause the function to stop and return an error

Parameters

yang_sid_mode	SID assignment mode to use Once set cannot be changed!!
strict_mode	If false,
test_fn	test callback to check how module is handled if NULL, then all modules set as YANG_SID_STAT_EXTERNAL

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

yang_sid_set_module()

status_t yang_sid_set_module	(	ncx_module_t *	mod,
		ncx_yang_sid_mode_t	yang_sid_mode
	)

Attempt to assign SIDs for the module.

Parameters

mod	module to assign
yang_sid_mode	SID assignment mode to use Once set cannot be changed!!

Returns

status

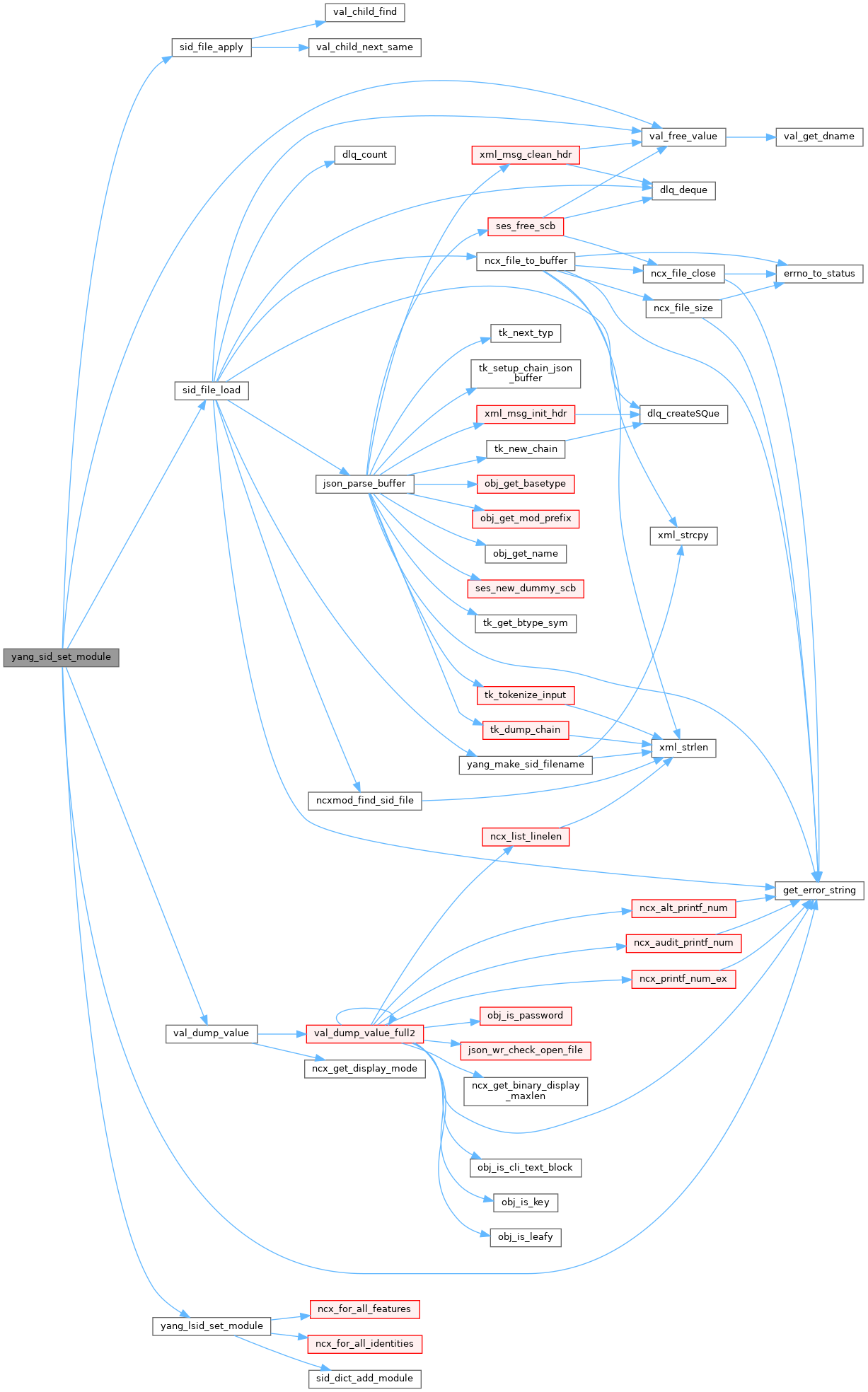

Here is the call graph for this function:

Here is the caller graph for this function:
