Timestamp and time format conversion functions. More...

Collaboration diagram for Timestamp Utilities:

Macros
#define	TSTAMP_MIN_HEXSIZE 17
	minimum buffer size for hex format

#define	TSTAMP_MIN_SIZE 29
	normal minimum buffer size for a tstamp buffer More...

#define	TSTAMP_DATE_SIZE 12
	minimum buffer size for just a date string This value MUST be the minimum size buffer used for the tstamp_datetime and tstamp_local_datetime functions

#define	TSTAMP_SQL_SIZE 20
	minimum buffer size for SQL date format string

#define	TSTAMP_HTML_SIZE 50
	minimum buffer size for HTML format string

#define	TSTAMP_MIN_YANG_SIZE 19
	YANG length of a date-and-time including the seconds used only to validate a string not to set a string YYYY-MM-DDTHH:MM:SS.

Functions
void	tstamp_datetime (xmlChar *buff)
	Set the current date and time in an XML dateTime string format. More...

void	tstamp_highres_datetime (xmlChar *buff)
	Set the current date and time in an XML dateTime string format using highres format. More...

void	tstamp_local_datetime (xmlChar *buff)
	Set the current date and time in an XML dateTime string format. More...

void	tstamp_local_highres_datetime (xmlChar *buff)
	Set the current date and time in an XML dateTime string format using highres format. More...

void	tstamp_date (xmlChar *buff)
	Set the current date in an XML dateTime string format. More...

void	tstamp_datetime_sql (xmlChar *buff)
	Set the current date and time in an XML dateTime string format. More...

xmlChar *	tstamp_convert_to_utctime (const xmlChar timestr, boolean isNegative, status_t *res)
	Check if the specified string is a valid dateTime or date-and-time string is valid and if so, convert it to UTC time. More...

void	tstamp_datetime_dirname (xmlChar *buff)
	Set the current date and time in an XML dateTime string format. More...

void	tstamp_time2datetime (time_t timerec, xmlChar buff)
	Convert the specified time_t to a YANG data-and-time format. More...

void	tstamp_local_time2datetime (time_t timerec, xmlChar buff)
	Convert the specified time_t to a local time YANG date-and-time format. More...

status_t	tstamp_time2htmltime (time_t timerec, xmlChar buff, size_t buffsize)
	Convert the specified time_t to a HTML timestamp string. More...

status_t	tstamp_htmltime2time (const xmlChar timestr, time_t timerec)
	Convert the specified HTML timestamp string to time_t format. More...

int32	tstamp_difftime (time_t time1, time_t time2)
	Compare 2 time_t structs. More...

void	tstamp_now (time_t *tim)
	Set the time_t to the current time. More...

long int	tstamp_diff (struct timeval start_time, struct timeval end_time, long int *usec)
	Get the elapsed time between two timeval structs. More...

void	tstamp_time2hex (time_t tim, xmlChar buf)
	Convert the time_t to a string of hex digits. More...

status_t	tstamp_convert_to_time (const xmlChar timestr, time_t rtime)
	Check if the specified string is a valid dateTime or date-and-time string is valid and if so, convert it to time_t. More...

time_t	tstamp_cvt_TIME (char const *time_str)
	Convert the DATE string to a time_t. More...

void	tstamp_highres_timenow (struct timespec *ts)
	Get the current time using a high res timestamp. More...

void	tstamp_set_datetime (xmlChar *buff, boolean use_local)
	Set the current date and time in the buffer. More...

status_t	tstamp_time2localtime (time_t timerec, xmlChar buff, size_t buffsize)
	Convert the specified time_t to a localtime string. More...

status_t	tstamp_get_time_parts (const xmlChar datestr, uint32 hours, uint32 minutes, uint32 seconds)
	@ More...

Detailed Description

Timestamp and time format conversion functions.

NETCONF, YANG, and RESTCONF all use different date and time formats requiring conversions between them. Includes high resolution timers and monotonic clock support.

Macro Definition Documentation

◆ TSTAMP_MIN_SIZE

#define TSTAMP_MIN_SIZE 29

normal minimum buffer size for a tstamp buffer

NOTE: THIS VALUE HAS BEEN INCREASED TO HANDLE MICROSECONDS THE OLD VALUE OF 22 IS TOO SMALL FOR A HIGHRES TIMESTAMP

Function Documentation

◆ tstamp_convert_to_time()

status_t tstamp_convert_to_time	(	const xmlChar *	timestr,
		time_t *	rtime
	)

Check if the specified string is a valid dateTime or date-and-time string is valid and if so, convert it to time_t.

Parameters

	timestr	pointer to buffer to check
[out]	rtime	pointer to return time

Returns: status

Here is the call graph for this function:

◆ tstamp_convert_to_utctime()

xmlChar * tstamp_convert_to_utctime	(	const xmlChar *	timestr,
		boolean *	isNegative,
		status_t *	res
	)

Check if the specified string is a valid dateTime or date-and-time string is valid and if so, convert it to UTC time.

Parameters

	timestr	pointer to buffer to check
[out]	isNegative	address of return negative date flag *isNegative TRUE if a negative dateTime string is given FALSE if no starting '-' sign found
[out]	res	address of return status *res return status

Returns: malloced pointer to converted date time string or NULL if some error

Here is the call graph for this function:

◆ tstamp_cvt_TIME()

time_t tstamp_cvt_TIME ( char const * time_str )

Convert the DATE string to a time_t.

From StackOverflow https://stackoverflow.com/questions/1765014/convert-string-from-date-into-a-time-t

Parameters

time_str DATE string

Returns: time_t format

◆ tstamp_date()

void tstamp_date ( xmlChar * buff )

Set the current date in an XML dateTime string format.

Parameters

[in,out]

buff

pointer to buffer to hold output

MUST BE AT LEAST 11 CHARS
buff is filled in

Here is the caller graph for this function:

◆ tstamp_datetime()

void tstamp_datetime ( xmlChar * buff )

Set the current date and time in an XML dateTime string format.

Parameters

[out]

buff

pointer to buffer to hold output

MUST BE AT LEAST 21 CHARS
buff is filled in

Here is the caller graph for this function:

◆ tstamp_datetime_dirname()

void tstamp_datetime_dirname ( xmlChar * buff )

Set the current date and time in an XML dateTime string format.

Parameters

[in,out]

buff

pointer to buffer to hold output

MUST BE AT LEAST 21 CHARS
buff is filled in

Here is the caller graph for this function:

◆ tstamp_datetime_sql()

void tstamp_datetime_sql ( xmlChar * buff )

Set the current date and time in an XML dateTime string format.

Parameters

[in,out]

buff

pointer to buffer to hold output

MUST BE AT LEAST 20 CHARS
buff is filled in

◆ tstamp_diff()

long int tstamp_diff	(	struct timeval *	start_time,
		struct timeval *	end_time,
		long int *	usec
	)

Get the elapsed time between two timeval structs.

Parameters

	start_time	start timestamp
	end_time	finish timestamp
[out]	usec	address of return micro seconds *usec number of micro-seconds of elapsed time

Returns: number of seconds of elapsed time

◆ tstamp_difftime()

int32 tstamp_difftime	(	time_t *	time1,
		time_t *	time2
	)

Compare 2 time_t structs.

Parameters

time1	time struct 1
time2	time struct 2

Returns

compare value

    -1 if time1 < time2
     0 if time1 == time2
     1 if time1 > time2

Here is the caller graph for this function:

◆ tstamp_get_time_parts()

status_t tstamp_get_time_parts	(	const xmlChar *	datestr,
		uint32 *	hours,
		uint32 *	minutes,
		uint32 *	seconds
	)

@

Get the time parts from a yang:date-and-time string

Check the yang:date-and-time string and extract the hours minutes and seconds parts.

datestr format: YYYY-MM-DDTHH:MM:SSZ

Used for anchor-time so do not care about the date part or timezone

Parameters

	datestr	data-and-time string to check
[out]	hours	return hours value (0 - 23)
[out]	minutes	return minutes value (0 - 59)
[out]	seconds	return seconds value (0 - 59)

Returns: status

Here is the call graph for this function:

◆ tstamp_highres_datetime()

void tstamp_highres_datetime ( xmlChar * buff )

Set the current date and time in an XML dateTime string format using highres format.

Parameters

[in,out]

buff

pointer to buffer to hold output

MUST BE AT LEAST 29 CHARS (TSTAMP_MIN_SIZE)
buff is filled in

Here is the call graph for this function:

◆ tstamp_highres_timenow()

void tstamp_highres_timenow ( struct timespec * ts )

Get the current time using a high res timestamp.

If the make flags and system support it then the CLOCK_MONOTONIC highres clock will be used. If not then the CLOCK_REALTIME clock will be used

Parameters

[out]

ts

timeres struct to fill in

*ts is filled in

Here is the call graph for this function:

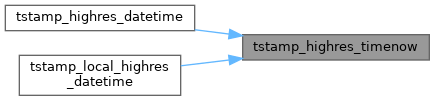

Here is the caller graph for this function:

◆ tstamp_htmltime2time()

status_t tstamp_htmltime2time	(	const xmlChar *	timestr,
		time_t *	timerec
	)

Convert the specified HTML timestamp string to time_t format.

Parameters

	timestr	timestamp string to convert
[out]	timerec	address of return time_t struct *timerec struct is filled in if NO_ERR

Returns: status

◆ tstamp_local_datetime()

void tstamp_local_datetime ( xmlChar * buff )

Set the current date and time in an XML dateTime string format.

Parameters

[in,out]

buff

pointer to buffer to hold output

MUST BE AT LEAST 21 CHARS
buff is filled in

Here is the caller graph for this function:

◆ tstamp_local_highres_datetime()

void tstamp_local_highres_datetime ( xmlChar * buff )

Set the current date and time in an XML dateTime string format using highres format.

Parameters

[in,out]

buff

pointer to buffer to hold output

MUST BE AT LEAST 29 CHARS (TSTAMP_MIN_SIZE)
buff is filled in

Here is the call graph for this function:

◆ tstamp_local_time2datetime()

void tstamp_local_time2datetime	(	time_t *	timerec,
		xmlChar *	buff
	)

Convert the specified time_t to a local time YANG date-and-time format.

Parameters

[in]	timerec	Pointer to time_t to convert.
[in,out]	buff	Pointer to buffer to hold output. MUST BE AT LEAST 21 CHARS buff is filled in

Here is the caller graph for this function:

◆ tstamp_now()

void tstamp_now ( time_t * tim )

Set the time_t to the current time.

Parameters

[out]

tim

address of time_t to set

*tim is set

Here is the caller graph for this function:

◆ tstamp_set_datetime()

void tstamp_set_datetime	(	xmlChar *	buff,
		boolean	use_local
	)

Set the current date and time in the buffer.

This function allows choosing between UTC and local time based on the use_local flag.

Parameters

[in,out]	buff	Pointer to the buffer for the date and time string. MUST BE AT LEAST 21 CHARS. buff is filled in
[in]	use_local	Boolean flag to determine if local time or UTC should be used. TRUE: local time FALSE: UTC time

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tstamp_time2datetime()

void tstamp_time2datetime	(	time_t *	timerec,
		xmlChar *	buff
	)

Convert the specified time_t to a YANG data-and-time format.

Parameters

	timerec	pointer to time_t to convert
[in,out]	buff	pointer to buffer to hold output MUST BE AT LEAST 21 CHARS buff is filled in

Here is the caller graph for this function:

◆ tstamp_time2hex()

void tstamp_time2hex	(	time_t *	tim,
		xmlChar *	buf
	)

Convert the time_t to a string of hex digits.

Parameters

	tim	address of time_t to use
[in,out]	buf	buffer to fill in (MUST be at least 17 chars long) TSTAMP_MIN_HEXSIZE buf is set to time_t converted to hex string

◆ tstamp_time2htmltime()

status_t tstamp_time2htmltime	(	time_t *	timerec,
		xmlChar *	buff,
		size_t	buffsize
	)

Convert the specified time_t to a HTML timestamp string.

Parameters

	timerec	pointer to time_t to convert
[in,out]	buff	pointer to buffer to hold output MUST BE AT LEAST 40 CHARS buff is filled in
	buffsize	size of `buff`

Returns: status

◆ tstamp_time2localtime()

status_t tstamp_time2localtime	(	time_t *	timerec,
		xmlChar *	buff,
		size_t	buffsize
	)

Convert the specified time_t to a localtime string.

Parameters

	timerec	pointer to time_t to convert
[in,out]	buff	pointer to buffer to hold output MUST BE AT LEAST 29 CHARS buff is filled in
	buffsize	size of `buff`

Returns: status

Here is the caller graph for this function:

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ TSTAMP_MIN_SIZE

Function Documentation

◆ tstamp_convert_to_time()

◆ tstamp_convert_to_utctime()

◆ tstamp_cvt_TIME()

◆ tstamp_date()

◆ tstamp_datetime()

◆ tstamp_datetime_dirname()

◆ tstamp_datetime_sql()

◆ tstamp_diff()

◆ tstamp_difftime()

◆ tstamp_get_time_parts()

◆ tstamp_highres_datetime()

◆ tstamp_highres_timenow()

◆ tstamp_htmltime2time()

◆ tstamp_local_datetime()

◆ tstamp_local_highres_datetime()

◆ tstamp_local_time2datetime()

◆ tstamp_now()

◆ tstamp_set_datetime()

◆ tstamp_time2datetime()

◆ tstamp_time2hex()

◆ tstamp_time2htmltime()

◆ tstamp_time2localtime()
