Core Functions to manage, read, and write sessions. More...

Collaboration diagram for Core Session Support Functions:

Functions
ses_cb_t *	ses_new_scb (void)
	Create a new session control block. More...

ses_cb_t *	ses_new_dummy_scb (void)
	Create a new dummy session control block. More...

ses_cb_t *	ses_new_coap_scb (void)
	Create a new global CoAP session control block. More...

void	ses_init_coap_scb (ses_cb_t *scb)
	Initialize a CoAP session control block. More...

ses_cb_t *	ses_new_snmp_scb (void)
	Create a new global SNMP session control block. More...

void	ses_free_scb (ses_cb_t *scb)
	Free a session control block. More...

void	ses_putchar (ses_cb_t *scb, uint32 ch)
	Write one char to the session, without any translation. More...

void	ses_put_binchar (ses_cb_t *scb, uint32 ch)
	Write one binary char to the session, without any translation. More...

void	ses_putstr (ses_cb_t scb, const xmlChar str)
	Write a zero-terminated string to the session. More...

void	ses_put_binstr (ses_cb_t scb, const xmlChar str, uint32 len)
	Write a binary string to the session. More...

void	ses_putstr_indent (ses_cb_t scb, const xmlChar str, int32 indent)
	Write a zero-terminated content string to the session with indentation. More...

void	ses_putcstr (ses_cb_t scb, const xmlChar str, int32 indent)
	write XML element safe content string Write a zero-terminated element content string to the session More...

void	ses_puthstr (ses_cb_t scb, const xmlChar str)
	write HTML element safe content string Write a zero-terminated element content string to the session More...

void	ses_putcchar (ses_cb_t *scb, uint32 ch)
	Write one content char to the session, with translation as needed. More...

void	ses_putastr (ses_cb_t scb, const xmlChar str, int32 indent)
	write XML attribute safe content string Write a zero-terminated attribute content string to the session More...

void	ses_putjstr (ses_cb_t scb, const xmlChar str, int32 indent)
	write JSON safe content string Write a zero-terminated element content string to the session More...

void	ses_indent (ses_cb_t *scb, int32 indent)
	Write the proper newline + indentation to the specified session. More...

int32	ses_indent_count (const ses_cb_t *scb)
	Get the logging indent count for this session. More...

int32	ses_message_indent_count (const ses_cb_t *scb)
	Get the message indent count for this session. More...

void	ses_set_indent (ses_cb_t *scb, int32 indent)
	Set the logging indent count for this session. More...

void	ses_set_message_indent (ses_cb_t *scb, int32 indent)
	Set the message indent count for this session. More...

void	ses_set_mode (ses_cb_t *scb, ses_mode_t mode)
	Set the output mode for the specified session. More...

ses_mode_t	ses_get_mode (ses_cb_t *scb)
	Get the output mode for the specified session. More...

void	ses_start_msg_mode (ses_cb_t *scb)
	Set the message output mode to active. More...

void	ses_stop_msg_mode (ses_cb_t *scb)
	Set the message output mode to inactive. More...

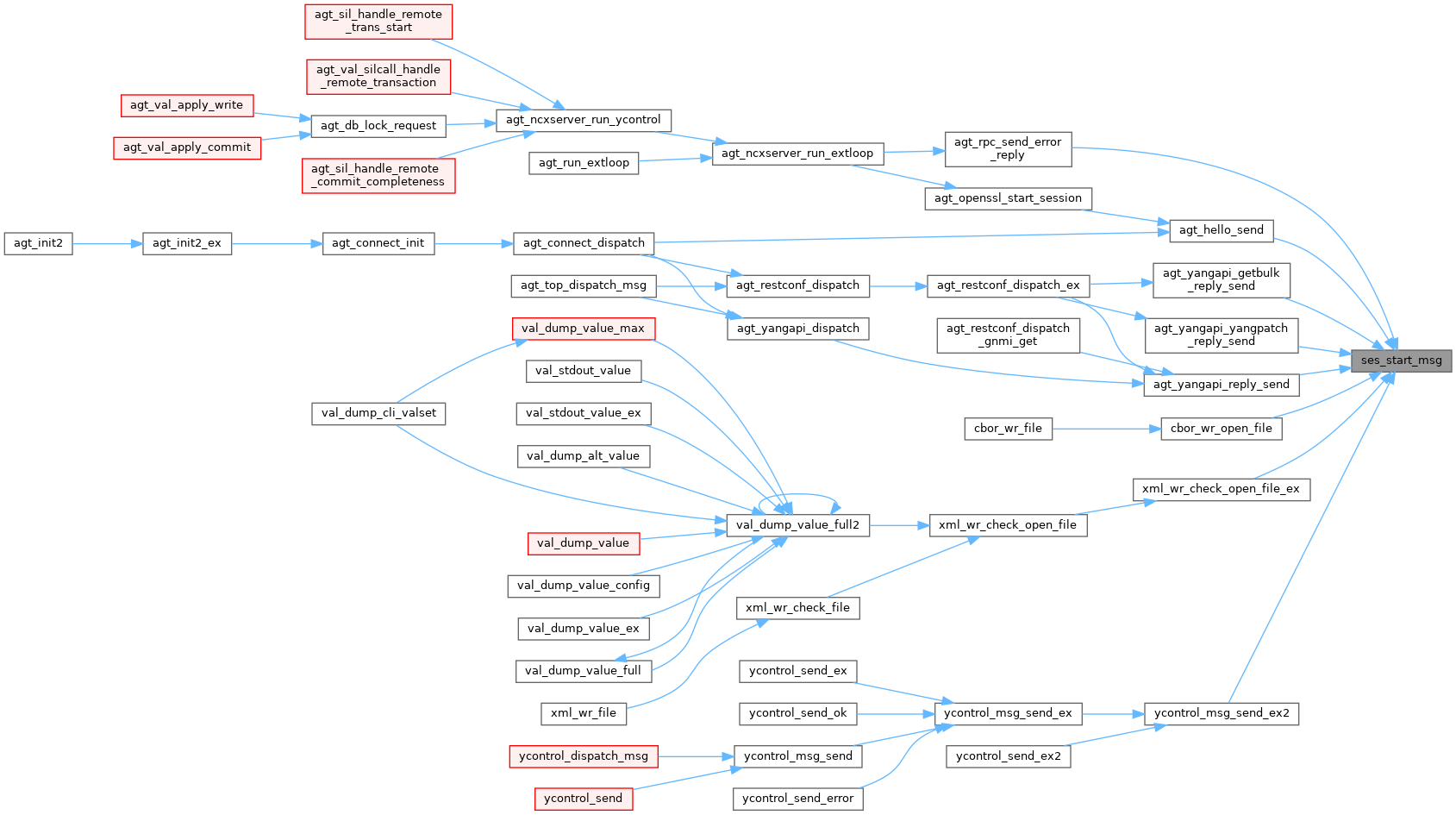

status_t	ses_start_msg (ses_cb_t *scb)
	Start a new outbound message on the specified session. More...

void	ses_finish_msg (ses_cb_t *scb)
	Finish an outbound message on the specified session. More...

int	ses_read_cb (void context, char buffer, int len)
	The IO input front-end for the xmlTextReader parser read fn. More...

status_t	ses_accept_input (ses_cb_t *scb)
	The IO input handler for the ncxserver loop. More...

const xmlChar *	ses_state_name (ses_state_t state)
	Get the name of a session state from the enum value. More...

ncx_withdefaults_t	ses_withdef (const ses_cb_t *scb)
	Get the with-defaults value for this session. More...

uint32	ses_line_left (const ses_cb_t *scb)
	Get the number of bytes that can be added to the current line before the session linesize limit is reached. More...

void	ses_put_extern (ses_cb_t scb, const xmlChar fname)
	write the contents of a file to the session More...

status_t	ses_put_extern2 (ses_cb_t scb, const xmlChar fname)
	write the contents of a file to the session More...

status_t	ses_put_extern_bin (ses_cb_t scb, const xmlChar fname)
	write the contents of a binary file to the session More...

ses_total_stats_t *	ses_get_total_stats (void)
	Get a r/w pointer to the the session totals stats. More...

ses_transport_t	ses_get_transport (ses_cb_t *scb)
	Get the transport enum for a given session. More...

ses_transport_t	ses_get_transport_enum (const xmlChar *str)
	Get the enum value for the yumaworks-types:transport-type. More...

const xmlChar *	ses_get_transport_name (ses_transport_t transport)
	Get the name of the transport for a given enum value. More...

const xmlChar *	ses_get_transport_yang_name (ses_transport_t transport)
	Get the name of the transport for a given enum value. More...

void	ses_set_xml_nons (ses_cb_t *scb)
	force xmlns attributes to be skipped in XML mode More...

boolean	ses_get_xml_nons (const ses_cb_t *scb)
	force xmlns attributes to be skipped in XML mode More...

status_t	ses_set_protocol (ses_cb_t *scb, ncx_protocol_t proto)
	set the NETCONF protocol version in use More...

ncx_protocol_t	ses_get_protocol (const ses_cb_t *scb)
	Get the NETCONF protocol set (or unset) for this session. More...

void	ses_set_protocols_requested (ses_cb_t *scb, ncx_protocol_t proto)
	set the NETCONF protocol versions requested More...

boolean	ses_protocol_requested (ses_cb_t *scb, ncx_protocol_t proto)
	check if the NETCONF protocol version was requested More...

void	ses_set_extern_xml_mode (ses_cb_t *scb, boolean rawxml_mode)
	Setup the scb for external XML parsing. More...

void	ses_set_extern_xml_mode_ex (ses_cb_t *scb, boolean rawxml_mode, boolean keep_xmlns)
	Setup the scb for external XML parsing. More...

void	ses_clear_extern_xml_mode (ses_cb_t *scb, boolean rawxml_mode)
	Clear the scb from external XML parsing. More...

void	ses_clear_extern_xml_mode_ex (ses_cb_t *scb, boolean rawxml_mode, boolean keep_xmlns)
	Clear the scb from external XML parsing. More...

void	ses_set_out_encoding (ses_cb_t *scb, ncx_display_mode_t encoding)
	Set the output encoding. More...

void	ses_set_SSE_encoding (ses_cb_t *scb)
	Set the output encoding to have a Server Sent Events filter Used for notification delivery over RESTCONF/HTTP. More...

ncx_display_mode_t	ses_get_out_encoding (ses_cb_t *scb)
	Get the output encoding. More...

int32	ses_new_indent_count (boolean indent_in, int32 indent, int32 indent_amount)
	Get the new indent count from the current and indent_amount. More...

void	ses_free_xml_reader (ses_cb_t *scb)
	Free the xmlTextReader for the session The encoding is switching from XML to something else. More...

status_t	ses_getline_cb (xmlChar fillbuff, uint32 fillbuffsize, void cookie)
	The IO input front-end for the tk_parse_json_buffs function. More...

status_t	ses_set_control_session (ses_cb_t *scb)
	Set the specified session as a control session. More...

boolean	ses_is_control_session (ses_cb_t *scb)
	Check if the specified session is a control session. More...

void	ses_set_dbapi_session (ses_cb_t *scb)
	Set the specified session as a DB-API control session. More...

boolean	ses_is_dbapi_session (ses_cb_t *scb)
	Check if the specified session is a DB-API control session. More...

void	ses_set_dbapi_system_session (ses_cb_t *scb)
	Set the specified session as a DB-API control session for system edits. More...

boolean	ses_is_dbapi_system_session (ses_cb_t *scb)
	Check if the specified session is a DB-API control session for system edits. More...

void	ses_clear_dbapi_system_session (ses_cb_t *scb)
	Clear a session of the DB-API system status. More...

boolean	ses_is_system_session (ses_cb_t *scb)
	Check if the specified session is an internal system session. More...

int32	ses_add_indent (ses_cb_t *scb, int32 indent)
	Add in the new indent amount. More...

int32	ses_dec_indent (ses_cb_t *scb, int32 indent)
	Remove the specified indent amount. More...

ncx_msg_encoding_t	ses_get_msg_encoding (const ses_cb_t *scb)
	Get the message encoding for the HTTP session. More...

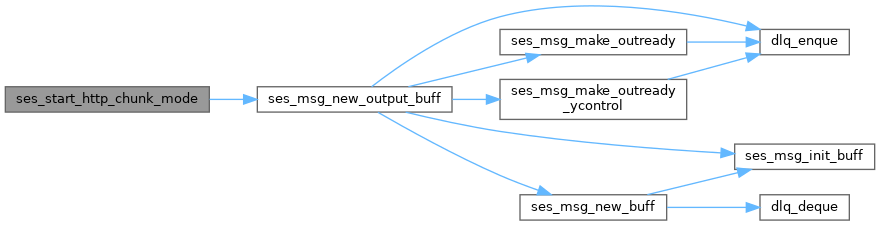

status_t	ses_start_http_chunk_mode (ses_cb_t *scb)
	Start outputting buffers in HTTP 1.1 chunk mode. More...

const xmlChar *	ses_get_entry_point (ses_cb_t *scb)
	Get the RESTCONF entry_point. More...

status_t	ses_set_entry_point (ses_cb_t scb, const xmlChar point)
	Set the RESTCONF entry_point. More...

boolean	ses_notifications_active (const ses_cb_t *scb)
	Check if the session has notifications active. More...

status_t	ses_set_gnmi_control_session (ses_cb_t *scb)
	Set the specified session as a gNMI control session. More...

boolean	ses_is_gnmi_control_session (ses_cb_t *scb)
	Check if the specified session is a gNMI control session. More...

void	ses_set_gnmi_session (ses_cb_t *scb)
	Set the specified session as a gNMI session. More...

boolean	ses_is_gnmi_session (ses_cb_t *scb)
	Check if the specified session is a gNMI session. More...

status_t	ses_add_breadcrumb_obj (ses_cb_t scb, struct obj_template_t_ obj)
	Add an object to the breadcrumbQ. More...

void	ses_clean_breadcrumbQ (ses_cb_t *scb)
	Clean the breadcrumbQ. More...

boolean	ses_dropped (const ses_cb_t *scb)
	Check if the session has been dropped by the client. More...

status_t	ses_set_file_override (ses_cb_t scb, const xmlChar filespec, boolean is_binary)
	Setup the session in file write override mode. More...

void	ses_clear_file_override (ses_cb_t *scb)
	Cleanup the session in file write override mode Does not delete the file, just closes it! More...

void	ses_start_checksum (ses_cb_t *scb)
	Clear the checksum field and start checksum mode. More...

uint32	ses_finish_checksum (ses_cb_t scb, uint32 checksum_cnt)
	Stop checksum mode and return the final checksum. More...

boolean	ses_dropped_ex (ses_cb_t *scb)
	Check if the session has been dropped by the client. More...

status_t	ses_set_grpc_control_session (ses_cb_t *scb)
	Set the specified session as a gRPC control session. More...

boolean	ses_is_grpc_control_session (ses_cb_t *scb)
	Check if the specified session is a gRPC control session. More...

void	ses_set_grpc_session (ses_cb_t *scb)
	Set the specified session as a gRPC session. More...

boolean	ses_is_grpc_session (ses_cb_t *scb)
	Check if the specified session is a gRPC session. More...

void	ses_dump_binary_buff (const xmlChar *buff, size_t bufflen)
	Dump some bytes from the binary buffer (max 256) More...

boolean	ses_poll_ready (ses_cb_t *scb)
	Check if the specified session is ready to read bytes. More...

const xmlChar *	ses_get_scb_username (ses_cb_t *scb)
	Get the username to use from an SCB. More...

const xmlChar *	ses_get_scb_client_addr (ses_cb_t *scb)
	Get the client addr to use from an SCB. More...

Detailed Description

Core Functions to manage, read, and write sessions.

A server session usually uses one input buffer and one output buffer at a time. When the output session is full by ses_putchar then the full buffer will be sent.

Function Documentation

◆ ses_accept_input()

status_t ses_accept_input ( ses_cb_t * scb )

The IO input handler for the ncxserver loop.

Need to separate the input stream into separate XML instance documents and reset the xmlTextReader each time a new document is encountered. For SSH, also need to detect the EOM flag and remove it + control input to the reader.

This function breaks the byte stream into ses_msg_t structs that get queued on the session's msgQ

Parameters

scb	session control block to accept input for

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_add_breadcrumb_obj()

status_t ses_add_breadcrumb_obj	(	ses_cb_t *	scb,
		struct obj_template_t_ *	obj
	)

Add an object to the breadcrumbQ.

Parameters

scb	session control block to check
obj	breadcrumb object to add

Returns: status ERR_NCX_DEF_LOOP if duplicate found

◆ ses_add_indent()

int32 ses_add_indent	(	ses_cb_t *	scb,
		int32	indent
	)

Add in the new indent amount.

Parameters

scb	session control block
indent	current indent amount

Returns: new indent amount

Here is the call graph for this function:

◆ ses_clean_breadcrumbQ()

void ses_clean_breadcrumbQ ( ses_cb_t * scb )

Clean the breadcrumbQ.

Parameters

scb	session control block to check

Here is the call graph for this function:

◆ ses_clear_dbapi_system_session()

void ses_clear_dbapi_system_session ( ses_cb_t * scb )

Clear a session of the DB-API system status.

Parameters

scb	session control block to use

◆ ses_clear_extern_xml_mode()

void ses_clear_extern_xml_mode	(	ses_cb_t *	scb,
		boolean	rawxml_mode
	)

Clear the scb from external XML parsing.

Parameters

scb	session to check
rawxml_mode	TRUE if loading file for expand_rawxml Unknown namespace decls will cause an error Other attributes will be preseved. == FALSE to use INVALID namespace in parsing and convert nc:operation and other known attributes

Here is the call graph for this function:

◆ ses_clear_extern_xml_mode_ex()

void ses_clear_extern_xml_mode_ex	(	ses_cb_t *	scb,
		boolean	rawxml_mode,
		boolean	keep_xmlns
	)

Clear the scb from external XML parsing.

Parameters

scb	session to check
rawxml_mode	TRUE if loading file for expand_rawxml Unknown namespace decls will cause an error Other attributes will be preseved. == FALSE to use INVALID namespace in parsing and convert nc:operation and other known attributes
keep_xmlns	TRUE to keep xmlns attributes; FALSE to ignore them

Here is the caller graph for this function:

◆ ses_clear_file_override()

void ses_clear_file_override ( ses_cb_t * scb )

Cleanup the session in file write override mode Does not delete the file, just closes it!

Parameters

scb	session control block to change

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_dec_indent()

int32 ses_dec_indent	(	ses_cb_t *	scb,
		int32	indent
	)

Remove the specified indent amount.

Parameters

scb	session control block
indent	current indent amount

Returns: new indent amount

Here is the call graph for this function:

◆ ses_dropped()

boolean ses_dropped ( const ses_cb_t * scb )

Check if the session has been dropped by the client.

Parameters

scb	session control block to check

Returns: true if session shutting down due to session dropped; false if not

Here is the caller graph for this function:

◆ ses_dropped_ex()

boolean ses_dropped_ex ( ses_cb_t * scb )

Check if the session has been dropped by the client.

Sets the scb->dropped to TRUE if the test WRITE func call is not successful

Parameters

scb	session control block to check

Returns: true if session shutting down due to session dropped; false if not

◆ ses_dump_binary_buff()

void ses_dump_binary_buff	(	const xmlChar *	buff,
		size_t	bufflen
	)

Dump some bytes from the binary buffer (max 256)

Parameters

buff	buffer to dump
bufflen	number of bytes in the buffer

Here is the caller graph for this function:

◆ ses_finish_checksum()

uint32 ses_finish_checksum	(	ses_cb_t *	scb,
		uint32 *	checksum_cnt
	)

Stop checksum mode and return the final checksum.

YANG Push Simulated On-Change mode uses this checksum plus byte count to decide if an update record is needed

Parameters

	scb	session control block to change
[out]	checksum_cnt	address of return checksum byte count *checksum_cnt number of bytes in checksum calculation

Returns: final checksum

Here is the caller graph for this function:

◆ ses_finish_msg()

void ses_finish_msg ( ses_cb_t * scb )

Finish an outbound message on the specified session.

Parameters

scb	session control block to finish msg

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_free_scb()

void ses_free_scb ( ses_cb_t * scb )

Free a session control block.

Parameters

scb	session control block to free

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_free_xml_reader()

void ses_free_xml_reader ( ses_cb_t * scb )

Free the xmlTextReader for the session The encoding is switching from XML to something else.

Parameters

scb	session control block to use free scb->reader will be NULL

Here is the call graph for this function:

◆ ses_get_entry_point()

const xmlChar * ses_get_entry_point ( ses_cb_t * scb )

Get the RESTCONF entry_point.

Parameters

scb	session control block to check

Returns: entry point or NULL if none

◆ ses_get_mode()

ses_mode_t ses_get_mode ( ses_cb_t * scb )

Get the output mode for the specified session.

Parameters

scb	session control block to get

Returns: session mode value

Here is the caller graph for this function:

◆ ses_get_msg_encoding()

ncx_msg_encoding_t ses_get_msg_encoding ( const ses_cb_t * scb )

Get the message encoding for the HTTP session.

Parameters

scb	session to get

Returns: message encoding enumeration in use

◆ ses_get_out_encoding()

ncx_display_mode_t ses_get_out_encoding ( ses_cb_t * scb )

Get the output encoding.

Parameters

scb	session to check

Returns: session output encoding

Here is the caller graph for this function:

◆ ses_get_protocol()

ncx_protocol_t ses_get_protocol ( const ses_cb_t * scb )

Get the NETCONF protocol set (or unset) for this session.

Parameters

scb	session to get

Returns: protocol enumeration in use

Here is the caller graph for this function:

◆ ses_get_scb_client_addr()

const xmlChar * ses_get_scb_client_addr ( ses_cb_t * scb )

Get the client addr to use from an SCB.

Parameters

scb	session control block to use

Returns: client addr (will not be NULL)

Here is the caller graph for this function:

◆ ses_get_scb_username()

const xmlChar * ses_get_scb_username ( ses_cb_t * scb )

Get the username to use from an SCB.

Parameters

scb	session control block to use

Returns: user name (will not be NULL)

Here is the caller graph for this function:

◆ ses_get_total_stats()

ses_total_stats_t * ses_get_total_stats ( void )

Get a r/w pointer to the the session totals stats.

Returns: pointer to the global session stats struct

Here is the caller graph for this function:

◆ ses_get_transport()

ses_transport_t ses_get_transport ( ses_cb_t * scb )

Get the transport enum for a given session.

Same as SES_TRANSPORT(S)

Parameters

scb	session control block

Returns: enum for transport type

Here is the caller graph for this function:

◆ ses_get_transport_enum()

ses_transport_t ses_get_transport_enum ( const xmlChar * str )

Get the enum value for the yumaworks-types:transport-type.

Parameters

str	string with enum value

Returns: ses_transport_t enum value

Here is the call graph for this function:

◆ ses_get_transport_name()

const xmlChar * ses_get_transport_name ( ses_transport_t transport )

Get the name of the transport for a given enum value.

Parameters

transport ses_transport_t enum value

Returns: pointer to the string value for the specified enum

Here is the caller graph for this function:

◆ ses_get_transport_yang_name()

const xmlChar * ses_get_transport_yang_name ( ses_transport_t transport )

Get the name of the transport for a given enum value.

Use the yumaworks-types:transport-type enumerations

Parameters

transport ses_transport_t enum value

Returns: pointer to the string value for the specified enum

◆ ses_get_xml_nons()

boolean ses_get_xml_nons ( const ses_cb_t * scb )

force xmlns attributes to be skipped in XML mode

Parameters

scb	session to get

Returns: TRUE if no xmlns attributes set
FALSE if OK to use xmlns attributes

◆ ses_getline_cb()

status_t ses_getline_cb	(	xmlChar *	fillbuff,
		uint32	fillbuffsize,
		void *	cookie
	)

The IO input front-end for the tk_parse_json_buffs function.

Get one line of input from the session buffer Keep track of the read location and return ERR_NCX_EOF when there is no more input to return

Parameters

[out]	fillbuff	buffer to contain the next input line fillbuff has line copied into it; zero-terminated
	fillbuffsize	number of bytes allowed in fillbuff
	cookie	user cookie passed at init time

Returns: status

Here is the call graph for this function:

◆ ses_indent()

void ses_indent	(	ses_cb_t *	scb,
		int32	indent
	)

Write the proper newline + indentation to the specified session.

Parameters

scb	session control block to start msg
indent	number of chars to indent after a newline will be ignored if indent is turned off in the agent profile -1 means no newline or indent 0 means just newline

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_indent_count()

int32 ses_indent_count ( const ses_cb_t * scb )

Get the logging indent count for this session.

Parameters

scb	session control block to check

Returns: logging indent value for the session

Here is the caller graph for this function:

◆ ses_init_coap_scb()

void ses_init_coap_scb ( ses_cb_t * scb )

Initialize a CoAP session control block.

Parameters

scb	session control block to initialize

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_is_control_session()

boolean ses_is_control_session ( ses_cb_t * scb )

Check if the specified session is a control session.

Parameters

scb	session control block to use

Returns: TRUE if a control session

Here is the caller graph for this function:

◆ ses_is_dbapi_session()

boolean ses_is_dbapi_session ( ses_cb_t * scb )

Check if the specified session is a DB-API control session.

Parameters

scb	session control block to use

Returns: TRUE if a DB-API control session

◆ ses_is_dbapi_system_session()

boolean ses_is_dbapi_system_session ( ses_cb_t * scb )

Check if the specified session is a DB-API control session for system edits.

Parameters

scb	session control block to use

Returns: TRUE if a DB-API control session

Here is the caller graph for this function:

◆ ses_is_gnmi_control_session()

boolean ses_is_gnmi_control_session ( ses_cb_t * scb )

Check if the specified session is a gNMI control session.

Parameters

scb	session control block to use

Returns: TRUE if a DB-API control session

◆ ses_is_gnmi_session()

boolean ses_is_gnmi_session ( ses_cb_t * scb )

Check if the specified session is a gNMI session.

Parameters

scb	session control block to use

Returns: TRUE if a gNMI control session

◆ ses_is_grpc_control_session()

boolean ses_is_grpc_control_session ( ses_cb_t * scb )

Check if the specified session is a gRPC control session.

Parameters

scb	session control block to use

Returns: TRUE if a DB-API control session

◆ ses_is_grpc_session()

boolean ses_is_grpc_session ( ses_cb_t * scb )

Check if the specified session is a gRPC session.

Parameters

scb	session control block to use

Returns: TRUE if a gRPC control session

◆ ses_is_system_session()

boolean ses_is_system_session ( ses_cb_t * scb )

Check if the specified session is an internal system session.

Parameters

scb	session control block to use

Returns: TRUE if an internal dummy session

Here is the caller graph for this function:

◆ ses_line_left()

uint32 ses_line_left ( const ses_cb_t * scb )

Get the number of bytes that can be added to the current line before the session linesize limit is reached.

Parameters

scb	session control block to check

Returns: number of bytes left, or zero if limit already reached

◆ ses_message_indent_count()

int32 ses_message_indent_count ( const ses_cb_t * scb )

Get the message indent count for this session.

Parameters

scb	session control block to check

Returns: message indent value for the session

Here is the caller graph for this function:

◆ ses_new_coap_scb()

ses_cb_t * ses_new_coap_scb ( void )

Create a new global CoAP session control block.

Returns: pointer to initialized SCB, or NULL if malloc error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_new_dummy_scb()

ses_cb_t * ses_new_dummy_scb ( void )

Create a new dummy session control block.

Returns: pointer to initialized SCB, or NULL if malloc error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_new_indent_count()

int32 ses_new_indent_count	(	boolean	indent_in,
		int32	indent,
		int32	indent_amount
	)

Get the new indent count from the current and indent_amount.

Parameters

indent_in	TRUE if indenting in, FALSE if indenting out
indent	current indent value
indent_amount	session indent amount

Returns: new indent amount

Here is the caller graph for this function:

◆ ses_new_scb()

ses_cb_t * ses_new_scb ( void )

Create a new session control block.

Returns: pointer to initialized SCB, or NULL if malloc error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_new_snmp_scb()

ses_cb_t * ses_new_snmp_scb ( void )

Create a new global SNMP session control block.

Returns: pointer to initialized SCB, or NULL if malloc error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_notifications_active()

boolean ses_notifications_active ( const ses_cb_t * scb )

Check if the session has notifications active.

Parameters

scb	session control block to check

Returns: TRUE if notifications are active; FALSE if not

◆ ses_poll_ready()

boolean ses_poll_ready ( ses_cb_t * scb )

Check if the specified session is ready to read bytes.

Parameters

scb	session control block to use

Returns: TRUE if fd is set and reports POLLIN in the poll() function; FALSE otherwise

◆ ses_protocol_requested()

boolean ses_protocol_requested	(	ses_cb_t *	scb,
		ncx_protocol_t	proto
	)

check if the NETCONF protocol version was requested

Parameters

scb	session to check
proto	protocol to check

Returns: TRUE is requested; FALSE otherwise

◆ ses_put_binchar()

void ses_put_binchar	(	ses_cb_t *	scb,
		uint32	ch
	)

Write one binary char to the session, without any translation.

The following depends on agt_profile settings in the server

NO CHARS ARE ACTUALLY WRITTEN TO A REAL SESSION!!! The 'output ready' indicator will be set and the session queued in the outreadyQ. Non-blocking IO functions will send the data when the connection allows.

Parameters

scb	session control block to start msg
ch	xmlChar to write, cast as uint32 to avoid compiler warnings

Here is the caller graph for this function:

◆ ses_put_binstr()

void ses_put_binstr	(	ses_cb_t *	scb,
		const xmlChar *	str,
		uint32	len
	)

Write a binary string to the session.

Parameters

scb	session control block to start msg
str	string to write
len	number of bytes to write

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_put_extern()

void ses_put_extern	(	ses_cb_t *	scb,
		const xmlChar *	fname
	)

write the contents of a file to the session

DO NOT USE THIS FUNCTION! USE ses_put_extern2 in the server!

Parameters

scb	session to write
fname	filespec to write

Here is the call graph for this function:

◆ ses_put_extern2()

status_t ses_put_extern2	(	ses_cb_t *	scb,
		const xmlChar *	fname
	)

write the contents of a file to the session

Parameters

scb	session to write
fname	filespec to write

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_put_extern_bin()

status_t ses_put_extern_bin	(	ses_cb_t *	scb,
		const xmlChar *	fname
	)

write the contents of a binary file to the session

Parameters

scb	session to write
fname	filespec to write

Returns: status

Here is the call graph for this function:

◆ ses_putastr()

void ses_putastr	(	ses_cb_t *	scb,
		const xmlChar *	str,
		int32	indent
	)

write XML attribute safe content string Write a zero-terminated attribute content string to the session

ILLEGAL XML CHARS ARE CONVERTED TO CHAR ENTITIES

Parameters

scb	session control block to start msg
str	string to write
indent	current indent amount

Here is the call graph for this function:

◆ ses_putcchar()

void ses_putcchar	(	ses_cb_t *	scb,
		uint32	ch
	)

Write one content char to the session, with translation as needed.

Parameters

scb	session control block to write
ch	xmlChar to write, cast as uint32 to avoid compiler warnings

Here is the call graph for this function:

◆ ses_putchar()

void ses_putchar	(	ses_cb_t *	scb,
		uint32	ch
	)

Write one char to the session, without any translation.

The following depends on agt_profile settings in the server

NO CHARS ARE ACTUALLY WRITTEN TO A REAL SESSION!!! The 'output ready' indicator will be set and the session queued in the outreadyQ. Non-blocking IO functions will send the data when the connection allows.

Parameters

scb	session control block to start msg
ch	xmlChar to write, cast as uint32 to avoid compiler warnings

Here is the caller graph for this function:

◆ ses_putcstr()

void ses_putcstr	(	ses_cb_t *	scb,
		const xmlChar *	str,
		int32	indent
	)

write XML element safe content string Write a zero-terminated element content string to the session

ILLEGAL XML CHARS ARE CONVERTED TO CHAR ENTITIES

Parameters

scb	session control block to start msg
str	string to write
indent	current indent amount

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_puthstr()

void ses_puthstr	(	ses_cb_t *	scb,
		const xmlChar *	str
	)

write HTML element safe content string Write a zero-terminated element content string to the session

ILLEGAL XML CHARS ARE CONVERTED TO CHAR ENTITIES

Parameters

scb	session control block to start msg
str	string to write

Here is the call graph for this function:

◆ ses_putjstr()

void ses_putjstr	(	ses_cb_t *	scb,
		const xmlChar *	str,
		int32	indent
	)

write JSON safe content string Write a zero-terminated element content string to the session

ILLEGAL JSON CHARS ARE CONVERTED TO ESCAPED CHARS

Parameters

scb	session control block to start msg
str	string to write
indent	current indent amount

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_putstr()

void ses_putstr	(	ses_cb_t *	scb,
		const xmlChar *	str
	)

Write a zero-terminated string to the session.

Parameters

scb	session control block to start msg
str	string to write

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_putstr_indent()

void ses_putstr_indent	(	ses_cb_t *	scb,
		const xmlChar *	str,
		int32	indent
	)

Write a zero-terminated content string to the session with indentation.

A newline plus indent is done first

ILLEGAL XML CHARS ARE CONVERTED TO CHAR ENTITIES

Parameters

scb	session control block to start msg
str	string to write
indent	current indent amount

Here is the call graph for this function:

◆ ses_read_cb()

int ses_read_cb	(	void *	context,
		char *	buffer,
		int	len
	)

The IO input front-end for the xmlTextReader parser read fn.

Need to separate the input stream into separate XML instance documents and reset the xmlTextReader each time a new document is encountered. For SSH, also need to detect the EOM flag and remove it + control input to the reader.

Uses a complex state machine which does not assume that the input from the network is going to arrive in well-formed chunks. It has to be treated as a byte stream (SOCK_STREAM).

Does not remove char entities or any XML, just the SSH EOM directive

Parameters

context	scb pointer for the session to read
buffer	char buffer to fill
len	length of the buffer

Returns: number of bytes read into the buffer
-1 indicates error and EOF

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_set_control_session()

status_t ses_set_control_session ( ses_cb_t * scb )

Set the specified session as a control session.

Parameters

scb	session control block to use

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_set_dbapi_session()

void ses_set_dbapi_session ( ses_cb_t * scb )

Set the specified session as a DB-API control session.

Parameters

scb	session control block to use

◆ ses_set_dbapi_system_session()

void ses_set_dbapi_system_session ( ses_cb_t * scb )

Set the specified session as a DB-API control session for system edits.

Parameters

scb	session control block to use

◆ ses_set_entry_point()

status_t ses_set_entry_point	(	ses_cb_t *	scb,
		const xmlChar *	point
	)

Set the RESTCONF entry_point.

Parameters

scb	session control block to check
point	entry point string

Returns: status

Here is the call graph for this function:

◆ ses_set_extern_xml_mode()

void ses_set_extern_xml_mode	(	ses_cb_t *	scb,
		boolean	rawxml_mode
	)

Setup the scb for external XML parsing.

Parameters

scb	session to check
rawxml_mode	TRUE if loading file for expand_rawxml Unknown namespace decls will cause an error Other attributes will be preseved. == FALSE to use INVALID namespace in parsing and convert nc:operation and other known attributes

Here is the call graph for this function:

◆ ses_set_extern_xml_mode_ex()

void ses_set_extern_xml_mode_ex	(	ses_cb_t *	scb,
		boolean	rawxml_mode,
		boolean	keep_xmlns
	)

Setup the scb for external XML parsing.

Parameters

scb	session to check
rawxml_mode	TRUE if loading file for expand_rawxml Unknown namespace decls will cause an error Other attributes will be preseved. == FALSE to use INVALID namespace in parsing and convert nc:operation and other known attributes
keep_xmlns	TRUE to keep xmlns attributes; FALSE to ignore them

Here is the caller graph for this function:

◆ ses_set_file_override()

status_t ses_set_file_override	(	ses_cb_t *	scb,
		const xmlChar *	filespec,
		boolean	is_binary
	)

Setup the session in file write override mode.

Parameters

scb	session control block to change
filespec	output filespec
is_binary	TRUE if the content of this file is binary

Returns: status

Here is the caller graph for this function:

◆ ses_set_gnmi_control_session()

status_t ses_set_gnmi_control_session ( ses_cb_t * scb )

Set the specified session as a gNMI control session.

Parameters

scb	session control block to use

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_set_gnmi_session()

void ses_set_gnmi_session ( ses_cb_t * scb )

Set the specified session as a gNMI session.

Parameters

scb	session control block to use

◆ ses_set_grpc_control_session()

status_t ses_set_grpc_control_session ( ses_cb_t * scb )

Set the specified session as a gRPC control session.

Parameters

scb	session control block to use

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_set_grpc_session()

void ses_set_grpc_session ( ses_cb_t * scb )

Set the specified session as a gRPC session.

Parameters

scb	session control block to use

◆ ses_set_indent()

void ses_set_indent	(	ses_cb_t *	scb,
		int32	indent
	)

Set the logging indent count for this session.

Parameters

scb	session control block to check
indent	value to use (may get adjusted)

◆ ses_set_message_indent()

void ses_set_message_indent	(	ses_cb_t *	scb,
		int32	indent
	)

Set the message indent count for this session.

Parameters

scb	session control block to cchange
indent	message indent amount

◆ ses_set_mode()

void ses_set_mode	(	ses_cb_t *	scb,
		ses_mode_t	mode
	)

Set the output mode for the specified session.

Parameters

scb	session control block to set
mode	new mode value

Here is the caller graph for this function:

◆ ses_set_out_encoding()

void ses_set_out_encoding	(	ses_cb_t *	scb,
		ncx_display_mode_t	encoding
	)

Set the output encoding.

Parameters

scb	session to check
encoding	output encoding to set

Here is the caller graph for this function:

◆ ses_set_protocol()

status_t ses_set_protocol	(	ses_cb_t *	scb,
		ncx_protocol_t	proto
	)

set the NETCONF protocol version in use

Parameters

scb	session to set
proto	protocol to set

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_set_protocols_requested()

void ses_set_protocols_requested	(	ses_cb_t *	scb,
		ncx_protocol_t	proto
	)

set the NETCONF protocol versions requested

Parameters

scb	session to set
proto	protocol to set

Here is the caller graph for this function:

◆ ses_set_SSE_encoding()

void ses_set_SSE_encoding ( ses_cb_t * scb )

Set the output encoding to have a Server Sent Events filter Used for notification delivery over RESTCONF/HTTP.

Parameters

scb	session to check

Here is the caller graph for this function:

◆ ses_set_xml_nons()

void ses_set_xml_nons ( ses_cb_t * scb )

force xmlns attributes to be skipped in XML mode

Parameters

scb	session to set

Here is the caller graph for this function:

◆ ses_start_checksum()

void ses_start_checksum ( ses_cb_t * scb )

Clear the checksum field and start checksum mode.

Parameters

scb	session control block to change

Here is the caller graph for this function:

◆ ses_start_http_chunk_mode()

status_t ses_start_http_chunk_mode ( ses_cb_t * scb )

Start outputting buffers in HTTP 1.1 chunk mode.

Parameters

scb	session control block to start HTTP chunk mode

Returns: status

Here is the call graph for this function:

◆ ses_start_msg()

status_t ses_start_msg ( ses_cb_t * scb )

Start a new outbound message on the specified session.

Parameters

scb	session control block to start msg

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ses_start_msg_mode()

void ses_start_msg_mode ( ses_cb_t * scb )

Set the message output mode to active.

Parameters

scb	session control block to set

Here is the caller graph for this function:

◆ ses_state_name()

const xmlChar * ses_state_name ( ses_state_t state )

Get the name of a session state from the enum value.

Parameters

state session state enum value

Returns: staing corresponding to the state name

◆ ses_stop_msg_mode()

void ses_stop_msg_mode ( ses_cb_t * scb )

Set the message output mode to inactive.

Parameters

scb	session control block to set

Here is the caller graph for this function:

◆ ses_withdef()

ncx_withdefaults_t ses_withdef ( const ses_cb_t * scb )

Get the with-defaults value for this session.

Parameters

scb	session control block to check

Returns: with-defaults value for the session

Here is the caller graph for this function:
