General YANG compiler support functions Lower level functions to process YANG statements. More...

Collaboration diagram for General Compiler Support:

Functions
ncx_module_t *	ncx_new_module (void)
	Malloc and initialize the fields in a ncx_module_t. More...

void	ncx_free_module (ncx_module_t *mod)
	Free a YANG module. More...

status_t	ncx_add_namespace_to_registry (ncx_module_t *mod, boolean tempmod)
	Add the namespace and prefix to the registry or retrieve it if already set. More...

status_t	ncx_add_to_registry (ncx_module_t *mod)
	Add all the definitions stored in an ncx_module_t to the registry. More...

status_t	ncx_add_to_modQ (ncx_module_t mod, dlq_hdr_t modQ)
	Add module to the current module Q. More...

status_t	ncx_add_to_root_modQ (ncx_module_t *mod)
	Add module to the current module Q. More...

status_t	ncx_setup_mounted_mod (ncx_module_t *mod)
	Setup a module for yangcli in parsemode in SM mode. More...

void	ncx_match_rpc_error (ncx_module_t mod, const xmlChar modname, const xmlChar *rpcname, boolean match, boolean firstmsg)
	Generate an error for multiple matches. More...

const xmlChar *	ncx_get_name_segment (const xmlChar str, xmlChar buff, uint32 buffsize)
	Get the name string between the dots. More...

status_t	ncx_check_yang_status (ncx_status_t mystatus, ncx_status_t depstatus)
	Check the backward compatibility of the 2 YANG status fields. More...

void	ncx_free_node (ncx_node_t nodetyp, void *node)
	Delete a node based on its type. More...

ncx_tclass_t	ncx_get_tclass (ncx_btype_t btyp)
	Get the token class. More...

status_t	ncx_parse_name (const xmlChar str, uint32 len)
	Check if the next N chars represent a valid NcxName. More...

status_t	ncx_consume_tstring (tk_chain_t tkc, ncx_module_t mod, const xmlChar *name, ncx_opt_t opt)
	Consume a TK_TT_TSTRING with the specified value. More...

status_t	ncx_consume_name (tk_chain_t tkc, ncx_module_t mod, const xmlChar name, xmlChar *namebuff, ncx_opt_t opt, tk_type_t ctyp)
	Consume a TK_TSTRING that matches the 'name', then retrieve the next TK_TSTRING token into the namebuff. More...

status_t	ncx_consume_token (tk_chain_t tkc, ncx_module_t mod, tk_type_t ttyp)
	Consume the next token which should be a 1 or 2 char token without any value. More...

ncx_save_deviations_t *	ncx_new_save_deviations (ncx_module_t *devmod, boolean annotation)
	Create a deviation save structure. More...

void	ncx_free_save_deviations (ncx_save_deviations_t *savedev)
	Free a deviation save struct. More...

void	ncx_clean_save_deviationsQ (dlq_hdr_t *savedevQ)
	Clean a Q of deviation save structs. More...

void	ncx_set_error (ncx_error_t tkerr, ncx_module_t mod, uint32 linenum, uint32 linepos)
	Set the fields in an ncx_error_t struct. More...

void	ncx_inc_warnings (ncx_module_t *mod)
	Increment the module warning count for `mod`. More...

boolean	ncx_need_modchecks (const xmlChar *modname)
	Check if xpath_backptr and obj commit tests needed. More...

status_t	ncx_init_user_types (void)
	Initialize the user types after ietf-inet-types module loaded. More...

boolean	ncx_check_any_object_nolock_get (const xmlChar *objname)
	Check if the object name will match any config=true nodes. More...

Detailed Description

General YANG compiler support functions Lower level functions to process YANG statements.

Function Documentation

◆ ncx_add_namespace_to_registry()

status_t ncx_add_namespace_to_registry	(	ncx_module_t *	mod,
		boolean	tempmod
	)

Add the namespace and prefix to the registry or retrieve it if already set.

Parameters

mod	module to add to registry
tempmod	TRUE if this is a temporary add mode FALSE if this is a real registry add

Returns: status of the operation

Here is the call graph for this function:

◆ ncx_add_to_modQ()

status_t ncx_add_to_modQ	(	ncx_module_t *	mod,
		dlq_hdr_t *	modQ
	)

Add module to the current module Q.

Used by yangdiff to bypass add_to_registry to support N different module trees

Parameters

mod	module to add to current module Q
modQ	Q Q of ncx_module_t * to add to; NULL will pick ncx_curQ

Returns: status of the operation

Here is the caller graph for this function:

◆ ncx_add_to_registry()

status_t ncx_add_to_registry ( ncx_module_t * mod )

Add all the definitions stored in an ncx_module_t to the registry.

This step is deferred to keep the registry stable as possible and only add modules in an all-or-none fashion.

Parameters

mod	module to add to registry

Returns: status of the operation

Here is the call graph for this function:

◆ ncx_add_to_root_modQ()

status_t ncx_add_to_root_modQ ( ncx_module_t * mod )

Add module to the current module Q.

Used by Schema Mount to bypass add_to_registry to support N different module trees roots

Parameters

mod	module to save

Returns: status of the operation

Here is the call graph for this function:

◆ ncx_check_any_object_nolock_get()

boolean ncx_check_any_object_nolock_get ( const xmlChar * objname )

Check if the object name will match any config=true nodes.

CAN ONLY BE USED BY SERVER

Parameters

objname object name to check

Returns: TRUE if OK for nolock get; FALSE if not

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ncx_check_yang_status()

status_t ncx_check_yang_status	(	ncx_status_t	mystatus,
		ncx_status_t	depstatus
	)

Check the backward compatibility of the 2 YANG status fields.

Parameters

mystatus	enum value for the node to be tested
depstatus	status value of the dependency

Returns: status of the operation

◆ ncx_clean_save_deviationsQ()

void ncx_clean_save_deviationsQ ( dlq_hdr_t * savedevQ )

Clean a Q of deviation save structs.

Parameters

savedevQ Q of ncx_save_deviations_t to clean

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ncx_consume_name()

status_t ncx_consume_name	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		const xmlChar *	name,
		xmlChar **	namebuff,
		ncx_opt_t	opt,
		tk_type_t	ctyp
	)

Consume a TK_TSTRING that matches the 'name', then retrieve the next TK_TSTRING token into the namebuff.

If ctk specified, then consume the specified close token Store the results in a malloced buffer

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress (NULL if none)
	name	token name
[out]	namebuff	ptr to output name string *namebuff points at the malloced name string
	opt	TRUE for optional param == FALSE for mandatory param
	ctyp	close token (use TK_TT_NONE to skip this part)

Returns: status of the operation

Here is the call graph for this function:

◆ ncx_consume_token()

status_t ncx_consume_token	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		tk_type_t	ttyp
	)

Consume the next token which should be a 1 or 2 char token without any value.

However this function does not check the value, just the token type.

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

tkc	token chain
mod	module in progress (NULL if none)
ttyp	token type

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ncx_consume_tstring()

status_t ncx_consume_tstring	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		const xmlChar *	name,
		ncx_opt_t	opt
	)

Consume a TK_TT_TSTRING with the specified value.

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

tkc	token chain
mod	module in progress (NULL if none)
name	token name
opt	TRUE for optional param == FALSE for mandatory param

Returns: status of the operation

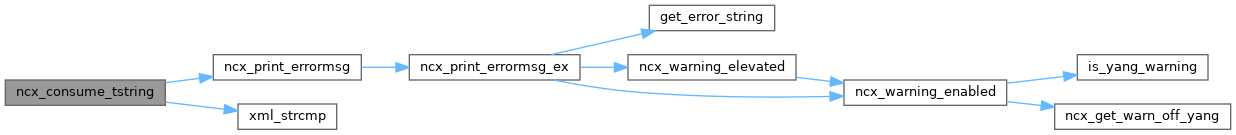

Here is the call graph for this function:

◆ ncx_free_module()

void ncx_free_module ( ncx_module_t * mod )

Free a YANG module.

Scrub the memory in a ncx_module_t by freeing all the sub-fields and then freeing the entire struct itself use if module was not added to registry

MUST remove this struct from the ncx_modQ before calling Does not remove module definitions from the registry

Use the ncx_remove_module function if the module was already successfully added to the modQ and definition registry

Parameters

mod	ncx_module_t data structure to free

See also: ncx_new_module

Here is the caller graph for this function:

◆ ncx_free_node()

void ncx_free_node	(	ncx_node_t	nodetyp,
		void *	node
	)

Delete a node based on its type.

DO NOT USE! Dangerous free function based on NCX_NT_FOO enums

Parameters

nodetyp	NCX node type
node	node top free case as a void pointer

Here is the call graph for this function:

◆ ncx_free_save_deviations()

void ncx_free_save_deviations ( ncx_save_deviations_t * savedev )

Free a deviation save struct.

Parameters

savedev struct to clean and delete

Here is the caller graph for this function:

◆ ncx_get_name_segment()

const xmlChar * ncx_get_name_segment	(	const xmlChar *	str,
		xmlChar *	buff,
		uint32	buffsize
	)

Get the name string between the dots.

Parameters

	str	scoped string
[out]	buff	address of return buffer buff is filled in with the namestring segment
	buffsize	buffer size

Returns: current string pointer after operation

Here is the caller graph for this function:

◆ ncx_get_tclass()

ncx_tclass_t ncx_get_tclass ( ncx_btype_t btyp )

Get the token class.

Parameters

btyp	base type enum

Returns: tclass enum

◆ ncx_inc_warnings()

void ncx_inc_warnings ( ncx_module_t * mod )

Increment the module warning count for mod.

Parameters

mod	module being parsed

◆ ncx_init_user_types()

status_t ncx_init_user_types ( void )

Initialize the user types after ietf-inet-types module loaded.

Returns: status

Here is the call graph for this function:

◆ ncx_match_rpc_error()

void ncx_match_rpc_error	(	ncx_module_t *	mod,
		const xmlChar *	modname,
		const xmlChar *	rpcname,
		boolean	match,
		boolean	firstmsg
	)

Generate an error for multiple matches.

Parameters

mod	module struct to check (may be NULL)
modname	module name if mod not set; NULL to match all modules
rpcname	RPC name to match
match	TRUE to match partial command names; FALSE for exact match only
firstmsg	TRUE to do the first log_error banner msg FALSE to skip this step

Here is the call graph for this function:

◆ ncx_need_modchecks()

boolean ncx_need_modchecks ( const xmlChar * modname )

Check if xpath_backptr and obj commit tests needed.

Used only by the compiler

Parameters

modname module to check

Returns: TRUE if XPath back pointer checks needed right now

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ncx_new_module()

ncx_module_t * ncx_new_module ( void )

Malloc and initialize the fields in a ncx_module_t.

Returns: pointer to the malloced and initialized struct or NULL if an error

See also: ncx_free_module

Here is the call graph for this function:

◆ ncx_new_save_deviations()

ncx_save_deviations_t * ncx_new_save_deviations	(	ncx_module_t *	devmod,
		boolean	annotation
	)

Create a deviation save structure.

Parameters

devmod	deviations module
annotation	TRUE if this is from annotation; FALSE if not

Returns: malloced and initialized save_deviations struct, or NULL if malloc error

Here is the caller graph for this function:

◆ ncx_parse_name()

status_t ncx_parse_name	(	const xmlChar *	str,
		uint32 *	len
	)

Check if the next N chars represent a valid NcxName.

Will end on the first non-name char

Parameters

	str	xmlChar string to check
[out]	len	address of name length *len 0 if no valid name parsed; > 0 for the numbers of chars in the NcxName

Returns: status_t (error if name too long)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ncx_set_error()

void ncx_set_error	(	ncx_error_t *	tkerr,
		ncx_module_t *	mod,
		uint32	linenum,
		uint32	linepos
	)

Set the fields in an ncx_error_t struct.

When called from NACM or <get> internally, there is no module or line number info

Parameters

[in,out]	tkerr	address of ncx_error_t struct to set *tkerr is filled in
	mod	[sub]module containing tkerr
	linenum	current linenum
	linepos	current column position on the current line

Here is the caller graph for this function:

◆ ncx_setup_mounted_mod()

status_t ncx_setup_mounted_mod ( ncx_module_t * mod )

Setup a module for yangcli in parsemode in SM mode.

Used by yangcli Schema Mount

Parameters

mod	module to setup

Returns: status of the operation

Here is the call graph for this function:

Functions

Detailed Description

Function Documentation

◆ ncx_add_namespace_to_registry()

◆ ncx_add_to_modQ()

◆ ncx_add_to_registry()

◆ ncx_add_to_root_modQ()

◆ ncx_check_any_object_nolock_get()

◆ ncx_check_yang_status()

◆ ncx_clean_save_deviationsQ()

◆ ncx_consume_name()

◆ ncx_consume_token()

◆ ncx_consume_tstring()

◆ ncx_free_module()

◆ ncx_free_node()

◆ ncx_free_save_deviations()

◆ ncx_get_name_segment()

◆ ncx_get_tclass()

◆ ncx_inc_warnings()

◆ ncx_init_user_types()

◆ ncx_match_rpc_error()

◆ ncx_need_modchecks()

◆ ncx_new_module()

◆ ncx_new_save_deviations()

◆ ncx_parse_name()

◆ ncx_set_error()

◆ ncx_setup_mounted_mod()
