External Statement (ncx_appinfo_t)

NCX appinfo is used to store YANG external statements. More...

Collaboration diagram for External Statement (ncx_appinfo_t):

Functions
ncx_appinfo_t *	ncx_new_appinfo (boolean isclone)
	Create an appinfo entry. More...
void	ncx_free_appinfo (ncx_appinfo_t *appinfo)
	Free an appinfo entry. More...
ncx_appinfo_t *	ncx_find_appinfo (dlq_hdr_t *appinfoQ, const xmlChar *prefix, const xmlChar *varname)
	Find an appinfo entry by name (First match is returned) The entry returned is not removed from the Q. More...
const ncx_appinfo_t *	ncx_find_const_appinfo (const dlq_hdr_t *appinfoQ, const xmlChar *prefix, const xmlChar *varname)
	Find an appinfo entry by name (First match is returned) The entry returned is not removed from the Q (CONST version) More...
const ncx_appinfo_t *	ncx_find_next_appinfo (const ncx_appinfo_t *current, const xmlChar *prefix, const xmlChar *varname)
	Find the next instance of an appinfo entry by name (First match is returned) The entry returned is not removed from the Q. More...
ncx_appinfo_t *	ncx_find_next_appinfo2 (ncx_appinfo_t *current, const xmlChar *prefix, const xmlChar *varname)
	Find the next instance of an appinfo entry by name (First match is returned, not const version) The entry returned is not removed from the Q. More...
ncx_appinfo_t *	ncx_clone_appinfo (ncx_appinfo_t *appinfo)
	Clone an appinfo value. More...
void	ncx_clean_appinfoQ (dlq_hdr_t *appinfoQ)
	Check an initialized appinfoQ for any entries Remove them from the queue and delete them. More...
status_t	ncx_consume_appinfo (tk_chain_t *tkc, ncx_module_t *mod, dlq_hdr_t *appinfoQ)
	Check if an appinfo clause is present. More...
status_t	ncx_consume_top_appinfo (yang_pcb_t *pcb, tk_chain_t *tkc, ncx_module_t *mod, dlq_hdr_t *appinfoQ, boolean struct_ok)
	Check if an appinfo clause is present Called from the body_stmt handler Only top-level extension handlers are allowed to take over the consume_appinfo phase. More...
status_t	ncx_consume_appinfo2 (tk_chain_t *tkc, ncx_module_t *mod, dlq_hdr_t *appinfoQ, boolean plain_ok)
	Check if an appinfo clause is present Do not backup the current token The TK_TT_MSTRING token has not been seen yet Called from yang_consume_semiapp. More...
status_t	ncx_resolve_appinfoQ (yang_pcb_t *pcb, tk_chain_t *tkc, ncx_module_t *mod, dlq_hdr_t *appinfoQ)
	Validate all the appinfo clauses present in the specified Q. More...
status_t	ncx_resolve_appinfoQ_ex (yang_pcb_t *pcb, tk_chain_t *tkc, ncx_module_t *mod, dlq_hdr_t *appinfoQ, ncx_node_t node_type, void *node)
	Validate all the appinfo clauses present in the specified Q. More...
const xmlChar *	ncx_get_appinfo_value (const ncx_appinfo_t *appinfo)
	Get the value string from an appinfo struct. More...

Detailed Description

NCX appinfo is used to store YANG external statements.

The YANG syntax for external statements is fully supported. Almost every YANG construct stores its own local appinfo so server code can test properties from annotations.

Function Documentation

ncx_clean_appinfoQ()

void ncx_clean_appinfoQ

(

dlq_hdr_t *

appinfoQ

)

Check an initialized appinfoQ for any entries Remove them from the queue and delete them.

Parameters

appinfoQ

Q of ncx_appinfo_t data structures to free

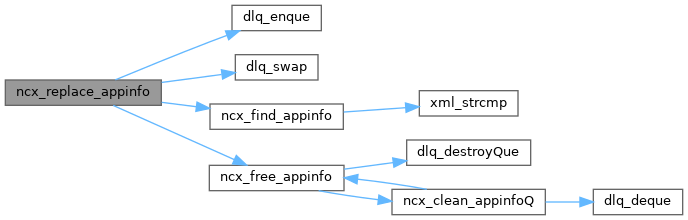

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_clone_appinfo()

ncx_appinfo_t * ncx_clone_appinfo

(

ncx_appinfo_t *

appinfo

)

Clone an appinfo value.

Parameters

appinfo

ncx_appinfo_t data structure to clone

Returns

pointer to the malloced ncx_appinfo_t struct clone of appinfo
NULL if a malloc error

Here is the call graph for this function:

ncx_consume_appinfo()

status_t ncx_consume_appinfo	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		dlq_hdr_t *	appinfoQ
	)

Check if an appinfo clause is present.

Save in appinfoQ if non-NULL

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

tkc	token chain to use
mod	ncx_module_t in progress (NULL if none)
appinfoQ	queue to use for any found entries (may be NULL)

Returns

status of the operation

Here is the caller graph for this function:

ncx_consume_appinfo2()

status_t ncx_consume_appinfo2	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		dlq_hdr_t *	appinfoQ,
		boolean	plain_ok
	)

Check if an appinfo clause is present Do not backup the current token The TK_TT_MSTRING token has not been seen yet Called from yang_consume_semiapp.

Save in appinfoQ if non-NULL

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

tkc	token chain to use
mod	ncx_module_t in progress (NULL if none)
appinfoQ	queue to use for any found entries (may be NULL)
plain_ok	TRUE if plain YANG OK; FALSE if only ext. stmts

Returns

status of the operation

Here is the caller graph for this function:

ncx_consume_top_appinfo()

status_t ncx_consume_top_appinfo	(	yang_pcb_t *	pcb,
		tk_chain_t *	tkc,
		ncx_module_t *	mod,
		dlq_hdr_t *	appinfoQ,
		boolean	struct_ok
	)

Check if an appinfo clause is present Called from the body_stmt handler Only top-level extension handlers are allowed to take over the consume_appinfo phase.

Save in appinfoQ if non-NULL

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

pcb	YANG parser block
tkc	token chain to use
mod	ncx_module_t in progress (NULL if none)
appinfoQ	queue to use for any found entries (may be NULL)
struct_ok	true if the structure and augment-structure extensions should be processed now. If false then the TKC is already backed up and it will be re-processed

Returns

status of the operation

ncx_find_appinfo()

ncx_appinfo_t * ncx_find_appinfo	(	dlq_hdr_t *	appinfoQ,
		const xmlChar *	prefix,
		const xmlChar *	varname
	)

Find an appinfo entry by name (First match is returned) The entry returned is not removed from the Q.

This original code design is very fragile because it relies on the YANG prefix being unique within the server.

This is a customer API to support custom object flags All extensions are stored in the object appinfoQ dusring parsing

Parameters

appinfoQ	pointer to Q of ncx_appinfo_t data structure to check
prefix	module prefix that defines the extension NULL to pick the first match (not expecting appinfo name collisions)
varname	name string of the appinfo variable to find

Returns

pointer to the ncx_appinfo_t struct for the entry if found NULL if the entry is not found

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_find_const_appinfo()

const ncx_appinfo_t * ncx_find_const_appinfo	(	const dlq_hdr_t *	appinfoQ,
		const xmlChar *	prefix,
		const xmlChar *	varname
	)

Find an appinfo entry by name (First match is returned) The entry returned is not removed from the Q (CONST version)

Parameters

appinfoQ	pointer to Q of ncx_appinfo_t data structure to check
prefix	module prefix that defines the extension NULL to pick the first match (not expecting appinfo name collisions)
varname	name string of the appinfo variable to find

Returns

pointer to the ncx_appinfo_t struct for the entry if found
NULL if the entry is not found

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_find_next_appinfo()

const ncx_appinfo_t * ncx_find_next_appinfo	(	const ncx_appinfo_t *	current,
		const xmlChar *	prefix,
		const xmlChar *	varname
	)

Find the next instance of an appinfo entry by name (First match is returned) The entry returned is not removed from the Q.

Parameters

current	pointer to current ncx_appinfo_t data structure to check
prefix	module prefix that defines the extension NULL to pick the first match (not expecting appinfo name collisions)
varname	name string of the appinfo variable to find

Returns

pointer to the ncx_appinfo_t struct for the entry if found
NULL if the entry is not found

Here is the call graph for this function:

ncx_find_next_appinfo2()

ncx_appinfo_t * ncx_find_next_appinfo2	(	ncx_appinfo_t *	current,
		const xmlChar *	prefix,
		const xmlChar *	varname
	)

Find the next instance of an appinfo entry by name (First match is returned, not const version) The entry returned is not removed from the Q.

Parameters

current	pointer to current ncx_appinfo_t data structure to check
prefix	module prefix that defines the extension NULL to pick the first match (not expecting appinfo name collisions)
varname	name string of the appinfo variable to find

Returns

pointer to the ncx_appinfo_t struct for the entry if found
NULL if the entry is not found

Here is the call graph for this function:

ncx_free_appinfo()

void ncx_free_appinfo

(

ncx_appinfo_t *

appinfo

)

Free an appinfo entry.

Parameters

appinfo

ncx_appinfo_t data structure to free

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_get_appinfo_value()

const xmlChar * ncx_get_appinfo_value

(

const ncx_appinfo_t *

appinfo

)

Get the value string from an appinfo struct.

This is a customer API for SIL code to get the value of external statements from their YANG module. The OBJ_USER_FLAGS() macro can be used to set custom object properties based on extensions

Parameters

appinfo

ncx_appinfo_t data structure to use

Returns

pointer to the string value if name
NULL if no value

Here is the caller graph for this function:

ncx_new_appinfo()

ncx_appinfo_t * ncx_new_appinfo

(

boolean

isclone

)

Create an appinfo entry.

Parameters

isclone

TRUE if this is for a cloned object

Returns

malloced appinfo entry or NULL if malloc error

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_resolve_appinfoQ()

status_t ncx_resolve_appinfoQ	(	yang_pcb_t *	pcb,
		tk_chain_t *	tkc,
		ncx_module_t *	mod,
		dlq_hdr_t *	appinfoQ
	)

Validate all the appinfo clauses present in the specified Q.

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

pcb	parser control block to use
tkc	token chain to use
mod	ncx_module_t in progress
appinfoQ	queue to check

Returns

status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

ncx_resolve_appinfoQ_ex()

status_t ncx_resolve_appinfoQ_ex	(	yang_pcb_t *	pcb,
		tk_chain_t *	tkc,
		ncx_module_t *	mod,
		dlq_hdr_t *	appinfoQ,
		ncx_node_t	node_type,
		void *	node
	)

Validate all the appinfo clauses present in the specified Q.

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

pcb	parser control block to use
tkc	token chain to use
mod	ncx_module_t in progress
appinfoQ	queue to check
node_type	node type enum for ext callback
node	data node containing this extension for callback

Returns

status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:
