HTTP APIs for RESTCONF Protocol Support. More...

Collaboration diagram for HTTP APIs for RESTCONF:

Data Structures
struct	agt_yangapi_context_t
	module context node with cached schema tree and API template for retrieval (root) More...

struct	agt_restconf_data_t
	RESTCONF structure for data. More...

Functions
const xmlChar *	get_launchpoint_name (yangapi_launchpt_t launchpt)
	Get the keyword for the specified launchpt. More...

status_t	agt_restcmn_parse_fragment (yangapi_cb_t rcb, xmlChar uri, uint32 *retlen)
	parse the request URI fragment More...

status_t	agt_restcmn_parse_query_string (ses_cb_t scb, rpc_msg_t msg, yangapi_cb_t rcb, xmlChar uri, uint32 *retlen)
	parse the request URI query string More...

xmlChar *	agt_restcmn_get_param (yangapi_cb_t rcb, const xmlChar name, boolean *found)
	Find a query parameter and return its value. More...

status_t	agt_restcmn_validate_query_string (ses_cb_t scb, rpc_msg_t msg, yangapi_cb_t *rcb)
	Validate the parameters in the request URI query string. More...

status_t	agt_restcmn_parse_path (ses_cb_t scb, rpc_msg_t msg, yangapi_cb_t rcb, val_value_t root, const xmlChar *path)
	parse the request URI path More...

status_t	agt_restcmn_get_http_input (ses_cb_t scb, yangapi_cb_t rcb, rpc_msg_t *msg, int content_len)
	Get the input from the session input buffers and parse it as the specified target object type. More...

status_t	agt_restcmn_set_content_encoding (ses_cb_t scb, yangapi_cb_t rcb, rpc_msg_t *msg)
	Get the content encoding used. More...

boolean	agt_restcmn_check_unmodified_return (yangapi_cb_t *rcb)
	Check if the context node(s) will match the filters (if any) More...

status_t	agt_restcmn_setup_notifications (ses_cb_t scb, yangapi_cb_t rcb, rpc_msg_t *msg)
	setup the notification delivery on this GET request More...

status_t	agt_restcmn_setup_read_params (ses_cb_t scb, yangapi_cb_t rcb, rpc_msg_t *msg)
	Setup the message parameters from the yangapi_cb values. More...

boolean	agt_restcmn_operation_supports_json (obj_template_t *rpcobj)
	Check if the NETCONF operation supports JSON output. More...

status_t	agt_restcmn_get_operations (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	GET1 operation handler for the /operations container. More...

int	agt_restcmn_get_content_len (yangapi_cb_t *rcb)
	Get the content length for the input request message body. More...

status_t	agt_restcmn_validate_method (ses_cb_t scb, yangapi_cb_t rcb, rpc_msg_t *msg)
	validate that the method is supported for the URI given. More...

status_t	agt_restcmn_check_metpar_error (ses_cb_t scb, yangapi_cb_t rcb, rpc_msg_t msg, const xmlChar parmname)
	validate that the URI parameters given are supported for the method More...

yangapi_method_t	agt_restcmn_get_method (const xmlChar *method)
	Get the HTTP method enum from the string. More...

boolean	agt_restcmn_method_is_read (yangapi_method_t method)
	Check if this is a read method. More...

boolean	agt_restcmn_validate_accept_header (ses_cb_t scb, yangapi_cb_t rcb, rpc_msg_t msg, boolean error_recorded, status_t res)
	Validate the client Accept header. More...

xmlns_id_t	agt_restcmn_get_nsid (ncx_protocol_t proto)
	Get the XML namespace ID for specific proto. More...

void	agt_restcmn_free_msg (rpc_msg_t *msg)
	Free an rpc_msg_t. More...

void	agt_restcmn_print_debug_line (ses_cb_t scb, yangapi_cb_t rcb)
	Print the message received debug line. More...

boolean	agt_restcmn_get_config_parm (yangapi_cb_t rcb, val_value_t context_node)
	Get the value of the config parm to use. More...

val_value_t *	agt_restcmn_new_config_wrapper (void)
	Create a <config> wrapper val and return it. More...

xmlChar *	agt_restcmn_make_uri (ses_cb_t scb, const xmlChar target, const xmlChar *edit_target)
	Make a URI string. More...

xmlChar *	agt_restcmn_decode_url (const xmlChar url, status_t res)
	Decode URL encoded string value into string. More...

void	agt_restcmn_record_obj_error (ses_cb_t scb, rpc_msg_t msg, status_t res, obj_template_t errobj, const xmlChar badval)
	Record an rpc-error for YANG-API/RESTCONF response translation the error node is an object, not a value node. More...

void	agt_restcmn_record_error (ses_cb_t scb, xml_msg_hdr_t mhdr, status_t res, val_value_t errnode, const xmlChar badval)
	Record an rpc-error for YANG-API/RESTCONF response translation. More...

void	agt_restcmn_record_error_errinfo (ses_cb_t scb, xml_msg_hdr_t mhdr, status_t res, val_value_t errnode, const xmlChar badval, const ncx_errinfo_t *errinfo)
	Record an rpc-error for YANG-API/RESTCONF response translation. More...

void	agt_restcmn_obj_error (ses_cb_t scb, xml_msg_hdr_t mhdr, status_t res, obj_template_t errobj, const xmlChar badval)
	Record an rpc-error for YANG-API/RESTCONF response translation. More...

void	agt_restcmn_val_error (ses_cb_t scb, xml_msg_hdr_t mhdr, status_t res, val_value_t errval, const xmlChar badval)
	Record an rpc-error for YANG-API/RESTCONF response translation. More...

const xmlChar *	agt_restcmn_entry_point (void)
	Get the RESTCONF entry point name. More...

void	agt_restcmn_setup_launch_point (yangapi_cb_t *rcb)
	check the parseed request URI path set the API launch point data More...

status_t	agt_rescmn_setup_action_request (ses_cb_t scb, rpc_msg_t msg, yangapi_cb_t *rcb)
	Setup the data needed to invoke a YANG action. More...

val_value_t *	get_active_root (yangapi_cb_t *rcb)
	Select the active CFG and return its root val. More...

Detailed Description

HTTP APIs for RESTCONF Protocol Support.

Routines common to YANG-API and RESTCONF. YANG-API is obsolete and no longer supported

Function Documentation

◆ agt_rescmn_setup_action_request()

status_t agt_rescmn_setup_action_request	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		yangapi_cb_t *	rcb
	)

Setup the data needed to invoke a YANG action.

Parameters

scb	RESTCONF session
msg	request message in progress
rcb	restapi control block to use

Return values

status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_check_metpar_error()

status_t agt_restcmn_check_metpar_error	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg,
		const xmlChar *	parmname
	)

validate that the URI parameters given are supported for the method

Errors are recorded by this function. Do not call record_error again if error returned

Parameters

	scb	session control block to use
	rcb	restapi control block to use
[in,out]	msg	message to use for storing error records msg hdr errors set as needed
	parmname	parameter to check

Returns: status

Here is the caller graph for this function:

◆ agt_restcmn_check_unmodified_return()

boolean agt_restcmn_check_unmodified_return ( yangapi_cb_t * rcb )

Check if the context node(s) will match the filters (if any)

Parameters

rcb	restapi control block to use

Returns: TRUE if condition passes or skipped
FALSE if condition fails

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_decode_url()

xmlChar * agt_restcmn_decode_url	(	const xmlChar *	url,
		status_t *	res
	)

Decode URL encoded string value into string.

Parameters

	url	URL string
[out]	res	address of return status; *res return status

Returns: malloced string; must free with m__free

Here is the call graph for this function:

◆ agt_restcmn_entry_point()

const xmlChar * agt_restcmn_entry_point ( void )

Get the RESTCONF entry point name.

Returns: const pointer to entry point name

◆ agt_restcmn_free_msg()

void agt_restcmn_free_msg ( rpc_msg_t * msg )

Free an rpc_msg_t.

Free RESTCONF part first.

Parameters

msg	rpc_msg_t to delete

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_get_config_parm()

boolean agt_restcmn_get_config_parm	(	yangapi_cb_t *	rcb,
		val_value_t *	context_node
	)

Get the value of the config parm to use.

Parameters

rcb	restapi control block to use
context_node	XPath context node to check

Returns: TRUE if config=true || content=config
FALSE if config=false || content=nonconfig
content=all ignores this function (only RESTCONF)

Here is the caller graph for this function:

◆ agt_restcmn_get_content_len()

int agt_restcmn_get_content_len ( yangapi_cb_t * rcb )

Get the content length for the input request message body.

Parameters

rcb	restapi control block to use

Returns: content length in bytes; < 0 error

Here is the caller graph for this function:

◆ agt_restcmn_get_http_input()

status_t agt_restcmn_get_http_input	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg,
		int	content_len
	)

Get the input from the session input buffers and parse it as the specified target object type.

Parameters

	scb	session to use
	rcb	restapi control block to use
[in,out]	msg	message control block in progress msg->rpc_input value is set representing the parsed content. Only the basic input parsing has been done, not any referential integrity tests or instance tests.
	content_len	number of expected input bytes

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_get_method()

yangapi_method_t agt_restcmn_get_method ( const xmlChar * method )

Get the HTTP method enum from the string.

Parameters

method method name string

Returns: method enumeration

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_get_nsid()

xmlns_id_t agt_restcmn_get_nsid ( ncx_protocol_t proto )

Get the XML namespace ID for specific proto.

Parameters

proto protocol to use

Returns: XML namespace ID

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_get_operations()

status_t agt_restcmn_get_operations	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

GET1 operation handler for the /operations container.

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

Here is the call graph for this function:

◆ agt_restcmn_get_param()

xmlChar * agt_restcmn_get_param	(	yangapi_cb_t *	rcb,
		const xmlChar *	name,
		boolean *	found
	)

Find a query parameter and return its value.

Parameters

	rcb	restapi request control block to use
	name	param name to find
[out]	found	address of return found flag *found TRUE if parameter found

Returns: back pointer to param value if found, NULL if not found
The value is allowed to be NULL (empty string) so the found flag is needed

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_make_uri()

xmlChar * agt_restcmn_make_uri	(	ses_cb_t *	scb,
		const xmlChar *	target,
		const xmlChar *	edit_target
	)

Make a URI string.

Append the DB-API/YANG-PATCH edit target to the datastore entry point

Parameters

scb	session control block to use
target	URI path target string
edit_target	relative path string to concatenate to target

Returns: malloced string; must free with m__free

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_method_is_read()

boolean agt_restcmn_method_is_read ( yangapi_method_t method )

Check if this is a read method.

Parameters

method enum to check

Returns: TRUE if some sort of read or FALSE if some sort of write

Here is the caller graph for this function:

◆ agt_restcmn_new_config_wrapper()

val_value_t * agt_restcmn_new_config_wrapper ( void )

Create a <config> wrapper val and return it.

Returns: malloced and initialized val_value_t
must be freed with val_free_value

Here is the call graph for this function:

◆ agt_restcmn_obj_error()

void agt_restcmn_obj_error	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	mhdr,
		status_t	res,
		obj_template_t *	errobj,
		const xmlChar *	badval
	)

Record an rpc-error for YANG-API/RESTCONF response translation.

Parameters

scb	session control block to use
mhdr	message header to use
res	error status code
errobj	object node in API schema tree or data schema tree associated with the error
badval	error-info node to use

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_operation_supports_json()

boolean agt_restcmn_operation_supports_json ( obj_template_t * rpcobj )

Check if the NETCONF operation supports JSON output.

Hack until JSON output fully supported

Parameters

rpcobj RPC template to check

Returns: TRUE if JSON output allowed
FALSE if not supported yet

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_parse_fragment()

status_t agt_restcmn_parse_fragment	(	yangapi_cb_t *	rcb,
		xmlChar *	uri,
		uint32 *	retlen
	)

parse the request URI fragment

Parameters

	rcb	restapi control block to use
	uri	request URI string to use
[out]	retlen	address of return byte count parsed *retlen byte count of uri parsed

Returns: status

Here is the call graph for this function:

◆ agt_restcmn_parse_path()

status_t agt_restcmn_parse_path	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		yangapi_cb_t *	rcb,
		val_value_t *	root,
		const xmlChar *	path
	)

parse the request URI path

fill in rcb->request_tree and set request_launch if needed fill in request_target_obj if the target does not exist, such as a new transaction

Parameters

	scb	session control block to use
	msg	message to record errors
[in,out]	rcb	restapi control block to use rcb->request_launch set if the path uses a root or rpc-root rcb->request_top_data set if the path uses a root and includes at least 1 top-level YANG data node rcb->request_terminal set the the path leaves the data tree to specify a new node, which will be set in request_target_obj rcb->request_target set (back-ptr, do not free) rcb->request_target_obj set (back-ptr, do not free)
	root	context to use for parse root
	path	YANG-API or RESTCONF path string to use

Returns: status

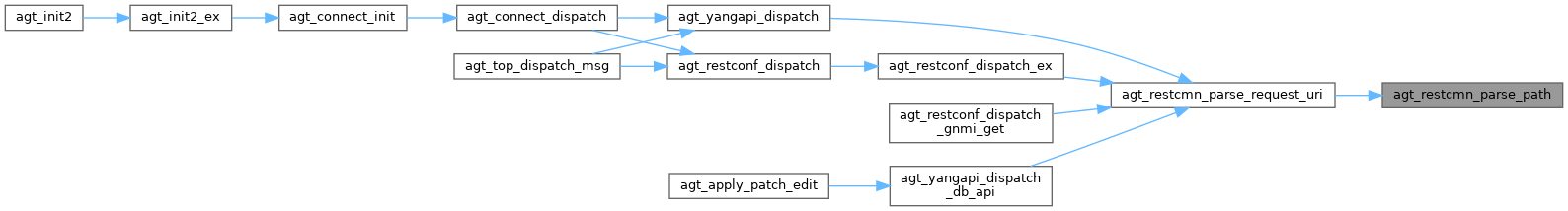

Here is the call graph for this function:

◆ agt_restcmn_parse_query_string()

status_t agt_restcmn_parse_query_string	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		yangapi_cb_t *	rcb,
		xmlChar *	uri,
		uint32 *	retlen
	)

parse the request URI query string

Parameters

	scb	session control block to use
	msg	message to use to record errors
	rcb	restapi control block to use
	uri	request URI string to use
[out]	retlen	address of return byte count parsed *retlen byte count of uri parsed

Returns: status

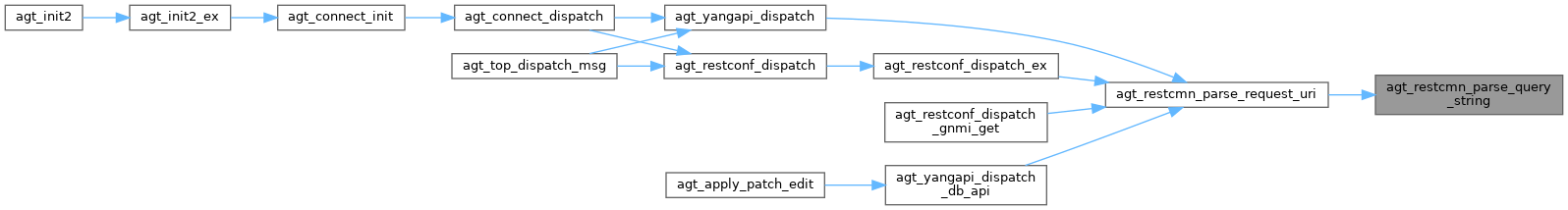

Here is the call graph for this function:

◆ agt_restcmn_print_debug_line()

void agt_restcmn_print_debug_line	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb
	)

Print the message received debug line.

Parameters

scb	session control block to use
rcb	restapi control block to use

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_record_error()

void agt_restcmn_record_error	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	mhdr,
		status_t	res,
		val_value_t *	errnode,
		const xmlChar *	badval
	)

Record an rpc-error for YANG-API/RESTCONF response translation.

Parameters

scb	session control block to use
mhdr	xml_msg_hdr_t to use
res	error status code
errnode	node in API tree or data tree associated with the error
badval	error-info string to use

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_record_error_errinfo()

void agt_restcmn_record_error_errinfo	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	mhdr,
		status_t	res,
		val_value_t *	errnode,
		const xmlChar *	badval,
		const ncx_errinfo_t *	errinfo
	)

Record an rpc-error for YANG-API/RESTCONF response translation.

Add errinfo struct if present

Parameters

scb	session control block to use
mhdr	xml_msg_hdr_t to use
res	error status code
errnode	node in API tree or data tree associated with the error
badval	error-info string to use
errinfo	ncx_errinfo_t struct to use

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_record_obj_error()

void agt_restcmn_record_obj_error	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		status_t	res,
		obj_template_t *	errobj,
		const xmlChar *	badval
	)

Record an rpc-error for YANG-API/RESTCONF response translation the error node is an object, not a value node.

Parameters

scb	session control block to use
msg	rpc_msg_t to use
res	error status code
errobj	object node in API schema tree or data schema tree associated with the error
badval	error-info node to use

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_set_content_encoding()

status_t agt_restcmn_set_content_encoding	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg
	)

Get the content encoding used.

IN Encoding validation for RESTCONF/YANG-API is the same and based on Content-Type header value

OUT encoding is set here for YANG-API only RESTCONF utilize Accept-header entries for the OUT encoding

All errors will be generated in this function if any

Parameters

scb	session control block to use
rcb	restapi control block to use
msg	message control block in progress

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_setup_launch_point()

void agt_restcmn_setup_launch_point ( yangapi_cb_t * rcb )

check the parseed request URI path set the API launch point data

Parameters

[in,out]

rcb

restapi control block to use

rcb->request_launch set
rcb->request_launchpt set

Here is the call graph for this function:

◆ agt_restcmn_setup_notifications()

status_t agt_restcmn_setup_notifications	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg
	)

setup the notification delivery on this GET request

TEMP: harndwired to NETCONF stream; no parameters supported

Parameters

scb	session control block to use
rcb	restapi control block to use
msg	message to record errors

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_setup_read_params()

status_t agt_restcmn_setup_read_params	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg
	)

Setup the message parameters from the yangapi_cb values.

Records errors! Do not duplicate!

Parameters

	scb	session control block to use
[in,out]	rcb	restapi control block to use rcb->skip_read may be set
[in,out]	msg	message to record errors msg->mhdr fields set as needed

Returns: status

Here is the call graph for this function:

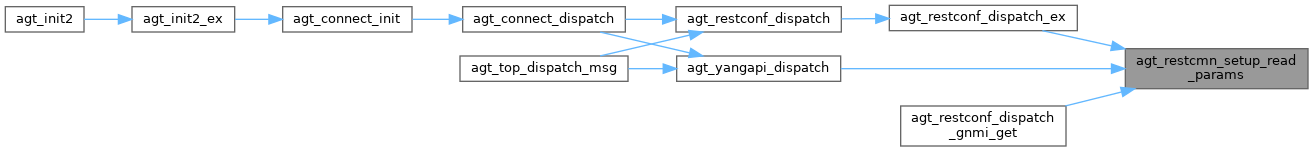

Here is the caller graph for this function:

◆ agt_restcmn_val_error()

void agt_restcmn_val_error	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	mhdr,
		status_t	res,
		val_value_t *	errval,
		const xmlChar *	badval
	)

Record an rpc-error for YANG-API/RESTCONF response translation.

Parameters

scb	session control block to use
mhdr	message header to use
res	error status code
errval	value node in API schema tree or data schema tree associated with the error
badval	error-info node to use

Here is the call graph for this function:

◆ agt_restcmn_validate_accept_header()

boolean agt_restcmn_validate_accept_header	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg,
		boolean	error_recorded,
		status_t *	res
	)

Validate the client Accept header.

If no Accept header field is present, then it is assumed that the client accepts all media types. The default values for the format will be set by dispath() fn Media types validation will be skiiped.

If an Accept header field is present, and if the server cannot send a response which is acceptable according to the combined Accept field value, then the server SHOULD send a 406 (not acceptable) response. RFC2616::section-14.1

If Errors media type has valid format, this format will be used for OUT Encoding if any error occur during validation or later/before.

All errors will be generated in this function

Parameters

	scb	session to use
[in,out]	rcb	restapi control block to use rcb->accept_format is set based on +format entry in the header rcb->accept_submedia is set if submedia is present in the header entry
	msg	message control block in progress
	error_recorded	if TRUE, try to find app/yang.error media type in the header. If it's present, set the format of outgoing error messages to that value, and skip any other validations if FALSE, no any errors previously recorded, full validatations
[out]	res	address of return status; *res return status

Returns: TRUE if accept header is valid and accepted
FALSE, if the haeder is invalid

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_validate_method()

status_t agt_restcmn_validate_method	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg
	)

validate that the method is supported for the URI given.

validate that the query parameters given are allowed for this operation.

Errors are recorded by this function. Do not call record_error again if error returned

Parameters

scb	session control block to use
rcb	restapi control block to use
msg	msg to use for storing error records

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_restcmn_validate_query_string()

status_t agt_restcmn_validate_query_string	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		yangapi_cb_t *	rcb
	)

Validate the parameters in the request URI query string.

Errors are recorded by this function

Parameters

	scb	session control block to use
	msg	msg to use for recording errors
[in,out]	rcb	restapi request control block to use rcb->query_* fields will be filled in

Returns: status

Here is the call graph for this function:

◆ get_active_root()

val_value_t * get_active_root ( yangapi_cb_t * rcb )

Select the active CFG and return its root val.

Parameters

rcb	restapi control block to use

Return values

val_value of the active root value

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_launchpoint_name()

const xmlChar * get_launchpoint_name ( yangapi_launchpt_t launchpt )

Get the keyword for the specified launchpt.

Parameters

launchpt launchpt ID

Returns: string for the launchpt, or "none" or "illegal"

Data Structures

Functions

Detailed Description

Function Documentation

◆ agt_rescmn_setup_action_request()

◆ agt_restcmn_check_metpar_error()

◆ agt_restcmn_check_unmodified_return()

◆ agt_restcmn_decode_url()

◆ agt_restcmn_entry_point()

◆ agt_restcmn_free_msg()

◆ agt_restcmn_get_config_parm()

◆ agt_restcmn_get_content_len()

◆ agt_restcmn_get_http_input()

◆ agt_restcmn_get_method()

◆ agt_restcmn_get_nsid()

◆ agt_restcmn_get_operations()

◆ agt_restcmn_get_param()

◆ agt_restcmn_make_uri()

◆ agt_restcmn_method_is_read()

◆ agt_restcmn_new_config_wrapper()

◆ agt_restcmn_obj_error()

◆ agt_restcmn_operation_supports_json()

◆ agt_restcmn_parse_fragment()

◆ agt_restcmn_parse_path()

◆ agt_restcmn_parse_query_string()

◆ agt_restcmn_print_debug_line()

◆ agt_restcmn_record_error()

◆ agt_restcmn_record_error_errinfo()

◆ agt_restcmn_record_obj_error()

◆ agt_restcmn_set_content_encoding()

◆ agt_restcmn_setup_launch_point()

◆ agt_restcmn_setup_notifications()

◆ agt_restcmn_setup_read_params()

◆ agt_restcmn_val_error()

◆ agt_restcmn_validate_accept_header()

◆ agt_restcmn_validate_method()

◆ agt_restcmn_validate_query_string()

◆ get_active_root()

◆ get_launchpoint_name()
