Load and unload SIL libraries at run-time. More...

Collaboration diagram for Load and Unload YANG:

Typedefs
typedef status_t(*	agt_ncx_load_cbfn_t) (const xmlChar name, void cookie)
	callback function used by agt_ncx_load_for_all_bundles More...

Functions
status_t	agt_ncx_load_init (void)
	Initialize the NCX Load module. More...

void	agt_ncx_load_cleanup (void)
	Cleanup the NCX Load module. More...

status_t	agt_ncx_load_module_ha (ses_cb_t scb, rpc_msg_t msg, const xmlChar name, const xmlChar revision, boolean is_module, boolean is_load, val_value_t *dev_parent)
	Handle a <module-update> event in YP-HA standby mode. More...

void	agt_ncx_load_dump_bundles (ses_cb_t scb, xml_msg_hdr_t mhdr, xmlns_id_t parent_nsid, int32 indent, int32 startindent)
	Generate XML <bundle> records for the support-save output. More...

status_t	agt_ncx_load_boot_bundle (const xmlChar *bundle)
	Load a bundle at boot-time. More...

status_t	agt_ncx_load_boot_bundle_savedevQ (const xmlChar bundle, dlq_hdr_t savedevQ)
	Load a bundle at boot-time. More...

status_t	agt_ncx_load_for_all_bundles (agt_ncx_load_cbfn_t cbfn, void *cookie)
	Invoke a callback for all the bundles. More...

status_t	agt_ncx_load_for_all_modules (agt_ncx_load_cbfn_t cbfn, void *cookie)
	Invoke a callback for all the modules loaded dynamically. More...

boolean	agt_ncx_load_any_waiting (void)
	Check if any bundles are waiting to be loaded from a SIL-SA subsystem. More...

void	agt_ncx_load_stop_waiting (const xmlChar *bundle_name)
	Signal that a SIL-SA loaded a bundle and that bundle is no longer waiting and blocking load_running_config. More...

status_t	agt_ncx_load_add_to_bundle (const xmlChar bundle_name, const xmlChar module_name, const xmlChar *revision)
	Add the specified module name to the bundle. More...

status_t	agt_ncx_load_for_modules_in_bundles (agt_ncx_load_cbfn_t cbfn, void *cookie)
	Invoke a callback for all modules in all the bundles. More...

boolean	agt_ncx_load_bundle_loaded (const xmlChar *bundle)
	Verify is the bundle was already loaded. More...

status_t	agt_ncx_load_bundle_module (ses_cb_t scb, const xmlChar module, const xmlChar revision, boolean loaded)
	Load the bundle module in all required locations. More...

Detailed Description

Load and unload SIL libraries at run-time.

Uses NETCONF operations to handle all validation verification and maintenance of adding or removing a YANG module or YANG bundle.

Typedef Documentation

◆ agt_ncx_load_cbfn_t

typedef status_t(* agt_ncx_load_cbfn_t) (const xmlChar *name, void *cookie)

callback function used by agt_ncx_load_for_all_bundles

Walk all bundle names

Parameters

name	the bundle or module name
cookie	cookie passed to agt_ncx_load_for_all_bundles or agt_ncx_load_for_all_modules

Returns: status; will stop on error exit

Function Documentation

◆ agt_ncx_load_add_to_bundle()

status_t agt_ncx_load_add_to_bundle	(	const xmlChar *	bundle_name,
		const xmlChar *	module_name,
		const xmlChar *	revision
	)

Add the specified module name to the bundle.

Processing a <bundle-load-event> from a subsystem. Do not know any of the modules in the SIL-SA bundle when the <load-bundle> operation is invoked so need to fill in the list as the event is processed.

Parameters

bundle_name	the bundle that was previously loaded
module_name	module to add to the bundle
revision	revision date string (may be NULL)

Here is the call graph for this function:

◆ agt_ncx_load_any_waiting()

boolean agt_ncx_load_any_waiting ( void )

Check if any bundles are waiting to be loaded from a SIL-SA subsystem.

Returns: TRUE if any bundles waiting; FALSE if no bundles waiting

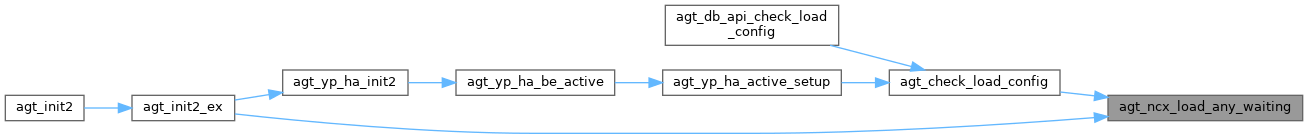

Here is the caller graph for this function:

◆ agt_ncx_load_boot_bundle()

status_t agt_ncx_load_boot_bundle ( const xmlChar * bundle )

Load a bundle at boot-time.

Do not use the same code at runtime when user sessions can be active Do not add to modules-state, etc since that will be done after all the modules and bundles from the the CLI/conf file

–bundle=foo : CLI or netconfd-pro.conf

Parameters

bundle bundle name

Returns: status

Here is the call graph for this function:

◆ agt_ncx_load_boot_bundle_savedevQ()

status_t agt_ncx_load_boot_bundle_savedevQ	(	const xmlChar *	bundle,
		dlq_hdr_t *	savedevQ
	)

Load a bundle at boot-time.

Load it into specified Queue Load a bundle at boot-time for Mount Point

Do not use the same code at runtime when user sessions can be active Do not add to modules-state, etc since that will be done after all the modules and bundles from the the CLI/conf file

–bundle=foo : CLI or netconfd-pro.conf

Parameters

bundle	bundle name
savedevQ	Q of ncx_save_deviations_t to use, if any

Returns: status

◆ agt_ncx_load_bundle_loaded()

boolean agt_ncx_load_bundle_loaded ( const xmlChar * bundle )

Verify is the bundle was already loaded.

Verify is the bundle was already loaded

Parameters

bundle bundle name to find

Returns: TRUE if bundle is alerady loaded

◆ agt_ncx_load_bundle_module()

status_t agt_ncx_load_bundle_module	(	ses_cb_t *	scb,
		const xmlChar *	module,
		const xmlChar *	revision,
		boolean *	loaded
	)

Load the bundle module in all required locations.

Called for a subsystem only The running datastore has already been locked with a transaction in progress. This function will load the module in the locations for the bundles that have this module

Parameters

	scb	session control block invoking the operation
	module	module name to find
	revision	revision date to find (may be NULL)
[out]	loaded	address of return flag *loaded = TRUE if module is loaded

Returns: status

◆ agt_ncx_load_cleanup()

void agt_ncx_load_cleanup ( void )

Cleanup the NCX Load module.

Called by the server during shutdown.

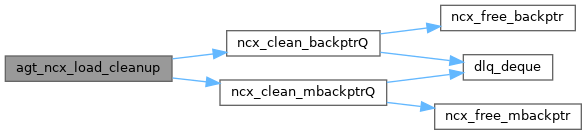

Here is the call graph for this function:

◆ agt_ncx_load_dump_bundles()

void agt_ncx_load_dump_bundles	(	ses_cb_t *	scb,
		xml_msg_hdr_t *	mhdr,
		xmlns_id_t	parent_nsid,
		int32	indent,
		int32	startindent
	)

Generate XML <bundle> records for the support-save output.

Parameters

scb	session for output
mhdr	XML message header to use
parent_nsid	anamespace ID for parent object
indent	indent increment (-1 for no increment)
startindent	current indent amount to use

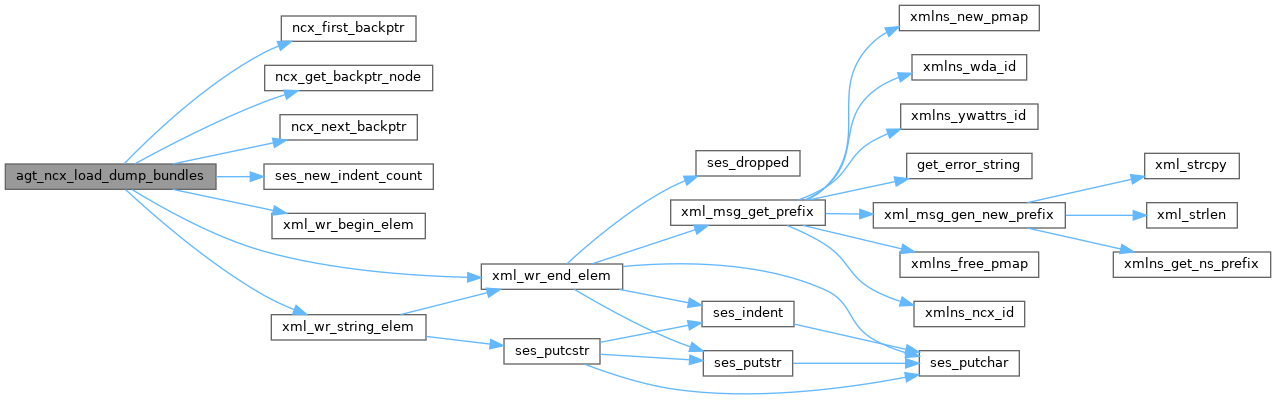

Here is the call graph for this function:

◆ agt_ncx_load_for_all_bundles()

status_t agt_ncx_load_for_all_bundles	(	agt_ncx_load_cbfn_t	cbfn,
		void *	cookie
	)

Invoke a callback for all the bundles.

Parameters

cbfn	callback function
cookie	pointer to pass to callback (may be NULL)

Returns: status

◆ agt_ncx_load_for_all_modules()

status_t agt_ncx_load_for_all_modules	(	agt_ncx_load_cbfn_t	cbfn,
		void *	cookie
	)

Invoke a callback for all the modules loaded dynamically.

Parameters

cbfn	callback function
cookie	pointer to pass to callback (may be NULL)

Returns: status

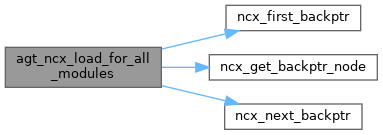

Here is the call graph for this function:

◆ agt_ncx_load_for_modules_in_bundles()

status_t agt_ncx_load_for_modules_in_bundles	(	agt_ncx_load_cbfn_t	cbfn,
		void *	cookie
	)

Invoke a callback for all modules in all the bundles.

Parameters

cbfn	callback function
cookie	pointer to pass to callback (may be NULL)

Returns: status

◆ agt_ncx_load_init()

status_t agt_ncx_load_init ( void )

Initialize the NCX Load module.

Returns: status of the initialization procedure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ncx_load_module_ha()

status_t agt_ncx_load_module_ha	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		const xmlChar *	name,
		const xmlChar *	revision,
		boolean	is_module,
		boolean	is_load,
		val_value_t *	dev_parent
	)

Handle a <module-update> event in YP-HA standby mode.

Parameters

scb	session making the module update request
msg	dummy RPC message for errors
name	name of module or bundle
revision	revision of module or bundle
is_module	TRUE for module; FALSE for bundle
is_load	TRUE for load, FALSE for unload
dev_parent	parent object of any deviation parameters

Returns: status

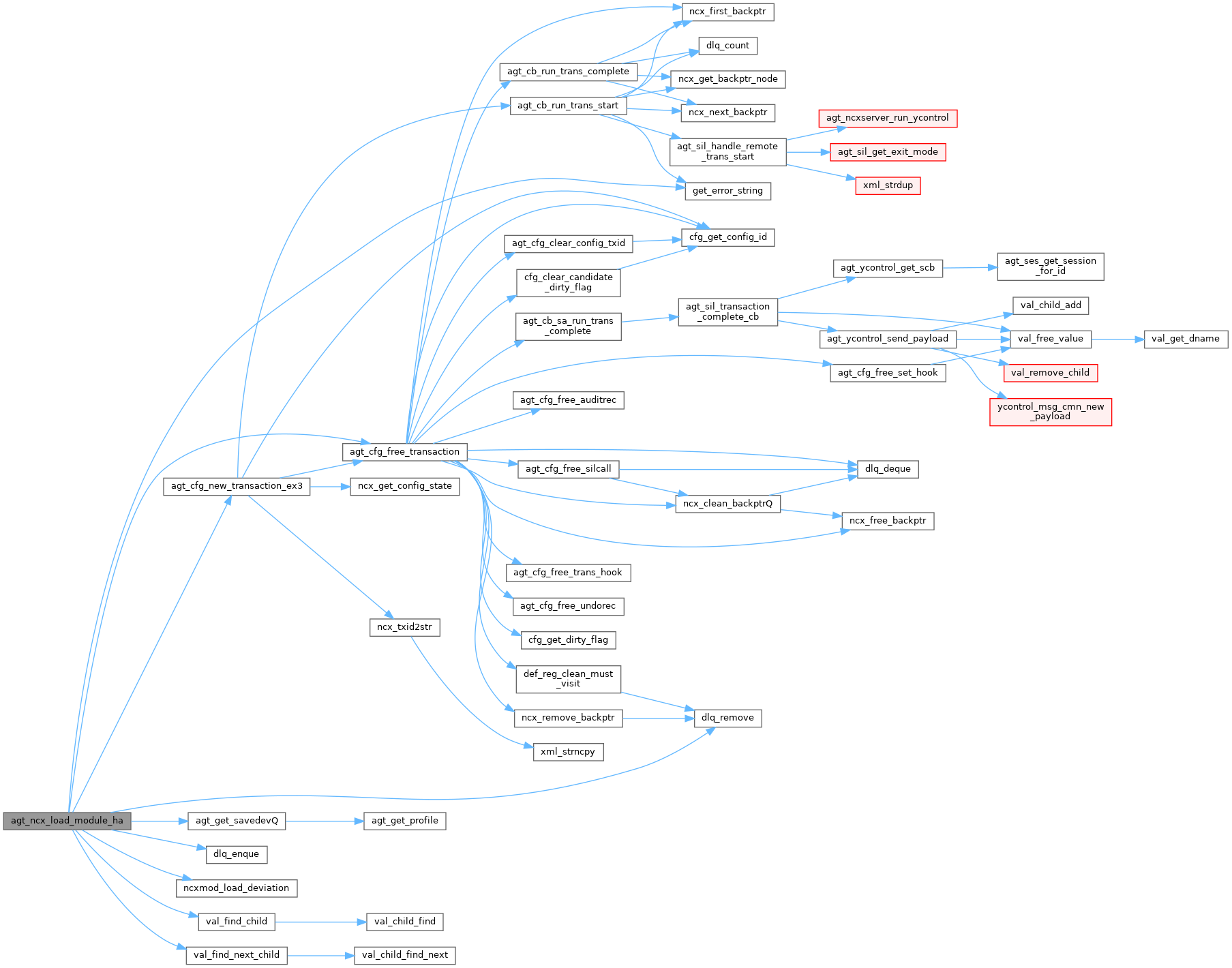

Here is the call graph for this function:

◆ agt_ncx_load_stop_waiting()

void agt_ncx_load_stop_waiting ( const xmlChar * bundle_name )

Signal that a SIL-SA loaded a bundle and that bundle is no longer waiting and blocking load_running_config.

Parameters

bundle_name the bundle that was registered

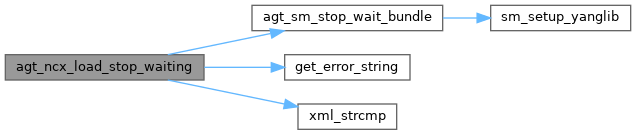

Here is the call graph for this function:
