YANG module data structures Many internal representations of YANG module constructs. More...

#include <xmlstring.h>
#include <xmlregexp.h>
#include "dlq.h"
#include "xmlns.h"

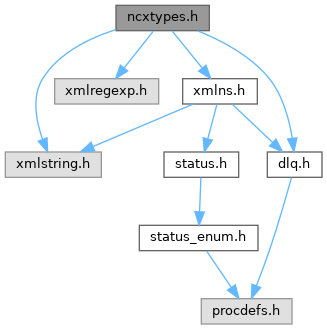

Include dependency graph for ncxtypes.h:

Data Structures
struct	ncx_dec64_t
	Decimal64 data type. More...

union	ncx_num_t
	union of all the basic number types if float not supported, then it is stored as an int64 More...

struct	ncx_enum_t
	one NCX_BT_ENUM enumeration value (user may enter 1 of 3 forms) More...

struct	ncx_bit_t
	one NCX_BT_BITS bit value More...

struct	ncx_lmem_t
	NCX list member: list of string or number Usually used within a val_value_t structure. More...

union	ncx_lmem_t::val_
	union of various data structures to represent different base types More...

struct	ncx_list_t
	header for a NCX List More...

struct	ncx_binary_t
	NCX base64 string node for YANG 'binary' built-in type. More...

struct	ncx_error_t
	struct to remember error info tkc->cur_err will be checked before tkc->cur for error information More...

struct	ncx_appinfo_t
	YANG extension usage entry A nested external statement will produce a tree of ncx_appinfo_t. More...

struct	ncx_revhist_t
	YANG revision entry. More...

struct	ncx_iff_ref_t
	YANG 1.1 identifier-ref-arg that within an if-feature expression. More...

struct	ncx_iffeature_t
	YANG if-feature entry. More...

struct	ncx_feature_t
	YANG feature entry. More...

struct	ncx_filptr_t
	struct for holding r/o pointer to generic internal node for filtering purposes More...

struct	ncx_idlink_t
	back pointer to a YANG identity used to create an inline tree of valid values for an identity used as a base More...

struct	ncx_identity_base_t
	YANG identity base. More...

struct	ncx_identity_t
	YANG identity entry. More...

struct	ncx_module_t
	representation of one module or submodule during and after parsing More...

struct	ncx_import_t
	One 'import' clause in YANG. More...

struct	ncx_include_t
	One 'include' clause, YANG only. More...

struct	ncx_errinfo_t
	YANG error info statement struct used to override default error handling in the server. More...

struct	ncx_typname_t
	keep track of the typenames used for local typedefs only used by ncxdump to generate XSDs OBSOLETE: DO NOT USE More...

struct	ncx_save_deviations_t
	used with obj_deviation_t to defer object lookups More...

struct	ncx_backptr_t
	used with various structs to cache back-ptrs the 'node' pointer may or may not be malloced! the ncx_free_backptr() function will not free the 'node' the ncx_free_mbackptr() function will free the 'node' More...

struct	ncx_modcache_t
	server module info cache record for def_reg_add_mod More...

struct	ncx_errmsg_t
	error message replacement record More...

struct	ncx_origin_filter_t
	internal NMDA origin filter (negate field stored separately) More...

struct	ncx_nmda_params_t
	internal NMDA get-data state parameters; rest of parameter are stored directly in the xml_msg_hdr_t using existing params More...

struct	ncx_prefix_info_t
	gather the prefix/nsid bindings used in an XPath string needed to generate the correct xmlns directives in XML JSON just loses all the namespace bindings in an XPath string More...

struct	ncx_sm_mpid_t
	Moint Point Instance This struct lives in a val_value_t.val_extra struct. More...

struct	ncx_yanglib_cb_t
	one context for a yang library. More...

struct	ncx_sm_rootcb_t
	Schema Mount Root Control Block used in the object template. More...

Macros
#define	SET_MOD_ABORTED(M) (M)->flags \|= NCX_FL_MOD_ABORTED
	Set module aborted flag.

#define	GET_MOD_ABORTED(M) ((M)->flags & NCX_FL_MOD_ABORTED)
	Check module aborted flag.

#define	SET_MOD_SIL_LOADED(M) (M)->flags \|= NCX_FL_MOD_SIL_LOADED
	set flag used by agt_sil_lib to make sure modules loaded by import do not get skipped when they are explicitly loaded later

#define	GET_MOD_SIL_LOADED(M) ((M)->flags & NCX_FL_MOD_SIL_LOADED)
	check flag used by agt_sil_lib to make sure modules loaded by import

#define	SET_MOD_NO_SIL_CODE(M) (M)->flags \|= NCX_FL_MOD_NO_SIL_CODE
	set flag used by SIL-SA to know fi register-request really needed Only register if this bit is not set

#define	GET_MOD_NO_SIL_CODE(M) ((M)->flags & NCX_FL_MOD_NO_SIL_CODE)
	check flag used by SIL-SA to know fi register-request really needed

#define	SET_MOD_SILSA_DONE(M) (M)->flags \|= NCX_FL_MOD_SILSA_DONE
	set flag used by agt_cb.c to make sure a <load-event> on SIL-SA does not cause a module to be registered multiple times A modhdr is not maintained if only rpc callbacks are used

#define	GET_MOD_SILSA_DONE(M) ((M)->flags & NCX_FL_MOD_SILSA_DONE)
	check flag used by agt_cb.c to make sure a <load-event> on SIL-SA

#define	NCX_YANG_SID(X) (X)->yang_sid
	YANG SID access macro for ncx types All entries have the same form so the macro should work for each SID namespace.

#define	NCX_YANG_SID_TREE(X) (X)->yang_sid_tree
	YANG SID Tree access macros for ncx types All entries have the same form so the macro should work for each SID namespace.

#define	NCX_DEF_ACCESS NCX_ACCESS_RC
	default max-access is all

#define	NCX_CFGID_CNT (NCX_CFGID_MAX+1)
	Should match CFG_NUM_STATIC.

#define	TXID_T long long unsigned int
	For convenience.

Typedefs
typedef uint64	ncx_transaction_id_t
	transaction is scoped to single session write operation on a config

typedef uint32	ncx_sid_t
	Standard YANG SID is a 63-bit integer defined as uint64. More...

typedef uint32	ncx_etag_t
	The ETag used in RESTCONF messages is the lower 32 bits of a ncx_transaction_id_t.

typedef xmlChar *	ncx_str_t
	string alias for data types: More...

typedef void(*	ncx_load_cbfn_t) (ncx_module_t *mod)
	user function callback template when a module is loaded into the system More...

typedef void(*	ncx_unload_cbfn_t) (ncx_module_t *mod)
	user function callback template when a module is unloaded from the system More...

typedef void(*	ncx_yang_obj_cbfn_t) (ncx_module_t mod, struct obj_template_t_ obj)
	user function callback template when a YANG object is parsed by yang_obj.c. More...

typedef boolean(*	ncx_object_cbfn_t) (const ncx_module_t mod, struct obj_template_t_ object, void *cookie)
	user function callback template to traverse all module objects for a specified module More...

typedef boolean(*	ncx_feature_cbfn_t) (const ncx_module_t mod, ncx_feature_t feature, void *cookie)
	user function callback template to traverse all module features for a specified module More...

typedef boolean(*	ncx_identity_cbfn_t) (ncx_identity_t identity, void cookie)
	user function callback template to traverse all module identities looking for matches for a specified base More...

typedef uint8	ncx_owner_id_t
	used as index into the agt_owner registry

typedef const xmlChar (	ncx_get_owner_fn_t) (ncx_owner_id_t owner_id)
	get owner name callback function to check if a value node has an owner name; get the value if so More...

typedef status_t(*	ncx_def_hook_cbfn_t) (struct val_value_t_ parentval, struct obj_template_t_ obj, xmlChar **buff)
	Typedef of the ncx_def_hook_cbfn_t callback. More...

Enumerations
enum	ncx_access_t { NCX_ACCESS_NONE , NCX_ACCESS_RO , NCX_ACCESS_RW , NCX_ACCESS_RC }
	NCX Access Control 'max-access' enumeration values Note that access control is applied to the session and the max-access applies to the user max-access, not the agent max-access. More...

enum	ncx_data_class_t { NCX_DC_NONE , NCX_DC_CONFIG , NCX_DC_STATE }
	NCX Persistence Control. More...

enum	ncx_btype_t { NCX_BT_NONE , NCX_BT_ANY , NCX_BT_BITS , NCX_BT_ENUM , NCX_BT_EMPTY , NCX_BT_BOOLEAN , NCX_BT_INT8 , NCX_BT_INT16 , NCX_BT_INT32 , NCX_BT_INT64 , NCX_BT_UINT8 , NCX_BT_UINT16 , NCX_BT_UINT32 , NCX_BT_UINT64 , NCX_BT_DECIMAL64 , NCX_BT_FLOAT64 , NCX_BT_STRING , NCX_BT_BINARY , NCX_BT_INSTANCE_ID , NCX_BT_UNION , NCX_BT_LEAFREF , NCX_BT_IDREF , NCX_BT_SLIST , NCX_BT_CONTAINER , NCX_BT_CHOICE , NCX_BT_CASE , NCX_BT_LIST , NCX_BT_ANYDATA , NCX_BT_EXTERN , NCX_BT_INTERN }
	enumeration of the built-in NCX types These types cannot be overridden and cannot be imported More...

enum	ncx_tclass_t { NCX_CL_NONE , NCX_CL_BASE , NCX_CL_SIMPLE , NCX_CL_COMPLEX , NCX_CL_NAMED , NCX_CL_REF }
	Enumeration of the basic value type classifications. More...

enum	ncx_indextyp_t { NCX_IT_NONE , NCX_IT_INLINE , NCX_IT_NAMED , NCX_IT_LOCAL , NCX_IT_SLOCAL , NCX_IT_REMOTE , NCX_IT_SREMOTE }
	Enumeration of the different types of index components YANG ONLY SUPPORTS NCX_IT_LOCAL. More...

enum	ncx_node_t { NCX_NT_NONE , NCX_NT_TYP , NCX_NT_GRP , NCX_NT_VAL , NCX_NT_OBJ , NCX_NT_ERRINFO , NCX_NT_STRING , NCX_NT_CFG , NCX_NT_INDEX , NCX_NT_QNAME , NCX_NT_UINT32_PTR , NCX_NT_IMPORT_CB , NCX_NT_INCLUDE_CB , NCX_NT_REVISION_CB , NCX_NT_EXTENSION_CB , NCX_NT_FEATURE_CB , NCX_NT_IDENTITY_CB , NCX_NT_TYPDEF_CB }
	NCX Internal Node Types. More...

enum	ncx_iqual_t { NCX_IQUAL_NONE , NCX_IQUAL_ONE , NCX_IQUAL_OPT , NCX_IQUAL_1MORE , NCX_IQUAL_ZMORE }
	The instance qualifier types are borrowed from ABNF and RelaxNG. More...

enum	ncx_merge_t { NCX_MERGE_NONE , NCX_MERGE_FIRST , NCX_MERGE_LAST , NCX_MERGE_SORT }
	The merge type for the NETCONF merge operation. More...

enum	ncx_squal_t { NCX_SQUAL_NONE , NCX_SQUAL_RANGE , NCX_SQUAL_VAL , NCX_SQUAL_META , NCX_SQUAL_APPINFO }
	typdef search qualifier list (internal compiler modes) More...

enum	ncx_strrest_t { NCX_SR_NONE , NCX_SR_PATTERN , NCX_SR_ENUM , NCX_SR_BIT }
	Enumeration of string restriction types. More...

enum	ncx_numfmt_t { NCX_NF_NONE , NCX_NF_OCTAL , NCX_NF_DEC , NCX_NF_HEX , NCX_NF_REAL }
	Enumeration of number format types. More...

enum	ncx_layer_t { NCX_LAYER_NONE , NCX_LAYER_TRANSPORT , NCX_LAYER_RPC , NCX_LAYER_OPERATION , NCX_LAYER_CONTENT }
	Enumeration of NETCONF protocol layers. More...

enum	ncx_agttarg_t { NCX_AGT_TARG_NONE , NCX_AGT_TARG_CANDIDATE , NCX_AGT_TARG_RUNNING , NCX_AGT_TARG_LOCAL , NCX_AGT_TARG_REMOTE , NCX_AGT_TARG_CAND_RUNNING }
	enum to identify the agent native target More...

enum	ncx_agtstart_t { NCX_AGT_START_NONE , NCX_AGT_START_MIRROR , NCX_AGT_START_DISTINCT }
	enum to identify the agent native startup mode More...

enum	ncx_shutdowntyp_t { NCX_SHUT_NONE , NCX_SHUT_RESET , NCX_SHUT_RELOAD , NCX_SHUT_RESTART , NCX_SHUT_EXIT , NCX_SHUT_FALLBACK }
	enumeration of the different program shutdown modes More...

enum	ncx_cfg_t { NCX_CFGID_RUNNING , NCX_CFGID_CANDIDATE , NCX_CFGID_STARTUP }
	hardwire the 3 standard configs More...

enum	ncx_instfmt_t { NCX_IFMT_NONE , NCX_IFMT_C , NCX_IFMT_XPATH1 , NCX_IFMT_XPATH2 , NCX_IFMT_CLI , NCX_IFMT_CLI2 , NCX_IFMT_YANGAPI , NCX_IFMT_RESTCONF }
	instance identifier string format types More...

enum	ncx_msgtyp_t { NCX_MSGTYP_NONE , NCX_MSGTYP_HELLO , NCX_MSGTYP_RPCREQ , NCX_MSGTYP_RPCRPY , NCX_MSGTYP_NOTIF }
	enumeration for different NETCONF message types More...

enum	ncx_status_t { NCX_STATUS_NONE , NCX_STATUS_CURRENT , NCX_STATUS_DEPRECATED , NCX_STATUS_OBSOLETE }
	enumeration for different YANG data-def status values More...

enum	ncx_bad_data_t { NCX_BAD_DATA_NONE , NCX_BAD_DATA_IGNORE , NCX_BAD_DATA_WARN , NCX_BAD_DATA_CHECK , NCX_BAD_DATA_ERROR }
	enumeration for CLI handling of bad input data used by yangcli, all others use NCX_BAD_DATA_ERROR More...

enum	ncx_display_mode_t { NCX_DISPLAY_MODE_NONE , NCX_DISPLAY_MODE_PLAIN , NCX_DISPLAY_MODE_PREFIX , NCX_DISPLAY_MODE_MODULE , NCX_DISPLAY_MODE_XML , NCX_DISPLAY_MODE_XML_NONS , NCX_DISPLAY_MODE_JSON , NCX_DISPLAY_MODE_CLI , NCX_DISPLAY_MODE_CBOR }
	enumeration of val_dump_value display modes Some RESTCONF code uses this field incorrectly for message encoding instead of the intended logging display Must update the ncx_get_display_mode_enum and ncx_get_display_mode_str functions if this typedef is changed! More...

enum	ncx_msg_encoding_t { NCX_MSG_ENCODING_NONE , NCX_MSG_ENCODING_XML , NCX_MSG_ENCODING_JSON , NCX_MSG_ENCODING_CBOR }
	enumeration for message encoding formats More...

enum	ncx_xpath_axis_t { XP_AX_NONE , XP_AX_ANCESTOR , XP_AX_ANCESTOR_OR_SELF , XP_AX_ATTRIBUTE , XP_AX_CHILD , XP_AX_DESCENDANT , XP_AX_DESCENDANT_OR_SELF , XP_AX_FOLLOWING , XP_AX_FOLLOWING_SIBLING , XP_AX_NAMESPACE , XP_AX_PARENT , XP_AX_PRECEDING , XP_AX_PRECEDING_SIBLING , XP_AX_SELF }
	XPath expression axis types. More...

enum	ncx_name_match_t { NCX_MATCH_NONE , NCX_MATCH_EXACT , NCX_MATCH_EXACT_NOCASE , NCX_MATCH_ONE , NCX_MATCH_ONE_NOCASE , NCX_MATCH_FIRST , NCX_MATCH_FIRST_NOCASE }
	Node name match modes. More...

enum	ncx_result_format_t { NCX_RF_NONE , NCX_RF_TEXT , NCX_RF_XML , NCX_RF_JSON }
	specify the requested result format type Used by yangcli-pro assign statement More...

enum	ncx_feature_code_t { NCX_FEATURE_CODE_NONE , NCX_FEATURE_CODE_STATIC , NCX_FEATURE_CODE_DYNAMIC }
	Feature code generation type (deprecated) More...

enum	ncx_protocol_t { NCX_PROTO_NONE , NCX_PROTO_NETCONF10 , NCX_PROTO_NETCONF11 , NCX_PROTO_YUMA_YANGAPI , NCX_PROTO_YUMA_CLI , NCX_PROTO_YCONTROL , NCX_PROTO_RESTCONF }
	NCX session protocol versions supported. More...

enum	ncx_yang_version_t
	enumeration for different YANG language versions

enum	ncx_cvttyp_t { NCX_CVTTYP_NONE , NCX_CVTTYP_XSD , NCX_CVTTYP_SQL , NCX_CVTTYP_SQLDB , NCX_CVTTYP_HTML , NCX_CVTTYP_YANG , NCX_CVTTYP_COPY , NCX_CVTTYP_H , NCX_CVTTYP_C , NCX_CVTTYP_CPP_TEST , NCX_CVTTYP_YIN , NCX_CVTTYP_TG2 , NCX_CVTTYP_YH , NCX_CVTTYP_YC , NCX_CVTTYP_UH , NCX_CVTTYP_UC , NCX_CVTTYP_BC , NCX_CVTTYP_BH }
	enumeration for different NCX module conversion output types More...

enum	ncx_withdefaults_t { NCX_WITHDEF_NONE , NCX_WITHDEF_REPORT_ALL , NCX_WITHDEF_REPORT_ALL_TAGGED , NCX_WITHDEF_TRIM , NCX_WITHDEF_EXPLICIT }
	enum for with-defaults enum values More...

enum	ncx_xpath_type_t { NCX_XPATH_TYPE_NONE , NCX_XPATH_TYPE_MUST , NCX_XPATH_TYPE_WHEN , NCX_XPATH_TYPE_NACM , NCX_XPATH_TYPE_LEAFREF , NCX_XPATH_TYPE_OTHER }
	enumeration for different XPath back pointer types More...

enum	ncx_opt_t { NCX_REQ , NCX_OPT }
	enum for REQUIRED vs. More...

enum	ncx_strtyp_t { NCX_WSP , NCX_NO_WSP }
	enum for WHITESPACE ALLOWED vs. More...

enum	ncx_modformat_t { NCX_MODFORMAT_NONE , NCX_MODFORMAT_XSD , NCX_MODFORMAT_YANG , NCX_MODFORMAT_YIN , NCX_MODFORMAT_RNG , NCX_MODFORMAT_RNC }
	enum for get-schema format type enum values matches the schema-format identities in RFC 6022 More...

enum	ncx_confirm_event_t { NCX_CC_EVENT_NONE , NCX_CC_EVENT_START , NCX_CC_EVENT_CANCEL , NCX_CC_EVENT_TIMEOUT , NCX_CC_EVENT_EXTEND , NCX_CC_EVENT_COMPLETE }
	type of confirmEvent in the sysConfirmedCommit notification Used in confirmed-commit standard as well More...

enum	ncx_leafref_class_t { NCX_LEAFREF_CLASS_NONE , NCX_LEAFREF_CLASS_KEY , NCX_LEAFREF_CLASS_GLOBAL , NCX_LEAFREF_CLASS_LOCAL , NCX_LEAFREF_CLASS_INSTANCE }
	Classification for the types of leafref path statements wrt/ how they can be cached. More...

enum	ncx_snmp_agt_role_t { NCX_SNMP_AGT_ROLE_NONE , NCX_SNMP_AGT_ROLE_MASTER , NCX_SNMP_AGT_ROLE_SUBAGENT }
	enum to identify the SNMP agent native mode More...

enum	ncx_nmda_ds_t { NCX_NMDA_DS_NONE , NCX_NMDA_DS_CANDIDATE , NCX_NMDA_DS_RUNNING , NCX_NMDA_DS_STARTUP , NCX_NMDA_DS_INTENDED , NCX_NMDA_DS_OPERATIONAL }
	internal enumerations for standard NMDA datastores More...

enum	ncx_nmda_origin_t { NCX_NMDA_ORIGIN_NONE , NCX_NMDA_ORIGIN_INTENDED , NCX_NMDA_ORIGIN_DYNAMIC , NCX_NMDA_ORIGIN_SYSTEM , NCX_NMDA_ORIGIN_LEARNED , NCX_NMDA_ORIGIN_DEFAULT , NCX_NMDA_ORIGIN_UNKNOWN }
	internal enumerations for standard NMDA origins More...

enum	ncx_nmda_filtyp_t
	internal enumerations for NMDA filter types used in the /filters container NCX_NMDA_FILTYP_STREAM == list /filters/stream-filter NCX_NMDA_FILTYP_SELECTION == list /filters/selection-filter

enum	ncx_ses_event_t { NCX_SES_EVENT_NONE , NCX_SES_EVENT_START , NCX_SES_EVENT_END }
	internal enumerations for session event types More...

enum	ncx_config_state_t { NCX_CFG_STATE_NONE , NCX_CFG_STATE_INIT , NCX_CFG_STATE_OK , NCX_CFG_STATE_BAD }
	server config state Root Check More...

enum	ncx_bad_reply_enum { NCX_BAD_REPLY_NONE , NCX_BAD_REPLY_ADAPT , NCX_BAD_REPLY_PRUNE , NCX_BAD_REPLY_ERROR }
	enumeration for CLI handling of bad nodes from RPC reply Controls the behavior of the MGR XML parser More...

enum	ncx_sid_ns_t { NCX_SID_NS_NONE , NCX_SID_NS_MODULE , NCX_SID_NS_IDENTITY , NCX_SID_NS_FEATURE , NCX_SID_NS_DATA }
	enumeration for YANG SID namespace identifiers More...

enum	ncx_yang_sid_mode_t { NCX_YANG_SID_MODE_NONE , NCX_YANG_SID_MODE_SID_FILE , NCX_YANG_SID_MODE_LSID , NCX_YANG_SID_MODE_LSID_FILE }
	YANG SID Allocation mode from yang-sid-mode typedef. More...

enum	ncx_sm_state_t { NCX_SM_ST_NONE , NCX_SM_ST_PENDING , NCX_SM_ST_SETUP , NCX_SM_ST_DONE , NCX_SM_ST_ERROR }
	enumeration for yangcli processsing of schema mount info More...

enum	ncx_sort_type_t { NCX_SORT_NONE , NCX_SORT_OFF , NCX_SORT_ASCENDING , NCX_SORT_DESCENDING }
	the sort type enumeration used for system-ordered list aand leaf-list objects More...

Detailed Description

YANG module data structures Many internal representations of YANG module constructs.

Data Structures

Macros

Typedefs

Enumerations

Detailed Description
