Utility Functions

Subsystem utility functions are used to provide support functions to implement the subsystem. More...

Collaboration diagram for Utility Functions:

Data Structures
struct	subsys_cb_t
	one subsystem control block for session More...

Macros
#define	SERVER_MAP_FILE_LINELEN   1024
	the server root mapfile lines can be 1023 chars max plus 1 char for the terminating zero
#define	SERVER_MAP_WILDCARD   "*"
	the server root line entry wildcard is a single '*' char
#define	SERVER_MAP_ID_MAXLEN   64
	matches the NcxName maximum length

Functions
status_t	get_ssh_parms (subsys_cb_t *cb)
	Get the SSH environment parameters. More...
status_t	get_server_root_mapfile (subsys_cb_t *cb)
	Get the name of the server root mapfile set. More...
status_t	start_connection (subsys_cb_t *cb)
	Start the connection to the server. More...
status_t	send_cli_ncxconnect (subsys_cb_t *cb)
	Send the <ncx-connect> message to the ncxserver for CLI protocol. More...
void	init_subsys_cb (subsys_cb_t *cb)
	Initialize the fields of a subsystem control block. More...
void	clean_subsys_cb (subsys_cb_t *cb)
	Clean the fields of a subsystem control block. More...
void	configure_cli_parms (subsys_cb_t *cb, int argc, char **argv)
	Configure CLI parameters. More...
status_t	start_subsys_ypshell (int *retfd)
	Start the subsystem for yp-shell. More...
status_t	start_subsys_tcp_ncx (int *retfd, const char *user)
	Start the subsystem for a tcp-ncx transport connection. More...
status_t	start_subsys_extern_tcp_ncx (int *retfd, const char *user, const char *addr, unsigned int portnum)
	Start the subsystem to connect to an external tcp-ncx socket. More...

Detailed Description

Subsystem utility functions are used to provide support functions to implement the subsystem.

CLI parameters and RESTCONF request parameters are supported.

Function Documentation

clean_subsys_cb()

void clean_subsys_cb

(

subsys_cb_t *

cb

)

Clean the fields of a subsystem control block.

Parameters

cb	control block to clean

Here is the caller graph for this function:

configure_cli_parms()

void configure_cli_parms	(	subsys_cb_t *	cb,
		int	argc,
		char **	argv
	)

Configure CLI parameters.

Configure debug logging. This function evaluates command line arguments to configure debug logging.

Also configure the protocol in use

Parameters

cb	control block to use to store parameter values
argc	command line parameter count
argv	array of command line parameter strings

Here is the caller graph for this function:

get_server_root_mapfile()

status_t get_server_root_mapfile

(

subsys_cb_t *

cb

)

Get the name of the server root mapfile set.

Parameters

[in,out]

cb

control block to use cb->server_root_mapfile is set cb->server_root_from_env set

Returns

status

Here is the caller graph for this function:

get_ssh_parms()

status_t get_ssh_parms

(

subsys_cb_t *

cb

)

Get the SSH environment parameters.

Parameters

cb	control vlock to use

Returns

status

Here is the caller graph for this function:

init_subsys_cb()

void init_subsys_cb

(

subsys_cb_t *

cb

)

Initialize the fields of a subsystem control block.

Parameters

cb	control block to initialize

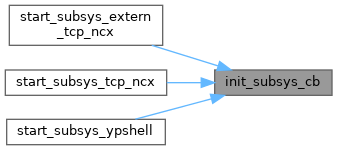

Here is the caller graph for this function:

send_cli_ncxconnect()

status_t send_cli_ncxconnect

(

subsys_cb_t *

cb

)

Send the <ncx-connect> message to the ncxserver for CLI protocol.

Parameters

cb	control vlock to use

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

start_connection()

status_t start_connection

(

subsys_cb_t *

cb

)

Start the connection to the server.

Parameters

cb	control vlock to use

Returns

status

Here is the caller graph for this function:

start_subsys_extern_tcp_ncx()

status_t start_subsys_extern_tcp_ncx	(	int *	retfd,
		const char *	user,
		const char *	addr,
		unsigned int	portnum
	)

Start the subsystem to connect to an external tcp-ncx socket.

Initialize the subsystem, and get it ready to send and receive the first message of any kind; special version for tcp-ncx transport

Parameters

[out]	retfd	address of return file descriptor number assigned to the socket that was created *retfd the file descriptor number used for the socket
	user	dummy user name
	addr	external server address
	portnum	external server port number

Returns

status

Here is the call graph for this function:

start_subsys_tcp_ncx()

status_t start_subsys_tcp_ncx	(	int *	retfd,
		const char *	user
	)

Start the subsystem for a tcp-ncx transport connection.

Initialize the subsystem, and get it ready to send and receive the first message of any kind; special version for tcp-ncx transport

Parameters

[out]	retfd	address of return file descriptor number assigned to the socket that was created *retfd the file descriptor number used for the socket
	user	user ID to login to server

Returns

status

Here is the call graph for this function:

start_subsys_ypshell()

status_t start_subsys_ypshell

(

int *

retfd

)

Start the subsystem for yp-shell.

Initialize the subsystem, and get it ready to send and receive the first message of any kind; special version for yp-shell

Parameters

[out]

retfd

address of return file descriptor number assigned to the socket that was created *retfd the file descriptor number used for the socket

Returns

status

Here is the call graph for this function:
