SIL-SA core functions are used to manage the subagent role in the distributed server. More...

Collaboration diagram for Core Functions:

Macros
#define	SIL_SA (const xmlChar *)"sil-sa"
	YControl service name.

#define	SIL_SA_MOD (const xmlChar *)"yumaworks-sil-sa"
	SIL-SA YANG module.

#define	SIL_SA_OBJ (const xmlChar *)"sil-sa"
	sil-sa container

#define	SIL_REQ_OK(ST) ((ST) >= SIL_SA_ST_READY)
	Check if SIL-SA state is ready.

Functions
status_t	sil_sa_register_service (void)
	Register the SIL-SA service with the YControl layer. More...

val_value_t *	sil_sa_get_key (rpc_msg_t *msg, uint32 keynum)
	Get a key leaf from the sil_sa_cb backptr in the rpc_msg. More...

val_value_t *	sil_sa_get_action_key (rpc_msg_t *msg, uint32 keynum)
	Get the key value node for the specified key for ACTION ONLY. More...

void	sil_sa_queue_notification (agt_not_msg_t *notif)
	Send a notification-event to the main server for queing by the agt_not module. More...

void	sil_sa_queue_notification_stream (const xmlChar stream_name, agt_not_msg_t notif)
	Send a notification-event to a specific stream, to the main server for queing by the agt_not module. More...

void	sil_sa_notif_test (int8 N1, int16 N2, const xmlChar *N3)
	Send a y_get2_test_get2_notif notification. More...

status_t	sil_sa_add_library_parm (const xmlChar *libstr)
	Add a library parameter so the SIL-SA libraries will be restricted to just these libraries instead of what is found in the /usr/lib/yumapro directory (or –runpath or YUMAPRO_RUNPATH) More...

boolean	sil_sa_any_library_parms (void)
	Check if any library parms are set. More...

boolean	sil_sa_find_library_parm (const xmlChar *libstr)
	Find a library parm name in the library_parmQ. More...

const xmlChar *	sil_sa_get_username (void)
	Get the user_id value from the message header. More...

const xmlChar *	sil_sa_get_client_addr (void)
	Get the client address (client_addr value from the message header) More...

const xmlChar *	sil_sa_get_rpc_msg_id (rpc_msg_t *msg)
	Get the rpc transaction id (txid_str) from the rpc_sil_sa_cb. More...

void	sil_sa_term_msg_test (uint32 count)
	Send a <term-msg> test notification. More...

status_t	sil_sa_add_edit (const xmlChar defpath, val_value_t edit_value, const xmlChar edit_operation, const xmlChar insert_where, const xmlChar *insert_point, boolean skip_cb)
	Add an edit to the current transaction from SIL-SA. More...

val_value_t *	sil_sa_get_data (ncx_cfg_t cfg_id, const xmlChar defpath, status_t retres)
	Get some YANG data from the server. More...

sil_sa_child_edit_t *	sil_sa_first_child_edit (rpc_msg_t *msg)
	Get the first child edit from the transaction control block. More...

sil_sa_child_edit_t *	sil_sa_next_child_edit (sil_sa_child_edit_t *curedit)
	Get the next child edit from the transaction control block. More...

void	sil_sa_child_edit_fields (sil_sa_child_edit_t child_edit, op_editop_t editop, val_value_t newval, val_value_t curval)
	Get the child edit fields. More...

void	sil_sa_set_error_msg (rpc_msg_t msg, const xmlChar strval)
	Set Error Message string in case of error. More...

void	sil_sa_get_user_data_parms (void *data_ref, uint32 data_index)
	Get the current GET2_USER_REF saved values. More...

void	sil_sa_set_user_data_parms (void *data_ref, uint32 data_index)
	Set the current GET2_USER_REF saved values. More...

Detailed Description

SIL-SA core functions are used to manage the subagent role in the distributed server.

EDIT and GET2 transactions are initiated from the server. The subsystem also handled HOOK and other APIs available during edit transaction processsing.

All functions in this module are user APIs for subsystem use only!

Function Documentation

◆ sil_sa_add_edit()

status_t sil_sa_add_edit	(	const xmlChar *	defpath,
		val_value_t *	edit_value,
		const xmlChar *	edit_operation,
		const xmlChar *	insert_where,
		const xmlChar *	insert_point,
		boolean	skip_cb
	)

Add an edit to the current transaction from SIL-SA.

Save an added edit in the SIL-SA Control block for further hook-response processing

Move or insertion OP available. Skip callbacks for added edits option is available.

Only allowed for Set Hooks or Post Set Hook, the rest are ignored.

Parameters

defpath	XPath path of object instance
edit_value	val_value_t representing newnode in transaction only needed for create, merge, replace, not delete
edit_operation	<operation string> "create" "delete" "insert" "merge" "move" "replace" "remove"
insert_where	<insert enum string> (NULL if not used) "before" "after" "first" "last" Will be used only if the operations are "move" or "insert". Ignored otherwise.
insert_point	is a XPath encoded string like the defpath. Only for 'before' or 'after' insert_where paramter. The insert_where must be set to 'before' or 'after' if insert_point specified. Will be used only if the operations are "move" or "insert". Ignored otherwise. E.g: "/test3[string.1='entry2'][uint32.1='2']"
skip_cb	TRUE if DO NOT invoke callbacks for an edded edit if any. FALSE if SKIP any callback for added edit including Transaction, EDIT1, EDIT2 callbacks Only when target=running

Returns: status

See also: db_api_edit_full2

Here is the call graph for this function:

◆ sil_sa_add_library_parm()

status_t sil_sa_add_library_parm ( const xmlChar * libstr )

Add a library parameter so the SIL-SA libraries will be restricted to just these libraries instead of what is found in the /usr/lib/yumapro directory (or –runpath or YUMAPRO_RUNPATH)

Parameters

libstr library name (use foo for libfoo_sa.so)

Returns: status

Here is the call graph for this function:

◆ sil_sa_any_library_parms()

boolean sil_sa_any_library_parms ( void )

Check if any library parms are set.

If any library params set AT ALL then ONLY those libraries will be checked. All other names will be skipped.

TRUE if any parms found; FALSE if not found

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sil_sa_child_edit_fields()

void sil_sa_child_edit_fields	(	sil_sa_child_edit_t *	child_edit,
		op_editop_t *	editop,
		val_value_t **	newval,
		val_value_t **	curval
	)

Get the child edit fields.

SIL-SA EDIT2 MODE

SIL-SA Analogue agt_cfg_child_edit_fields() API. Get the child edit fields from the child_edit record

Parameters

	child_edit	child_edit record that was returned from the server
[out]	editop	address of return editop
[out]	newval	address of return new value
[out]	curval	address of return current value

◆ sil_sa_find_library_parm()

boolean sil_sa_find_library_parm ( const xmlChar * libstr )

Find a library parm name in the library_parmQ.

Parameters

libstr library name (use foo for libfoo_sa.so)

Returns: TRUE if found; FALSE if not found

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sil_sa_first_child_edit()

sil_sa_child_edit_t * sil_sa_first_child_edit ( rpc_msg_t * msg )

Get the first child edit from the transaction control block.

SIL-SA EDIT2 MODE

SIL-SA Analogue agt_cfg_first_child_edit() API. Get the first child node edit record

Parameters

msg	rpc msg to use to find keys

Returns: pointer to the first child edit

◆ sil_sa_get_action_key()

val_value_t * sil_sa_get_action_key	(	rpc_msg_t *	msg,
		uint32	keynum
	)

Get the key value node for the specified key for ACTION ONLY.

Parameters

msg	rpc msg to use to find keys FOR ACTION ONLY
keynum	key index to get – 1 to N

Returns: pointer to the Nth key

Here is the call graph for this function:

◆ sil_sa_get_client_addr()

const xmlChar * sil_sa_get_client_addr ( void )

Get the client address (client_addr value from the message header)

This is the external client address, not the SIL-SA peer address. Time-sensitive API. Each message received by a user will cause the saved state to be updated.

Returns: client_addr value or NULL

◆ sil_sa_get_data()

val_value_t * sil_sa_get_data	(	ncx_cfg_t	cfg_id,
		const xmlChar *	defpath,
		status_t *	retres
	)

Get some YANG data from the server.

Get the val_value based on Xpath of object instance This function will return value only if there is existing node in the datastore or there is defaults for the node.

Parameters

	cfg_id	configuration datastore ID to use
	defpath	XPath path of object instance
[out]	retres	address of return status; *retres return status

Returns

pointer to requested data if found.

Must NOT free this value!
value stored as sil_sa_cb.hook_get_value
Only 1 GET from SIL-SA at a time can be done

Here is the call graph for this function:

◆ sil_sa_get_key()

val_value_t * sil_sa_get_key	(	rpc_msg_t *	msg,
		uint32	keynum
	)

Get a key leaf from the sil_sa_cb backptr in the rpc_msg.

Parameters

msg	rpc msg to use to find keys
keynum	key index to get – 1 to N

Returns: pointer to the Nth key

Here is the call graph for this function:

◆ sil_sa_get_rpc_msg_id()

const xmlChar * sil_sa_get_rpc_msg_id ( rpc_msg_t * msg )

Get the rpc transaction id (txid_str) from the rpc_sil_sa_cb.

This function is only available to EDIT callbacks! It is NULL for GET2 callbacks.

Parameters

msg	rpc msg to retrive rpc msg id from

Returns: txid_str value or NULL

◆ sil_sa_get_user_data_parms()

void sil_sa_get_user_data_parms	(	void **	data_ref,
		uint32 *	data_index
	)

Get the current GET2_USER_REF saved values.

User data tracking for GET2 support for SIL-SA Macros:

GETCB_GET2_USER_DATA_REF
GETCB_GET2_USER_DATA_INDEX

These macros can be set and retrieved outside of a GET2 callback. Each subsystem maintains saved values for each of these variables to use as the initial value to use for GET2 callbacks.

A GET2 callback may change the values during the callback.

Parameters

[out]	data_ref	return the current USER_DATA_REF value
[out]	data_index	return the current USER_DATA_INDEX value

◆ sil_sa_get_username()

const xmlChar * sil_sa_get_username ( void )

Get the user_id value from the message header.

Time-sensitive API. Each message received by a user will cause the saved state to be updated.

Returns: user_id value or NULL

◆ sil_sa_next_child_edit()

sil_sa_child_edit_t * sil_sa_next_child_edit ( sil_sa_child_edit_t * curedit )

Get the next child edit from the transaction control block.

SIL-SA EDIT2 MODE

SIL-SA Analogue agt_cfg_next_child_edit() API. Get the next child node edit

Parameters

curedit pointer to the current child edit

Returns: pointer to next child node edit
NULL if none found

◆ sil_sa_notif_test()

void sil_sa_notif_test	(	int8	N1,
		int16	N2,
		const xmlChar *	N3
	)

Send a y_get2_test_get2_notif notification.

FOR DEBUGGING ONLY!

Called by your code when notification event occurs. Used in regression testing. NOT A REAL API!

Parameters

N1	YANG parameter 1
N2	YANG parameter 2
N3	YANG parameter 3

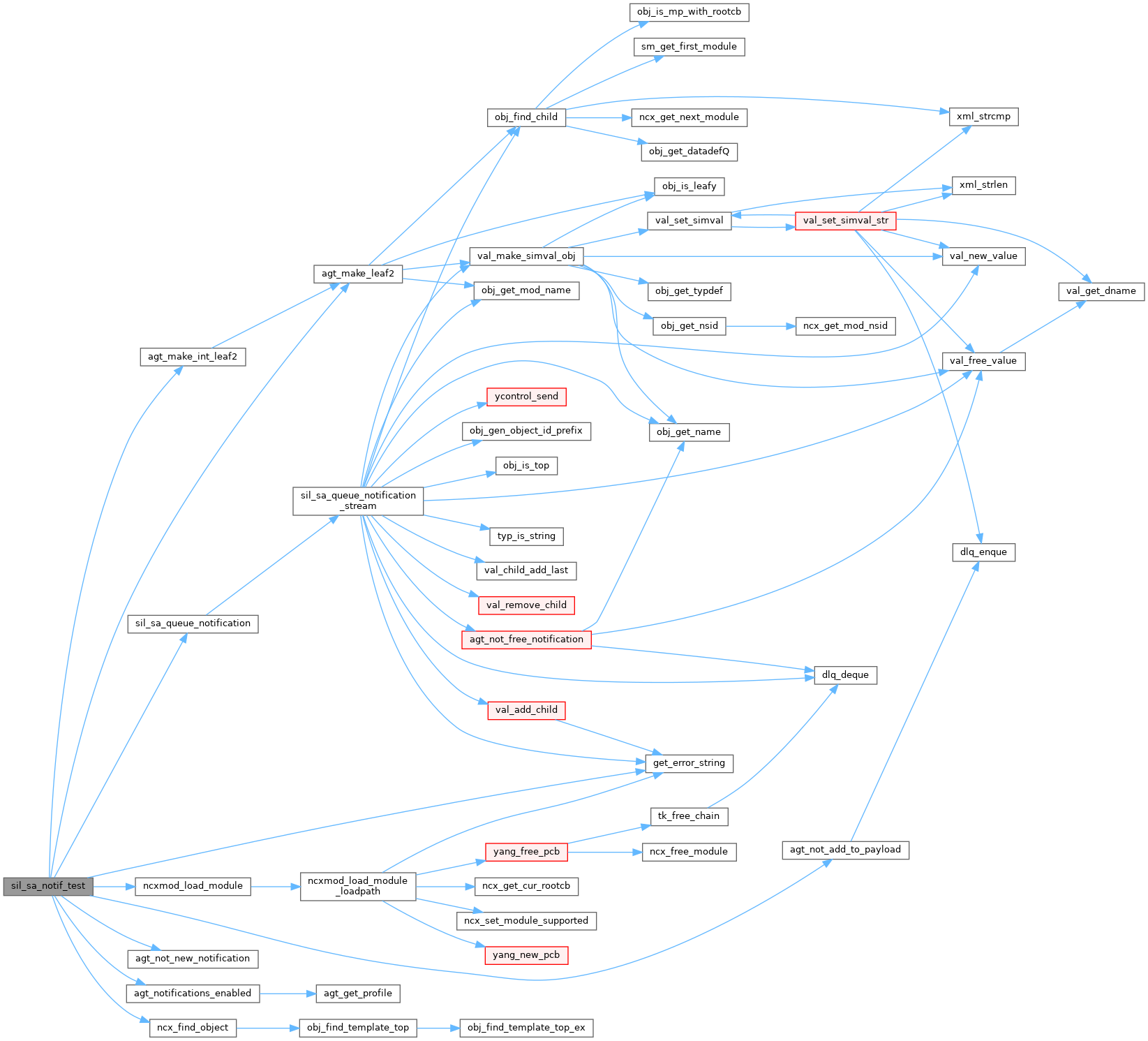

Here is the call graph for this function:

◆ sil_sa_queue_notification()

void sil_sa_queue_notification ( agt_not_msg_t * notif )

Send a notification-event to the main server for queing by the agt_not module.

Parameters

notif notification struct to send
Will be consumed and freed even if there is an error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sil_sa_queue_notification_stream()

void sil_sa_queue_notification_stream	(	const xmlChar *	stream_name,
		agt_not_msg_t *	notif
	)

Send a notification-event to a specific stream, to the main server for queing by the agt_not module.

Use this API for hard-wired event streams only! If the module-to-stream mappings are used then DO NOT use this API because the mappings will be ignored.

Parameters

stream_name	optional stream name (NULL = use NETCONF)
notif	notification struct to send Will be consumed and freed even if there is an error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sil_sa_register_service()

status_t sil_sa_register_service ( void )

Register the SIL-SA service with the YControl layer.

Must be called before any other SIL-SA function can be used.

Returns: status

Here is the call graph for this function:

◆ sil_sa_set_error_msg()

void sil_sa_set_error_msg	(	rpc_msg_t *	msg,
		const xmlChar *	strval
	)

Set Error Message string in case of error.

Parameters

msg	rpc msg to use to find keys
strval	string value to use for error message

◆ sil_sa_set_user_data_parms()

void sil_sa_set_user_data_parms	(	void *	data_ref,
		uint32	data_index
	)

Set the current GET2_USER_REF saved values.

User data tracking for GET2 support for SIL-SA Macros:

GETCB_GET2_USER_DATA_REF
GETCB_GET2_USER_DATA_INDEX

These macros can be set and retrieved outside of a GET2 callback. Each subsystem maintains saved values for each of these variables to use as the initial value to use for GET2 callbacks.

A GET2 callback may change the values during the callback.

Parameters

data_ref	set the current USER_DATA_REF value use the value 'NULL' to clear this data
data_index	set the current USER_DATA_INDEX value Use the value '0' to clear this data

◆ sil_sa_term_msg_test()

void sil_sa_term_msg_test ( uint32 count )

Send a <term-msg> test notification.

DEBUG ONLY.

Create a dummy message using the count variable. Used for regression testing only.

Parameters

count current loop count to add to data

Here is the call graph for this function:
