Server sessions are allocated in order connect request received. More...

Collaboration diagram for Session Control:

Functions
status_t	agt_ses_init (void)
	INIT 1: Initialize the session manager module data structures. More...

void	agt_ses_cleanup (void)
	Cleanup the session manager module data structures. More...

ses_cb_t *	agt_ses_new_dummy_session (void)
	Create a dummy session control block. More...

status_t	agt_ses_set_dummy_session_acm (ses_cb_t *dummy_session, ses_id_t use_sid)
	Set the session ID and username of the user that will be responsible for the rollback if needed. More...

status_t	agt_ses_set_dummy_session_tcb (ses_cb_t *dummy_session, ses_id_t use_sid)
	Set the session TCB if needed. More...

void	agt_ses_free_dummy_session (ses_cb_t *scb)
	Free a dummy session control block. More...

ses_cb_t *	agt_ses_new_coap_session (void)
	Create a dummy CoAP session control block. More...

void	agt_ses_free_coap_session (ses_cb_t *scb)
	Free a dummy CoAP session control block. More...

ses_cb_t *	agt_ses_new_snmp_session (void)
	Create a dummy SNMP session control block. More...

void	agt_ses_free_snmp_session (ses_cb_t *scb)
	Free a dummy snmp session control block. More...

ses_cb_t *	agt_ses_new_session (ses_transport_t transport, int fd)
	Create a real server session control block. More...

ses_cb_t *	agt_ses_new_session_tls (ses_transport_t transport, int fd, const char *client_addr)
	Create a real agent session control block for TLS. More...

void	agt_ses_free_session (ses_cb_t *scb)
	Free a real session control block. More...

void	agt_ses_free_session2 (ses_cb_t *scb, boolean clear_locks)
	Free a real session control block but with optional unlocking. More...

boolean	agt_ses_session_id_valid (ses_id_t sid)
	Check if a session-id is for an active session. More...

boolean	agt_ses_request_close (ses_cb_t *scb, ses_id_t killedby, ses_term_reason_t termreason)
	Start the close of the specified session. More...

void	agt_ses_thread_kill_session (ses_cb_t *scb, ses_id_t killedby, ses_term_reason_t termreason)
	Kill the specified session; called from session thread. More...

void	agt_ses_kill_session (ses_cb_t *scb, ses_id_t killedby, ses_term_reason_t termreason)
	Kill the specified session. More...

boolean	agt_ses_process_first_ready_by_sid (ses_id_t sid)
	Check the readyQ and process the first message matching session, if any. More...

boolean	agt_ses_process_first_ready (boolean ycontrol)
	Check the readyQ and process the first message, if any. More...

void	agt_ses_check_timeouts (ses_id_t sid)
	Check if any sessions need to be dropped because they have been idle too long. More...

boolean	agt_ses_ssh_port_allowed (uint16 port)
	Check if the port number used for SSH connect is okay. More...

void	agt_ses_fill_writeset (fd_set fdset, int maxfdnum)
	Drain the ses_msg outreadyQ and set the specified fdset Used by agt_ncxserver write_fd_set. More...

status_t	agt_ses_get_inSessions (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the inSessions counter More...

status_t	agt_ses_get_inBadHellos (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the inBadHellos counter More...

status_t	agt_ses_get_inRpcs (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the inRpcs counter More...

status_t	agt_ses_get_inBadRpcs (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the inBadRpcs counter More...

status_t	agt_ses_get_outRpcErrors (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the outRpcErrors counter More...

status_t	agt_ses_get_outNotifications (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the outNotifications counter More...

status_t	agt_ses_get_droppedSessions (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the droppedSessions counter More...

status_t	agt_ses_get_session_inRpcs (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the session/inRpcs counter More...

status_t	agt_ses_get_session_inBadRpcs (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the inBadRpcs counter More...

status_t	agt_ses_get_session_outRpcErrors (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the outRpcErrors counter More...

status_t	agt_ses_get_session_outNotifications (ses_cb_t scb, getcb_mode_t cbmode, const val_value_t virval, val_value_t *dstval)
	<get> operation handler for the outNotifications counter More...

ses_cb_t *	agt_ses_get_session_for_id (ses_id_t sid)
	get the session for the supplied sid More...

uint32	agt_ses_mgmt_session_count (void)
	Get number of management sessions open. More...

void	agt_ses_go_active (void)
	Activate MGMT sessions because YP-HA mode is active. More...

void	agt_ses_go_standby (void)
	Deactivate MGMT sessions because YP-HA mode is standby. More...

void	agt_ses_remove_subsys (ses_id_t sid)
	Remove a subsystem session for an HA Standby. More...

boolean	agt_ses_max_cli_sessions (void)
	Check if max-cli-sessions parameter has been reached. More...

boolean	agt_ses_max_user_sessions (const xmlChar *user)
	Check if max-user-sessions parameter has been reached. More...

void	agt_ses_set_max_sessions (uint16 val)
	Set the max-sessions parameter. More...

void	agt_ses_set_max_cli_sessions (uint16 val)
	Set the max-cli-sessions parameter. More...

void	agt_ses_set_max_user_sessions (uint16 val)
	Set the max-user-sessions parameter. More...

void	agt_ses_set_hello_timeout (uint32 val)
	Set the hello-timeout parameter. More...

void	agt_ses_set_idle_timeout (uint32 val)
	Set the idle-timeout parameter. More...

Detailed Description

Server sessions are allocated in order connect request received.

A ses_cb_t is created using NCX session support in ses.c. Session IO and connection state is held in this control block.

Function Documentation

◆ agt_ses_check_timeouts()

void agt_ses_check_timeouts ( ses_id_t sid )

Check if any sessions need to be dropped because they have been idle too long.

Parameters

sid	session ID to check

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_cleanup()

void agt_ses_cleanup ( void )

Cleanup the session manager module data structures.

Called by the server during shutdown.

Here is the call graph for this function:

◆ agt_ses_fill_writeset()

void agt_ses_fill_writeset	(	fd_set *	fdset,
		int *	maxfdnum
	)

Drain the ses_msg outreadyQ and set the specified fdset Used by agt_ncxserver write_fd_set.

Parameters

[out]	fdset	pointer to fd_set to fill *fdset is updated in
[out]	maxfdnum	pointer to max fd int to fill in *maxfdnum may be updated

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_free_coap_session()

void agt_ses_free_coap_session ( ses_cb_t * scb )

Free a dummy CoAP session control block.

Parameters

scb	session control block to free

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_free_dummy_session()

void agt_ses_free_dummy_session ( ses_cb_t * scb )

Free a dummy session control block.

Parameters

scb	session control block to free

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_free_session()

void agt_ses_free_session ( ses_cb_t * scb )

Free a real session control block.

Parameters

scb	session control block to free

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_free_session2()

void agt_ses_free_session2	(	ses_cb_t *	scb,
		boolean	clear_locks
	)

Free a real session control block but with optional unlocking.

Parameters

scb	session control block to free
clear_locks	TRUE if need to release locks FALSE; otherwise. Only For THREADED version

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_free_snmp_session()

void agt_ses_free_snmp_session ( ses_cb_t * scb )

Free a dummy snmp session control block.

Parameters

scb	session control block to free

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_get_droppedSessions()

status_t agt_ses_get_droppedSessions	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the droppedSessions counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_inBadHellos()

status_t agt_ses_get_inBadHellos	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the inBadHellos counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_inBadRpcs()

status_t agt_ses_get_inBadRpcs	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the inBadRpcs counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_inRpcs()

status_t agt_ses_get_inRpcs	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the inRpcs counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_inSessions()

status_t agt_ses_get_inSessions	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the inSessions counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_outNotifications()

status_t agt_ses_get_outNotifications	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the outNotifications counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_outRpcErrors()

status_t agt_ses_get_outRpcErrors	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the outRpcErrors counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_session_for_id()

ses_cb_t * agt_ses_get_session_for_id ( ses_id_t sid )

get the session for the supplied sid

Parameters

sid	the id of the session to get

Returns: ses_cb_t* or NULL

Here is the caller graph for this function:

◆ agt_ses_get_session_inBadRpcs()

status_t agt_ses_get_session_inBadRpcs	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the inBadRpcs counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_session_inRpcs()

status_t agt_ses_get_session_inRpcs	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the session/inRpcs counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_session_outNotifications()

status_t agt_ses_get_session_outNotifications	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the outNotifications counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_get_session_outRpcErrors()

status_t agt_ses_get_session_outRpcErrors	(	ses_cb_t *	scb,
		getcb_mode_t	cbmode,
		const val_value_t *	virval,
		val_value_t *	dstval
	)

<get> operation handler for the outRpcErrors counter

Parameters

	scb	session that issued the get (may be NULL) can be used for access control purposes
	cbmode	reason for the callback
	virval	place-holder node in the data model for this virtual value node
[out]	dstval	pointer to value output struct *dstval should be filled in, depending on the callback reason

Returns: status

◆ agt_ses_go_active()

void agt_ses_go_active ( void )

Activate MGMT sessions because YP-HA mode is active.

Enabled if –ha-enabled=true

◆ agt_ses_go_standby()

void agt_ses_go_standby ( void )

Deactivate MGMT sessions because YP-HA mode is standby.

Enabled if –ha-enabled=true

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_init()

status_t agt_ses_init ( void )

INIT 1: Initialize the session manager module data structures.

Returns: status

Here is the call graph for this function:

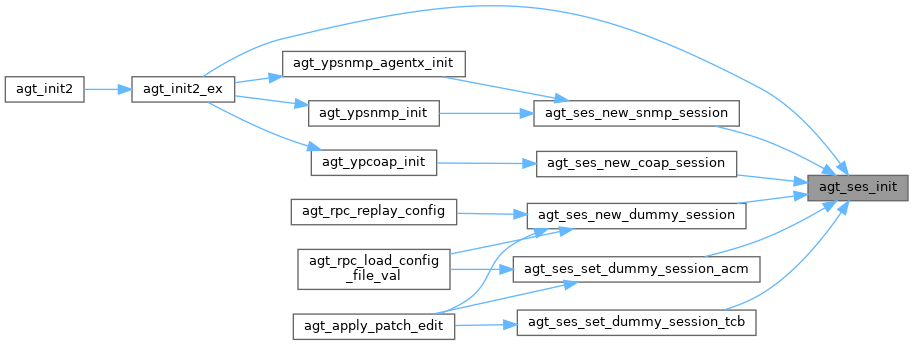

Here is the caller graph for this function:

◆ agt_ses_kill_session()

void agt_ses_kill_session	(	ses_cb_t *	scb,
		ses_id_t	killedby,
		ses_term_reason_t	termreason
	)

Kill the specified session.

Parameters

scb	the session to close
killedby	session ID executing the kill-session or close-session
termreason	termination reason code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_max_cli_sessions()

boolean agt_ses_max_cli_sessions ( void )

Check if max-cli-sessions parameter has been reached.

Returns: TRUE if max-cli-sessions reached; FALSE if limit not reached

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_max_user_sessions()

boolean agt_ses_max_user_sessions ( const xmlChar * user )

Check if max-user-sessions parameter has been reached.

Parameters

user	username to check limit for

Returns: TRUE if max-user-sessions reached; FALSE if limit not reached

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_mgmt_session_count()

uint32 agt_ses_mgmt_session_count ( void )

Get number of management sessions open.

Returns: number of management sessions open

◆ agt_ses_new_coap_session()

ses_cb_t * agt_ses_new_coap_session ( void )

Create a dummy CoAP session control block.

Returns: pointer to initialized CoAP SCB, or NULL if malloc error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_new_dummy_session()

ses_cb_t * agt_ses_new_dummy_session ( void )

Create a dummy session control block.

Returns: pointer to initialized dummy SCB, or NULL if malloc error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_new_session()

ses_cb_t * agt_ses_new_session	(	ses_transport_t	transport,
		int	fd
	)

Create a real server session control block.

Parameters

transport	the transport type
fd	file descriptor number to use for IO

Returns: pointer to initialized SCB, or NULL if some error. This pointer is stored in the session table, so it does not have to be saved by the caller

Here is the caller graph for this function:

◆ agt_ses_new_session_tls()

ses_cb_t * agt_ses_new_session_tls	(	ses_transport_t	transport,
		int	fd,
		const char *	client_addr
	)

Create a real agent session control block for TLS.

WILL CLOSE fd IF SOME ERROR AND NULL IS RETURNED Assumes netconf-tls protocol!

Parameters

transport	the transport type
fd	file descriptor number to use for IO
client_addr	client address converted to string

Returns: pointer to initialized SCB, or NULL if some error. This pointer is stored in the session table, so it does not have to be saved by the caller

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_new_snmp_session()

ses_cb_t * agt_ses_new_snmp_session ( void )

Create a dummy SNMP session control block.

Returns: pointer to initialized CoAP SCB, or NULL if malloc error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_process_first_ready()

boolean agt_ses_process_first_ready ( boolean ycontrol )

Check the readyQ and process the first message, if any.

Parameters

ycontrol TRUE if only YControl sessions should be processed
FALSE to process any session type

Returns: TRUE if a message was processed
FALSE if the readyQ was empty

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_process_first_ready_by_sid()

boolean agt_ses_process_first_ready_by_sid ( ses_id_t sid )

Check the readyQ and process the first message matching session, if any.

Parameters

sid	session ID to process

Returns: TRUE if a message was processed
FALSE if the readyQ was empty

Here is the call graph for this function:

◆ agt_ses_remove_subsys()

void agt_ses_remove_subsys ( ses_id_t sid )

Remove a subsystem session for an HA Standby.

Enabled if –ha-enabled=true

Parameters

sid	session ID of the subsystem session to remove and close

Here is the call graph for this function:

◆ agt_ses_request_close()

boolean agt_ses_request_close	(	ses_cb_t *	scb,
		ses_id_t	killedby,
		ses_term_reason_t	termreason
	)

Start the close of the specified session.

Parameters

scb	the session to close
killedby	session ID executing the kill-session or close-session
termreason	termination reason code

Returns: TRUE if scb is still valid; FALSE if it was already freed

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_session_id_valid()

boolean agt_ses_session_id_valid ( ses_id_t sid )

Check if a session-id is for an active session.

Parameters

sid	session ID to check

Returns: TRUE if active session; FALSE otherwise

◆ agt_ses_set_dummy_session_acm()

status_t agt_ses_set_dummy_session_acm	(	ses_cb_t *	dummy_session,
		ses_id_t	use_sid
	)

Set the session ID and username of the user that will be responsible for the rollback if needed.

Parameters

dummy_session	session control block to change
use_sid	Session ID to use for the rollback

Returns: status

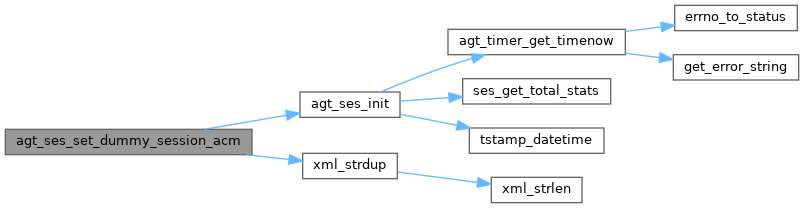

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_set_dummy_session_tcb()

status_t agt_ses_set_dummy_session_tcb	(	ses_cb_t *	dummy_session,
		ses_id_t	use_sid
	)

Set the session TCB if needed.

Must call agt_ses_new_dummy_session first

Parameters

dummy_session	session control block to change
use_sid	Session ID to use for the rollback

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_set_hello_timeout()

void agt_ses_set_hello_timeout ( uint32 val )

Set the hello-timeout parameter.

Parameters

val	value to use

Here is the call graph for this function:

◆ agt_ses_set_idle_timeout()

void agt_ses_set_idle_timeout ( uint32 val )

Set the idle-timeout parameter.

Parameters

val	value to use

Here is the call graph for this function:

◆ agt_ses_set_max_cli_sessions()

void agt_ses_set_max_cli_sessions ( uint16 val )

Set the max-cli-sessions parameter.

Parameters

val	value to use

Here is the call graph for this function:

◆ agt_ses_set_max_sessions()

void agt_ses_set_max_sessions ( uint16 val )

Set the max-sessions parameter.

Parameters

val	value to use

Here is the call graph for this function:

◆ agt_ses_set_max_user_sessions()

void agt_ses_set_max_user_sessions ( uint16 val )

Set the max-user-sessions parameter.

Parameters

val	value to use

Here is the call graph for this function:

◆ agt_ses_ssh_port_allowed()

boolean agt_ses_ssh_port_allowed ( uint16 port )

Check if the port number used for SSH connect is okay.

Parameters

port	port number to check

Returns: TRUE if port allowed
FALSE if port not allowed

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ses_thread_kill_session()

void agt_ses_thread_kill_session	(	ses_cb_t *	scb,
		ses_id_t	killedby,
		ses_term_reason_t	termreason
	)

Kill the specified session; called from session thread.

Parameters

scb	session control block
killedby	session ID executing the kill-session or close-session
termreason	termination reason code

Here is the call graph for this function:

Functions

Detailed Description

Function Documentation

◆ agt_ses_check_timeouts()

◆ agt_ses_cleanup()

◆ agt_ses_fill_writeset()

◆ agt_ses_free_coap_session()

◆ agt_ses_free_dummy_session()

◆ agt_ses_free_session()

◆ agt_ses_free_session2()

◆ agt_ses_free_snmp_session()

◆ agt_ses_get_droppedSessions()

◆ agt_ses_get_inBadHellos()

◆ agt_ses_get_inBadRpcs()

◆ agt_ses_get_inRpcs()

◆ agt_ses_get_inSessions()

◆ agt_ses_get_outNotifications()

◆ agt_ses_get_outRpcErrors()

◆ agt_ses_get_session_for_id()

◆ agt_ses_get_session_inBadRpcs()

◆ agt_ses_get_session_inRpcs()

◆ agt_ses_get_session_outNotifications()

◆ agt_ses_get_session_outRpcErrors()

◆ agt_ses_go_active()

◆ agt_ses_go_standby()

◆ agt_ses_init()

◆ agt_ses_kill_session()

◆ agt_ses_max_cli_sessions()

◆ agt_ses_max_user_sessions()

◆ agt_ses_mgmt_session_count()

◆ agt_ses_new_coap_session()

◆ agt_ses_new_dummy_session()

◆ agt_ses_new_session()

◆ agt_ses_new_session_tls()

◆ agt_ses_new_snmp_session()

◆ agt_ses_process_first_ready()

◆ agt_ses_process_first_ready_by_sid()

◆ agt_ses_remove_subsys()

◆ agt_ses_request_close()

◆ agt_ses_session_id_valid()

◆ agt_ses_set_dummy_session_acm()

◆ agt_ses_set_dummy_session_tcb()

◆ agt_ses_set_hello_timeout()

◆ agt_ses_set_idle_timeout()

◆ agt_ses_set_max_cli_sessions()

◆ agt_ses_set_max_sessions()

◆ agt_ses_set_max_user_sessions()

◆ agt_ses_ssh_port_allowed()

◆ agt_ses_thread_kill_session()
