YControl protocol is used by services between the main server and subsystems. More...

Collaboration diagram for YControl:

Data Structures
struct	agt_ycontrol_cb_t
	control block for 1 registered service handler More...

struct	agt_ycontrol_subsys_t
	control block for connected 1 subsystem; used to send event messages to the subsystem More...

Macros
#define	AGT_YCONTROL_MAX_SERVICES 4
	number of services hard-wired based on defined YumaPro features

Typedefs
typedef status_t(*	agt_ycontrol_service_fn_t) (ses_cb_t scb, ycontrol_msgtype_t msgtype, uint32 msgid, const xmlChar subsys_id, ycontrol_msgbody_t msgbody_type, val_value_t msgbody, boolean scb_valid)
	Callback template for YControl services: message handler. More...

typedef void(*	agt_ycontrol_subsys_gone_fn_t) (const xmlChar *subsys_id)
	brief Callback template for YControl services: subsys gone handler More...

Functions
status_t	agt_ycontrol_init1 (void)
	Initialize the agt_ycontrol module (phase 1) More...

status_t	agt_ycontrol_init2 (void)
	Initialize the agt_ycontrol module (phase 2) More...

void	agt_ycontrol_cleanup (void)
	Cleanup the agt_ycontrol module. More...

boolean	agt_ycontrol_dispatch (ses_cb_t scb, xml_node_t top)
	Handle an incoming <ycontrol> message from a subsystem. More...

status_t	agt_ycontrol_send_payload (ses_cb_t scb, const xmlChar service_id, uint32 msgid, ycontrol_msgtype_t msgtype, val_value_t service_payload, boolean with_ywattrs)
	Send the subsystem <ycontrol> message to the sevice manager on the specified session, using the <payload> variant. More...

status_t	agt_ycontrol_send_callback (ses_cb_t scb, const xmlChar service_id, uint32 msgid, ycontrol_msgtype_t msgtype, boolean with_ywattrs, obj_template_t service_obj, agt_rpc_data_cb_t data_cbfn, rpc_msg_t *rpcmsg, boolean need_filesave)
	Send the subsystem <ycontrol> message to the sevice manager on the specified session, using the <payload> variant. More...

status_t	agt_ycontrol_send_error (ses_cb_t scb, const xmlChar service_id, uint32 msgid, status_t res, const xmlChar *errstr)
	Send a ycontrol error message. More...

status_t	agt_ycontrol_send_ok (ses_cb_t scb, const xmlChar service_id, uint32 msgid)
	Send a ycontrol OK message. More...

status_t	agt_ycontrol_send_event (const xmlChar service_id, val_value_t service_payload, boolean with_ywattrs)
	Send a server event to all the active subsystems. More...

status_t	agt_ycontrol_send_event_subsys (const xmlChar service_id, val_value_t service_payload, boolean with_ywattrs, const xmlChar *subsys_id)
	Send a server event to a specific subsystem or all subsystems. More...

status_t	agt_ycontrol_register_service (const xmlChar *service_name, agt_ycontrol_service_fn_t service_fn)
	Register a YControl service layer. More...

status_t	agt_ycontrol_register_service_ex (const xmlChar *service_name, agt_ycontrol_service_fn_t service_fn, agt_ycontrol_subsys_gone_fn_t subsys_gone_fn)
	Register a YControl service layer (extended) More...

void	agt_ycontrol_unregister_service (const xmlChar *service_name)
	un-register a callback for 1 YControl service type More...

status_t	agt_ycontrol_add_subsys (ses_id_t subsys_sid, const xmlChar *subsys_id)
	Add a subsystem connection to the ycontrol manager. More...

void	agt_ycontrol_remove_subsys (ses_id_t sid, const xmlChar *subsys_id)
	Remove a subsystem connection to the ycontrol manager because the connection was closed or shutting down. More...

obj_template_t *	agt_ycontrol_get_obj (void)
	Get the ycontrol container object. More...

ses_cb_t *	agt_ycontrol_get_scb (const xmlChar *subsys_id)
	Get the session control block for the specified subsys ID. More...

void	agt_ycontrol_drop_session (ses_id_t sid)
	Notify the agt_ycontrol module that a YControl session has been closed and needs to be cleaned up. More...

boolean	agt_ycontrol_any_subsys_active (void)
	Check if there are any subsystems active. More...

status_t	agt_ycontrol_send_shutdown_event (void)
	Send a <shutdown-event> message to all subsystems. More...

status_t	agt_ycontrol_send_shutdown_event_byservice (const xmlChar *service_id)
	Send a <shutdown-event> message to a specific subsystems. More...

boolean	agt_ycontrol_init_was_done (void)
	Return TRUE if this module has been initialized. More...

const xmlChar *	agt_ycontrol_get_subsys_id (ses_id_t sid)
	Get the subsystem-id for the session ID. More...

Detailed Description

YControl protocol is used by services between the main server and subsystems.

Each service registers a unique service name and provides a message receiver callback.

Typedef Documentation

◆ agt_ycontrol_service_fn_t

typedef status_t(* agt_ycontrol_service_fn_t) (ses_cb_t *scb, ycontrol_msgtype_t msgtype, uint32 msgid, const xmlChar *subsys_id, ycontrol_msgbody_t msgbody_type, val_value_t *msgbody, boolean *scb_valid)

Callback template for YControl services: message handler.

Parameters

	scb	session control block for YControl session
	msgtype	message type
	msgid	message ID
	subsys_id	subsystem identifier
	msgbody_type	type of message body (OK, PAYLOAD, ERROR)
	msgbody	val_value_t representing the message body the service-specific payload node(s) will be child nodes if this is the <payload> container
[out]	scb_valid	address of return scb_valid flag *scb_valid TRUE if scb pointer still valid; FALSE if not

Returns: status of the operation

◆ agt_ycontrol_subsys_gone_fn_t

typedef void(* agt_ycontrol_subsys_gone_fn_t) (const xmlChar *subsys_id)

brief Callback template for YControl services: subsys gone handler

Called by YControl when the subsystem has gone away

Parameters

subsys_id subsystem identifier that is gone (dropped, crashed)

Function Documentation

◆ agt_ycontrol_add_subsys()

status_t agt_ycontrol_add_subsys	(	ses_id_t	subsys_sid,
		const xmlChar *	subsys_id
	)

Add a subsystem connection to the ycontrol manager.

Parameters

subsys_sid	session ID for subsystem connnection
subsys_id	subsystem ID

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ycontrol_any_subsys_active()

boolean agt_ycontrol_any_subsys_active ( void )

Check if there are any subsystems active.

Returns: TRUE if any subsystems active

◆ agt_ycontrol_cleanup()

void agt_ycontrol_cleanup ( void )

Cleanup the agt_ycontrol module.

Unregister the top-level <ycontrol> element

Here is the call graph for this function:

◆ agt_ycontrol_dispatch()

boolean agt_ycontrol_dispatch	(	ses_cb_t *	scb,
		xml_node_t *	top
	)

Handle an incoming <ycontrol> message from a subsystem.

Parameters

scb	session control block
top	top element descriptor

Returns: TRUE if scb is still valid
FALSE if scb has been deleted during this call

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ycontrol_drop_session()

void agt_ycontrol_drop_session ( ses_id_t sid )

Notify the agt_ycontrol module that a YControl session has been closed and needs to be cleaned up.

Parameters

sid	session ID that was dropped

Here is the caller graph for this function:

◆ agt_ycontrol_get_obj()

obj_template_t * agt_ycontrol_get_obj ( void )

Get the ycontrol container object.

Returns: pointer to ycontrol object

Here is the caller graph for this function:

◆ agt_ycontrol_get_scb()

ses_cb_t * agt_ycontrol_get_scb ( const xmlChar * subsys_id )

Get the session control block for the specified subsys ID.

Parameters

subsys_id subsystem identifier

Returns: pointer to session control block; NULL if not found

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ycontrol_get_subsys_id()

const xmlChar * agt_ycontrol_get_subsys_id ( ses_id_t sid )

Get the subsystem-id for the session ID.

Parameters

sid	session identifier

Returns: pointer to subsystem identifier

Here is the caller graph for this function:

◆ agt_ycontrol_init1()

status_t agt_ycontrol_init1 ( void )

Initialize the agt_ycontrol module (phase 1)

Initialize module variables and load yumaworks-ycontrol module

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ycontrol_init2()

status_t agt_ycontrol_init2 ( void )

Initialize the agt_ycontrol module (phase 2)

Adds the agt_ycontrol_dispatch function as the handler for the NETCONF <ycontrol> top-level element.

Returns: NO_ERR if all okay, the minimum spare requests will be malloced

◆ agt_ycontrol_init_was_done()

boolean agt_ycontrol_init_was_done ( void )

Return TRUE if this module has been initialized.

Returns: TRUE if innit1 and init2 done; FALSE if not

Here is the caller graph for this function:

◆ agt_ycontrol_register_service()

status_t agt_ycontrol_register_service	(	const xmlChar *	service_name,
		agt_ycontrol_service_fn_t	service_fn
	)

Register a YControl service layer.

Add message callback for 1 YControl service type

Parameters

service_name	YControl service name
service_fn	service message callback function

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ycontrol_register_service_ex()

status_t agt_ycontrol_register_service_ex	(	const xmlChar *	service_name,
		agt_ycontrol_service_fn_t	service_fn,
		agt_ycontrol_subsys_gone_fn_t	subsys_gone_fn
	)

Register a YControl service layer (extended)

Add message callback and subsys_gone callback for 1 YControl service type

Parameters

service_name	YControl service name
service_fn	service message callback function
subsys_gone_fn	subsys dropped callback function (may be NULL)

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ycontrol_remove_subsys()

void agt_ycontrol_remove_subsys	(	ses_id_t	sid,
		const xmlChar *	subsys_id
	)

Remove a subsystem connection to the ycontrol manager because the connection was closed or shutting down.

Subsystems have associated control sessions. Need to use this SID to locate correct subsystem in case there are multiple subsystems with the same ID trying to establish connection with the server.

Parameters

sid	subsystem's associated SID
subsys_id	subsystem ID to remove

Here is the call graph for this function:

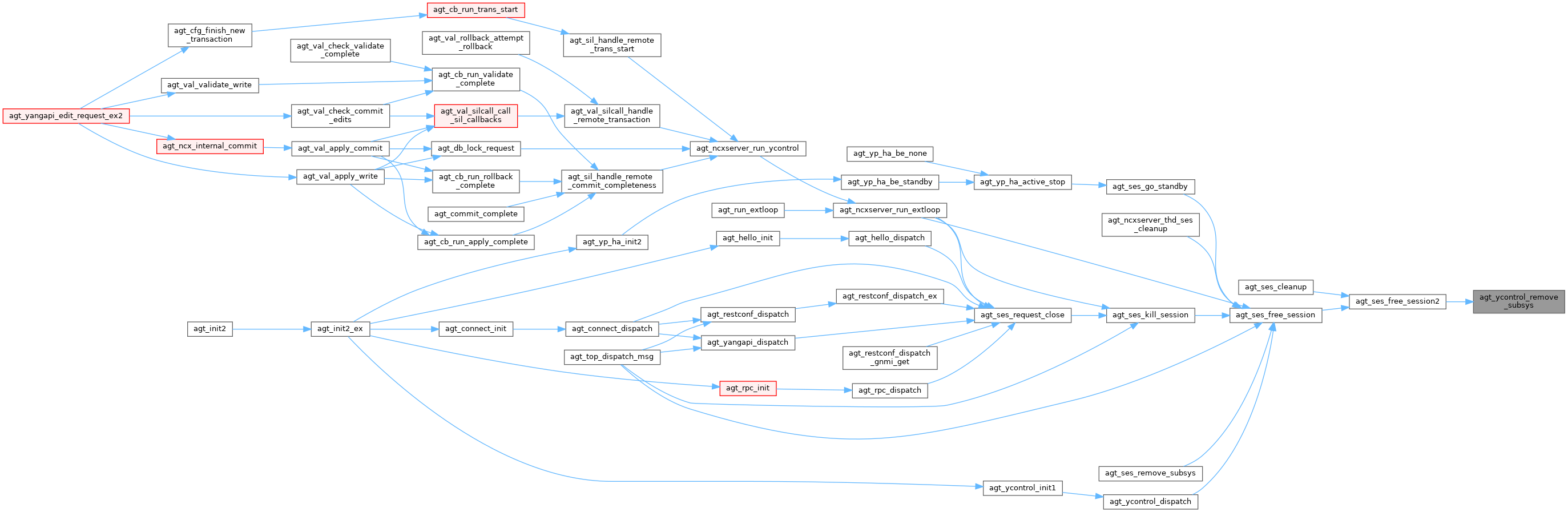

Here is the caller graph for this function:

◆ agt_ycontrol_send_callback()

status_t agt_ycontrol_send_callback	(	ses_cb_t *	scb,
		const xmlChar *	service_id,
		uint32 *	msgid,
		ycontrol_msgtype_t	msgtype,
		boolean	with_ywattrs,
		obj_template_t *	service_obj,
		agt_rpc_data_cb_t	data_cbfn,
		rpc_msg_t *	rpcmsg,
		boolean	need_filesave
	)

Send the subsystem <ycontrol> message to the sevice manager on the specified session, using the <payload> variant.

The <payload> will be filled in by the callback function

Parameters

	scb	session control block
	service_id	service sending the message
[in,out]	msgid	address of message ID; for response this is non-zero msgid set to the message ID assigned to the message. Only if msgid was zero on input.
	msgtype	type of YControl message to send; One of: YCONTROL_MSG_SERVER_REQUEST YCONTROL_MSG_SERVER_RESPONSE YCONTROL_MSG_SERVER_EVENT
	with_ywattrs	TRUE to add attrs NS to msg hdr; FALSE if not
	service_obj	object template for the service layer
	data_cbfn	Callback function to inject data
	rpcmsg	RPC message holding the state for this data
	need_filesave	== save to file first flag TRUE to save to file first because it is possible the subsys that requested the operation needs to be called for a SIL-SA function; FALSE it is OK to call the data_cbfn while the return message is in progress; no need to save to disk first

Returns: status

◆ agt_ycontrol_send_error()

status_t agt_ycontrol_send_error	(	ses_cb_t *	scb,
		const xmlChar *	service_id,
		uint32	msgid,
		status_t	res,
		const xmlChar *	errstr
	)

Send a ycontrol error message.

Parameters

scb	session control block
service_id	service_id from request
msgid	message ID from request
res	internal status code
errstr	error message

Returns: status

Here is the call graph for this function:

◆ agt_ycontrol_send_event()

status_t agt_ycontrol_send_event	(	const xmlChar *	service_id,
		val_value_t *	service_payload,
		boolean	with_ywattrs
	)

Send a server event to all the active subsystems.

Parameters

service_id	service sending the message
service_payload	val_value_t tree to add to message payload NULL if not used
with_ywattrs	TRUE to add attrs NS to msg hdr; FALSE if not

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ycontrol_send_event_subsys()

status_t agt_ycontrol_send_event_subsys	(	const xmlChar *	service_id,
		val_value_t *	service_payload,
		boolean	with_ywattrs,
		const xmlChar *	subsys_id
	)

Send a server event to a specific subsystem or all subsystems.

Parameters

service_id	service sending the message
service_payload	val_value_t tree to add to message payload NULL if not used
with_ywattrs	TRUE to add attrs NS to msg hdr; FALSE if not
subsys_id	one subsystem to send event to or NULL if all subsystems that match

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

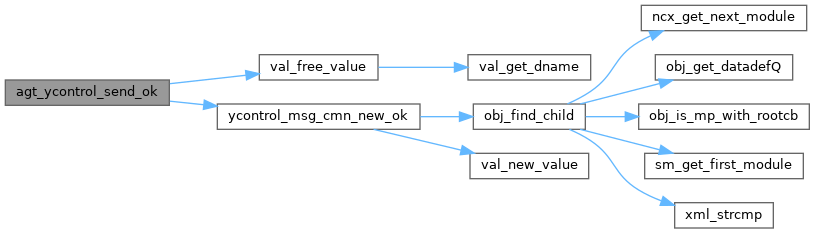

◆ agt_ycontrol_send_ok()

status_t agt_ycontrol_send_ok	(	ses_cb_t *	scb,
		const xmlChar *	service_id,
		uint32	msgid
	)

Send a ycontrol OK message.

Parameters

scb	session control block
service_id	service_id from request
msgid	message ID from request

Returns: status

Here is the call graph for this function:

◆ agt_ycontrol_send_payload()

status_t agt_ycontrol_send_payload	(	ses_cb_t *	scb,
		const xmlChar *	service_id,
		uint32 *	msgid,
		ycontrol_msgtype_t	msgtype,
		val_value_t *	service_payload,
		boolean	with_ywattrs
	)

Send the subsystem <ycontrol> message to the sevice manager on the specified session, using the <payload> variant.

Parameters

	scb	session control block
	service_id	service sending the message
[in,out]	msgid	address of message ID; for response this is non-zero msgid set to the message ID assigned to the message. Only if msgid was zero on input.
	msgtype	type of YControl message to send; One of: YCONTROL_MSG_SERVER_REQUEST YCONTROL_MSG_SERVER_RESPONSE YCONTROL_MSG_SERVER_EVENT
	service_payload	val_value_t tree to add to message payload
	with_ywattrs	TRUE to add attrs NS to msg hdr; FALSE if not

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ycontrol_send_shutdown_event()

status_t agt_ycontrol_send_shutdown_event ( void )

Send a <shutdown-event> message to all subsystems.

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_ycontrol_send_shutdown_event_byservice()

status_t agt_ycontrol_send_shutdown_event_byservice ( const xmlChar * service_id )

Send a <shutdown-event> message to a specific subsystems.

Parameters

service_id service sending the message

Returns: status of the operation

Here is the call graph for this function:

◆ agt_ycontrol_unregister_service()

void agt_ycontrol_unregister_service ( const xmlChar * service_name )

un-register a callback for 1 YControl service type

Parameters

service_name YControl service name

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Macros

Typedefs

Functions

Detailed Description

Typedef Documentation

◆ agt_ycontrol_service_fn_t

◆ agt_ycontrol_subsys_gone_fn_t

Function Documentation

◆ agt_ycontrol_add_subsys()

◆ agt_ycontrol_any_subsys_active()

◆ agt_ycontrol_cleanup()

◆ agt_ycontrol_dispatch()

◆ agt_ycontrol_drop_session()

◆ agt_ycontrol_get_obj()

◆ agt_ycontrol_get_scb()

◆ agt_ycontrol_get_subsys_id()

◆ agt_ycontrol_init1()

◆ agt_ycontrol_init2()

◆ agt_ycontrol_init_was_done()

◆ agt_ycontrol_register_service()

◆ agt_ycontrol_register_service_ex()

◆ agt_ycontrol_remove_subsys()

◆ agt_ycontrol_send_callback()

◆ agt_ycontrol_send_error()

◆ agt_ycontrol_send_event()

◆ agt_ycontrol_send_event_subsys()

◆ agt_ycontrol_send_ok()

◆ agt_ycontrol_send_payload()

◆ agt_ycontrol_send_shutdown_event()

◆ agt_ycontrol_send_shutdown_event_byservice()

◆ agt_ycontrol_unregister_service()
