Protocol Message Handler

RESTCONF protocol operation support. More...

Collaboration diagram for Protocol Message Handler:

Functions
status_t	agt_restconf_setup_fields_nodes (ses_cb_t *scb, yangapi_cb_t *rcb, rpc_msg_t *msg, boolean *errdone)
	Setup fields nodes if parameter is used. More...
status_t	agt_restconf_validate_method_params (ses_cb_t *scb, yangapi_cb_t *rcb, rpc_msg_t *msg)
	validate that the operation is supported for the URI parameters given. More...
status_t	agt_restconf_init (void)
	Initialize the agt_restconf module. More...
void	agt_restconf_cleanup (void)
	Cleanup the agt_yangapi module. More...
boolean	agt_restconf_dispatch (ses_cb_t *scb)
	Dispatch an incoming RESTCONF request. More...
boolean	agt_restconf_dispatch_ex (ses_cb_t *scb, boolean scb_is_static)
	Dispatch an incoming RESTCONF request (Extended) More...
boolean	agt_restconf_dispatch_gnmi_get (ses_cb_t *scb)
	Dispatch an incoming gNMI GET request with help of RESTCONF. More...
agt_restconf_data_t *	agt_restconf_get_context (void)
	Get the RESTCONF Context structure. More...
val_value_t *	agt_restconf_get_root (void)
	Get the RESTCONF Context root val_value_t node. More...
status_t	agt_restconf_static_restmon_init1 (void)
	Load the ietf-restconf-monitoring SIL even if it is statically linked. More...
status_t	agt_restconf_static_restmon_init2 (void)
	Call the ietf-restconf-monitoring init2 function. More...
void	agt_restconf_static_restmon_cleanup (void)
	Call the cleanup function for the ietf-restconf-monitoring module. More...

Detailed Description

RESTCONF protocol operation support.

Handle request URIs by mapping to a request control block. Then process with RESTCONF and/or NETCONF response handling code

Function Documentation

agt_restconf_cleanup()

void agt_restconf_cleanup

(

void

)

Cleanup the agt_yangapi module.

Called by the server during shutdown.

agt_restconf_dispatch()

boolean agt_restconf_dispatch

(

ses_cb_t *

scb

)

Dispatch an incoming RESTCONF request.

Parameters

scb	session control block

Returns

TRUE if scb is still valid
FALSE if scb has been deleted during this call

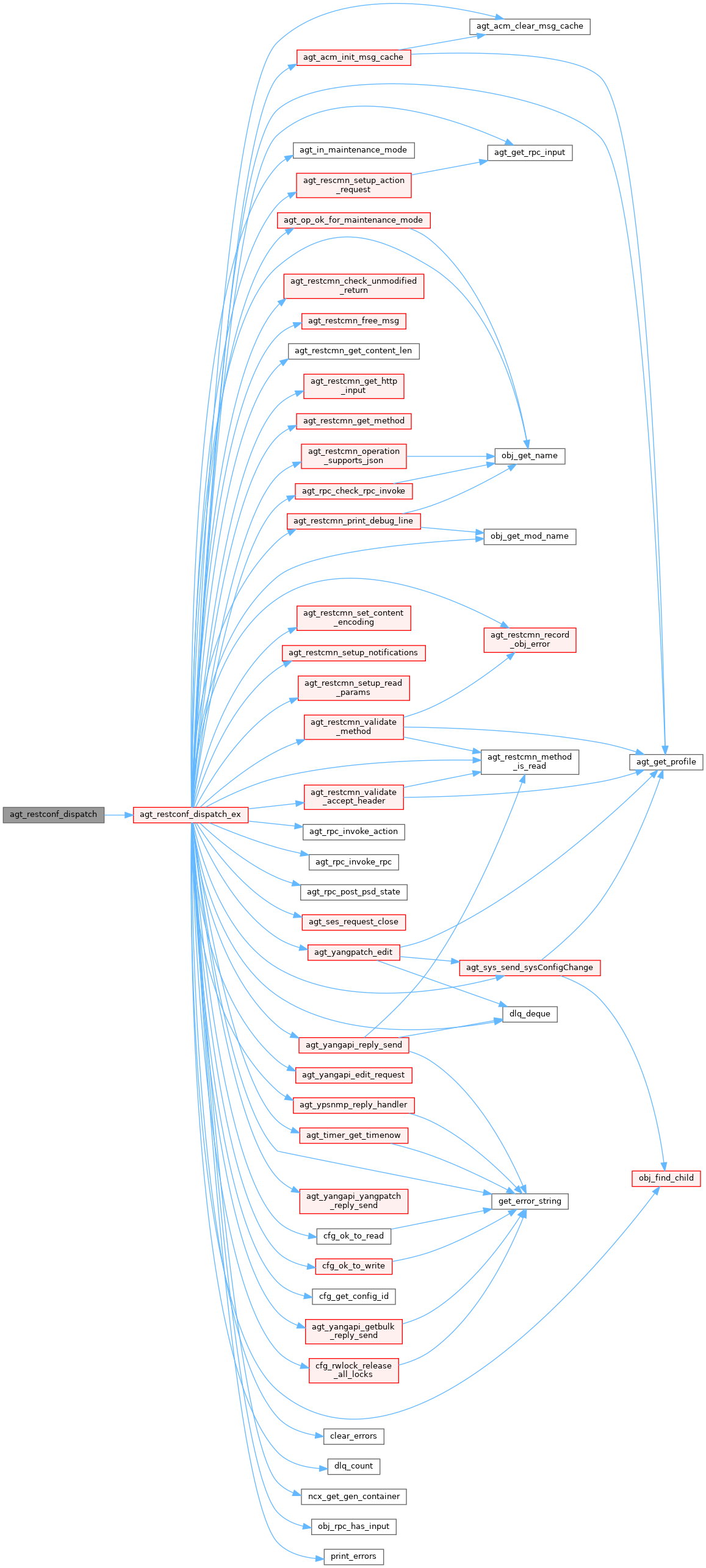

Here is the call graph for this function:

Here is the caller graph for this function:

agt_restconf_dispatch_ex()

boolean agt_restconf_dispatch_ex	(	ses_cb_t *	scb,
		boolean	scb_is_static
	)

Dispatch an incoming RESTCONF request (Extended)

Parameters

scb	session control block if scb->type already set to SES_TYPE_COAP then the IO will be collected in the session
scb_is_static	true if this is a static scb entry, such as CoAP

Returns

TRUE if scb is still valid
FALSE if scb has been deleted during this call

Here is the caller graph for this function:

agt_restconf_dispatch_gnmi_get()

boolean agt_restconf_dispatch_gnmi_get

(

ses_cb_t *

scb

)

Dispatch an incoming gNMI GET request with help of RESTCONF.

The output will not be written into the stream.

scb->stream_output = FALSE !!!

The server will generate &scb->outQ Queue with output buffers, gNMI agent will utilize this buffers to write the actual output to connected subsystem.

Parameters

scb	session control block

Returns

TRUE if scb is still valid
FALSE if scb has been deleted during this call

Here is the call graph for this function:

agt_restconf_get_context()

agt_restconf_data_t * agt_restconf_get_context

(

void

)

Get the RESTCONF Context structure.

Returns

RESTCONF namespace context

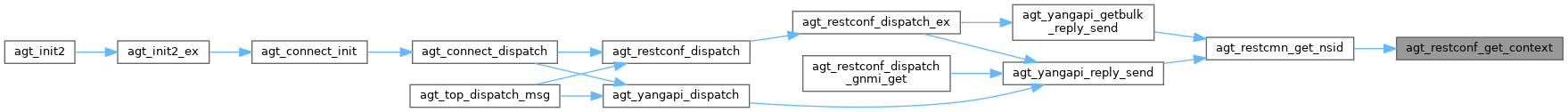

Here is the caller graph for this function:

agt_restconf_get_root()

val_value_t * agt_restconf_get_root

(

void

)

Get the RESTCONF Context root val_value_t node.

Returns

Context structure data root

agt_restconf_init()

status_t agt_restconf_init

(

void

)

Initialize the agt_restconf module.

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

agt_restconf_setup_fields_nodes()

status_t agt_restconf_setup_fields_nodes	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg,
		boolean *	errdone
	)

Setup fields nodes if parameter is used.

Parameters

	scb	session to use
	rcb	restapi control block to use
	msg	message in progress
[out]	errdone	address of error done flag *errdone TRUE if error already recorded

Returns

status

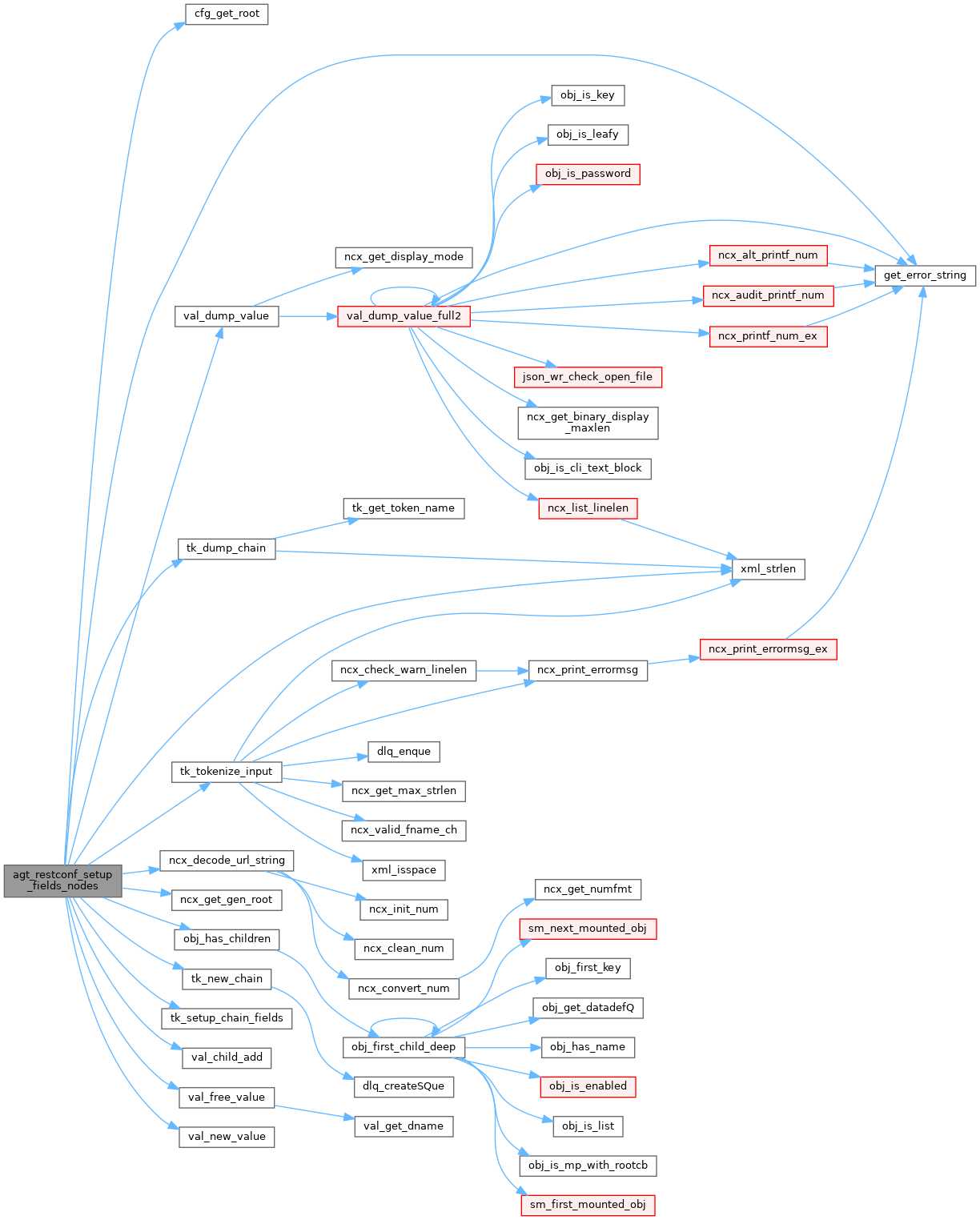

Here is the call graph for this function:

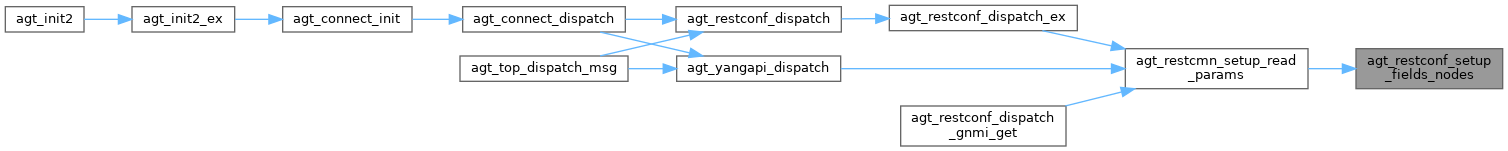

Here is the caller graph for this function:

agt_restconf_static_restmon_cleanup()

void agt_restconf_static_restmon_cleanup

(

void

)

Call the cleanup function for the ietf-restconf-monitoring module.

Only present if STATIC_LINK=1

agt_restconf_static_restmon_init1()

status_t agt_restconf_static_restmon_init1

(

void

)

Load the ietf-restconf-monitoring SIL even if it is statically linked.

Only present if STATIC_LINK=1

Returns

status

Here is the caller graph for this function:

agt_restconf_static_restmon_init2()

status_t agt_restconf_static_restmon_init2

(

void

)

Call the ietf-restconf-monitoring init2 function.

Only present if STATIC_LINK=1

Returns

status

agt_restconf_validate_method_params()

status_t agt_restconf_validate_method_params	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg
	)

validate that the operation is supported for the URI parameters given.

Errors are recorded by this function. Do not call record_error again if error returned

Parameters

scb	session control block to use
rcb	restapi control block to use
msg	msg to use for storing error records

Returns

status

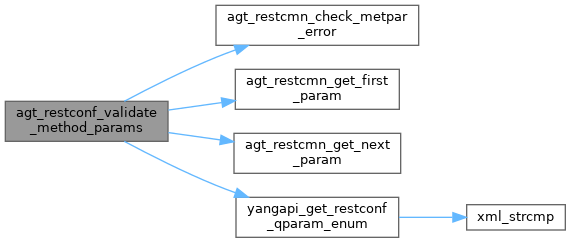

Here is the call graph for this function:

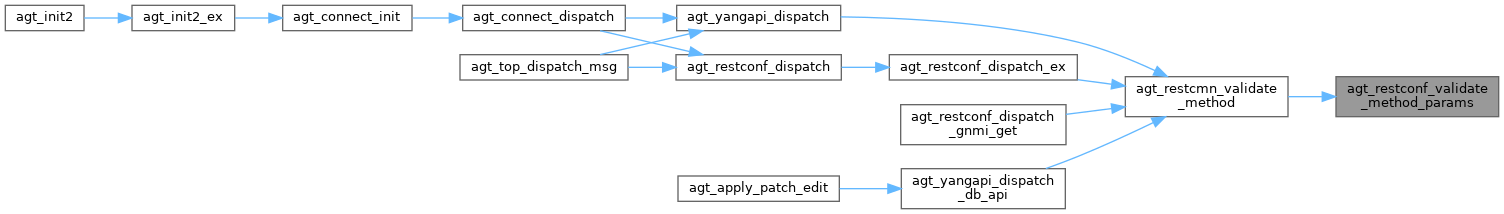

Here is the caller graph for this function:
