Supports original notifications (RFC 5277) using the <create-subscription> operation. More...

Collaboration diagram for Notification Control:

Functions
status_t	agt_not_init (void)
	INIT 1: Initialize the server notification module data structures. More...

status_t	agt_not_init_sil_sa (void)
	INIT 1: Initialize the server notification module data structures. More...

status_t	agt_not_init2 (void)
	INIT 2: Initialize the monitoring data structures This must be done after the <running> config is loaded. More...

void	agt_not_cleanup (void)
	Cleanup the module data structures. More...

void	agt_not_cleanup_sil_sa (void)
	Cleanup the module data structures. More...

uint32	agt_not_send_notifications (thd_tcb_t *tcb)
	Send notifications (PTHREADS VERSION) More...

void	agt_not_remove_subscription (ses_id_t sid)
	Remove and expire a subscription with the specified session ID. More...

agt_not_msg_t *	agt_not_new_notification (obj_template_t *eventType)
	Malloc and initialize the fields in an agt_not_msg_t. More...

agt_not_msg_t *	agt_not_new_notification_ex (obj_template_t eventType, const xmlChar eventTime)
	@ brief Malloc and initialize the fields in an agt_not_msg_t Use provided eventTime (extended) More...

void	agt_not_free_notification (agt_not_msg_t *notif)
	Scrub the memory in an agt_not_template_t by freeing all the sub-fields and then freeing the entire struct itself. More...

void	agt_not_add_to_payload (agt_not_msg_t notif, val_value_t val)
	Queue the specified value node into the payloadQ for the specified notification. More...

void	agt_not_add_key (agt_not_msg_t notif, val_value_t val)
	Queue the specified value node into the keyQ for the specified notification. More...

void	agt_not_queue_notification (agt_not_msg_t *notif)
	Queue the specified notification in the replay log. More...

void	agt_not_queue_notification_stream (const xmlChar stream_name, agt_not_msg_t notif)
	Queue the specified notification in the replay log. More...

boolean	agt_not_is_replay_event (const obj_template_t *notifobj)
	Check if the specified notfication is the replayComplete or notificationComplete notification events. More...

void	agt_not_cancel_subscription (ses_id_t sid)
	Cancel any notification subscription for the specified session. More...

status_t	agt_not_start_subscription (ses_cb_t scb, const xmlChar stream, xmlChar startTime, xmlChar stopTime, boolean futurestop, op_filtertyp_t filtertype, val_value_t filterval, val_value_t selectval)
	Malloc and fill in a new subscription control block. More...

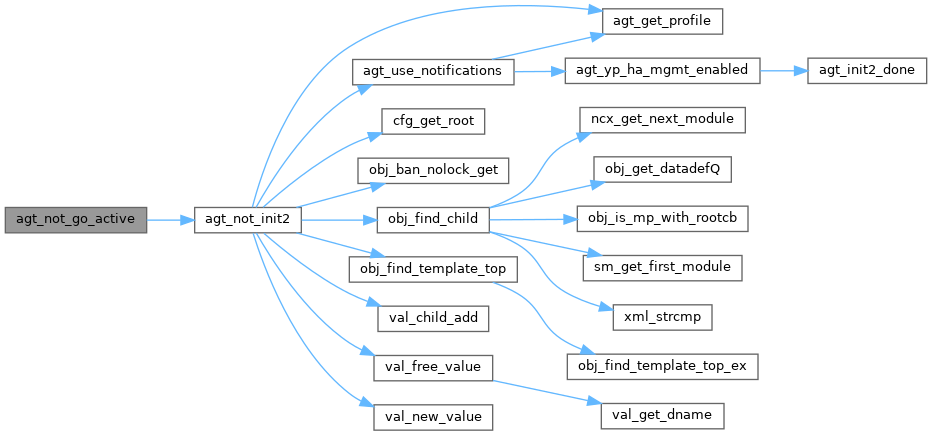

void	agt_not_go_active (void)
	Enable active notification subscriptions. More...

void	agt_not_go_standby (void)
	Exit active notification subscription mode and disable notifications. More...

status_t	agt_not_init_yangpush (obj_template_t *streams_obj)
	Init the yang-push related streams and data structures. More...

status_t	agt_not_set_filter (const xmlChar name, ncx_nmda_filtyp_t nmda_filtyp, agt_not_filtertyp_t filtyp, const val_value_t filval)
	Add or Modify a filter entry. More...

status_t	agt_not_clone_filter (ncx_nmda_filtyp_t nmda_filtyp, const xmlChar name, agt_not_filtertyp_t filtyp, val_value_t **filval)
	Find a filter entry and clone it. More...

status_t	agt_not_delete_filter (const xmlChar *name, ncx_nmda_filtyp_t nmda_filtyp)
	Delete an existing filter entry. More...

status_t	agt_not_delete_all_filters (boolean force)
	Delete all existing filter entries. More...

status_t	agt_not_establish_subscription (ses_cb_t scb, const xmlChar stream_filter_name, const val_value_t stream_subtree_filter, const val_value_t stream_xpath_filter, const xmlChar stream, const xmlChar replay_start_time, const xmlChar stop_time, const val_value_t encoding, agt_not_subid_t subid, agt_not_sterr_t errnum)
	Create a RFC 8639 stream subscription. More...

status_t	agt_not_modify_subscription (ses_cb_t scb, agt_not_subid_t subid, const xmlChar stream_filter_name, const val_value_t stream_subtree_filter, const val_value_t stream_xpath_filter, const xmlChar stop_time, agt_not_sterr_t errnum)
	Modify a RFC 8639 stream subscription. More...

status_t	agt_not_delete_dynamic_subscription (ses_id_t sid, agt_not_subid_t subid)
	Terminate your own RFC 8639 subscription. More...

status_t	agt_not_kill_dynamic_subscription (agt_not_subid_t subid)
	Terminate any session's RFC 8639 subscription. More...

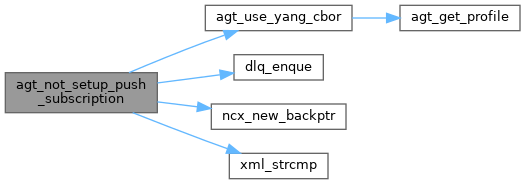

status_t	agt_not_setup_push_subscription (ses_cb_t scb, const xmlChar selection_filter_ref, const xmlChar stop_time, const val_value_t encoding, agt_not_modify_filter_cbfn_t modify_cbfn, agt_not_delete_subscription_cbfn_t delete_cbfn, agt_not_subid_t subid, agt_not_sterr_t errnum, boolean *isbinary)
	Create a RFC 8641 YANG Push subscription. More...

status_t	agt_not_modify_push_subscription (ses_id_t sid, agt_not_subid_t cur_subid, const xmlChar selection_filter_ref, const xmlChar stop_time, agt_not_sterr_t *errnum)
	Modify a RFC 8641 YANG Push subscription. More...

status_t	agt_not_register_yang_push (agt_not_check_push_cbfn_t cbfn, agt_not_module_removed_cbfn_t mod_cbfn)
	Used by YANG Push to check periodic and simulated operational. More...

status_t	agt_not_register_notif_objs (obj_template_t replay_completed, obj_template_t subscription_completed, obj_template_t subscription_modified, obj_template_t subscription_resumed, obj_template_t subscription_started, obj_template_t subscription_suspended, obj_template_t *subscription_terminated)
	Register Notification Objects. More...

status_t	agt_not_send_periodic_update (agt_not_subid_t subid, ses_id_t sid, obj_template_t notif_obj, rpc_msg_t msg, boolean *subscription_deleted)
	Used by YANG Push to send a periodic update to 1 session. More...

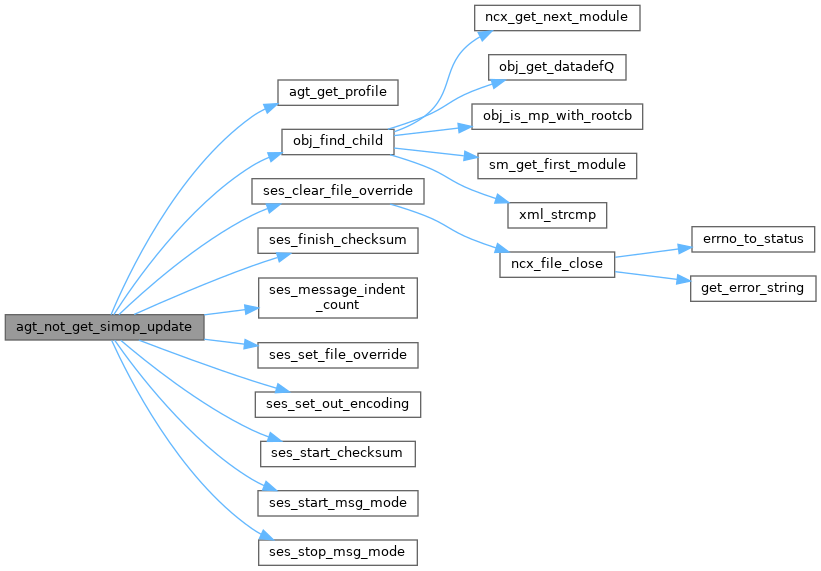

status_t	agt_not_get_simop_update (agt_not_subid_t subid, ses_id_t sid, const xmlChar filespec, rpc_msg_t msg, boolean subscription_deleted, uint32 checksum, uint32 *bytecnt)
	Used by YANG Push to get the candidate Simuated Operational On-Change subscription. More...

status_t	agt_not_send_simop_update (agt_not_subid_t subid, ses_id_t sid, const xmlChar filespec, rpc_msg_t msg, obj_template_t notif_obj, boolean subscription_deleted)
	Use the file contents to send an Simulated Operational on-change update to the client session. More...

void	agt_not_suspend_push_subscription (agt_not_subid_t subid, agt_not_suspend_reason_t reason)
	Suspend a subscription and stop sending notifications to it. More...

void	agt_not_resume_push_subscription (agt_not_subid_t subid)
	Resume a YANG Push Subscription. More...

void	agt_not_kill_push_subscription (agt_not_subid_t subid, agt_not_term_reason_t term_reason)
	Kill a YANG Push Subscription. More...

status_t	agt_not_send_onchange_update (agt_not_subid_t subid, ses_id_t sid, obj_template_t notif_obj, yang_patch_cb_t pcb, boolean *subscription_deleted)
	Used by YANG Push to send an on-change update to 1 session. More...

void	agt_not_remove_module_filters (const ncx_module_t *mod)
	Invoke Module Removed Callback. More...

obj_template_t *	agt_not_get_modified_obj (void)
	Get subscription-modified object. More...

status_t	agt_not_send_push_notif (agt_not_subid_t subid, agt_not_msg_t *notif)
	Send the notification directly to the specified push subscription ID. More...

status_t	agt_not_create_event_stream (const xmlChar name, uint32 eventlog_size, const xmlChar description)
	Create an event-stream from a YANG module interface. More...

status_t	agt_not_delete_event_stream (ses_cb_t scb, const xmlChar name)
	Delete an event-stream from a YANG module interface. More...

status_t	agt_not_edit_module_map (const xmlChar modname, const xmlChar stream_name, boolean is_create)
	Create or modify a module map from a YANG module interface. More...

status_t	agt_not_delete_module_map (const xmlChar *modname)
	Delete a module map from a YANG module interface. More...

boolean	agt_not_event_stream_exists (const xmlChar *stream_name)
	Check if the specified event stream is configured. More...

status_t	agt_not_clear_event_stream_log (const xmlChar *stream_name)
	Remove all the stored notifications in the eventlog for the specified event stream. More...

status_t	agt_not_register_stream_cbfn (const xmlChar modname, const xmlChar stream_name, boolean all_streams, agt_not_stream_cbfn_t cbfn, void *cookie)
	Register a SIL event-stream callback function. More...

void	agt_not_unregister_stream_cbfn (const xmlChar *modname, agt_not_stream_cbfn_t cbfn)
	Unregister a SIL event-stream callback function. More...

status_t	agt_not_register_stream_cbfn_subsys (const xmlChar subsys_id, const xmlChar modname, const xmlChar *stream_name, boolean all_streams)
	Register a SIL event-stream callback function. More...

void	agt_not_unregister_stream_cbfn_subsys (const xmlChar subsys_id, const xmlChar modname)
	Unregister a SIL event-stream callback function. More...

status_t	agt_not_check_register_add (const xmlChar modname, val_value_t request_val)
	Check if a "<stream-callback>" container needs to be added to the "<register>" list entry. More...

boolean	agt_not_any_unregistered (const xmlChar *modname)
	Check if any entries are still unregistered for a subsystem building a register-request. More...

void	agt_not_subsys_gone (const xmlChar *subsys_id)
	Unload any remote stream callbacks when a subsystem session is lost and subsys-gone event handled. More...

status_t	agt_not_stream_callback_subsys (const xmlChar stream_name, agt_not_subevent_t subevent, const xmlChar modname, boolean all_streams)
	Invoke a stream callback function on the SIL-SA subsystem. More...

void	agt_not_unload_module (const xmlChar *modname)
	Unload any remote stream callbacks when a module is unloaded. More...

status_t	agt_not_set_notif_mpid (agt_not_msg_t msg, const ncx_sm_mpid_t mpid)
	Set the MPID to use for sending the schema-mounted notification. More...

status_t	agt_not_init_restconf_streams (val_value_t streamsval, obj_template_t streamobj)
	Initialize the monitoring data structures for restconf This must be done after the <running> config is loaded. More...

Detailed Description

Supports original notifications (RFC 5277) using the <create-subscription> operation.

Supports new notifications (RFC 8639) using the <establish-subscription> operation.

SIL Procedure for constructing a notification

obtain notification object template (eventType)
have optional value nodes to add, eg. payload_val
create a new message
add data to the message (optional)
queue the notification for delivery

The messaage and payload memory is transferred to the queue


     agt_not_msg_t *msg = agt_not_new_notification(eventType);
     if (msg) {
        agt_not_add_to_payload(msg, payload_val);
        agt_not_queue_notification(msg);
     }

Function Documentation

◆ agt_not_add_key()

void agt_not_add_key	(	agt_not_msg_t *	notif,
		val_value_t *	val
	)

Queue the specified value node into the keyQ for the specified notification.

This is the only API used by SIL or SIL-SA code to add the ancestor key nodes for a nested notification

Parameters

notif	notification to send
val	value to add to keyQ !!! THIS IS LIVE MALLOCED MEMORY PASSED OFF !!! TO THIS FUNCTION. IT WILL BE FREED LATER !!! DO NOT CALL val_free_value !!! AFTER THIS CALL

val will added to the notif->keyQ

Here is the call graph for this function:

◆ agt_not_add_to_payload()

void agt_not_add_to_payload	(	agt_not_msg_t *	notif,
		val_value_t *	val
	)

Queue the specified value node into the payloadQ for the specified notification.

This is the main API used by SIL or SIL-SA code to add the data nodes defined in the notification-stmt

Parameters

notif	notification to send
val	value to add to payloadQ !!! THIS IS LIVE MALLOCED MEMORY PASSED OFF !!! TO THIS FUNCTION. IT WILL BE FREED LATER !!! DO NOT CALL val_free_value !!! AFTER THIS CALL

val will added to the notif->payloadQ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_not_any_unregistered()

boolean agt_not_any_unregistered ( const xmlChar * modname )

Check if any entries are still unregistered for a subsystem building a register-request.

YPW-1816.

Parameters

modname module name registering callbacks

Returns: true if any nodes to add; false if not

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_not_cancel_subscription()

void agt_not_cancel_subscription ( ses_id_t sid )

Cancel any notification subscription for the specified session.

Parameters

sid	session ID to use

Here is the call graph for this function:

◆ agt_not_check_register_add()

status_t agt_not_check_register_add	(	const xmlChar *	modname,
		val_value_t *	request_val
	)

Check if a "<stream-callback>" container needs to be added to the "<register>" list entry.

YPW-1816.

Parameters

modname	module name used in the register request
request_val	value node to add P-container if needed

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_not_cleanup()

void agt_not_cleanup ( void )

Cleanup the module data structures.

Called by the server during shutdown

Here is the call graph for this function:

◆ agt_not_cleanup_sil_sa()

void agt_not_cleanup_sil_sa ( void )

Cleanup the module data structures.

Called by the server during shutdown CALLED BY SIL-SA SUBSYSTEM ONLY

Here is the call graph for this function:

◆ agt_not_clear_event_stream_log()

status_t agt_not_clear_event_stream_log ( const xmlChar * stream_name )

Remove all the stored notifications in the eventlog for the specified event stream.

It is an error if stream does not exist

It is not an error if there are not events to clear This will affect the subscriptions (if any) that might be getting these notifications sent to them right now

Parameters

stream_name event stream name to clear

Returns: status

◆ agt_not_clone_filter()

status_t agt_not_clone_filter	(	ncx_nmda_filtyp_t	nmda_filtyp,
		const xmlChar *	name,
		agt_not_filtertyp_t *	filtyp,
		val_value_t **	filval
	)

Find a filter entry and clone it.

Clone the val_value contents

Parameters

	nmda_filtyp	NMDA filter type (stream or selection)
	name	name or id of entry to add or modify
[out]	filtyp	address ot return found filter type *filtyp found filter type
[out]	filval	address ot return value *filval cloned filter value (MUST FREE WITH val_free_value)

Returns: status

Here is the call graph for this function:

◆ agt_not_create_event_stream()

status_t agt_not_create_event_stream	(	const xmlChar *	name,
		uint32	eventlog_size,
		const xmlChar *	description
	)

Create an event-stream from a YANG module interface.

Parameters

name	stream name (mandatory)
eventlog_size	replay buffer size (mandatory)
description	event stream administrative description may be NULL for default description

Returns: status

◆ agt_not_delete_all_filters()

status_t agt_not_delete_all_filters ( boolean force )

Delete all existing filter entries.

The /filters container was deleted

Parameters

force true to force deletion of filters in use

Returns: status

◆ agt_not_delete_dynamic_subscription()

status_t agt_not_delete_dynamic_subscription	(	ses_id_t	sid,
		agt_not_subid_t	subid
	)

Terminate your own RFC 8639 subscription.

Remove and expire a subscription with the specified session ID and subscription ID Called from u_ietf-subscribed-notifications.c

Parameters

sid	session ID to use
subid	subscription ID to use

Returns: status

◆ agt_not_delete_event_stream()

status_t agt_not_delete_event_stream	(	ses_cb_t *	scb,
		const xmlChar *	name
	)

Delete an event-stream from a YANG module interface.

Parameters

scb	session deleting this entry
name	stream name

Returns: status

◆ agt_not_delete_filter()

status_t agt_not_delete_filter	(	const xmlChar *	name,
		ncx_nmda_filtyp_t	nmda_filtyp
	)

Delete an existing filter entry.

Parameters

name	name or id of entry to modify
nmda_filtyp	NMDA filter type (stream or selection)

Returns: status

◆ agt_not_delete_module_map()

status_t agt_not_delete_module_map ( const xmlChar * modname )

Delete a module map from a YANG module interface.

Parameters

modname module name

Returns: status

Here is the call graph for this function:

◆ agt_not_edit_module_map()

status_t agt_not_edit_module_map	(	const xmlChar *	modname,
		const xmlChar *	stream_name,
		boolean	is_create
	)

Create or modify a module map from a YANG module interface.

Parameters

modname	module name of entry
stream_name	name to use in mapping
is_create	TRUE if create; FALSE if modify

Returns: status

Here is the call graph for this function:

◆ agt_not_establish_subscription()

status_t agt_not_establish_subscription	(	ses_cb_t *	scb,
		const xmlChar *	stream_filter_name,
		const val_value_t *	stream_subtree_filter,
		const val_value_t *	stream_xpath_filter,
		const xmlChar *	stream,
		const xmlChar *	replay_start_time,
		const xmlChar *	stop_time,
		const val_value_t *	encoding,
		agt_not_subid_t *	subid,
		agt_not_sterr_t *	errnum
	)

Create a RFC 8639 stream subscription.

Start an event stream subscription. This is used for a plain subscription to a stream, NOT YANG-PUSH. These parameters are copied by value so the values passed do not need to persist after this call.

1 of 3 filters expected. Only 1 can be set

Parameters

	scb	session control block starting the subscription
	stream_filter_name	filter by reference: option 1 of 3 for subscription filter
	stream_subtree_filter	inline subtree filter: option 2 of 3 for subscription filter
	stream_xpath_filter	inline XPath filter: option 3 of 3 for subscription filter
	stream	stream name for subscription [MANDATORY]
	replay_start_time	replay start if replay supported for stream
	stop_time	stop time is a common parm if replay supported for stream
	encoding	encoding is a common parm. Only XML is supported.
[out]	subid	address of return subscription ID assigned *subid subscription ID assigned (if NO_ERR)
[out]	errnum	address of return parm number of error *errnum = parm number of error if returning error (if some error)

Returns: status

◆ agt_not_event_stream_exists()

boolean agt_not_event_stream_exists ( const xmlChar * stream_name )

Check if the specified event stream is configured.

Parameters

stream_name event stream name to check

Returns: TRUE if stream exists; FALSE if not

◆ agt_not_free_notification()

void agt_not_free_notification ( agt_not_msg_t * notif )

Scrub the memory in an agt_not_template_t by freeing all the sub-fields and then freeing the entire struct itself.

The struct must be removed from any queue it is in before this function is called.

Parameters

notif agt_not_template_t to delete

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_not_get_modified_obj()

obj_template_t * agt_not_get_modified_obj ( void )

Get subscription-modified object.

Used by YANG Push to build its variant of the subscription-modified

Returns: pointer to object template for <subscription-modified>

◆ agt_not_get_simop_update()

status_t agt_not_get_simop_update	(	agt_not_subid_t	subid,
		ses_id_t	sid,
		const xmlChar *	filespec,
		rpc_msg_t *	msg,
		boolean *	subscription_deleted,
		uint32 *	checksum,
		uint32 *	bytecnt
	)

Used by YANG Push to get the candidate Simuated Operational On-Change subscription.

The data count and checksum are compared to the last one to see if a new update needs to be sent

Parameters

	subid	subscription ID
	sid	session ID (to validate against subscription ID)
	filespec	filename to use to save the update
	msg	filled in rpc_msg to use to call agt_output_filter
[out]	subscription_deleted	address of return flag *subscription_deleted TRUE if subscription or session gone
[out]	checksum	address of return checksum *checksum the checksum of written bytes
[out]	bytecnt	address of return byte count *bytecnt number of bytes written by agt_output_filter

Returns: status

Here is the call graph for this function:

◆ agt_not_go_active()

void agt_not_go_active ( void )

Enable active notification subscriptions.

Delayed init needed for HA standby going active

◆ agt_not_go_standby()

void agt_not_go_standby ( void )

Exit active notification subscription mode and disable notifications.

Shutdown notification subscriptions when changing from active to standby

Here is the caller graph for this function:

◆ agt_not_init()

status_t agt_not_init ( void )

INIT 1: Initialize the server notification module data structures.

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_not_init2()

status_t agt_not_init2 ( void )

INIT 2: Initialize the monitoring data structures This must be done after the <running> config is loaded.

Returns: status

Here is the call graph for this function:

◆ agt_not_init_restconf_streams()

status_t agt_not_init_restconf_streams	(	val_value_t *	streamsval,
		obj_template_t *	streamobj
	)

Initialize the monitoring data structures for restconf This must be done after the <running> config is loaded.

Parameters

streamsval	parent value to contain stream entries
streamobj	object template for the stream list

Returns: status

Here is the call graph for this function:

◆ agt_not_init_sil_sa()

status_t agt_not_init_sil_sa ( void )

INIT 1: Initialize the server notification module data structures.

CALLED BY SIL-SA SUBSYSTEM ONLY

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_not_init_yangpush()

status_t agt_not_init_yangpush ( obj_template_t * streams_obj )

Init the yang-push related streams and data structures.

Parameters

streams_obj object for streams to make stream values

Returns: status

Here is the call graph for this function:

◆ agt_not_is_replay_event()

boolean agt_not_is_replay_event ( const obj_template_t * notifobj )

Check if the specified notfication is the replayComplete or notificationComplete notification events.

Parameters

notifobj notification object to check

Returns: TRUE if the notification object is one of the special replay buffer events
FALSE otherwise

Here is the caller graph for this function:

◆ agt_not_kill_dynamic_subscription()

status_t agt_not_kill_dynamic_subscription ( agt_not_subid_t subid )

Terminate any session's RFC 8639 subscription.

Remove and expire a subscription with the specified subscription ID Called from u_ietf-subscribed-notifications.c

Parameters

subid subscription ID to use

Returns: status

◆ agt_not_kill_push_subscription()

void agt_not_kill_push_subscription	(	agt_not_subid_t	subid,
		agt_not_term_reason_t	term_reason
	)

Kill a YANG Push Subscription.

Requested by YANG-PUSH Terminate a subscription and stop sending notifications to it

Parameters

subid	subscription ID to kill
term_reason	termination reason code

Here is the call graph for this function:

◆ agt_not_modify_push_subscription()

status_t agt_not_modify_push_subscription	(	ses_id_t	sid,
		agt_not_subid_t	cur_subid,
		const xmlChar *	selection_filter_ref,
		const xmlChar *	stop_time,
		agt_not_sterr_t *	errnum
	)

Modify a RFC 8641 YANG Push subscription.

These parameters are copied by value so the values passed do not need to persist after this call

Parameters

	sid	session ID
	cur_subid	subscription ID to modify [mandatory]
	selection_filter_ref	filter reference
	stop_time	stop time is a common parm if replay supported for stream
[out]	errnum	address of return parm number of error *errnum parm number of error if returning error (if some error)

Returns: status

◆ agt_not_modify_subscription()

status_t agt_not_modify_subscription	(	ses_cb_t *	scb,
		agt_not_subid_t	subid,
		const xmlChar *	stream_filter_name,
		const val_value_t *	stream_subtree_filter,
		const val_value_t *	stream_xpath_filter,
		const xmlChar *	stop_time,
		agt_not_sterr_t *	errnum
	)

Modify a RFC 8639 stream subscription.

Modify an existing event stream subscription This is used for a plain subscription to a stream, NOT YANG-PUSH These parameters are copied by value so the values passed do not need to persist after this call

The client can provide only the parameters that should be changed The existing subscription will be used to fill in any parameters that are not provided. The client can also provide parameters that are not chaning.

The 'newsub' struct will be setup to take over the same state as before, except any suspended subscription is automatically made active if this RPC succeeds

The <subscription-modified> event will be setup for the rx_thread or send_notifications loop to generate as the first notification after the subscription is modified

Parameters

	scb	session control block starting the subscription [MANDATORY]
	subid	subscription ID to modify [MANDATORY]
	stream_filter_name	filter by reference: option 1 of 3 for subscription filter
	stream_subtree_filter	inline subtree filter: option 2 of 3 for subscription filter
	stream_xpath_filter	inline XPath filter: option 3 of 3 for subscription filter
	stop_time	stop time is a common parm if replay supported for stream
[out]	errnum	address of return parm number of error *errnum = parm number of error if returning error (if some error)

Returns: status

◆ agt_not_new_notification()

agt_not_msg_t * agt_not_new_notification ( obj_template_t * eventType )

Malloc and initialize the fields in an agt_not_msg_t.

Parameters

eventType object template of the event type

Returns: pointer to the malloced and initialized struct or NULL if an error

Here is the caller graph for this function:

◆ agt_not_new_notification_ex()

agt_not_msg_t * agt_not_new_notification_ex	(	obj_template_t *	eventType,
		const xmlChar *	eventTime
	)

@ brief Malloc and initialize the fields in an agt_not_msg_t Use provided eventTime (extended)

Parameters

eventType	object template of the event type
eventTime	event timestamp string

Returns: pointer to the malloced and initialized struct or NULL if an error

◆ agt_not_queue_notification()

void agt_not_queue_notification ( agt_not_msg_t * notif )

Queue the specified notification in the replay log.

It will be sent to all the active subscriptions as needed.

Parameters

notif

notification to send

             !!! THIS IS LIVE MALLOCED MEMORY PASSED OFF
             !!! TO THIS FUNCTION.  IT WILL BE FREED LATER
             !!! DO NOT CALL agt_not_free_notification
             !!! AFTER THIS CALL

message added to the notificationQ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_not_queue_notification_stream()

void agt_not_queue_notification_stream	(	const xmlChar *	stream_name,
		agt_not_msg_t *	notif
	)

Queue the specified notification in the replay log.

It will be sent to all the active subscriptions as needed.

This API should not be used if the module to event stream mapping configuration is used instead.

Use this API if the event-stream configuration is hard-wired by the vendor. The module ot event stream mappings will be ignored if this API is ued

Parameters

stream_name	stream name to use (NULL use NETCONF)
notif	notification to send !!! THIS IS LIVE MALLOCED MEMORY PASSED OFF !!! TO THIS FUNCTION. IT WILL BE FREED LATER !!! DO NOT CALL agt_not_free_notification !!! AFTER THIS CALL; FREED EVEN IF ERROR

message added to the notificationQ

Here is the caller graph for this function:

◆ agt_not_register_notif_objs()

status_t agt_not_register_notif_objs	(	obj_template_t *	replay_completed,
		obj_template_t *	subscription_completed,
		obj_template_t *	subscription_modified,
		obj_template_t *	subscription_resumed,
		obj_template_t *	subscription_started,
		obj_template_t *	subscription_suspended,
		obj_template_t *	subscription_terminated
	)

Register Notification Objects.

The notification objects are used for subscription mainenance. There are 7 subscription notification objects

Parameters

replay_completed	replay completed event
subscription_completed	subscription completed event
subscription_modified	subscription modified event
subscription_resumed	subscription resumed event
subscription_started	subscription started event
subscription_suspended	subscription suspended event
subscription_terminated	subscription terminated event

Returns: status

◆ agt_not_register_stream_cbfn()

status_t agt_not_register_stream_cbfn	(	const xmlChar *	modname,
		const xmlChar *	stream_name,
		boolean	all_streams,
		agt_not_stream_cbfn_t	cbfn,
		void *	cookie
	)

Register a SIL event-stream callback function.

Used to help suppress event generation if nobody is listening

YPW-1816. For SIL code, there will be multiple callback registrations per module supported.

For SIL-SA code, there will be one callback registration per module supported. Only only registration for each value of the modname parameter will be allowed.

A callback can choose 1 of 3 operational modes:

Mode 1: Module mapping
Use the module to event stream mapping to determine the event stream of interest.
Mode 2: Hard-wired event-stream
Use the provided event stream name to determine the event stream of interest.
Mode 3: All event streams
Receive callbacks for all event streams.

Parameters

modname	module name that this callback is registering for. The normal mode of operation is to set this to the module name that contains the notif 'send' functions. The server will figure out which event-stream is being used for events from this module. This parameter must be present, even if the stream_name or all_streams flag is present. It identifies the module SIL or SIL-SA code that is associated with this callback, if the module is removed.
stream_name	event stream name to register for. Normal mode of operation is set to NULL because the event-stream configuration is not known to the SIL code. If set, then only register for this event-stream If NULL and modname is NULL then register for all events for all event-streams.
all_streams	TRUE if this callback is registering for all event streams. FALSE for normal mode and registering for 1 module name of one event stream.
cbfn	callback function to use
cookie	pointer to pass to the callback function as a cookie

Returns

status;

It is not an error to register for a non-existent module name or event stream name since they can be added and removed at run-time. Make sure parameters are spelled correctly!
The agt_not_unregister_event_stream_cbfn API MUST be called before the module containing the callback is removed.
It is not an error to register duplicates. These will not be checked.

Here is the call graph for this function:

◆ agt_not_register_stream_cbfn_subsys()

status_t agt_not_register_stream_cbfn_subsys	(	const xmlChar *	subsys_id,
		const xmlChar *	modname,
		const xmlChar *	stream_name,
		boolean	all_streams
	)

Register a SIL event-stream callback function.

From agt_sil Used to help suppress event generation if nobody is listening

YPW-1816.

Parameters

subsys_id	subsystem registering this callback
modname	module name that this callback is registering for. The normal mode of operation is to set this to the module name that contains the notif 'send' functions. The server will figure out which event-stream is being used for events from this module. This parameter must be present, even if the stream_name or all_streams flag is present. It identifies the module SIL or SIL-SA code that is associated with this callback, if the module is removed.
stream_name	event stream name to register for. Normal mode of operation is set to NULL because the event-stream configuration is not known to the SIL code. If set, then only register for this event-stream If NULL and modname is NULL then register for all events for all event-streams.
all_streams	TRUE if this callback is registering for all event streams. FALSE for normal mode and registering for 1 module name of one event stream.

Returns

status;

It is not an error to register for a non-existent module name or event stream name since they can be added and removed at run-time. Make sure parameters are spelled correctly!
The agt_not_unregister_event_stream_cbfn API MUST be called before the module containing the callback is removed.
It is not an error to register duplicates. These will not be checked.

Here is the call graph for this function:

◆ agt_not_register_yang_push()

status_t agt_not_register_yang_push	(	agt_not_check_push_cbfn_t	cbfn,
		agt_not_module_removed_cbfn_t	mod_cbfn
	)

Used by YANG Push to check periodic and simulated operational.

Parameters

cbfn	check push callback function to use
mod_cbfn	module removed callback function to use

Returns: status

Here is the caller graph for this function:

◆ agt_not_remove_module_filters()

void agt_not_remove_module_filters ( const ncx_module_t * mod )

Invoke Module Removed Callback.

Used by YANG Push to suspend subscriptions that filter for a target object that is being removed

Parameters

mod	module being removed

◆ agt_not_remove_subscription()

void agt_not_remove_subscription ( ses_id_t sid )

Remove and expire a subscription with the specified session ID.

The session is being removed.

Parameters

sid	session ID to use

Here is the caller graph for this function:

◆ agt_not_resume_push_subscription()

void agt_not_resume_push_subscription ( agt_not_subid_t subid )

Resume a YANG Push Subscription.

Requested by YANG-PUSH Resume a subscription and start sending notifications to it

Parameters

subid subscription ID to resume

◆ agt_not_send_notifications()

uint32 agt_not_send_notifications ( thd_tcb_t * tcb )

Send notifications (PTHREADS VERSION)

Send out some notifications to the specified/configured subscription(s), if needed.

Simple design: go through all the subscriptions and send at most one notification to each one if needed. This will build in some throttling based on the ncxserver select loop timeout (or however this function is called).

notifications may be written to some active sessions

Parameters

tcb	Thread control block for session

Returns: number of notifications sent
used for simple burst throttling

◆ agt_not_send_onchange_update()

status_t agt_not_send_onchange_update	(	agt_not_subid_t	subid,
		ses_id_t	sid,
		obj_template_t *	notif_obj,
		yang_patch_cb_t *	pcb,
		boolean *	subscription_deleted
	)

Used by YANG Push to send an on-change update to 1 session.

Parameters

	subid	subscription ID
	sid	session ID (to validate against subscription ID)
	notif_obj	push-change-update object
	pcb	yang_patch_cb to send
[out]	subscription_deleted	address of return flag *subscription_deleted TRUE if subscription or session gone

◆ agt_not_send_periodic_update()

status_t agt_not_send_periodic_update	(	agt_not_subid_t	subid,
		ses_id_t	sid,
		obj_template_t *	notif_obj,
		rpc_msg_t *	msg,
		boolean *	subscription_deleted
	)

Used by YANG Push to send a periodic update to 1 session.

Parameters

	subid	subscription ID
	sid	session ID (to validate against subscription ID)
	notif_obj	push-update object
	msg	dummy RPC message to use
[out]	subscription_deleted	address of return flag *subscription_deleted TRUE if subscription or session gone

Returns: status

◆ agt_not_send_push_notif()

status_t agt_not_send_push_notif	(	agt_not_subid_t	subid,
		agt_not_msg_t *	notif
	)

Send the notification directly to the specified push subscription ID.

Parameters

subid	push subscription ID
notif	notification to send (THIS IS NOT FREED HERE)

Returns: status

◆ agt_not_send_simop_update()

status_t agt_not_send_simop_update	(	agt_not_subid_t	subid,
		ses_id_t	sid,
		const xmlChar *	filespec,
		rpc_msg_t *	msg,
		obj_template_t *	notif_obj,
		boolean *	subscription_deleted
	)

Use the file contents to send an Simulated Operational on-change update to the client session.

Send a push-update instead of a push-change-update event

Parameters

	subid	subscription ID
	sid	session ID (to validate against subscription ID)
	filespec	filename to use to send as data
	msg	filled in rpc_msg to use to call agt_output_filter
	notif_obj	object to use, based on std_update
[out]	subscription_deleted	address of return flag *subscription_deleted TRUE if subscription or session gone

Returns: status

◆ agt_not_set_filter()

status_t agt_not_set_filter	(	const xmlChar *	name,
		ncx_nmda_filtyp_t	nmda_filtyp,
		agt_not_filtertyp_t	filtyp,
		const val_value_t *	filval
	)

Add or Modify a filter entry.

Parameters

name	name or id of entry to add or modify
nmda_filtyp	NMDA filter type (stream or selection)
filtyp	new filter type enumeration
filval	new value node to clone (subtree or XPath)

Returns: status

◆ agt_not_set_notif_mpid()

status_t agt_not_set_notif_mpid	(	agt_not_msg_t *	msg,
		const ncx_sm_mpid_t *	mpid
	)

Set the MPID to use for sending the schema-mounted notification.

The MPID is copied. It could be a real MPID from a valroot or a fake MPID constructed for this API

Not needed if there is only one instance of the mount point. Needed to provide the ancestor keys to use in the notification

Parameters

msg	message to set the MPID for
mpid	MPID structure to clone and save. A copy will be made so this mpid can be deleted after this call

Returns: status

Here is the call graph for this function:

◆ agt_not_setup_push_subscription()

status_t agt_not_setup_push_subscription	(	ses_cb_t *	scb,
		const xmlChar *	selection_filter_ref,
		const xmlChar *	stop_time,
		const val_value_t *	encoding,
		agt_not_modify_filter_cbfn_t	modify_cbfn,
		agt_not_delete_subscription_cbfn_t	delete_cbfn,
		agt_not_subid_t *	subid,
		agt_not_sterr_t *	errnum,
		boolean *	isbinary
	)

Create a RFC 8641 YANG Push subscription.

These parameters are copied by value so the values passed do not need to persist after this call

Parameters

	scb	session control block starting the subscription
	selection_filter_ref	filter reference
	stop_time	stop time is a common parm if replay supported for stream
	encoding	encoding is a common parm. Only XML is supported.
	modify_cbfn	modify filter callback
	delete_cbfn	delete subscription callback
[out]	subid	address of return subscription ID assigned *subid subscription ID assigned (if NO_ERR)
[out]	errnum	address of return parm number of error *errnum parm number of error if returning error (if some error)
[out]	isbinary	address of return is binary subscription flag *isbinary return is binary subscription flag

Returns: status

Here is the call graph for this function:

◆ agt_not_start_subscription()

status_t agt_not_start_subscription	(	ses_cb_t *	scb,
		const xmlChar *	stream,
		xmlChar *	startTime,
		xmlChar *	stopTime,
		boolean	futurestop,
		op_filtertyp_t	filtertype,
		val_value_t *	filterval,
		val_value_t *	selectval
	)

Malloc and fill in a new subscription control block.

Add it to the subscriptionQ. This is an internal API

Parameters

scb	session this subscription is for
stream	requested stream ID
startTime	replay start time (may be NULL) !!! THIS MALLOCED NODE IS FREED LATER !!!!
stopTime	replayStopTime (may be NULL) !!! THIS MALLOCED NODE IS FREED LATER !!!!
futurestop	TRUE if stopTime in the future FALSE if not set or not in the future
filtertype	internal filter type
filterval	filter value node passed from PDU !!! THIS MALLOCED NODE IS FREED LATER !!!!
selectval	back-ptr into filterval->select value node only used if filtertype OP_FILTER_XPATH

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_not_stream_callback_subsys()

status_t agt_not_stream_callback_subsys	(	const xmlChar *	stream_name,
		agt_not_subevent_t	subevent,
		const xmlChar *	modname,
		boolean	all_streams
	)

Invoke a stream callback function on the SIL-SA subsystem.

This function will invoke the callback function if it is found. The server will send the configuration parameters along with the stream state update so the correct registered callback can be found.

Parameters

stream_name	Name of the stream that is having a state change
subevent	Stream callback subevent type
modname	Module name used in the registration (may be NULL)
all_streams	TRUE if registered for all streams

Returns: status

Here is the call graph for this function:

◆ agt_not_subsys_gone()

void agt_not_subsys_gone ( const xmlChar * subsys_id )

Unload any remote stream callbacks when a subsystem session is lost and subsys-gone event handled.

This function will remove the callback control blocks for any remote SIL-SA stream callback that is registered with this subsys_id.

Parameters

subsys_id subsystem ID being removed

Here is the call graph for this function:

◆ agt_not_suspend_push_subscription()

void agt_not_suspend_push_subscription	(	agt_not_subid_t	subid,
		agt_not_suspend_reason_t	reason
	)

Suspend a subscription and stop sending notifications to it.

Requested by YANG-PUSH

Parameters

subid	subscription ID to suspend
reason	suspend reason code

◆ agt_not_unload_module()

void agt_not_unload_module ( const xmlChar * modname )

Unload any remote stream callbacks when a module is unloaded.

Leave the local callback_cb structs alone. The local unregister function is supposed to be called for these callbacks.

This function will remove the callback control blocks for any remote SIL-SA stream callback that is registered with this module name.

Parameters

modname == module name being unloaded

Here is the call graph for this function:

◆ agt_not_unregister_stream_cbfn()

void agt_not_unregister_stream_cbfn	(	const xmlChar *	modname,
		agt_not_stream_cbfn_t	cbfn
	)

Unregister a SIL event-stream callback function.

YPW-1816.

Parameters

modname	module name used in the register request
cbfn	callback function to unregister. All entries with the same `modname` using this callback will be removed. No errors are generated if the callback is not found

Here is the call graph for this function:

◆ agt_not_unregister_stream_cbfn_subsys()

void agt_not_unregister_stream_cbfn_subsys	(	const xmlChar *	subsys_id,
		const xmlChar *	modname
	)

Unregister a SIL event-stream callback function.

Subsystem

YPW-1816.

Parameters

subsys_id	subsystem registering this callback
modname	module name used in the register request (could be NULL)

Here is the call graph for this function:

Functions

Detailed Description

SIL Procedure for constructing a notification

The messaage and payload memory is transferred to the queue

Function Documentation

◆ agt_not_add_key()

◆ agt_not_add_to_payload()

◆ agt_not_any_unregistered()

◆ agt_not_cancel_subscription()

◆ agt_not_check_register_add()

◆ agt_not_cleanup()

◆ agt_not_cleanup_sil_sa()

◆ agt_not_clear_event_stream_log()

◆ agt_not_clone_filter()

◆ agt_not_create_event_stream()

◆ agt_not_delete_all_filters()

◆ agt_not_delete_dynamic_subscription()

◆ agt_not_delete_event_stream()

◆ agt_not_delete_filter()

◆ agt_not_delete_module_map()

◆ agt_not_edit_module_map()

◆ agt_not_establish_subscription()

◆ agt_not_event_stream_exists()

◆ agt_not_free_notification()

◆ agt_not_get_modified_obj()

◆ agt_not_get_simop_update()

◆ agt_not_go_active()

◆ agt_not_go_standby()

◆ agt_not_init()

◆ agt_not_init2()

◆ agt_not_init_restconf_streams()

◆ agt_not_init_sil_sa()

◆ agt_not_init_yangpush()

◆ agt_not_is_replay_event()

◆ agt_not_kill_dynamic_subscription()

◆ agt_not_kill_push_subscription()

◆ agt_not_modify_push_subscription()

◆ agt_not_modify_subscription()

◆ agt_not_new_notification()

◆ agt_not_new_notification_ex()

◆ agt_not_queue_notification()

◆ agt_not_queue_notification_stream()

◆ agt_not_register_notif_objs()

◆ agt_not_register_stream_cbfn()

◆ agt_not_register_stream_cbfn_subsys()

◆ agt_not_register_yang_push()

◆ agt_not_remove_module_filters()

◆ agt_not_remove_subscription()

◆ agt_not_resume_push_subscription()

◆ agt_not_send_notifications()

◆ agt_not_send_onchange_update()

◆ agt_not_send_periodic_update()

◆ agt_not_send_push_notif()

◆ agt_not_send_simop_update()

◆ agt_not_set_filter()

◆ agt_not_set_notif_mpid()

◆ agt_not_setup_push_subscription()

◆ agt_not_start_subscription()

◆ agt_not_stream_callback_subsys()

◆ agt_not_subsys_gone()

◆ agt_not_suspend_push_subscription()

◆ agt_not_unload_module()

◆ agt_not_unregister_stream_cbfn()

◆ agt_not_unregister_stream_cbfn_subsys()
