Core callbacks and hooks used in the server. More...

Collaboration diagram for Core Functions:

Functions
status_t	agt_cb_init (void)
	Init the server callback module. More...

void	agt_cb_cleanup (void)
	Cleanup the server callback module. More...

status_t	agt_cb_register_callback (const xmlChar modname, const xmlChar defpath, const xmlChar *version, agt_cb_fn_t cbfn)
	Register an object specific edit callback function use the same fn for all callback phases all phases will be invoked. More...

status_t	agt_cb_register_edit2_callback (const xmlChar modname, const xmlChar defpath, const xmlChar *version, agt_cb_fn_t cbfn)
	Register an object specific edit2 callback function. More...

status_t	agt_cb_register_edit3_callback (const xmlChar modname, const xmlChar defpath, const xmlChar *version, agt_edit3_fn_t edit3_cbfn)
	Register an object specific edit3 callback function. More...

status_t	agt_cb_register_edit_callback_extra (const xmlChar modname, const xmlChar defpath, const xmlChar version, void cbfn, const agt_cb_extra_flags_t *extra_flags)
	Register an edit callback function with extra flags. More...

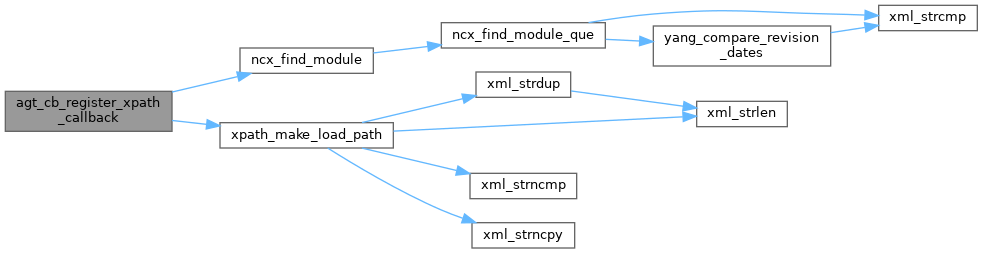

status_t	agt_cb_register_xpath_callback (const xmlChar modname, const xmlChar defpath, const xmlChar *version, xpath_bool_eval_fn_t cbfn)
	Register an object specific XPath callback function. More...

void	agt_cb_unregister_callbacks (const xmlChar modname, const xmlChar defpath)
	Unregister all EDIT callback functions for a specific object. More...

status_t	agt_cb_register_get_callback (const xmlChar modname, const xmlChar defpath, const xmlChar *version, getcb_fn2_t get_cbfn)
	Register an object specific GET callback function. More...

status_t	agt_cb_hook_register (const xmlChar *defpath, agt_hook_fmt_t format, agt_hook_type_t type, agt_cb_hook_t cbfn)
	Register an object specific Hook callback function. More...

void	agt_cb_hook_unregister (const xmlChar *defpath)
	Unregister a Hook callback. More...

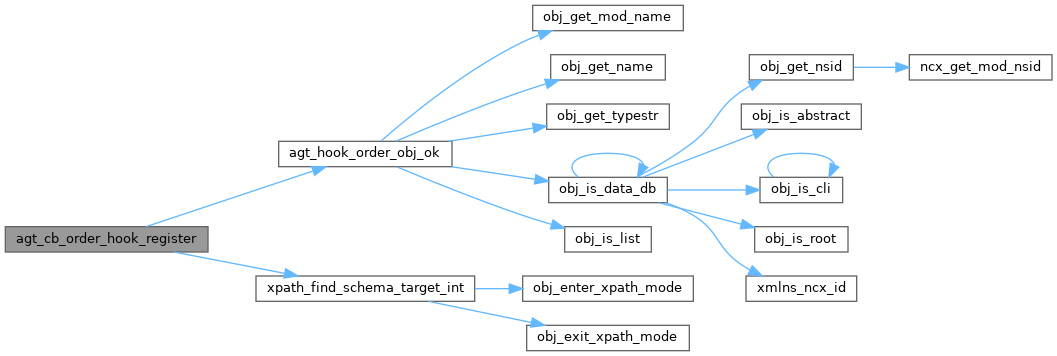

status_t	agt_cb_order_hook_register (const xmlChar *defpath, agt_cb_order_hook_t cbfn)
	Register an object specific Set-Order-Hook callback function. More...

void	agt_cb_order_hook_unregister (const xmlChar *defpath)
	Unregister a Set-Order-Hook callback. More...

status_t	agt_cb_trans_start_register (agt_cb_trans_start_t cbfn)
	Register a Transaction Start callback. More...

status_t	agt_cb_trans_complete_register (agt_cb_trans_complete_t cbfn)
	Register a Transaction Complete callback. More...

void	agt_cb_trans_start_unregister (agt_cb_trans_start_t cbfn)
	Unregister a Transaction Start callback. More...

void	agt_cb_trans_complete_unregister (agt_cb_trans_complete_t cbfn)
	Unregister a Transaction Complete callback. More...

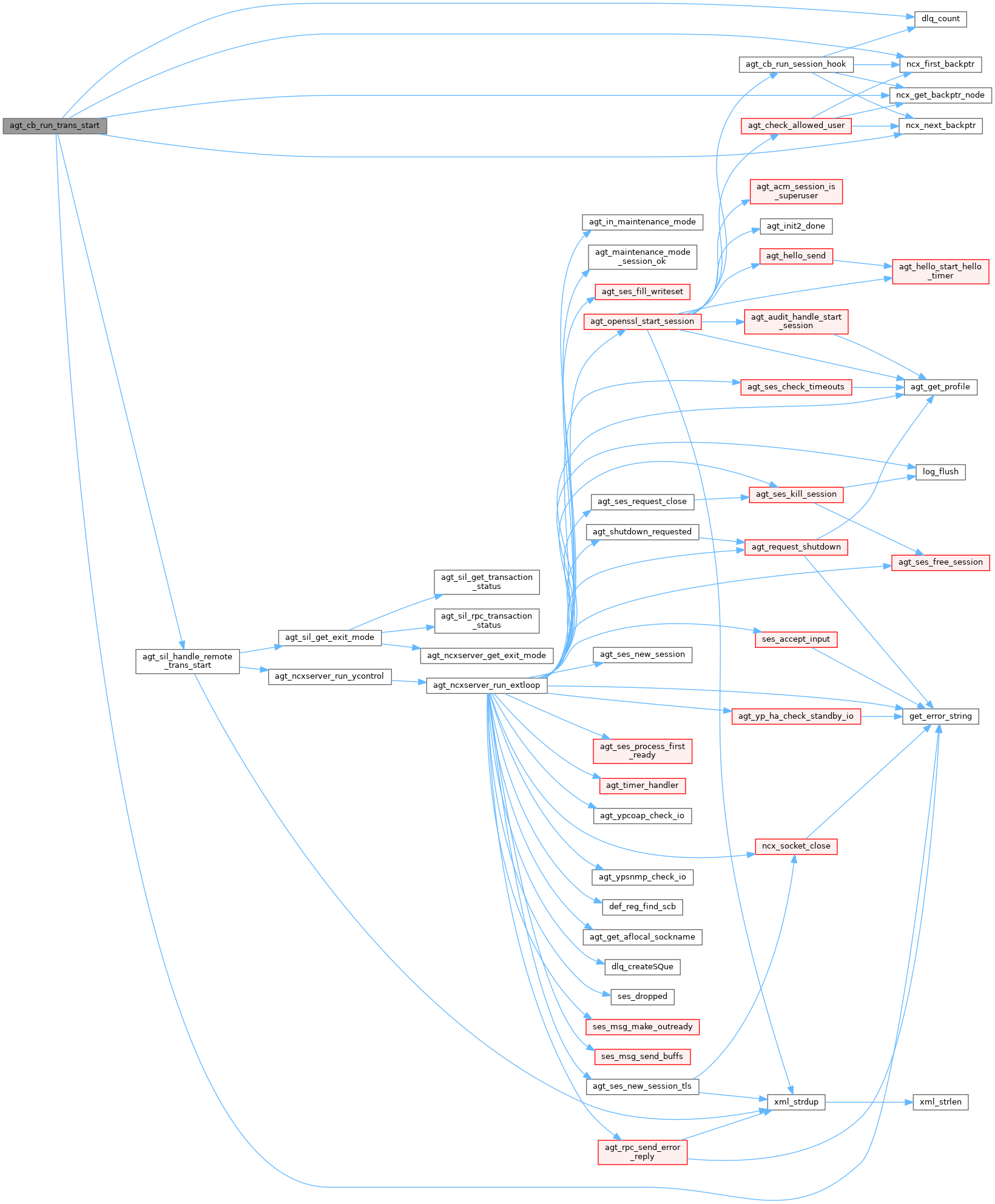

status_t	agt_cb_run_trans_start (ses_cb_t scb, agt_cfg_transaction_t txcb, boolean isvalidate, boolean isrollback, boolean isrunning, boolean no_silsa_cb)
	Run Transaction start callbacks. More...

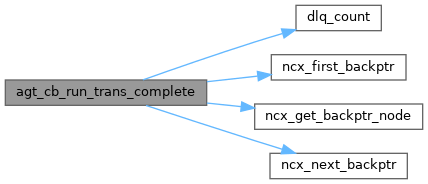

void	agt_cb_run_trans_complete (agt_cfg_transaction_t *txcb)
	Run Transaction Complete callbacks. More...

status_t	agt_cb_sa_trans_start_register (agt_cb_sa_trans_start_t cbfn)
	Register a Transaction Start callback. More...

status_t	agt_cb_sa_trans_complete_register (agt_cb_sa_trans_complete_t cbfn)
	Register a Transaction Complete callback. More...

void	agt_cb_sa_trans_start_unregister (agt_cb_sa_trans_start_t cbfn)
	Uregister a Transaction Start callback. More...

void	agt_cb_sa_trans_complete_unregister (agt_cb_sa_trans_complete_t cbfn)
	Uregister a Transaction Complete callback. More...

status_t	agt_cb_invoke_trans_start_cb (const xmlChar *transaction_id, boolean isvalidate, boolean isrollback, boolean isrunning)
	Invoke Transaction start callbacks. More...

void	agt_cb_invoke_trans_complete (const xmlChar *transaction_id)
	Invoke Transaction Complete callbacks. More...

void	agt_cb_sa_run_trans_complete (const xmlChar *transaction_id)
	This function simply calls agt_sil_transaction_complete_cb, which makes a <server-event> message and sends it to the subsystem. More...

status_t	agt_cb_register_subsys_callback (const xmlChar modname, const xmlChar defpath, const xmlChar version, const xmlChar subsys_id, agt_cb_calltype_t calltype)
	Register an object specific callback function. More...

void	agt_cb_unregister_subsys_callback (const xmlChar subsys_id, const xmlChar modname, const xmlChar defpath, const xmlChar revision)
	Unregister remote subsystem callback for a specific object. More...

status_t	agt_cb_make_register_msg (obj_template_t request_obj, val_value_t request_val, obj_template_t register_obj, obj_template_t module_obj, obj_template_t revision_obj, obj_template_t path_obj, obj_template_t get_path_obj, obj_template_t rpc_name_obj, obj_template_t action_path_obj, obj_template_t post_sethook_path_obj, obj_template_t sethook_list, obj_template_t txhook_list, obj_template_t edit2_path_obj, obj_template_t edit3_path_obj, boolean *any_rw_objs)
	Make a subsystem register message. More...

boolean	agt_cb_obj_has_edit_callback (obj_template_t *obj)
	Check if the specified object has a local edit callback. More...

boolean	agt_cb_obj_has_get_callback (obj_template_t *obj)
	Check if the specified object has a local get2 callback. More...

status_t	agt_cb_skip_leafref_validation (const xmlChar *defpath)
	Set a previously registered callback as a node that the server should skip leafref validation in order to save processing time. More...

status_t	agt_cb_set_sil_priority (const xmlChar *defpath, uint8 sil_priority)
	Set the desired SIL priority with a callback instead of using the YANG extension for this purpose. More...

status_t	agt_cb_validate_complete_register (agt_cb_validate_complete_t cbfn)
	Register a Validate Complete callback. More...

status_t	agt_cb_startup_hook_register (agt_cb_startup_hook_t cbfn)
	Register a Startup Hook callback. More...

void	agt_cb_startup_hook_unregister (agt_cb_startup_hook_t cbfn)
	Unregister a Startup Hook callback. More...

void	agt_cb_validate_complete_unregister (agt_cb_validate_complete_t cbfn)
	Unregister a Validate Complete callback. More...

status_t	agt_cb_apply_complete_register (agt_cb_apply_complete_t cbfn)
	Register a Apply Complete callback. More...

void	agt_cb_apply_complete_unregister (agt_cb_apply_complete_t cbfn)
	Unregister a Apply Complete callback. More...

status_t	agt_cb_rollback_complete_register (agt_cb_rollback_complete_t cbfn)
	Register a Rollback Complete callback. More...

void	agt_cb_rollback_complete_unregister (agt_cb_rollback_complete_t cbfn)
	Unregister a Rollback Complete callback. More...

status_t	agt_cb_run_validate_complete (ses_cb_t scb, rpc_msg_t msg, val_value_t candidate, val_value_t running, boolean epc_only)
	Run Validate Complete callbacks. More...

status_t	agt_cb_run_startup_hook (ses_cb_t scb, rpc_msg_t msg, cfg_template_t source_config, cfg_template_t target_config)
	Run startup hook callbacks. More...

status_t	agt_cb_run_apply_complete (ses_cb_t scb, rpc_msg_t msg, val_value_t candidate, val_value_t running, boolean epc_only)
	Run Apply Complete callbacks. More...

status_t	agt_cb_run_rollback_complete (ses_cb_t scb, rpc_msg_t msg, val_value_t candidate, val_value_t running, boolean epc_only)
	Run Rollback Complete callbacks. More...

status_t	agt_cb_command_complete_register (agt_cb_command_complete_t cbfn)
	Register a Command Complete callback. More...

void	agt_cb_run_command_complete (ses_cb_t scb, rpc_msg_t msg, const xmlChar command_modname, const xmlChar command_name)
	Run Command Complete callbacks. More...

void	agt_cb_command_complete_unregister (agt_cb_command_complete_t cbfn)
	Unregister a Command Complete callback. More...

status_t	agt_cb_shutdown_register (agt_cb_shutdown_t cbfn)
	Register a Shutdown callback. More...

void	agt_cb_shutdown_unregister (agt_cb_shutdown_t cbfn)
	Unregister a Shutdown callback. More...

void	agt_cb_run_shutdown (void)
	Run Shutdown callbacks. More...

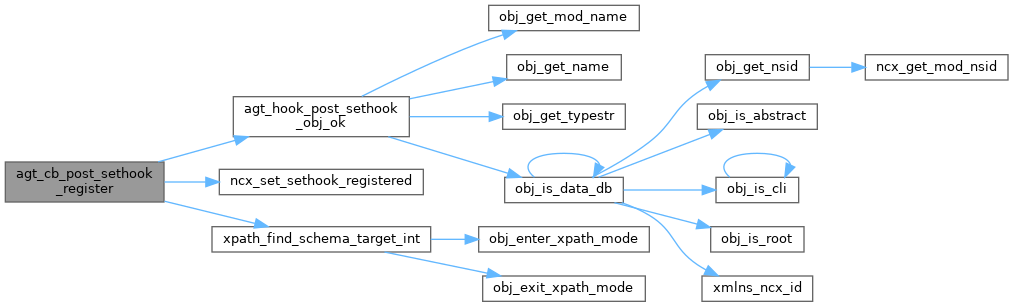

status_t	agt_cb_post_sethook_register (const xmlChar *defpath, agt_cb_hook_t cbfn)
	Register an object specific Post Set Hook callback function. More...

void	agt_cb_post_sethook_unregister (const xmlChar *defpath)
	Unregister a Post Set Hook callback. More...

status_t	agt_cb_session_hook_register (agt_cb_session_hook_t cbfn)
	Register a Session Hook callback. More...

void	agt_cb_session_hook_unregister (agt_cb_session_hook_t cbfn)
	Unregister a Session Hook callback. More...

void	agt_cb_run_session_hook (ncx_ses_event_t ses_event, const ses_cb_t *scb)
	Run Session Hook callbacks. More...

status_t	agt_cb_def_hook_register (const xmlChar *defpath, ncx_def_hook_cbfn_t cbfn)
	Register an object specific Dynamic Default callback function to enable custom default value setup for a specified node. More...

void	agt_cb_def_hook_unregister (const xmlChar *defpath)
	Unregister Dynamic Default callback functions for a specific object. More...

status_t	agt_cb_sa_hook_register (const xmlChar *defpath, agt_hook_fmt_t format, agt_hook_type_t type, agt_cb_sa_hook_t cbfn)
	Register an object specific Hook callback function. More...

void	agt_cb_sa_hook_unregister (const xmlChar *defpath)
	Unregister a SIL-SA Hook SIL-SA callback. More...

status_t	agt_cb_sa_post_sethook_register (const xmlChar *defpath, agt_cb_sa_hook_t cbfn)
	Register an object specific SIL-SA Post Set Hook callback function. More...

void	agt_cb_sa_post_sethook_unregister (const xmlChar *defpath)
	Unregister a SIL-SA Post Set Hook callback. More...

void	agt_cb_unload_module (const xmlChar *modname)
	Remove the modhdr for the specified module since it is being unloaded from the server or subsystem. More...

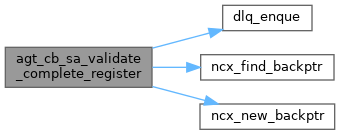

status_t	agt_cb_sa_validate_complete_register (agt_cb_sa_validate_complete_t cbfn)
	Register a SIL-SA Validate Complete callback. More...

void	agt_cb_sa_validate_complete_unregister (agt_cb_sa_validate_complete_t cbfn)
	Unregister a SIL-SA Validate Complete callback. More...

status_t	agt_cb_sa_apply_complete_register (agt_cb_sa_apply_complete_t cbfn)
	Register a SIL-SA Apply Complete callback. More...

void	agt_cb_sa_apply_complete_unregister (agt_cb_sa_apply_complete_t cbfn)
	Unregister a SIL-SA Apply Complete callback. More...

status_t	agt_cb_sa_commit_complete_register (agt_cb_sa_commit_complete_t cbfn)
	Register a SIL-SA Commit Complete callback. More...

void	agt_cb_sa_commit_complete_unregister (agt_cb_sa_commit_complete_t cbfn)
	Unregister a SIL-SA Commit Complete callback. More...

status_t	agt_cb_sa_rollback_complete_register (agt_cb_sa_rollback_complete_t cbfn)
	Register a SIL-SA Rollback Complete callback. More...

void	agt_cb_sa_rollback_complete_unregister (agt_cb_sa_rollback_complete_t cbfn)
	Unregister a SIL-SA Rollback Complete callback. More...

status_t	agt_cb_sa_run_commit_completeness_cb (const xmlChar *transaction_id, agt_cbtyp_t cbtyp, agt_commit_type_t commit_type)
	Run SIL-SA Commit Completeness callbacks. More...

status_t	agt_cb_edit_phase_complete_register (agt_cb_edit_phase_complete_t cbfn)
	Register an Edit Phase Complete callback. More...

void	agt_cb_edit_phase_complete_unregister (agt_cb_edit_phase_complete_t cbfn)
	Unregister an Edit Phase Complete callback. More...

status_t	agt_cb_sa_edit_phase_complete_register (agt_cb_sa_edit_phase_complete_t cbfn)
	Register a SIL-SA Edit Phase Complete callback. More...

void	agt_cb_sa_edit_phase_complete_unregister (agt_cb_sa_edit_phase_complete_t cbfn)
	Unregister a SIL-SA Edit Phase Complete callback. More...

boolean	agt_cb_any_edit_phase_complete (void)
	Return true if any edit phase complete callbacks registered. More...

status_t	agt_cb_run_epc_commit_complete (ses_cb_t scb, rpc_msg_t msg, val_value_t source, val_value_t target)
	agt_cb_run_epc_commit_complete More...

boolean	agt_cb_is_skip_callback (const obj_template_t *obj, agt_cbtyp_t cbtyp)
	Determine whether the edit phase callback for the given object and callback type should be skipped based on the registered flags. More...

Detailed Description

Core callbacks and hooks used in the server.

TBD: split each hook into its own section.

Function Documentation

◆ agt_cb_any_edit_phase_complete()

boolean agt_cb_any_edit_phase_complete ( void )

Return true if any edit phase complete callbacks registered.

Returns: TRUE if any EPC callbacks registered

◆ agt_cb_apply_complete_register()

status_t agt_cb_apply_complete_register ( agt_cb_apply_complete_t cbfn )

Register a Apply Complete callback.

This function registers a Apply Complete callback that will be called right after Apply Phase has been processed during the <commit>

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_apply_complete_unregister()

void agt_cb_apply_complete_unregister ( agt_cb_apply_complete_t cbfn )

Unregister a Apply Complete callback.

This function unregisters a Apply Complete callback.

Parameters

cbfn	address of callback function to use

Here is the call graph for this function:

◆ agt_cb_cleanup()

void agt_cb_cleanup ( void )

Cleanup the server callback module.

Called by the server during shutdown

Here is the call graph for this function:

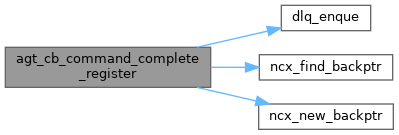

◆ agt_cb_command_complete_register()

status_t agt_cb_command_complete_register ( agt_cb_command_complete_t cbfn )

Register a Command Complete callback.

Max Callbacks: No limit (except available heap memory)

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_command_complete_unregister()

void agt_cb_command_complete_unregister ( agt_cb_command_complete_t cbfn )

Unregister a Command Complete callback.

This function unregisters a Command Complete callback.

Parameters

cbfn	address of callback function to use

Here is the call graph for this function:

◆ agt_cb_def_hook_register()

status_t agt_cb_def_hook_register	(	const xmlChar *	defpath,
		ncx_def_hook_cbfn_t	cbfn
	)

Register an object specific Dynamic Default callback function to enable custom default value setup for a specified node.

Parameters

defpath	Xpath with default (or no) prefixes defining the object that will get the callbacks
cbfn	address of callback function to use for Dynamic Default callbacks

Returns: status

Here is the call graph for this function:

◆ agt_cb_def_hook_unregister()

void agt_cb_def_hook_unregister ( const xmlChar * defpath )

Unregister Dynamic Default callback functions for a specific object.

Parameters

defpath definition XPath location

Here is the call graph for this function:

◆ agt_cb_edit_phase_complete_register()

status_t agt_cb_edit_phase_complete_register ( agt_cb_edit_phase_complete_t cbfn )

Register an Edit Phase Complete callback.

This function registers an Edit Phase Complete callback that will be called right after each Edit Phase has been processed during an edit transaction.

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_edit_phase_complete_unregister()

void agt_cb_edit_phase_complete_unregister ( agt_cb_edit_phase_complete_t cbfn )

Unregister an Edit Phase Complete callback.

This function unregisters an Edit Phase Complete callback.

Parameters

cbfn	address of callback function to use

Here is the call graph for this function:

◆ agt_cb_hook_register()

status_t agt_cb_hook_register	(	const xmlChar *	defpath,
		agt_hook_fmt_t	format,
		agt_hook_type_t	type,
		agt_cb_hook_t	cbfn
	)

Register an object specific Hook callback function.

Parameters

defpath	Xpath with default (or no) prefixes defining the object that will get the callback
format	different hook formats dictates specific hook functionality
type	different hook types dictates hook invocation point
cbfn	address of callback function to use for all callback phases

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_hook_unregister()

void agt_cb_hook_unregister ( const xmlChar * defpath )

Unregister a Hook callback.

This function unregisters a Hook callback.

Parameters

defpath Xpath with default (or no) prefixes defining the object that will get the callback

Here is the call graph for this function:

◆ agt_cb_init()

status_t agt_cb_init ( void )

Init the server callback module.

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_invoke_trans_complete()

void agt_cb_invoke_trans_complete ( const xmlChar * transaction_id )

Invoke Transaction Complete callbacks.

This function simply calls each registered trans_complete callbacks. This does not return any status even if a callback function fails. This API is available only for SIL-SA Subsystem

Parameters

transaction_id id of the transaction control block in progress

Here is the call graph for this function:

◆ agt_cb_invoke_trans_start_cb()

status_t agt_cb_invoke_trans_start_cb	(	const xmlChar *	transaction_id,
		boolean	isvalidate,
		boolean	isrollback,
		boolean	isrunning
	)

Invoke Transaction start callbacks.

This function will invoke each registered trans_start callbacks. If a Transaction start operation fails the status of the failing operation is returned immediately and no further trans_start callbacks are made. This API is available only for SIL-SA Subsystem

Parameters

transaction_id	transaction ID in progress
isvalidate	TRUE if this is Transaction is for Validate
isrollback	TRUE if this is Transaction for Rollback or Load
isrunning	TRUE if running datastore is being modified

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_is_skip_callback()

boolean agt_cb_is_skip_callback	(	const obj_template_t *	obj,
		agt_cbtyp_t	cbtyp
	)

Determine whether the edit phase callback for the given object and callback type should be skipped based on the registered flags.

Parameters

obj	pointer to the object template
cbtyp	agent callback type (e.g., AGT_CB_VALIDATE, AGT_CB_APPLY)

Returns: TRUE if the edit callback should be skipped, FALSE otherwise.

Here is the call graph for this function:

◆ agt_cb_make_register_msg()

status_t agt_cb_make_register_msg	(	obj_template_t *	request_obj,
		val_value_t *	request_val,
		obj_template_t *	register_obj,
		obj_template_t *	module_obj,
		obj_template_t *	revision_obj,
		obj_template_t *	path_obj,
		obj_template_t *	get_path_obj,
		obj_template_t *	rpc_name_obj,
		obj_template_t *	action_path_obj,
		obj_template_t *	post_sethook_path_obj,
		obj_template_t *	sethook_list,
		obj_template_t *	txhook_list,
		obj_template_t *	edit2_path_obj,
		obj_template_t *	edit3_path_obj,
		boolean *	any_rw_objs
	)

Make a subsystem register message.

Used only in the SIL-SA subsystem.

Walk the register entries; Used by the sil_sa code to generate a SIL-SA <register-request> message

Parameters

	request_obj	object template <register-request> container
	request_val	add the register message as a child of this value
	register_obj	object template for the register message
	module_obj	module object used in register message
	revision_obj	module object used in register message
	path_obj	path object used in register message
	get_path_obj	get_path object used in register message
	rpc_name_obj	rpc name object used in register message
	action_path_obj	object used in register message
	post_sethook_path_obj	object used in register message
	sethook_list	object used in register message
	txhook_list	object used in register message
	edit2_path_obj	object used in register message
	edit3_path_obj	object used in register message
[out]	any_rw_objs	address of any RW objects flag *any_rw_objs any RW objects flag

Returns: status

Here is the call graph for this function:

◆ agt_cb_obj_has_edit_callback()

boolean agt_cb_obj_has_edit_callback ( obj_template_t * obj )

Check if the specified object has a local edit callback.

Parameters

obj	object to check

Returns: TRUE if cbset.cbfn or edit3_cbfn set; FALSE if not

◆ agt_cb_obj_has_get_callback()

boolean agt_cb_obj_has_get_callback ( obj_template_t * obj )

Check if the specified object has a local get2 callback.

Parameters

obj	object to check

Returns: TRUE if cbset.get_cbfn set; FALSE if not

◆ agt_cb_order_hook_register()

status_t agt_cb_order_hook_register	(	const xmlChar *	defpath,
		agt_cb_order_hook_t	cbfn
	)

Register an object specific Set-Order-Hook callback function.

Needs to be registered for the list object that will be 2nd-ordered Will not be called for subtree list nodes

Parameters

defpath	Xpath with default (or no) prefixes defining the object that will get the callback
cbfn	address of callback function to use for all callback phases

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_order_hook_unregister()

void agt_cb_order_hook_unregister ( const xmlChar * defpath )

Unregister a Set-Order-Hook callback.

This function unregisters a Set-Order-Hook callback.

Parameters

defpath Xpath with default (or no) prefixes defining the object that will get the callback

Here is the call graph for this function:

◆ agt_cb_post_sethook_register()

status_t agt_cb_post_sethook_register	(	const xmlChar *	defpath,
		agt_cb_hook_t	cbfn
	)

Register an object specific Post Set Hook callback function.

Parameters

defpath	Xpath with default (or no) prefixes defining the object that will get the callback
cbfn	address of callback function to use

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_post_sethook_unregister()

void agt_cb_post_sethook_unregister ( const xmlChar * defpath )

Unregister a Post Set Hook callback.

Parameters

defpath Xpath with default (or no) prefixes defining the object that will get the callback unregister

Here is the call graph for this function:

◆ agt_cb_register_callback()

status_t agt_cb_register_callback	(	const xmlChar *	modname,
		const xmlChar *	defpath,
		const xmlChar *	version,
		agt_cb_fn_t	cbfn
	)

Register an object specific edit callback function use the same fn for all callback phases all phases will be invoked.

Parameters

modname	module that defines the target object for these callback functions
defpath	Xpath with default (or no) prefixes defining the object that will get the callbacks
version	exact module revision date expected if condition not met then an error will be logged (TBD: force unload of module!) NULL means use any version of the module
cbfn	address of callback function to use for all callback phases

Returns: status

Here is the caller graph for this function:

◆ agt_cb_register_edit2_callback()

status_t agt_cb_register_edit2_callback	(	const xmlChar *	modname,
		const xmlChar *	defpath,
		const xmlChar *	version,
		agt_cb_fn_t	cbfn
	)

Register an object specific edit2 callback function.

Use the same fn for all callback phases all phases will be invoked

Only Callbacks for containers and lists are allowed in edit2 mode; Top Level Terminal Nodes are NOT SUPPORTED in edit2 mode

Parameters

modname	module that defines the target object for these callback functions
defpath	Xpath with default (or no) prefixes defining the object that will get the callbacks
version	exact module revision date expected if condition not met then an error will be logged (TBD: force unload of module!) NULL means use any version of the module
cbfn	address of callback function to use for all callback phases

Returns: status

Here is the caller graph for this function:

◆ agt_cb_register_edit3_callback()

status_t agt_cb_register_edit3_callback	(	const xmlChar *	modname,
		const xmlChar *	defpath,
		const xmlChar *	version,
		agt_edit3_fn_t	edit3_cbfn
	)

Register an object specific edit3 callback function.

Use the same fn for all callback phases all phases will be invoked

Only Callbacks for containers and lists are allowed in edit3 mode; Top Level Terminal Nodes are NOT SUPPORTED in edit3 mode

Parameters

modname	module that defines the target object for these callback functions
defpath	Xpath with default (or no) prefixes defining the object that will get the callbacks
version	exact module revision date expected if condition not met then an error will be logged (TBD: force unload of module!) NULL means use any version of the module
edit3_cbfn	address of callback function to use for all callback phases

Returns: status

◆ agt_cb_register_edit_callback_extra()

status_t agt_cb_register_edit_callback_extra	(	const xmlChar *	modname,
		const xmlChar *	defpath,
		const xmlChar *	version,
		void *	cbfn,
		const agt_cb_extra_flags_t *	extra_flags
	)

Register an edit callback function with extra flags.

Use the same callback function for all callback phases. All phases will be invoked unless specified to skip in extra_flags. The registration functions are selected based on the provided edit_cbtype in extra_flags.

Parameters

modname	module that defines the target object for these callback functions
defpath	Xpath with default (or no) prefixes defining the object that will get the callbacks
version	exact module revision date expected if condition not met then an error will be logged (TBD: force unload of module!) NULL means use any version of the module
cbfn	address of callback function to use for all callback phases
extra_flags	pointer to extra flags structure specifying options.

Returns: status

◆ agt_cb_register_get_callback()

status_t agt_cb_register_get_callback	(	const xmlChar *	modname,
		const xmlChar *	defpath,
		const xmlChar *	version,
		getcb_fn2_t	get_cbfn
	)

Register an object specific GET callback function.

Use the same fn for all callback phases all phases will be invoked

Parameters

modname	module that defines the target object for these callback functions
defpath	Xpath with default (or no) prefixes defining the object that will get the callbacks
version	exact module revision date expected if condition not met then an error will be logged (TBD: force unload of module!) NULL means use any version of the module
get_cbfn	address of callback function to use for GET callbacks

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_register_subsys_callback()

status_t agt_cb_register_subsys_callback	(	const xmlChar *	modname,
		const xmlChar *	defpath,
		const xmlChar *	version,
		const xmlChar *	subsys_id,
		agt_cb_calltype_t	calltype
	)

Register an object specific callback function.

setup array of callbacks, could be different or NULL to skip that phase

Parameters

modname	module that defines the target object for the remote callback functions
defpath	Xpath with default (or no) prefixes defining the object that will get the callbacks
version	exact module revision date expected if condition not met then an error will be logged (TBD: force unload of module!) NULL means use any version of the module
subsys_id	subsystem ID registering the remote callback fn
calltype	subsystem callback call type enumeration

Returns: status

Here is the call graph for this function:

◆ agt_cb_register_xpath_callback()

status_t agt_cb_register_xpath_callback	(	const xmlChar *	modname,
		const xmlChar *	defpath,
		const xmlChar *	version,
		xpath_bool_eval_fn_t	cbfn
	)

Register an object specific XPath callback function.

Use the same fn for all must/when stmts for the object Function must return ERR_NCX_SKIPPED if invoked for an unsupported expression.

Parameters

modname	module that defines the target object for these callback functions
defpath	Xpath with default (or no) prefixes defining the object that will get the callbacks
version	exact module revision date expected if condition not met then an error will be logged (TBD: force unload of module!) NULL means use any version of the module
cbfn	address of callback function to use

Returns: status

Here is the call graph for this function:

◆ agt_cb_rollback_complete_register()

status_t agt_cb_rollback_complete_register ( agt_cb_rollback_complete_t cbfn )

Register a Rollback Complete callback.

This function registers a Rollback Complete callback that will be called right after and if Rollback Phase has been processed during the <commit>

Max Callbacks: No limit (except available heap memory)

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_rollback_complete_unregister()

void agt_cb_rollback_complete_unregister ( agt_cb_rollback_complete_t cbfn )

Unregister a Rollback Complete callback.

This function unregisters a Rollback Complete callback.

Parameters

cbfn	address of callback function to use

Here is the call graph for this function:

◆ agt_cb_run_apply_complete()

status_t agt_cb_run_apply_complete	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		val_value_t *	candidate,
		val_value_t *	running,
		boolean	epc_only
	)

Run Apply Complete callbacks.

This function simply calls each registered apply complete callbacks.

If Apply Complete fails the status of the failing callback is returned immediately and no further callbacks are made. The server will start full Rollback.

Parameters

scb	session control block making the request
msg	incoming rpc_msg_t in progress
candidate	candidate val_value_t for the config database to use
running	running val_value_t for the config database to use
epc_only	TRUE for edit phase complete only; FALSE for all

Returns: the status of the callback

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_run_command_complete()

void agt_cb_run_command_complete	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		const xmlChar *	command_modname,
		const xmlChar *	command_name
	)

Run Command Complete callbacks.

This function simply calls each registered Command complete callbacks.

Parameters

scb	session control block making the request
msg	incoming rpc_msg_t in progress
command_modname	command module name
command_name	command_name

Here is the call graph for this function:

◆ agt_cb_run_epc_commit_complete()

status_t agt_cb_run_epc_commit_complete	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		val_value_t *	source,
		val_value_t *	target
	)

agt_cb_run_epc_commit_complete

Run Commit Complete for the Edit Phase Complete callbacks only. Does not handle legacy callbacks. That is done is agt_commit_complete.c

Parameters

scb	session control block making the request
msg	incoming rpc_msg_t in progress
source	candidate val_value_t for the config database to use
target	running val_value_t for the config database to use

Returns: the status of the callback

Here is the caller graph for this function:

◆ agt_cb_run_rollback_complete()

status_t agt_cb_run_rollback_complete	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		val_value_t *	candidate,
		val_value_t *	running,
		boolean	epc_only
	)

Run Rollback Complete callbacks.

This function simply calls each registered Rollback complete callbacks.

If Rollback Complete fails the status of the failing callback is returned immediately and no further callbacks are made.

Parameters

scb	session control block making the request
msg	incoming rpc_msg_t in progress
candidate	candidate val_value_t for the config database to use
running	running val_value_t for the config database to use
epc_only	TRUE for edit phase complete only; FALSE for all

Returns: the status of the callback

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_run_session_hook()

void agt_cb_run_session_hook	(	ncx_ses_event_t	ses_event,
		const ses_cb_t *	scb
	)

Run Session Hook callbacks.

This function simply calls each registered Session Hook callbacks.

Parameters

ses_event	session event type
scb	session control block

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_run_shutdown()

void agt_cb_run_shutdown ( void )

Run Shutdown callbacks.

This function simply calls each registered Shutdown callbacks. Called by the server during shutdown.

Here is the call graph for this function:

◆ agt_cb_run_startup_hook()

status_t agt_cb_run_startup_hook	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		cfg_template_t *	source_config,
		cfg_template_t *	target_config
	)

Run startup hook callbacks.

This function simply calls each registered startup_hook callbacks. If a Startup Hook operation fails the status of the failing operation is returned immediately and no further startup_hook callbacks are made.

Parameters

scb	session control block making the request
msg	incoming rpc_msg_t in progress
source_config	datastore which is being copied
target_config	datastore that is being edited

Returns: the status of the operation.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_run_trans_complete()

void agt_cb_run_trans_complete ( agt_cfg_transaction_t * txcb )

Run Transaction Complete callbacks.

This function simply calls each registered trans_complete callbacks. This does not return any status even if a callback function fails.

Parameters

txcb	transaction control block in progress

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_run_trans_start()

status_t agt_cb_run_trans_start	(	ses_cb_t *	scb,
		agt_cfg_transaction_t *	txcb,
		boolean	isvalidate,
		boolean	isrollback,
		boolean	isrunning,
		boolean	no_silsa_cb
	)

Run Transaction start callbacks.

This function simply calls each registered trans_start callbacks. If a Transaction start operation fails the status of the failing operation is returned immediately and no further trans_start callbacks are made.

Parameters

scb	session to use
txcb	transaction control block in progress
isvalidate	TRUE if this is Transaction is for Validate
isrollback	TRUE if this is Transaction for Rollback or Load
isrunning	TRUE if running datastore is being modified
no_silsa_cb	TRUE to skip start transaction callback for SIL-SA

Returns: the status of the operation.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_run_validate_complete()

status_t agt_cb_run_validate_complete	(	ses_cb_t *	scb,
		rpc_msg_t *	msg,
		val_value_t *	candidate,
		val_value_t *	running,
		boolean	epc_only
	)

Run Validate Complete callbacks.

This function simply calls each registered validate complete callbacks.

If Validate Complete fails the status of the failing callback is returned immediately and no further callbacks are made. The server will abort the commit.

Parameters

scb	session control block making the request
msg	incoming rpc_msg_t in progress
candidate	candidate val_value_t for the config database to use
running	running val_value_t for the config database to use
epc_only	TRUE for edit phase complete only; FALSE for all

Returns: the status of the callback

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_sa_apply_complete_register()

status_t agt_cb_sa_apply_complete_register ( agt_cb_sa_apply_complete_t cbfn )

Register a SIL-SA Apply Complete callback.

This function registers a SIL-SA Apply Complete callback that will be called after the Validation phase has been processed during the <commit>.

Parameters

cbfn	address of SIL-SA callback function to use

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_sa_apply_complete_unregister()

void agt_cb_sa_apply_complete_unregister ( agt_cb_sa_apply_complete_t cbfn )

Unregister a SIL-SA Apply Complete callback.

This function unregisters a SIL-SA Apply Complete callback.

Parameters

cbfn	address of SIL-SA callback function to use

Here is the call graph for this function:

◆ agt_cb_sa_commit_complete_register()

status_t agt_cb_sa_commit_complete_register ( agt_cb_sa_commit_complete_t cbfn )

Register a SIL-SA Commit Complete callback.

This function registers a SIL-SA Commit Complete callback that will be called after the Validation phase has been processed during the <commit>.

Parameters

cbfn	address of SIL-SA callback function to use

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_sa_commit_complete_unregister()

void agt_cb_sa_commit_complete_unregister ( agt_cb_sa_commit_complete_t cbfn )

Unregister a SIL-SA Commit Complete callback.

This function unregisters a SIL-SA Commit Complete callback.

Parameters

cbfn	address of SIL-SA callback function to use

Here is the call graph for this function:

◆ agt_cb_sa_edit_phase_complete_register()

status_t agt_cb_sa_edit_phase_complete_register ( agt_cb_sa_edit_phase_complete_t cbfn )

Register a SIL-SA Edit Phase Complete callback.

This function registers a SIL-SA Edit Phase Complete callback that will be called after each edit transaction phase has been processed during an edit transaction.

Parameters

cbfn	address of SIL-SA callback function to use

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_sa_edit_phase_complete_unregister()

void agt_cb_sa_edit_phase_complete_unregister ( agt_cb_sa_edit_phase_complete_t cbfn )

Unregister a SIL-SA Edit Phase Complete callback.

This function unregisters a SIL-SA Edit Phase Complete callback.

Parameters

cbfn	address of SIL-SA callback function to use

Here is the call graph for this function:

◆ agt_cb_sa_hook_register()

status_t agt_cb_sa_hook_register	(	const xmlChar *	defpath,
		agt_hook_fmt_t	format,
		agt_hook_type_t	type,
		agt_cb_sa_hook_t	cbfn
	)

Register an object specific Hook callback function.

Parameters

defpath	Xpath with default (or no) prefixes defining the object that will get the callback
format	different hook formats dictates specific hook functionality
type	different hook types dictates hook invocation point
cbfn	address of SIL-SA callback function to use

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_sa_hook_unregister()

void agt_cb_sa_hook_unregister ( const xmlChar * defpath )

Unregister a SIL-SA Hook SIL-SA callback.

This function unregisters a Hook callback.

Parameters

defpath Xpath with default (or no) prefixes defining the object that will get the callback

Here is the call graph for this function:

◆ agt_cb_sa_post_sethook_register()

status_t agt_cb_sa_post_sethook_register	(	const xmlChar *	defpath,
		agt_cb_sa_hook_t	cbfn
	)

Register an object specific SIL-SA Post Set Hook callback function.

Parameters

defpath	Xpath with default (or no) prefixes defining the object that will get the callback
cbfn	address of SIL-SA callback function to use

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_sa_post_sethook_unregister()

void agt_cb_sa_post_sethook_unregister ( const xmlChar * defpath )

Unregister a SIL-SA Post Set Hook callback.

Parameters

defpath Xpath with default (or no) prefixes defining the object that will get the callback unregister

Here is the call graph for this function:

◆ agt_cb_sa_rollback_complete_register()

status_t agt_cb_sa_rollback_complete_register ( agt_cb_sa_rollback_complete_t cbfn )

Register a SIL-SA Rollback Complete callback.

This function registers a SIL-SA Rollback Complete callback that will be called after the Validation phase has been processed during the <commit>.

Parameters

cbfn	address of SIL-SA callback function to use

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_sa_rollback_complete_unregister()

void agt_cb_sa_rollback_complete_unregister ( agt_cb_sa_rollback_complete_t cbfn )

Unregister a SIL-SA Rollback Complete callback.

This function unregisters a SIL-SA Rollback Complete callback.

Parameters

cbfn	address of SIL-SA callback function to use

Here is the call graph for this function:

◆ agt_cb_sa_run_commit_completeness_cb()

status_t agt_cb_sa_run_commit_completeness_cb	(	const xmlChar *	transaction_id,
		agt_cbtyp_t	cbtyp,
		agt_commit_type_t	commit_type
	)

Run SIL-SA Commit Completeness callbacks.

This function simply calls each registered corresponsing Commit Completeness callback.

If callback fails the status of the failing callback is returned immediately and no further callbacks are made.

Parameters

transaction_id	transaction ID in progress
cbtyp	callback phase enum
commit_type	commit type; only if phase is Commit

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_sa_run_trans_complete()

void agt_cb_sa_run_trans_complete ( const xmlChar * transaction_id )

This function simply calls agt_sil_transaction_complete_cb, which makes a <server-event> message and sends it to the subsystem.

This is invoked from functions in agt_cfg This API is available only for SIL-SA Subsystem

Parameters

transaction_id tranaction that is completing now

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_sa_trans_complete_register()

status_t agt_cb_sa_trans_complete_register ( agt_cb_sa_trans_complete_t cbfn )

Register a Transaction Complete callback.

This function registers a Transaction Complete callback that will be called after the transactions has been processed. This API is available only for SIL-SA Subsystem

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_sa_trans_complete_unregister()

void agt_cb_sa_trans_complete_unregister ( agt_cb_sa_trans_complete_t cbfn )

Uregister a Transaction Complete callback.

Uregister a Transaction Complete callback. This API is available only for SIL-SA Subsystem

Parameters

cbfn	address of callback function to unregister

Here is the call graph for this function:

◆ agt_cb_sa_trans_start_register()

status_t agt_cb_sa_trans_start_register ( agt_cb_sa_trans_start_t cbfn )

Register a Transaction Start callback.

This function registers a Transaction Start callback that will be called before any changes to the candidate database will be committed when the transaction is getting initialized. This API is available only for SIL-SA Subsystem

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_sa_trans_start_unregister()

void agt_cb_sa_trans_start_unregister ( agt_cb_sa_trans_start_t cbfn )

Uregister a Transaction Start callback.

This function unregisters a Transaction Start callback. This API is available only for SIL-SA Subsystem

Parameters

cbfn	address of callback function to unregister

Here is the call graph for this function:

◆ agt_cb_sa_validate_complete_register()

status_t agt_cb_sa_validate_complete_register ( agt_cb_sa_validate_complete_t cbfn )

Register a SIL-SA Validate Complete callback.

This function registers a SIL-SA Validate Complete callback that will be called after the Validation phase has been processed during the <commit>.

Parameters

cbfn	address of SIL-SA callback function to use

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_sa_validate_complete_unregister()

void agt_cb_sa_validate_complete_unregister ( agt_cb_sa_validate_complete_t cbfn )

Unregister a SIL-SA Validate Complete callback.

This function unregisters a SIL-SA Validate Complete callback.

Parameters

cbfn	address of SIL-SA callback function to use

Here is the call graph for this function:

◆ agt_cb_session_hook_register()

status_t agt_cb_session_hook_register ( agt_cb_session_hook_t cbfn )

Register a Session Hook callback.

Max Callbacks: No limit (except available heap memory)

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_session_hook_unregister()

void agt_cb_session_hook_unregister ( agt_cb_session_hook_t cbfn )

Unregister a Session Hook callback.

This function unregisters a Session Hook callback.

Parameters

cbfn	address of callback function to use

Here is the call graph for this function:

◆ agt_cb_set_sil_priority()

status_t agt_cb_set_sil_priority	(	const xmlChar *	defpath,
		uint8	sil_priority
	)

Set the desired SIL priority with a callback instead of using the YANG extension for this purpose.

Parameters

defpath	Xpath with default (or no) prefixes
sil_priority	= SIL priority value to use (1..255)

Returns: status

Here is the call graph for this function:

◆ agt_cb_shutdown_register()

status_t agt_cb_shutdown_register ( agt_cb_shutdown_t cbfn )

Register a Shutdown callback.

Max Callbacks: No limit (except available heap memory)

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_shutdown_unregister()

void agt_cb_shutdown_unregister ( agt_cb_shutdown_t cbfn )

Unregister a Shutdown callback.

This function unregisters a Shutdown callback.

Parameters

cbfn	address of callback function to use

Here is the call graph for this function:

◆ agt_cb_skip_leafref_validation()

status_t agt_cb_skip_leafref_validation ( const xmlChar * defpath )

Set a previously registered callback as a node that the server should skip leafref validation in order to save processing time.

Parameters

defpath Xpath with default (or no) prefixes

Returns: status

Here is the call graph for this function:

◆ agt_cb_startup_hook_register()

status_t agt_cb_startup_hook_register ( agt_cb_startup_hook_t cbfn )

Register a Startup Hook callback.

This function registers a Startup Hook callback that will be called before any changes to the startup file/database.

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_startup_hook_unregister()

void agt_cb_startup_hook_unregister ( agt_cb_startup_hook_t cbfn )

Unregister a Startup Hook callback.

This function unregisters a Startup Hook callback.

Parameters

cbfn	address of callback function to use

Here is the call graph for this function:

◆ agt_cb_trans_complete_register()

status_t agt_cb_trans_complete_register ( agt_cb_trans_complete_t cbfn )

Register a Transaction Complete callback.

This function registers a Transaction Complete callback that will be called after the transactions has been processed.

Parameters

cbfn	address of callback function to use

Returns: the status of the operation

Here is the call graph for this function:

◆ agt_cb_trans_complete_unregister()

void agt_cb_trans_complete_unregister ( agt_cb_trans_complete_t cbfn )

Unregister a Transaction Complete callback.

This function unregisters a Transaction Complete callback.

Parameters

cbfn	address of callback function to unregister

Here is the call graph for this function:

◆ agt_cb_trans_start_register()

status_t agt_cb_trans_start_register ( agt_cb_trans_start_t cbfn )

Register a Transaction Start callback.

This function registers a Transaction Start callback that will be called before any changes to the candidate database will be committed when the transaction is getting initialized.

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_trans_start_unregister()

void agt_cb_trans_start_unregister ( agt_cb_trans_start_t cbfn )

Unregister a Transaction Start callback.

This function unregisters a Transaction Start callback.

Parameters

cbfn	address of callback function to use

Here is the call graph for this function:

◆ agt_cb_unload_module()

void agt_cb_unload_module ( const xmlChar * modname )

Remove the modhdr for the specified module since it is being unloaded from the server or subsystem.

Parameters

modname module name to remove

Here is the call graph for this function:

◆ agt_cb_unregister_callbacks()

void agt_cb_unregister_callbacks	(	const xmlChar *	modname,
		const xmlChar *	defpath
	)

Unregister all EDIT callback functions for a specific object.

Parameters

modname	module containing the object for this callback
defpath	definition XPath location

Here is the call graph for this function:

Here is the caller graph for this function:

◆ agt_cb_unregister_subsys_callback()

void agt_cb_unregister_subsys_callback	(	const xmlChar *	subsys_id,
		const xmlChar *	modname,
		const xmlChar *	defpath,
		const xmlChar *	revision
	)

Unregister remote subsystem callback for a specific object.

Parameters

subsys_id	subsystem identifier
modname	module containing the object for this callback
defpath	definition XPath location
revision	revision identifier for the 'modname' module

Here is the call graph for this function:

◆ agt_cb_validate_complete_register()

status_t agt_cb_validate_complete_register ( agt_cb_validate_complete_t cbfn )

Register a Validate Complete callback.

This function registers a Validate Complete callback that will be called after the Validation phase has been processed during the <commit>.

Parameters

cbfn	address of callback function to use

Returns: the status of the operation.

Here is the call graph for this function:

◆ agt_cb_validate_complete_unregister()

void agt_cb_validate_complete_unregister ( agt_cb_validate_complete_t cbfn )

Unregister a Validate Complete callback.

This function unregisters a Validate Complete callback.

Parameters

cbfn	address of callback function to use

Here is the call graph for this function:
